HM2P07PKE3C0GFLF: DescriptionBoard Connector, 34 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE; CategoryThe connector The connector; File Size119KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

HM2P07PKE3C0GFLF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	HM2P07PKE3C0GFLF	-	-	View	Buy Now

HM2P07PKE3C0GFLF Overview

Board Connector, 34 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE

HM2P07PKE3C0GFLF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amphenol
Objectid	2131644275
package instruction	LEAD FREE
Reach Compliance Code	compliant
Factory Lead Time	7 weeks
compound_id	63717554
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	5
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	34
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

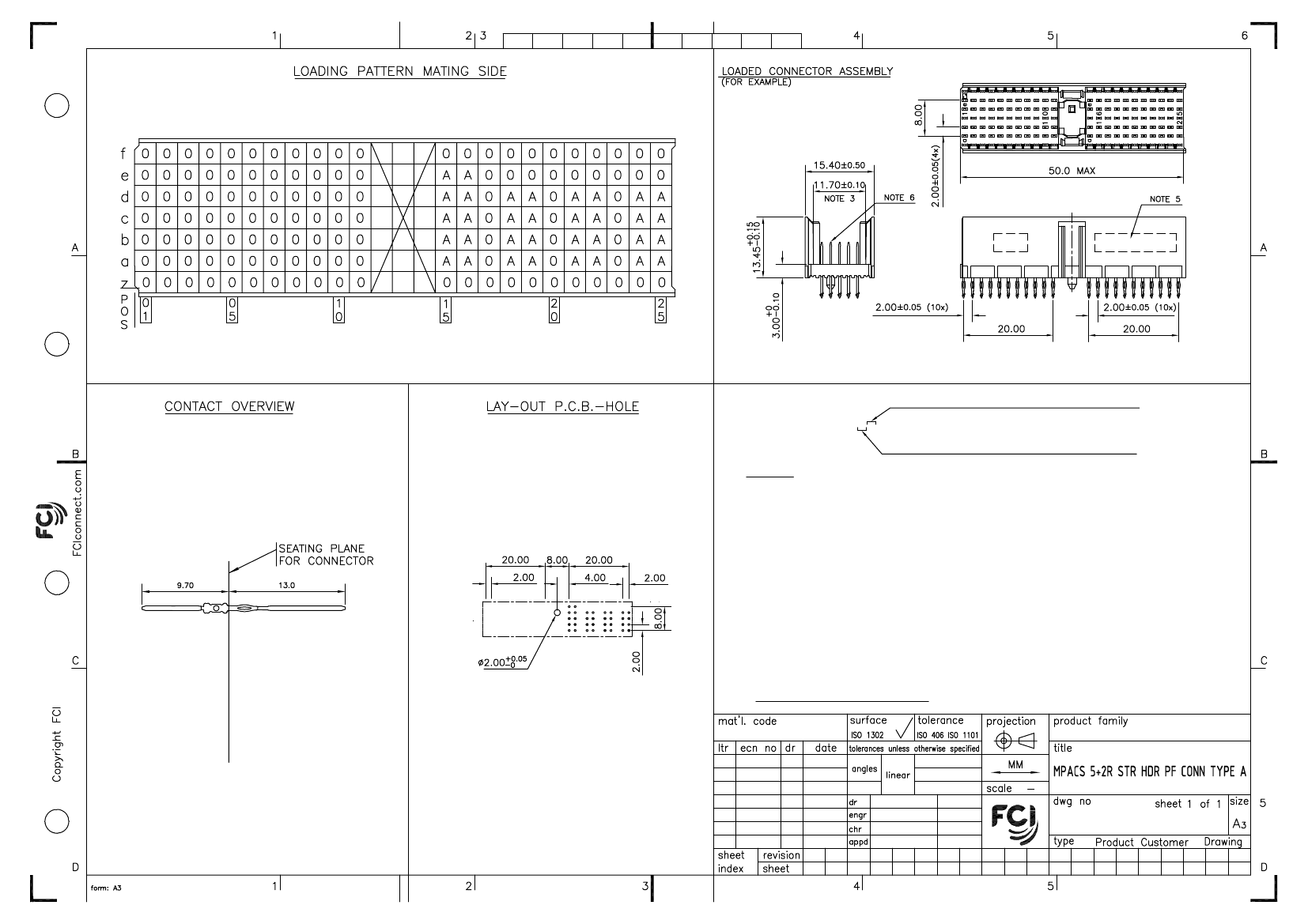

HM2P07PKE3C0----

NOTES

LEAD FREE INDICATOR : LF = LEAD FREE

(DIGIT 15 & 16)

PLATING CODE (DIGIT 13 AND 14)

(REF DRW NO. BS,C , 201844 , 003)

1. THIS PRODUCT IS CSA APPROVED.

2. THIS PRODUCT IS UL RECOGNIZED.

3. MEASURED AT THE BOTTOM.

4. MATERIAL CONTACT: PHOSPHORBRONZE

HOUSING: CREAM WHITE GLASS FILLED POLYESTER UL-94V0

5. CONNECTOR PRINTED WITH P/N AND DATE CODE.

6. FOR ACTUAL CONTACT LOADINGS, SEE LOADING PATTERN MATING SIDE.

A

7. SHAPE OF CONNECTOR HOUSING CAN ALTER DEPENDING ON

PRODUCTION LOCATION

8. THE PRODUCT (LF) MEETS EUROPEAN UNION DIRECTIVES AND OTHER COUNTRY

REGULATIONS AS DESCRIBED IN GS-22-008

9. FOR RECOMMENDED PTH DIMENSIONS REFER DRAWING : BS, A , 201572 , 001

CATALOG NO: HM2P07PKE3C0----

SEE NOTE 4

A

B

C

I04-0038

I05-0188

I06-0090

MINI

2004/05/18

2005/10/13

0°±1°

MINI K VANDANATH 2004/05/18

BIJU K PAUL

C

1

2004/05/18

2006/06/27

.0±0.2

.00±0.1

MILLIPACS

MINI 2006/06/27

BS, C ,203028, 135

6

PDM: Rev:C

STATUS:

Released

Printed: Dec 03, 2007

.
