MGBC-20-6-X-X Optical Fibre Channel
Gigabit Interface Converter (GBIC)
Features
®
ORDERING INFORMATION
MGBC - 20 - 6 - X - X
SERIAL IDENTIFICATION OPTION
Blank
- No Serial ID
S
- Serial ID
WAVELENGTH
1
- 850nm ( multimode )
2
- 1300nm (single mode) 5km
2M
- 1300nm (single mode) 10km
2L
- 1300nm (single mode) 20km
COMMUNICATIONS PROTOCOL
6
- Fibre Channel 1.0625 GBaud
4
- Gigabit Ethernet 1.25 GBaud
n
Compliant with Gigabit Interface Converter
(GBIC) specification
n
Compliant With ANSI X3T11 Fibre Channel specification
for optical links
n
75Ω AC coupled PECL termination lines
n
Hot pluggable
n
Single +5V Power Supply
n
Supports Serial ID functionality
PRODUCT OVERVIEW
The MGBC-20-6 GBIC transceiver module is a high
performance integrated duplex data link for bi-directional
communication over single mode or multimode optical
fiber. It is compliant with the Gigabit Interface Converter
(GBIC) specification. The MGBC-20 is specifically
designed for high speed Fibre Channel data links at
1.0625 Gbps. The Methode GBIC transceiver is hot
pluggable which allows a suitably designed enclosure to
be changed from one type of external interface to another
simply by plugging in a GBIC having the alternative
external interface.
SHORT WAVELENGTH LASER
The use of short wavelength lasers and high volume
production processes has resulted in a low cost, high
performance datalink which communicates reliably at
distances of 500 m over 50µm multimode optical fiber
with data transfer rates of 1.0625 GBaud.
LONG WAVELENGTH LASER
For intermediate and long reach data links, the
MGBC-20-6 with single mode optics can extend the
interconnect distance in excess of 20km.
Optoelectronic Products
7444 W. Wilson Ave • Chicago • IL 60656
708/867-9600 • 800/323-6858 • Fax: 708/867-0996
email: optoinfo@methode.com
http://www.methode.com
MODULE SPECIFICATIONS - ABSOLUTE MAXIMUM RATINGS
PARAMETER
Storage Temperature
Supply Voltage
Data AC Voltage
Data DC Voltage
SYMBOL
Tstg
V
DD
T, V
DD
R
Tx+, Tx-
Tx+, Tx-
MIN
-40
MAX
85
6.00
2.6
10
UNITS
°C
V
V pp
V pk
NOTES
V
DD
- ground
Differential
V (Tx+ or Tx-) - ground
-10
MODULE SPECIFICATION - RECOMMENDED OPERATING CONDITIONS
PARAMETER
Ambient Operating Temperature
Supply Voltage
Baud Rate
SYMBOL
Ta
V
DD
T, V
DD
R
BRate
MIN
0
4.75
TYP
5.00
1062.5
MAX
70
5.25
UNITS
°C
VD C
MBaud
NOTES
9363.01
MGBC-20-6-X-X Optical Fibre Channel
Gigabit Interface Converters (GBIC)
PERFORMANCE SPECIFICATIONS - ELECTRICAL
PAR AMETER
Bi t Error Rate
Supply C urrent
Surge C urrent
TR AN SMITTER
PEC L Input (D i fferenti al)
Input Impedance (D i fferenti al)
Tx_D ISABLE Input Voltage - Hi gh
Tx_D ISABLE Input Voltage - Low
Tx_FAULT output voltage -- hi gh
Tx_FAULT output voltage -- low
R EC EIVER
PEC L Output (D i fferenti al)
Output Impedance (D i fferenti al)
Rx_LOS Output Voltage - Hi gh
Rx_LOS Output Voltage - Low
Total Ji tter [ Pk - Pk ]
Output Ri se/Fall ti me
MOD _D EF ( 0:2 )
Zout
VroH
VroL
TJ
tr,tf
VoH
VoL
NC
100
2.5
0
100K
0.5
400
135
Vcc-0.5
0
750
150
1600
165
Vcc+0.3
0.5
170
350
mVpp
ohms
V
V
ps
ps
V
V
ohms
lo = 400µA; Note 2
lo = -4.0mA
See Note 1
20% - 80%
Wi th Seri al ID
Measured to RGND /TGND
AC coupled outputs
Zi n
Vi H
Vi L
VtoH
VtoL
350
135
2
0
Vcc-0.5
0
720
150
2000
165
V
DD
T+0.3
0.8
Vcc+0.3
0.5
mVpp
ohms
V
V
V
V
Io = 400µA; Note 2
Io = -4.0mA
AC coupled i nputs
Ri n > 100 kohms @ D C
SYMB OL
BER
lcc
lcc
Isurge
180
MIN
TYP
MAX
1E-12
250
300
+30
mA
mA
mA
U N ITS
N OTES
Errors/Bi t @ Pr mi n
Ta = 25°C , Vcc = 5.0 V
®
Ta = 25° C, Vcc = 5.0 V
0° C <Ta< 70°C , 4.5 V< Vcc <5.5V
Surge above steady state value
PERFORMANCE SPECIFICATIONS - OPTICAL 850 nm Laser Multimode
Ta = 25° C, Vcc = 5.0 V
PARAMETER
FIBER LENGTH
50
µ
m Core Diameter MMF
62.5
µ
m Core Diameter MMF(note 3)
TRANSMITTER
Optical Transmit Power
Disabled Power level
Optical Center
Spectral Width
Extinction Ratio
Relative Intensity Noise
Total Jitter [ pk - pk]
Output Rise, Fall Time
RECEIVER
Optical Input
Optical Input Power
Optical Return Loss
RX_LOS- Asserted
RX_LOS - Deasserted
RX_LOS - Hysteresis
SYMBOL
MIN
550
300
3
TYP
1000
500
MAX
UNITS
m
m
NOTES
BER < 1.0E-12 @ 1.0625 GBaud
BER < 1.0E-12 @ 1.0625 GBaud
average @ 850 nm
TX_DISABLE active
RMS
P1/P0
See note 1
20% - 80%
P opt
Poff
λ
∆λ
ER
RIN
TJ
t
R
, t
F
λ
Pr
ORL
Pa
Pd
Pa - Pd
-10
830
9
850
10
-4
-35
860
3
-116
210
350
dB m
dB m
nm
nm
dB
dB/Hz
ps
ps
nm
dB m
dB
dB m
dB m
dB
770
-16
12
-29
-20
30
860
0
BER < 1.0E-12
measured on transition - low to high
measured on transition - high to low
1.5
-16
5.0
Note1 - Measured with 2
7
-1 pseudorandom bit sequence.
Note2 - Host Vcc
Note3 - 300m minimum distance on 160MHz-Km 62.5/125µm fiber
9363.01
MGBC-20-6-X-X Optical Fibre Channel
Gigabit Interface Converter (GBIC)
MGBC-20-6-2 PERFORMANCE SPECIFICATIONS - OPTICAL 1300 nm Laser Single Mode
®
Ta=25°C, Vcc=5V
PARAMETER
FIBER LENGTH
9.0
µ
m Core Diameter SMF
TRANSMITTER
Optical Center
Extinction Ratio
Disabled Power level
RMS Spectral Width
Optical Transmit Power
RECEIVER
Optical Input Power
RX_LOS - Asserted
RX_LOS - Deasserted
RX_LOS - hysteresis
SYMBOL
MIN
5
TYP
10
1310
10
MAX
UNITS
km
NOTES
BER < 1.0E-12 @ 1.0625 GBaud
λ
ER
Poff
∆λ
P opt
Pr
Pa
Pd
Pa-Pd
1270
9
1355
-35
4
nm
dB
dB m
nm
dB m
dB m
dB m
dB m
dB
P1/P0
TX_DISABLE active
RMS
average @ 1310 nm
average power for BER < 1.0E-12
Measured on transition - low to high
Measured on transition - high to low
-12
-20
-29
1.5
-3
-3
-20
5.0
MGBC-20-6-2M PERFORMANCE SPECIFICATIONS - OPTICAL 1300 nm Laser Single Mode
PARAMETER
FIBER LENGTH
9.0
µ
m Core Diameter SMF
TRANSMITTER
Optical Center
Extinction Ratio
Disabled Power level
RMS Spectral Width
Optical Transmit Power
RECEIVER
Optical Input Power
RX_LOS - Asserted
RX_LOS - Deasserted
RX_LOS - Hysteresis
SYMBOL
MIN
10
λ
ER
Poff
∆λ
P opt
Pr
Pa
Pd
Pa-Pd
-9.5
-20
-29
1.5
1285
9
TYP
20
1310
10
-35
3
-3
-3
-20
5.0
1335
MAX
UNITS
km
nm
dB
dB m
nm
dB m
dB m
dB m
dB m
dB
P1/P0
TX_DISABLE active
RMS
average @ 1310 nm
NOTES
Ta=25°C, Vcc=5V
BER < 1.0E-12 @ 1.0625 GBaud
average power for BER < 1.0E-12
Measured on transition - low to high
Measured on transition - high to low
MGBC-20-6-2L PERFORMANCE SPECIFICATIONS - OPTICAL 1300 nm Laser Single Mode
Ta=25°C, Vcc=5V
PARAMETER
FIBER LENGTH
9.0 mm Core Diameter SMF
TRANSMITTER
Optical Center
Extinction Ratio
Disabled Power level
RMS Spectral Width
Optical Transmit Power
RECEIVER
Optical Input Power
RX_LOS - Asserted
RX_LOS - Deasserted
RX_LOS - Hysteresis
SYMBOL
MIN
20
TYP
25
1310
10
MAX
UNITS
km
NOTES
BER < 1.0E-12 @ 1.0625 GBaud
λ
ER
Poff
∆λ
P opt
Pr
Pa
Pd
Pa-Pd
1300
9
1320
-35
2
nm
dB
dB m
nm
dB m
dB m
dB m
dB m
dB
P1/P0
TX_DISABLE active
RMS
average @ 1310 nm
average power for BER < 1.0E-12
Measured on transition - low to high
Measured on transition - high to low
-7
-22
-29
1.5
-3
-3
-22
5.0
9363.01
MGBC-20-6-X-X Optical Fibre Channel
Gigabit Interface Converters (GBIC)
®
TERMINATION CIRCUITS
Inputs to the MGBC-20 transmitter are AC coupled and internally terminated through 75 ohms to AC ground. These
modules can operate with PECL or ECL logic levels. The input signal must have at least a 325mV peak-to-peak (single
ended) signal swing. Output from the receiver section of the module is also AC coupled and is expected to drive into a
75 ohm load. Different termination strategies may be required depending on the particular Serializer/Deserializer chip
set used.
The MGBC-20 product family is designed with AC coupled data inputs and outputs to provide the
following advantages:
n
Close positioning of SERDES with respect to transceiver; allows for shorter line lengths and at
gigabit speeds reduces EMI.
n
Minimum number of external components.
n
Internal termination reduces the potential for unterminated stubs which would otherwise increase
jitter and reduce transmission margin.
Subsequently, this affords the customer the ability to optimally locate the SERDES as close to the MGBC-20 as
possible and save valuable real estate. At gigabit rates this can provide a significant advantage resulting in better
transmission performance and accordingly better signal integrity.
Figure 1 illustrates the recommended transmit and receive data line terminations.
FIGURE 1: Example of termination circuits for Drivers and Receivers in the host and the GBIC
9363.01
MGBC-20-6-X-X Optical Fibre Channel
Gigabit Interface Converter (GBIC)
POWER COUPLING
®

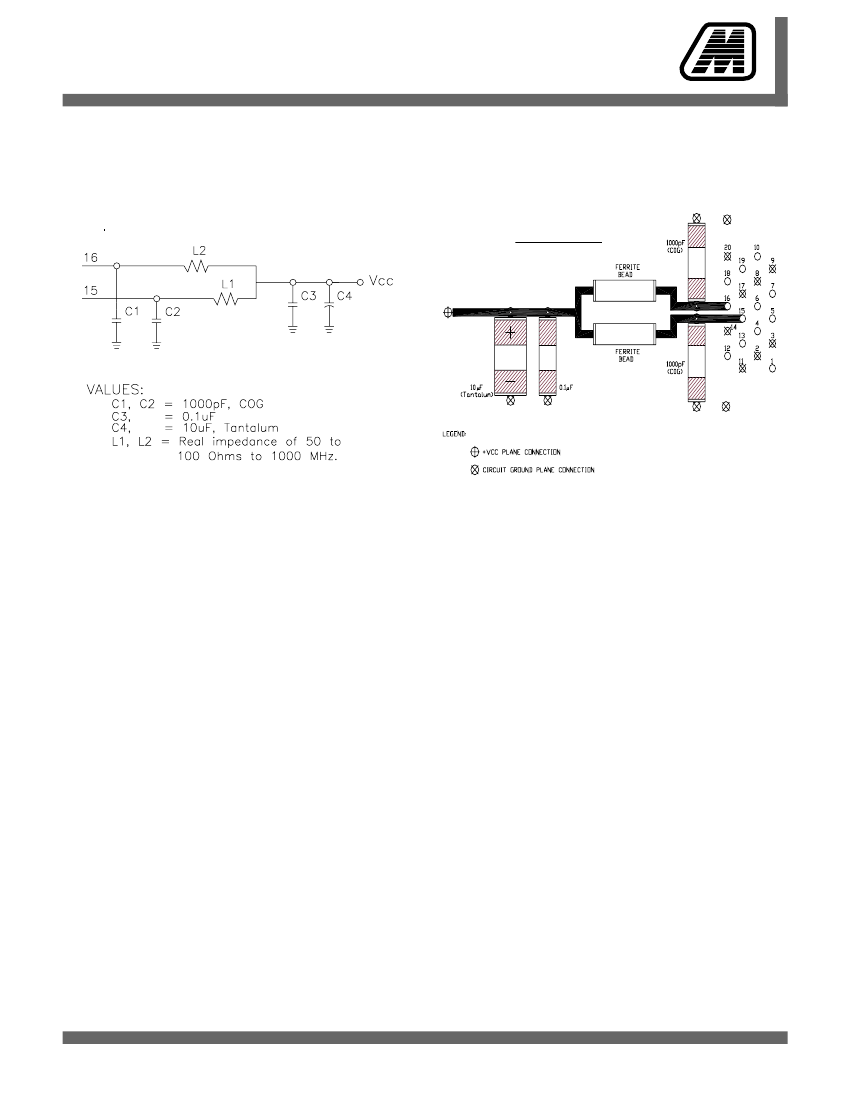

A suggested layout for power and ground connections is given in figure 2A below. Connections are made via separate voltage
and ground planes. The mounting posts are at case ground and should not be connected to circuit ground. The ferrite bead
should provide a real impedance of 50 to 100 ohms at 100 to 1000 MHz. Bypass capacitors should be placed as close to the
20 pin connector as possible.
BOTTOM VIEW
+
Figure 2A. Suggested Power Coupling
Figure 2B. Suggested Power Coupling
SIGNAL DESCRIPTION:
TX_FAULT:
Active high signal. A TX_FAULT is defined as the failure of the optical output of the GBIC and it is internally latched.
On the rising edge of the TX_DISABLE, the latched laser fault will be cleared and TX_FAULT will remain deasserted while
TX_DISABLE is asserted. The host shall provide a 4.7K to 10K Ohm pull up resistor to Vcc. The TX_FAULT will also be as-
serted but not latched if the Vcc falls below the lower Vcc limit.
TX_DISABLE
:
Active high logic input which disables the optical output. This signal is driven by the host. While asserted, the
GBIC module disables all laser light output. This pin is internally pulled up to Vcc through a 10K Ohm resistor for short wave-
length and a 4.7K Ohm resistor for long wavelength. The TX_DISABLE must be pulled low or connected to circuit ground by the
host to enable the GBIC output.
RX_LOS
:
The RX_LOS signal is intended as a preliminary indication to the system in which the GBIC is installed that the link
signals are likely to be outside the required values for proper operation. Such indications typically point to non-installed cables,
broken cables, or a disabled, failing or powered off transmitter at the far end of the cable. Additional indications are provided by
the system in which the GBIC is installed to verify that the information being transmitted is valid, correctly encoded and in the
correct format. Such additional indications are outside the scope of the GBIC specification. RX_LOS will also be asserted if the
Vcc falls below the lower Vcc limit. The host shall provide a 4.7k to 10k Ohm pullup resistor to Vcc.
RGND
Receiver ground. It is internally connected to TGND plane.
TGND
Transmitter ground. It is internally connected to RGND plane.
±RX_DAT
High speed serial differential PECL receiver data.
±TX_DAT
High speed serial differential PECl transmit data.
