Data sheet | Item number: 859-722
Optocoupler module
www.wago.com/859-722

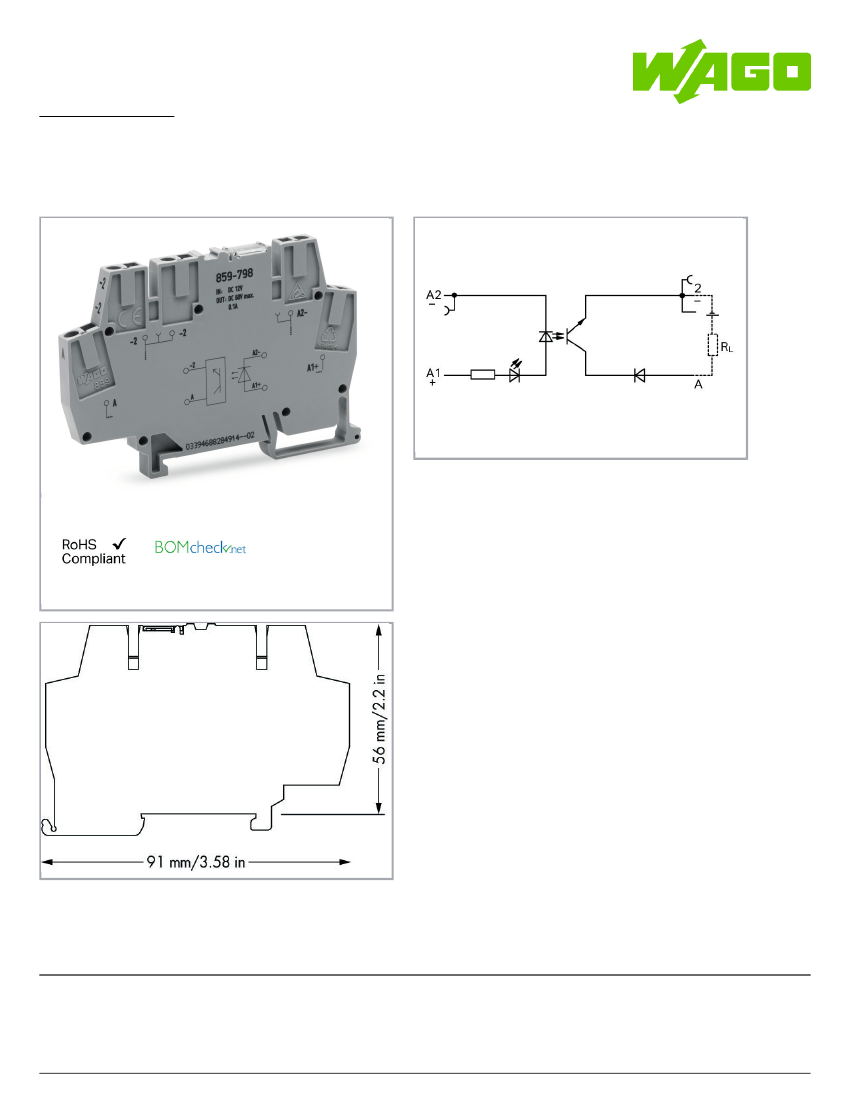

Similiar to picture
Item description
Note:
Subject to changes. Please also observe the further product documentation!
WAGO Kontakttechnik GmbH & Co. KG
Hansastr. 27
32423 Minden
Phone: +49571 887-0 | Fax: +49571 887-169
Email: info.de@wago.com | Web: www.wago.com
Do you have any questions about our products?
We are always happy to take your call at +49 (571) 887-44222.
22.04.2020 Page 1/5
Data sheet | Item number: 859-722
www.wago.com/859-722
Note:
Optocouplers and solid state relays are designed for use in signal processing networks, which are not supplied by the low-voltage power supply
networks.
Data
Technical Data
Control circuit
Nominal input voltage U
N
Input voltage range (low level)
Input voltage range (high level)
Nominal input current at U
N
DC 110 V
DC 0 … 20 V
DC 77 … 137.5 V
2.7 mA
Load circuit:
Circuit type
Limiting continuous current
Nominal output voltage
Output voltage range
Max. voltage drop at output
Leakage current at nominal voltage
Turn-on time
Drop-out time
Switching frequency
2-conductor termination
0.05 A
DC 24 V
DC 12 … 30 V
≤ DC 2 V
≤ 25 µA
≤ 20 µs
≤ 120 µs
≤ 1.5 kHz
Signaling
Status indication
LED red
Safety and protection:
Dielectric strength, control/load circuit (AC, 1 min)
2.5 kVrms
Connection data
Connection technology
Solid conductor
Fine-stranded conductor
Strip length
CAGE CLAMP
®
0.08 … 2.5 mm² / 28 … 14 AWG
0.08 … 2.5 mm² / 28 … 14 AWG
5 … 6 mm / 0.2 … 0.24 inch
Subject to changes. Please also observe the further product documentation!
WAGO Kontakttechnik GmbH & Co. KG
Hansastr. 27
32423 Minden
Phone: +49571 887-0 | Fax: +49571 887-169
Email: info.de@wago.com | Web: www.wago.com
Do you have any questions about our products?
We are always happy to take your call at +49 (571) 887-44222.
22.04.2020 Page 2/5
Data sheet | Item number: 859-722
www.wago.com/859-722
Geometrical Data
Width
Height from upper-edge of DIN-35 rail
Depth
6 mm / 0.236 inch
56 mm / 2.205 inch
91 mm / 3.583 inch
Mechanical data
Type of mounting
DIN-35 rail
Material Data
Fire load
Weight
0.313
MJ
18.5
g
Environmental Requirements
Surrounding air (operating) temperature at U
N
Surrounding air (storage) temperature
Processing temperature
-40 … 70 °C
-40 … 70 °C
-25 … +50 °C
Commercial data
Product Group
Packaging type
Country of origin
GTIN
Customs Tariff No.
6 (Interface Electronics)
BOX
DE
4055143604864
85365005000
Counterpart
Downloads
Documentation
Bid Text
859-722
GAEB X81 - Datei
859-722
GAEB docx - Datei
Subject to changes. Please also observe the further product documentation!
WAGO Kontakttechnik GmbH & Co. KG
Hansastr. 27
32423 Minden
Phone: +49571 887-0 | Fax: +49571 887-169
Email: info.de@wago.com | Web: www.wago.com
Dec 6, 2019
xml
4.1 kB
docx
13.9 kB
Download
Dec 6, 2019
Download
Do you have any questions about our products?
We are always happy to take your call at +49 (571) 887-44222.
22.04.2020 Page 3/5
Data sheet | Item number: 859-722
www.wago.com/859-722
Instruction Leaflet
Relay modules, Optocoupler modules
V 1.2.0
Aug 30, 2019
pdf
2.2 MB
Download
Additional Information
Disposal; Electrical and electronic equipment, Packaging
V 1.0.0
pdf
265.8 kB
Download
CAD/CAE-Data
CAE data
EPLAN Data Portal 859-722
WSCAD Universe 859-722
URL
URL
Download
Download
Installation Notes

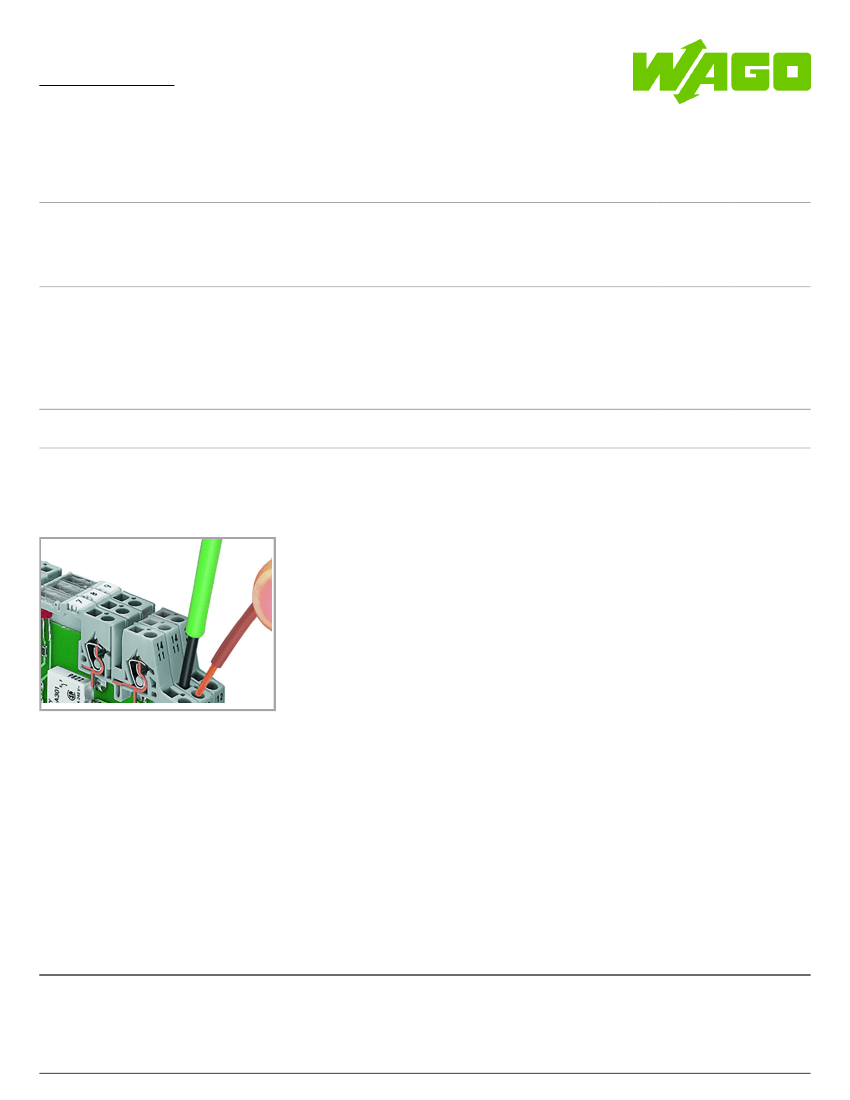

Inserting a conductor
Connection of conductor
Jumpered
Subject to changes. Please also observe the further product documentation!
WAGO Kontakttechnik GmbH & Co. KG
Hansastr. 27
32423 Minden
Phone: +49571 887-0 | Fax: +49571 887-169
Email: info.de@wago.com | Web: www.wago.com
Do you have any questions about our products?
We are always happy to take your call at +49 (571) 887-44222.
22.04.2020 Page 4/5
Data sheet | Item number: 859-722
www.wago.com/859-722

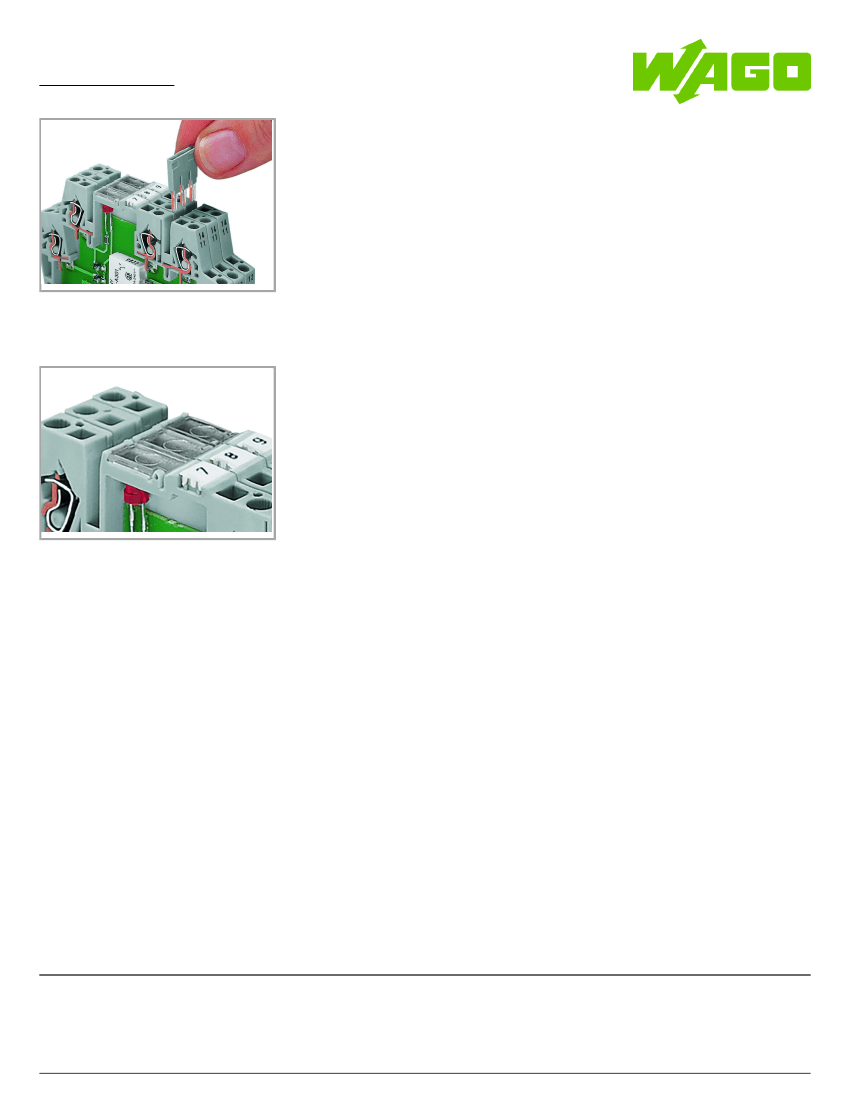

Easy commoning using adjacent jumpers
