RL-8600-221: DescriptionGeneral Purpose Inductor, 220uH, 20%, 1 Element, Ferrite-Core, SMD, ROHS COMPLIANT; CategoryPassive components inductor; File Size112KB，3 Pages; ManufacturerRenco Electronics Inc.; Environmental Compliance

Download Datasheet Parametric Compare View All

RL-8600-221 Overview

General Purpose Inductor, 220uH, 20%, 1 Element, Ferrite-Core, SMD, ROHS COMPLIANT

RL-8600-221 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Renco Electronics Inc.
Reach Compliance Code	compliant
ECCN code	EAR99
core material	FERRITE
DC Resistance	0.28 Ω
Nominal inductance(L)	220 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Manufacturer's serial number	RL-8600
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal surface	Tin (Sn)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	20%

Preview

Download Datasheet

View All

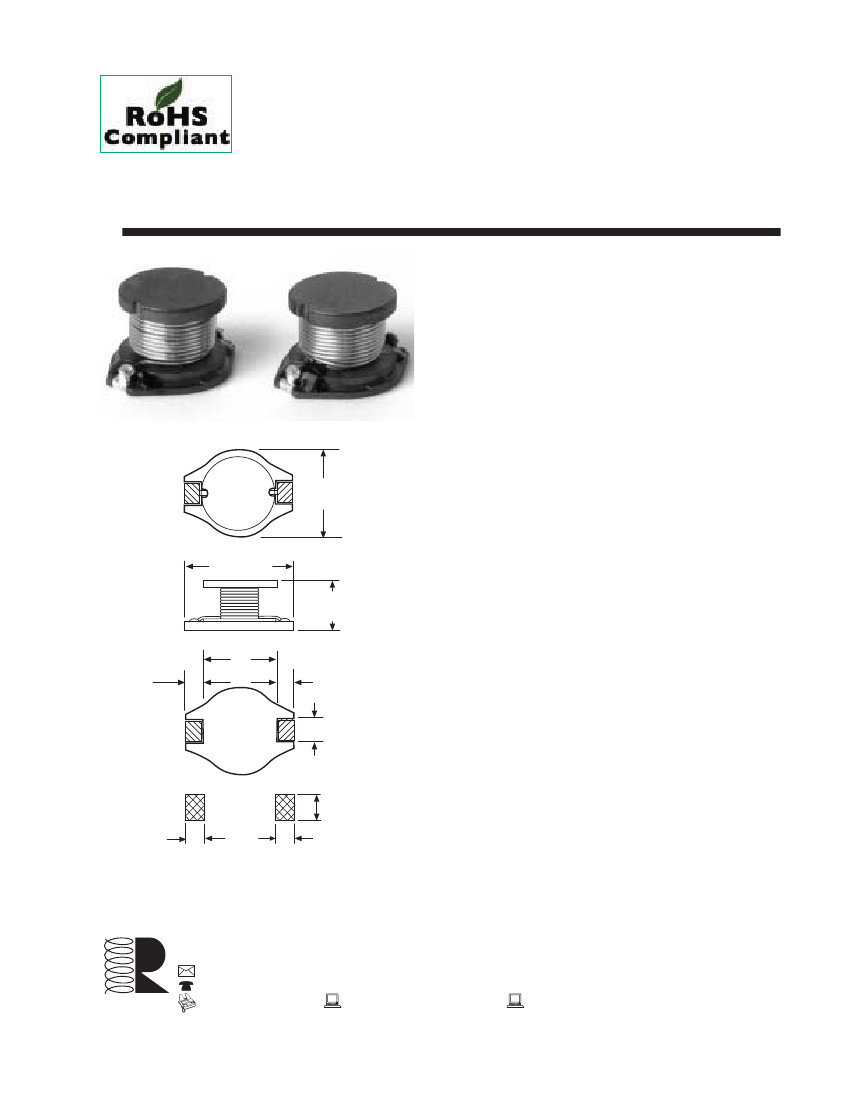

RL-8600

SMD HIGH ENERGY

POWER INDUCTOR

The RL-8600 series is one of the highest power, pick and

placeable, surface mount power inductors on the market.

This robust package offers high energy density in a small

foot print. If you have the height, you’ve got the power!

This series offers 15 industry standard inductance values

up to 10mH and current capabilities above 5 Amps.

APPLICATIONS

This series is ideal for LED Drivers and DC – DC

Converters used in Laptop computers, PDA’s, step-up

and step down converters, and other electronic equip-

ment.

FEATURES

0.59±0.011

(15mm±0.3)

•

Low Cost

High Energy Storage

High Inductance

High Current Capacity in Small Footprint

0.724±0.011

(18.4mm±0.3)

0.452 MAX.

(11.5mm MAX.)

0.523±0.011

(13.3mm±0.3)

0.094±0.008

(2.4mm±0.2)

MATERIALS CONSTRUCTION

a) Core: Ferrite DR

b) Wire: Enameled Copper Wire

c) Base: LCP

d) Adhesive: Epoxy Resin

e) Terminal: Tinned Copper Plate

0.094±0.008

(2.4mm±0.2)

0.086±0.008

(2.2mm±0.2)

GENERAL SPECIFICATIONS

• Irms: Based on an approximate 40°C Temperature Rise

• Complete Winding to Core isolation

• All test data is referenced at 25°C

• Operating Temperature: -55°C to 125°C

• Saturation current (Isat) will cause Lo to drop

approximately 10% or less

• The component temperature (ambient + temp. rise)

should not exceed 125°C under worst case operating

conditions.

• Resistance to Solder Heat: 260°C for 10s

• RoHs Compliant

0.110

(2.8)

REF.

0.118

(3)

REF.

0.118

(3)

REF

PCB PATTERN

0.5

(12.7)

TAPE AND REEL PACKING

Pieces per Reel

200

Plastic Reel Size

13”

ALL DIMENSIONS IN INCHES (mm)

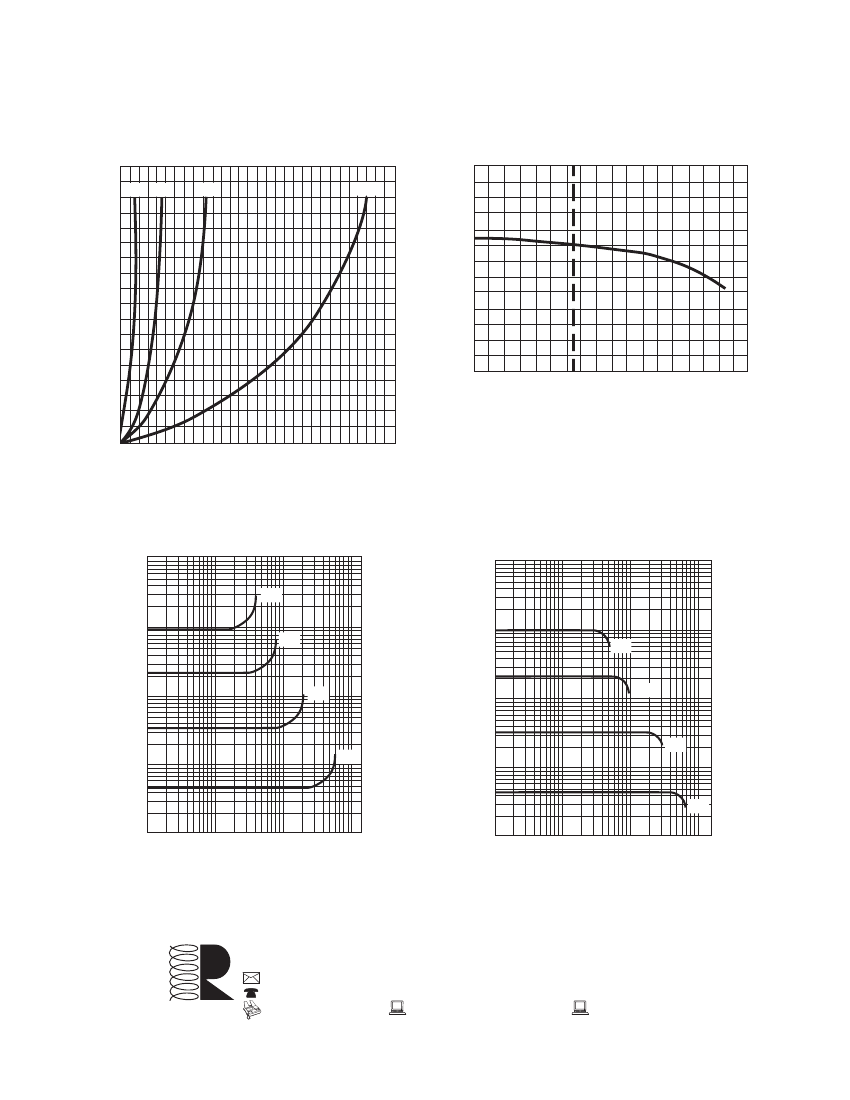

RENCO ELECTRONICS, INC.

595 International Place, Rockledge, FL 32955-4200 USA

(321) 637-1000 • Toll Free Engineering Hot line 800-645-5828

SINCE 1955

Fax: (321) 637-1600

Web Site:www.rencousa.com

E-mail:sales@rencousa.com

RL-8600-221 Related Products

	RL-8600-221	RL-8600-152	RL-8600-680	RL-8600-470	RL-8600-151	RL-8600-471	RL-8600-103	RL-8600-682	RL-8600-331	RL-8600-222
Description	General Purpose Inductor, 220uH, 20%, 1 Element, Ferrite-Core, SMD, ROHS COMPLIANT	General Purpose Inductor, 1500uH, 20%, 1 Element, Ferrite-Core, SMD, ROHS COMPLIANT	General Purpose Inductor, 68uH, 20%, 1 Element, Ferrite-Core, SMD, ROHS COMPLIANT	General Purpose Inductor, 47uH, 20%, 1 Element, Ferrite-Core, SMD, ROHS COMPLIANT	General Purpose Inductor, 150uH, 20%, 1 Element, Ferrite-Core, SMD, ROHS COMPLIANT	General Purpose Inductor, 470uH, 20%, 1 Element, Ferrite-Core, SMD, ROHS COMPLIANT	General Purpose Inductor, 10000uH, 20%, 1 Element, Ferrite-Core, SMD, ROHS COMPLIANT	General Purpose Inductor, 6800uH, 20%, 1 Element, Ferrite-Core, SMD, ROHS COMPLIANT	General Purpose Inductor, 330uH, 20%, 1 Element, Ferrite-Core, SMD, ROHS COMPLIANT	General Purpose Inductor, 2200uH, 20%, 1 Element, Ferrite-Core, SMD, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Renco Electronics Inc.	Renco Electronics Inc.	Renco Electronics Inc.	Renco Electronics Inc.	Renco Electronics Inc.	Renco Electronics Inc.	Renco Electronics Inc.	Renco Electronics Inc.	Renco Electronics Inc.	Renco Electronics Inc.
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
core material	FERRITE	FERRITE	FERRITE	FERRITE	FERRITE	FERRITE	FERRITE	FERRITE	FERRITE	FERRITE
DC Resistance	0.28 Ω	1.6 Ω	0.075 Ω	0.055 Ω	0.19 Ω	0.51 Ω	11 Ω	7.7 Ω	0.37 Ω	2.3 Ω
Nominal inductance(L)	220 µH	1500 µH	68 µH	47 µH	150 µH	470 µH	10000 µH	6800 µH	330 µH	2200 µH
Inductor Applications	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3	e3	e3
Number of functions	1	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
Terminal surface	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)
Terminal location	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
Test frequency	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz
Tolerance	20%	20%	20%	20%	20%	20%	20%	20%	20%	20%
Manufacturer's serial number	RL-8600	RL-8600	RL-8600	RL-8600	RL-8600	RL-8600	RL-8600	RL-8600	-	-
