Z86C9008FEC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> Z86C9008FEC

Z86C9008FEC: DescriptionMicrocontroller, 8-Bit, Z8 CPU, 8MHz, CMOS, PQFP44, QFP-44; CategoryThe embedded processor and controller Microcontrollers and processors; File Size1MB，62 Pages; ManufacturerZilog, Inc.; Websitehttps://www.zilog.com/

Download Datasheet Parametric Compare View All

Z86C9008FEC Overview

Microcontroller, 8-Bit, Z8 CPU, 8MHz, CMOS, PQFP44, QFP-44

Z86C9008FEC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Zilog, Inc.
Parts packaging code	QFP
package instruction	QFP-44
Contacts	44
Reach Compliance Code	unknown
Has ADC	NO
Address bus width	16
bit size	8
boundary scan	NO
CPU series	Z8
maximum clock frequency	8 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	S-PQFP-G44
JESD-609 code	e0
length	10 mm
low power mode	YES
Number of DMA channels
Number of external interrupt devices	4
Number of I/O lines	32
Number of serial I/Os
Number of terminals	44
Number of timers	2
On-chip data RAM width	8
On-chip program ROM width
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Encapsulate equivalent code	QFP44,.57SQ,32
Package shape	SQUARE
Package form	FLATPACK
power supply	3/5 V
Certification status	Not Qualified
RAM (bytes)	236
RAM (number of words)	256
rom(word)	0
Maximum seat height	2.5 mm
speed	8 MHz
Maximum slew rate	15 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	3 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
width	10 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

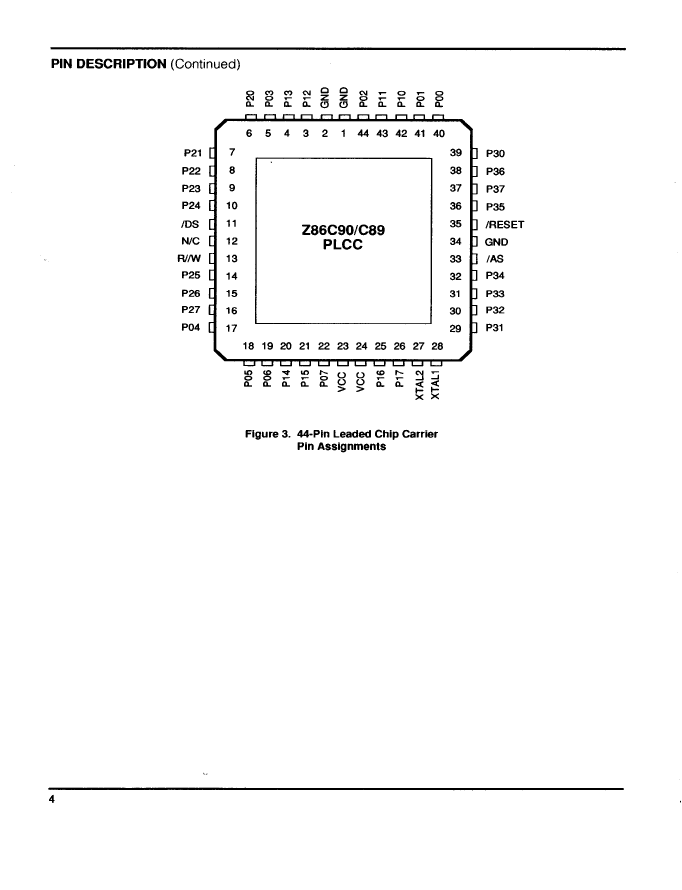

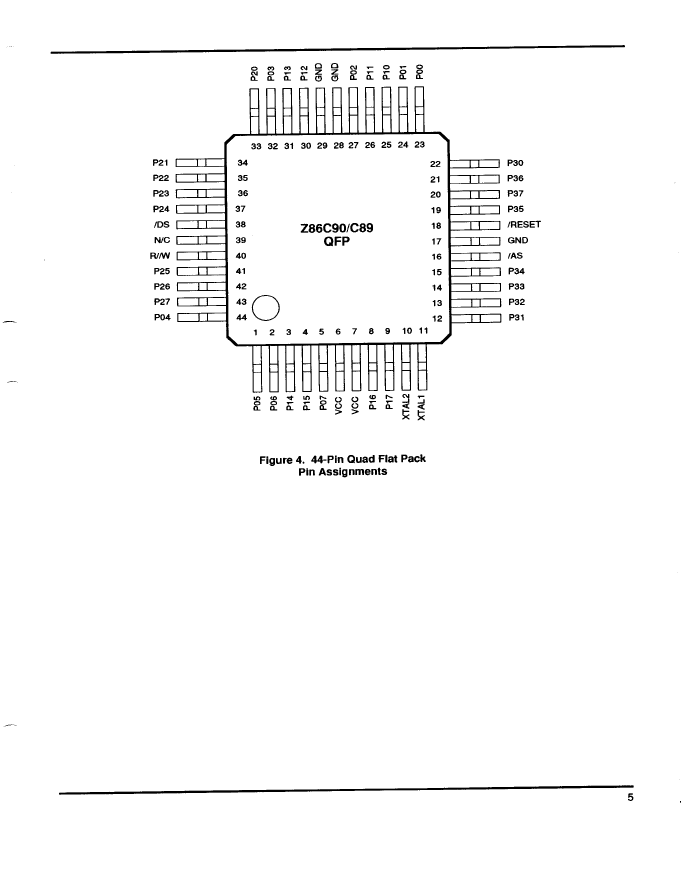

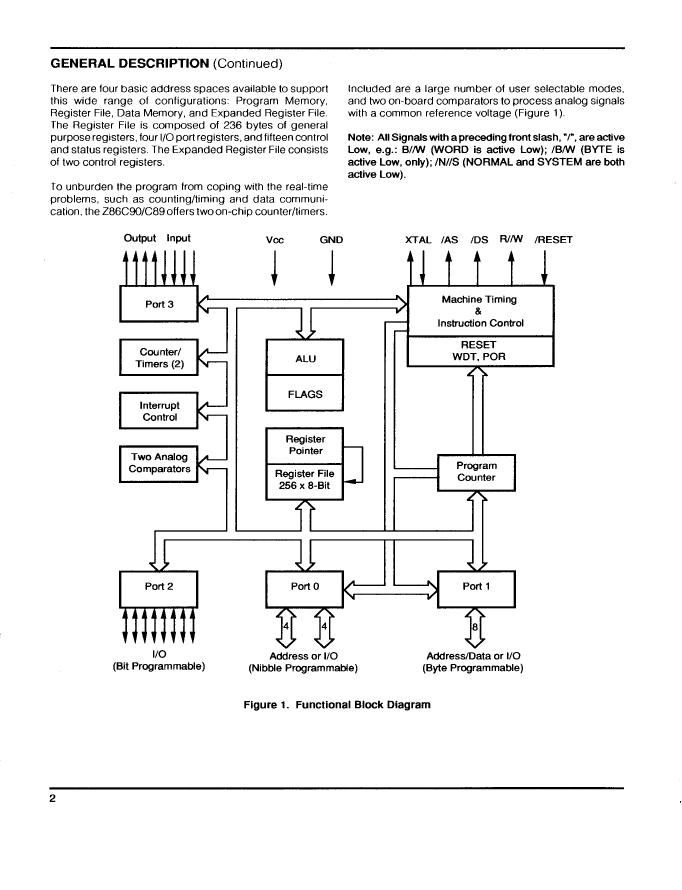

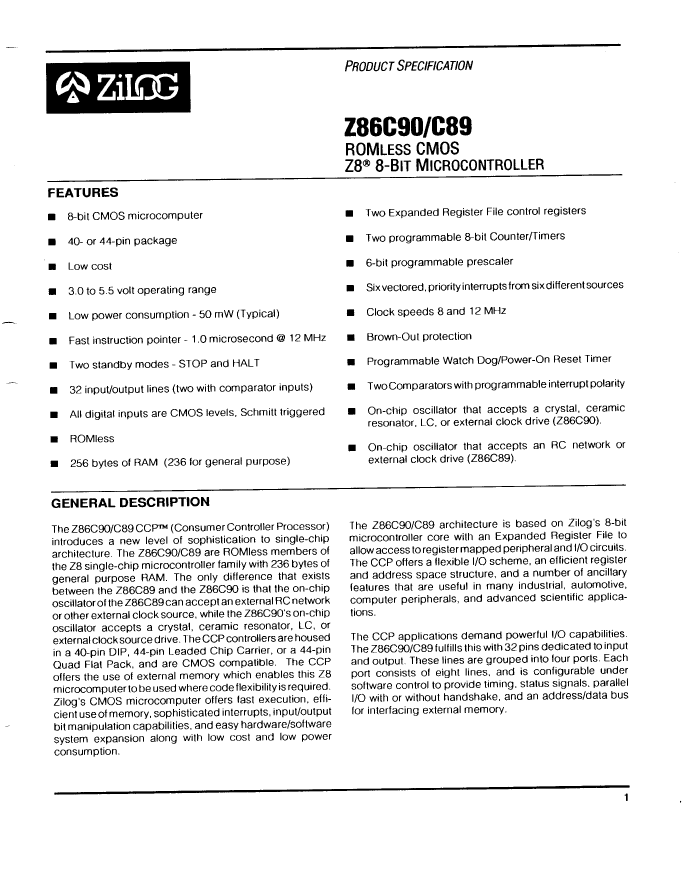

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

Z86C9008FEC Related Products

	Z86C9008FEC	Z86C8908VEC	Z86C8908FSC	Z86C8908PSC	Z86C9008PSC	Z86C8908VSC	Z86C9008PEC	Z86C9008VEC
Description	Microcontroller, 8-Bit, Z8 CPU, 8MHz, CMOS, PQFP44, QFP-44	Microcontroller, 8-Bit, Z8 CPU, 8MHz, CMOS, PQCC44, PLASTIC, LCC-44	Microcontroller, 8-Bit, Z8 CPU, 8MHz, CMOS, PQFP44, QFP-44	Microcontroller, 8-Bit, Z8 CPU, 8MHz, CMOS, PDIP40, DIP-40	Microcontroller, 8-Bit, Z8 CPU, 8MHz, CMOS, PDIP40, DIP-40	Microcontroller, 8-Bit, Z8 CPU, 8MHz, CMOS, PQCC44, PLASTIC, LCC-44	Microcontroller, 8-Bit, Z8 CPU, 8MHz, CMOS, PDIP40, DIP-40	Microcontroller, 8-Bit, Z8 CPU, 8MHz, CMOS, PQCC44, PLASTIC, LCC-44
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	QFP	LCC	QFP	DIP	DIP	LCC	DIP	LCC
package instruction	QFP-44	PLASTIC, LCC-44	QFP-44	DIP-40	DIP-40	PLASTIC, LCC-44	DIP-40	PLASTIC, LCC-44
Contacts	44	44	44	40	40	44	40	44
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknow	unknow	unknow
Has ADC	NO	NO	NO	NO	NO	NO	NO	NO
Address bus width	16	16	16	16	16	16	16	16
bit size	8	8	8	8	8	8	8	8
boundary scan	NO	NO	NO	NO	NO	NO	NO	NO
CPU series	Z8	Z8	Z8	Z8	Z8	Z8	Z8	Z8
maximum clock frequency	8 MHz	12 MHz	12 MHz	12 MHz	8 MHz	12 MHz	8 MHz	8 MHz
DAC channel	NO	NO	NO	NO	NO	NO	NO	NO
DMA channel	NO	NO	NO	NO	NO	NO	NO	NO
External data bus width	8	8	8	8	8	8	8	8
Format	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT
Integrated cache	NO	NO	NO	NO	NO	NO	NO	NO
JESD-30 code	S-PQFP-G44	S-PQCC-J44	S-PQFP-G44	R-PDIP-T40	R-PDIP-T40	S-PQCC-J44	R-PDIP-T40	S-PQCC-J44
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
length	10 mm	16.5862 mm	10 mm	52.325 mm	52.325 mm	16.5862 mm	52.325 mm	16.5862 mm
low power mode	YES	YES	YES	YES	YES	YES	YES	YES
Number of external interrupt devices	4	4	4	4	4	4	4	4
Number of I/O lines	32	32	32	32	32	32	32	32
Number of terminals	44	44	44	40	40	44	40	44
Number of timers	2	2	2	2	2	2	2	2
On-chip data RAM width	8	8	8	8	8	8	8	8
Maximum operating temperature	105 °C	105 °C	70 °C	70 °C	70 °C	70 °C	105 °C	105 °C
PWM channel	NO	NO	NO	NO	NO	NO	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QFP	QCCJ	QFP	DIP	DIP	QCCJ	DIP	QCCJ
Encapsulate equivalent code	QFP44,.57SQ,32	LDCC44,.7SQ	QFP44,.57SQ,32	DIP40,.6	DIP40,.6	LDCC44,.7SQ	DIP40,.6	LDCC44,.7SQ
Package shape	SQUARE	SQUARE	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	SQUARE
Package form	FLATPACK	CHIP CARRIER	FLATPACK	IN-LINE	IN-LINE	CHIP CARRIER	IN-LINE	CHIP CARRIER
power supply	3/5 V	3/5 V	3/5 V	3/5 V	3/5 V	3/5 V	3/5 V	3/5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
RAM (bytes)	236	236	236	236	236	236	236	236
RAM (number of words)	256	256	256	256	256	256	256	256
Maximum seat height	2.5 mm	4.57 mm	2.5 mm	4.96 mm	4.96 mm	4.57 mm	4.96 mm	4.57 mm
speed	8 MHz	8 MHz	8 MHz	8 MHz	8 MHz	8 MHz	8 MHz	8 MHz
Maximum slew rate	15 mA	15 mA	15 mA	15 mA	15 mA	15 mA	15 mA	15 mA
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	3 V	3 V	3 V	3 V	3 V	3 V	3 V	3 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	NO	NO	YES	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	J BEND	GULL WING	THROUGH-HOLE	THROUGH-HOLE	J BEND	THROUGH-HOLE	J BEND
Terminal pitch	0.8 mm	1.27 mm	0.8 mm	2.54 mm	2.54 mm	1.27 mm	2.54 mm	1.27 mm
Terminal location	QUAD	QUAD	QUAD	DUAL	DUAL	QUAD	DUAL	QUAD
width	10 mm	16.5862 mm	10 mm	15.24 mm	15.24 mm	16.5862 mm	15.24 mm	16.5862 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
Maker	Zilog, Inc.	-	-	Zilog, Inc.	Zilog, Inc.	Zilog, Inc.	Zilog, Inc.	Zilog, Inc.
Peak Reflow Temperature (Celsius)	-	240	-	240	240	240	240	240
Maximum time at peak reflow temperature	-	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
