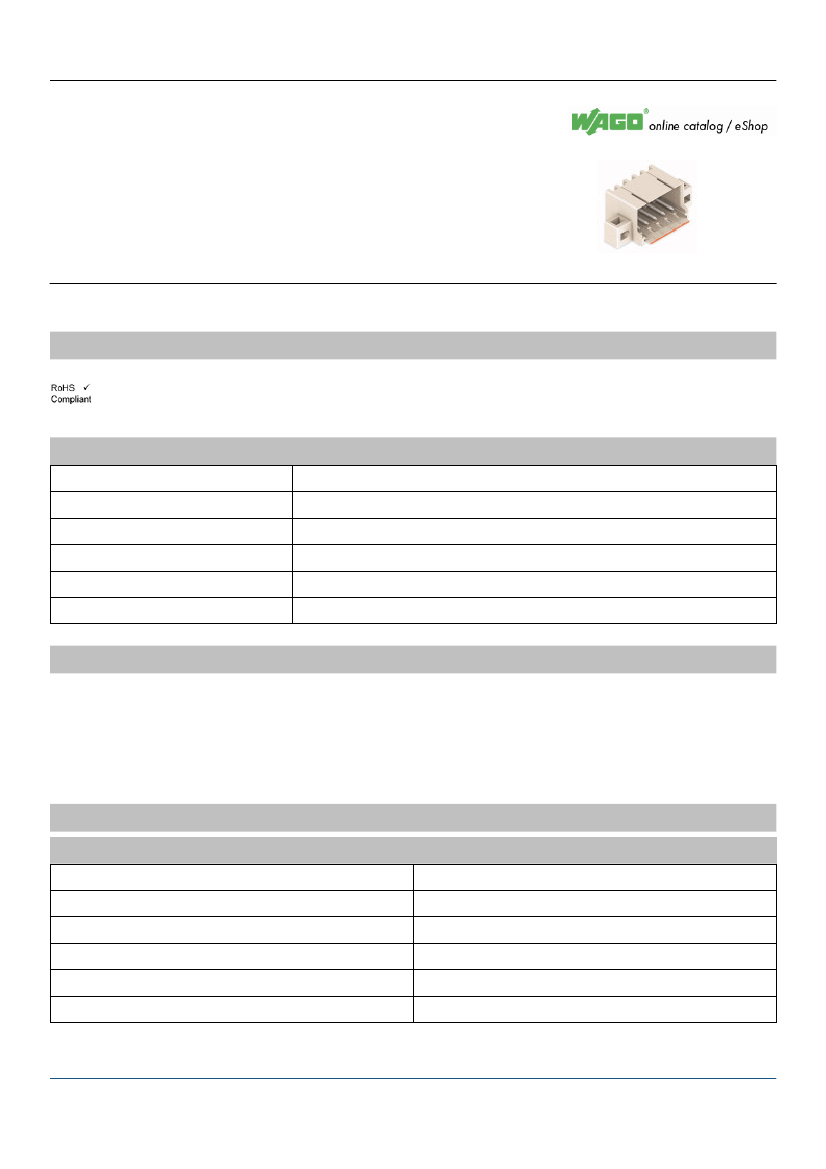

Printview: Male header with angled solder pins and fixing flanges; 10-pole; Pin spacing 3.5 mm / 0.138 in -
Item No.: 2091-1430/005-000
.
Male header with angled solder pins and fixing flanges; 10-pole;
Pin spacing 3.5 mm / 0.138 in
Item No.: 2091-1430/005-000
.
Male header with angled solder pins and fixing flanges; 10-pole; Pin spacing 3.5 mm / 0.138 in
.
Marking
.
Business data
Supplier
Item no.
GTIN / EAN
Content
Order amount
Customer item number
.
Notes
WAGO
2091-1430/005-000
4050821412038
1
100
Item description:Assembly of female connectors without loss of poles, allowing different functions to be divided within
one male headerCoding pins inserted into the header interface prevent mismating, allowing subsequent coding in
panel feedthrough applicationsThe female connector is fully shrouded by the male header's housing, providing
vibration resistance up to 20 g
Technical data
Miscellaneous
No. of poles
Pin spacing
Color
Ratings according to 1
Rated voltage (III / 3) [V]
Rated surge voltage (III / 3) [kV]
10
3.5 mm (0.138 in %)
light gray
IEC/EN 60664-1
160 [V]
2.5 [kV]
WAGO Kontakttechnik GmbH & Co. KG
1
Printview: Male header with angled solder pins and fixing flanges; 10-pole; Pin spacing 3.5 mm / 0.138 in -
Item No.: 2091-1430/005-000
Technical data
Rated voltage (III / 2) [V]
Rated surge voltage (III / 2) [kV]
Rated voltage (II / 2) [V]
Rated surge voltage (II / 2) [kV]
Nominal current [A]
Number of levels
Solder pin length [mm]
Solder pin diameter [mm]
Drilled hole diameter (tolerance) [mm]
Material group
Insulating material
Flammability rating per UL 94
Limit temperature range
Contact material
Contact plating
Fire load [MJ]
Weight [g]
Width
Height
Height from the surface
Length
Type of mounting
Mounting type
160 [V]
2.5 [kV]
320 [V]
2.5 [kV]
10 [A]
1
3.6 [mm]
1 [mm]
1.2(+ 0.1) [mm]
I
Polyphthalamide (PPA GF)
V0
-60 … 100 C
Electrolytic copper (Ecu)
tin-plated
0.084 [MJ]
3.89 [g]
49 mm / 1.929 in
16 mm / 0.63 in
12.4 mm / 0.488 in
17.5 mm / 0.689 in
Durchführungsmontage
Befestigungsflansch
WAGO Kontakttechnik GmbH & Co. KG
2
Printview: Male header with angled solder pins and fixing flanges; 10-pole; Pin spacing 3.5 mm / 0.138 in -
Item No.: 2091-1430/005-000

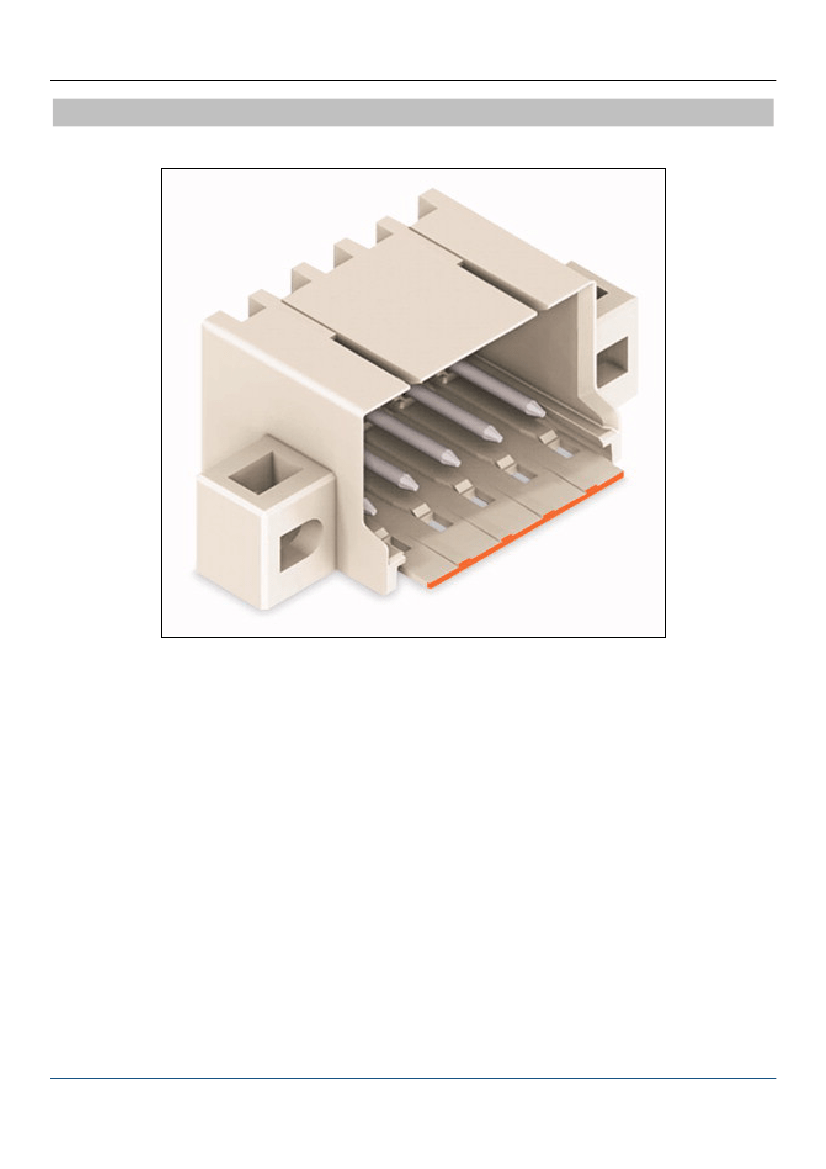

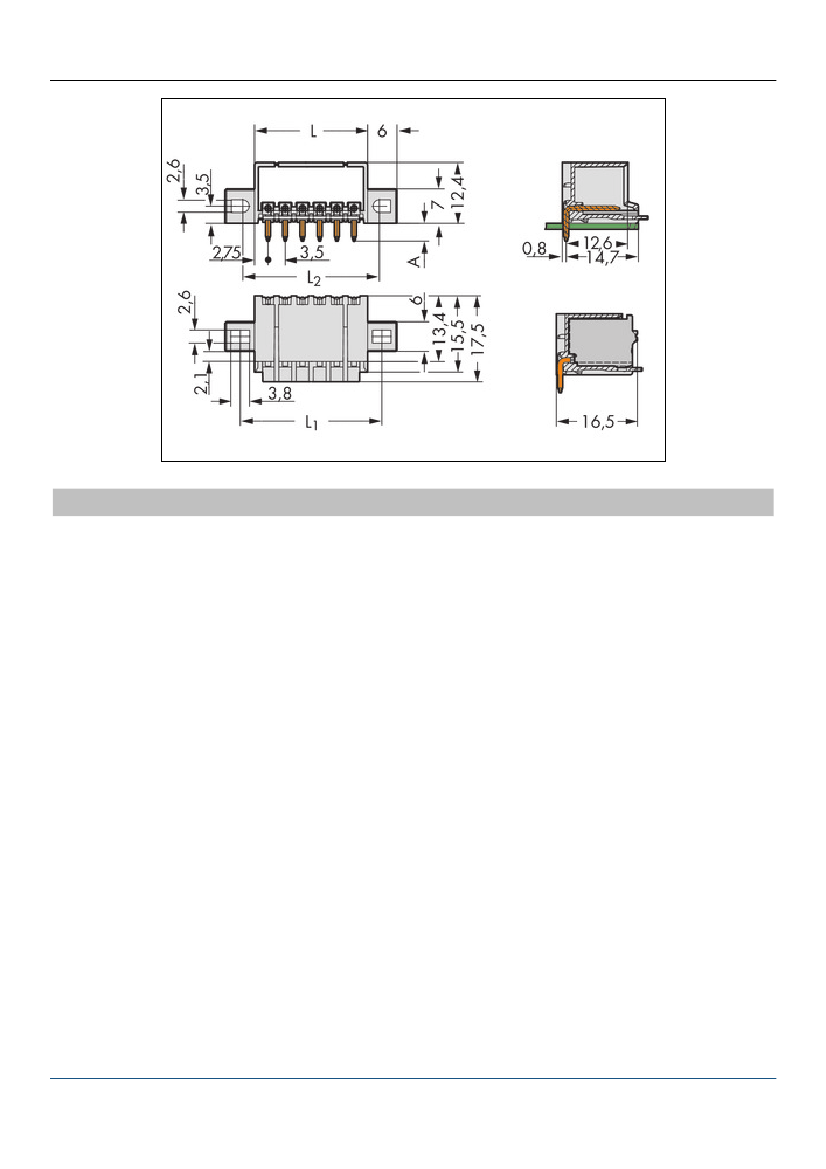

Images & drawings
WAGO Kontakttechnik GmbH & Co. KG
3
Printview: Male header with angled solder pins and fixing flanges; 10-pole; Pin spacing 3.5 mm / 0.138 in -
Item No.: 2091-1430/005-000
.
Address
WAGO Kontakttechnik GmbH & Co. KG
Hansastr. 27
32423 Minden
Telefon: 0571/887-0
Fax: 0571/887-169
http://www.wago.com
© WAGO Kontakttechnik GmbH & Co. KG
Technische Änderungen und Irrtümer vorbehalten.
