SN74S132DRG4 datasheet, PDF - EEWORLD Datasheet

SN74S132DRG4: DescriptionNAND Gate, S Series, 4-Func, 2-Input, TTL, PDSO14, GREEN, PLASTIC, MS-012AB, SOIC-14; Categorylogic logic; File Size914KB，24 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

SN74S132DRG4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SN74S132DRG4	-	-	View	Buy Now

NAND Gate, S Series, 4-Func, 2-Input, TTL, PDSO14, GREEN, PLASTIC, MS-012AB, SOIC-14

Parameter Name	Attribute value
Maker	Rochester Electronics
package instruction	SOP,
Reach Compliance Code	unknown
series	S
JESD-30 code	R-PDSO-G14
length	8.65 mm
Logic integrated circuit type	NAND GATE
Number of functions	4
Number of entries	2
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
propagation delay (tpd)	13 ns
Maximum seat height	1.75 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	3.9 mm

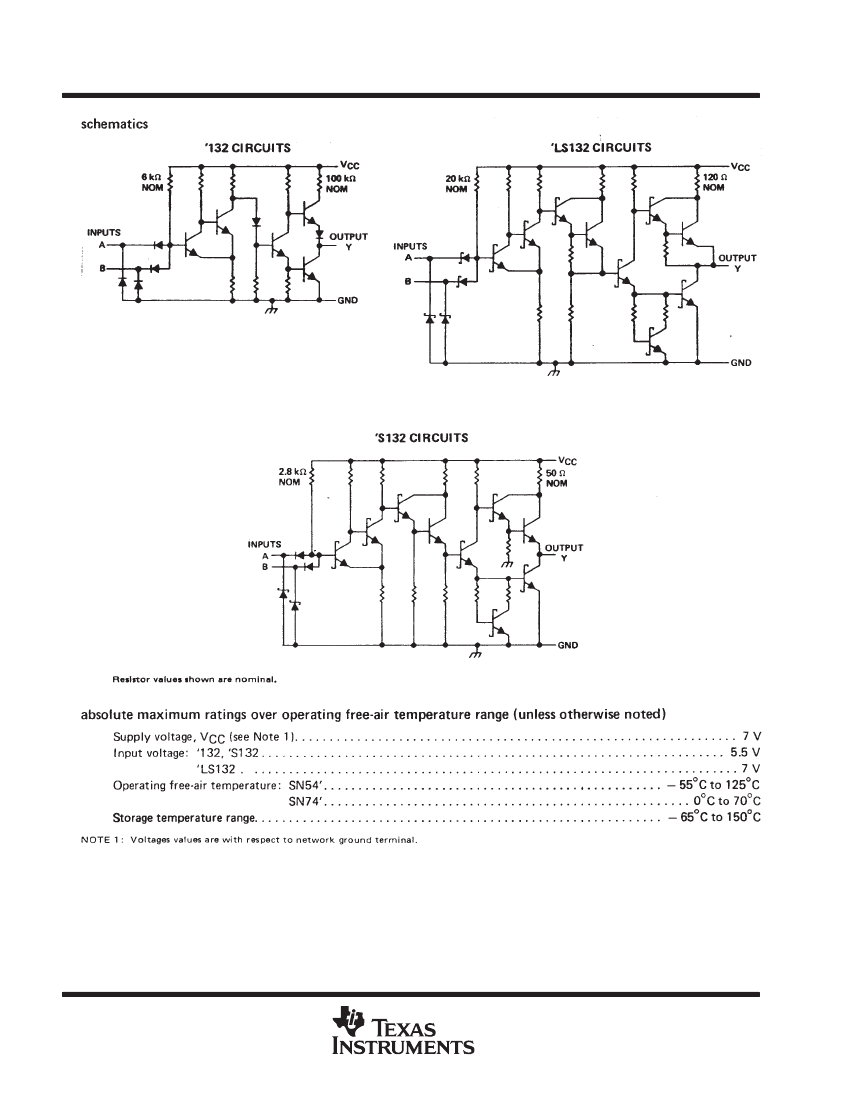

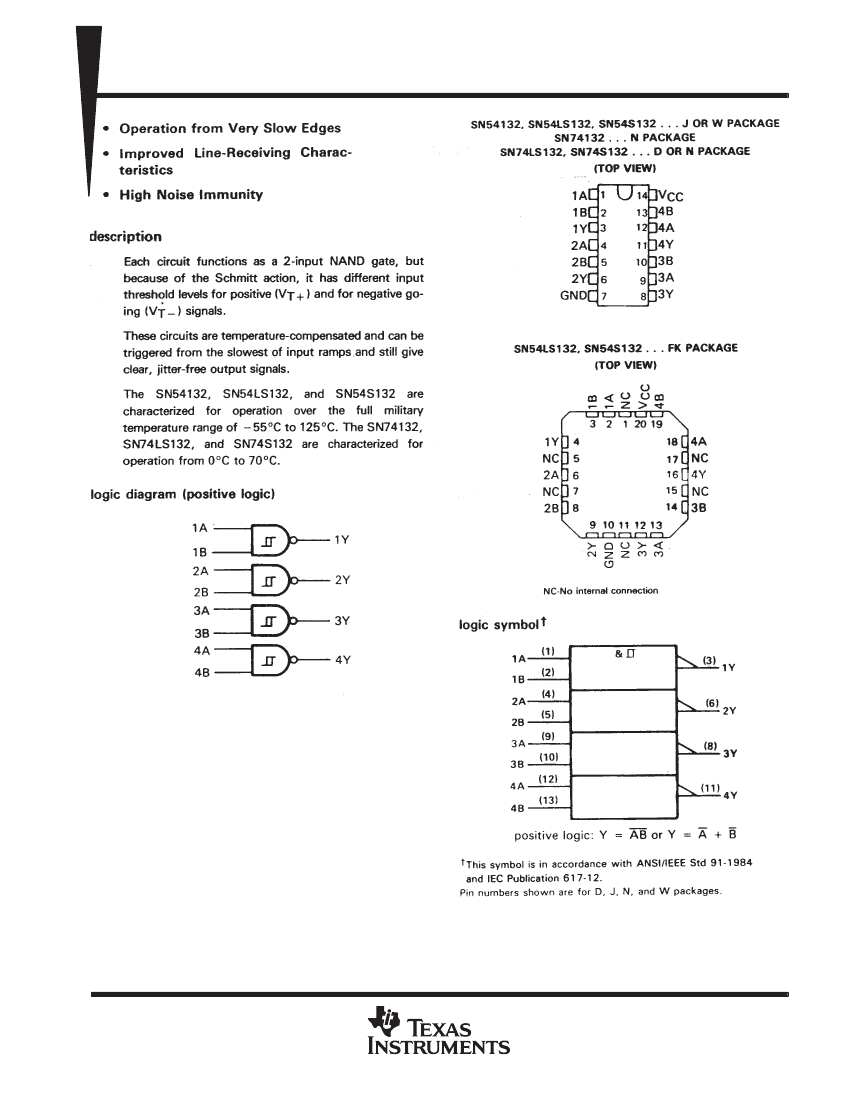

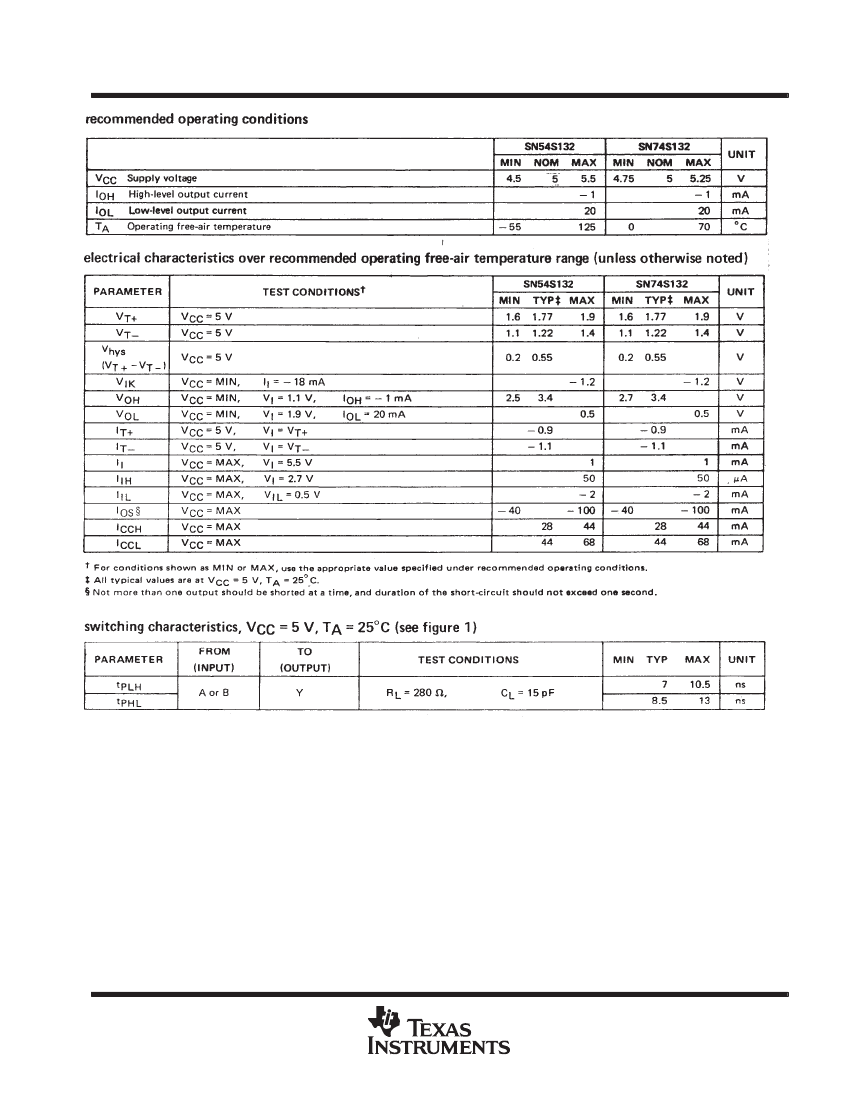

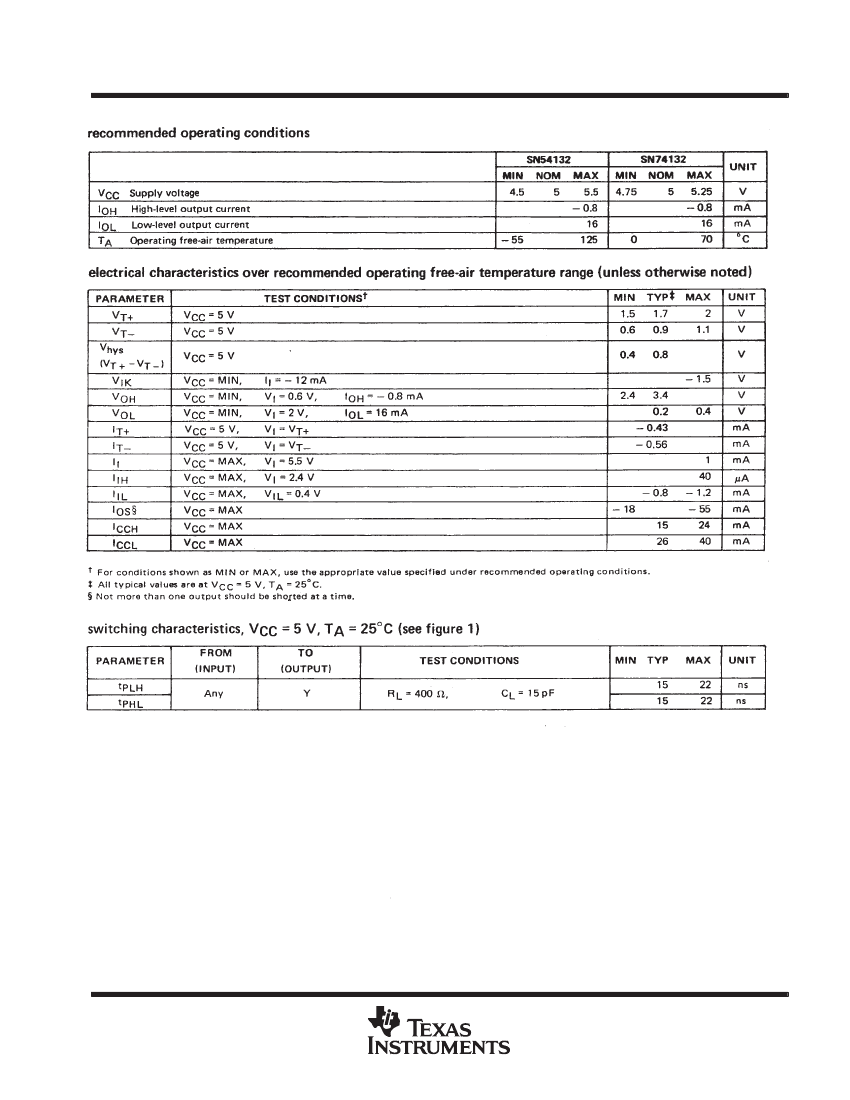

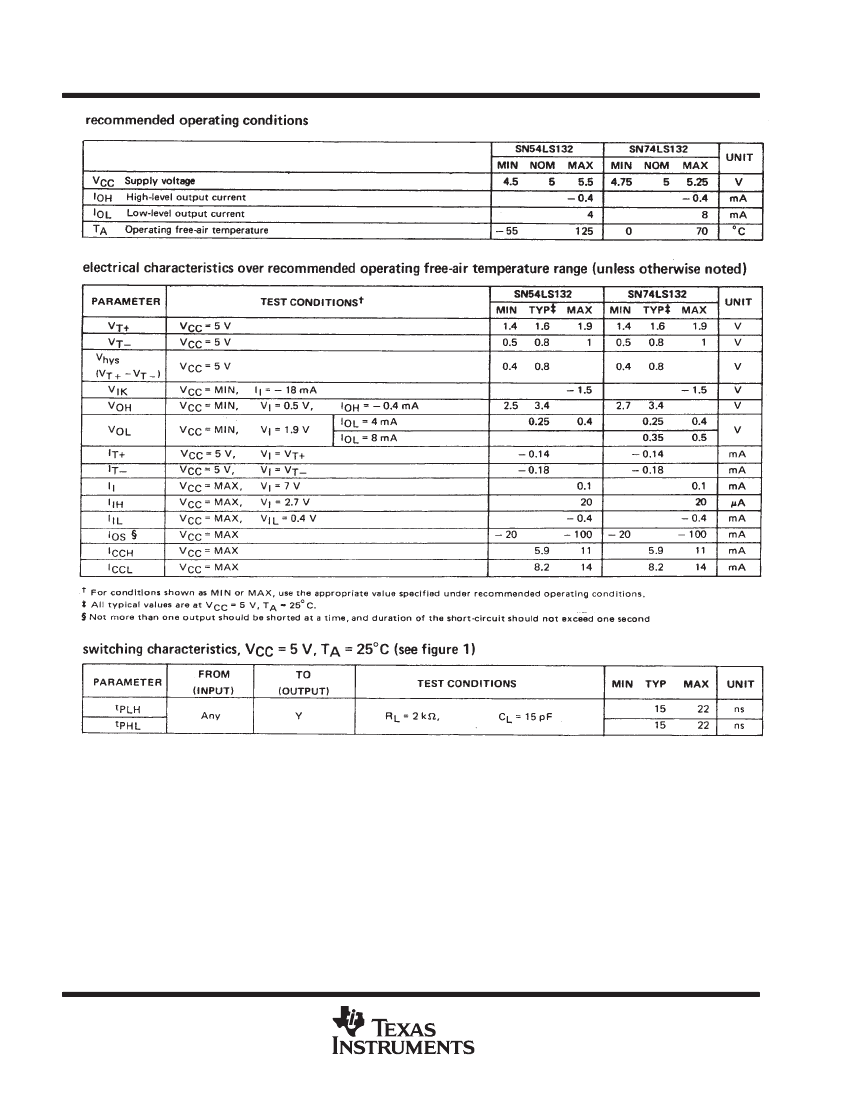

SN54132, SN54LS132, SN54S132,

SN74132, SN74LS132, SN74S132

QUADRUPLE 2 INPUT POSITIVE NAND SCHMITT TRIGGERS

SDLS047 − DECEMBER 1983 − REVISED MARCH 1988

PRODUCTION DATA information is current as of publication date.

Products conform to specifications per the terms of Texas Instruments

standard warranty. Production processing does not necessarily include

testing of all parameters.



1988, Texas Instruments Incorporated

POST OFFICE BOX 655303

•

DALLAS, TEXAS 75265

	SN74S132DRG4	SN74S132DG4	SN74S132DE4
Description	NAND Gate, S Series, 4-Func, 2-Input, TTL, PDSO14, GREEN, PLASTIC, MS-012AB, SOIC-14	NAND Gate, S Series, 4-Func, 2-Input, TTL, PDSO14, GREEN, PLASTIC, MS-012AB, SOIC-14	NAND Gate, S Series, 4-Func, 2-Input, TTL, PDSO14, GREEN, PLASTIC, SOIC-14
Maker	Rochester Electronics	Rochester Electronics	Rochester Electronics
package instruction	SOP,	SOP,	SOP,
Reach Compliance Code	unknown	unknown	unknown
series	S	S	S
JESD-30 code	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14
length	8.65 mm	8.65 mm	8.65 mm
Logic integrated circuit type	NAND GATE	NAND GATE	NAND GATE
Number of functions	4	4	4
Number of entries	2	2	2
Number of terminals	14	14	14
Maximum operating temperature	70 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
propagation delay (tpd)	13 ns	13 ns	13 ns
Maximum seat height	1.75 mm	1.75 mm	1.75 mm
Maximum supply voltage (Vsup)	5.25 V	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	YES	YES
technology	TTL	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL
width	3.9 mm	3.9 mm	3.9 mm
