BK/GMC-125-R: DescriptionElectric Fuse, Medium Time Delay Blow, 0.125A, 250VAC, 35A (IR), Inline/holder, ROHS COMPLIANT; CategoryCircuit protection Circuit protection; File Size94KB，2 Pages; ManufacturerCooper Industries; Environmental Compliance

Download Datasheet Parametric View All

BK/GMC-125-R Overview

Electric Fuse, Medium Time Delay Blow, 0.125A, 250VAC, 35A (IR), Inline/holder, ROHS COMPLIANT

BK/GMC-125-R Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Cooper Industries
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Fusing characteristics	MEDIUM TIME DELAY
body height	20 mm
Body length or diameter	5.2 mm
Circuit protection type	ELECTRIC FUSE
Joule integral nominal
Manufacturer's serial number	GMC
Installation features	INLINE/HOLDER
method of packing	BOX
physical size	5.2mm x 20mm
Rated breaking capacity	35 A
Rated current	0.125 A
Rated voltage (AC)	250 V
Guideline	CSA; UL
surface mount	NO
Terminal surface	Nickel (Ni)
Terminal shape	END CAP

Preview

Download Datasheet

View All

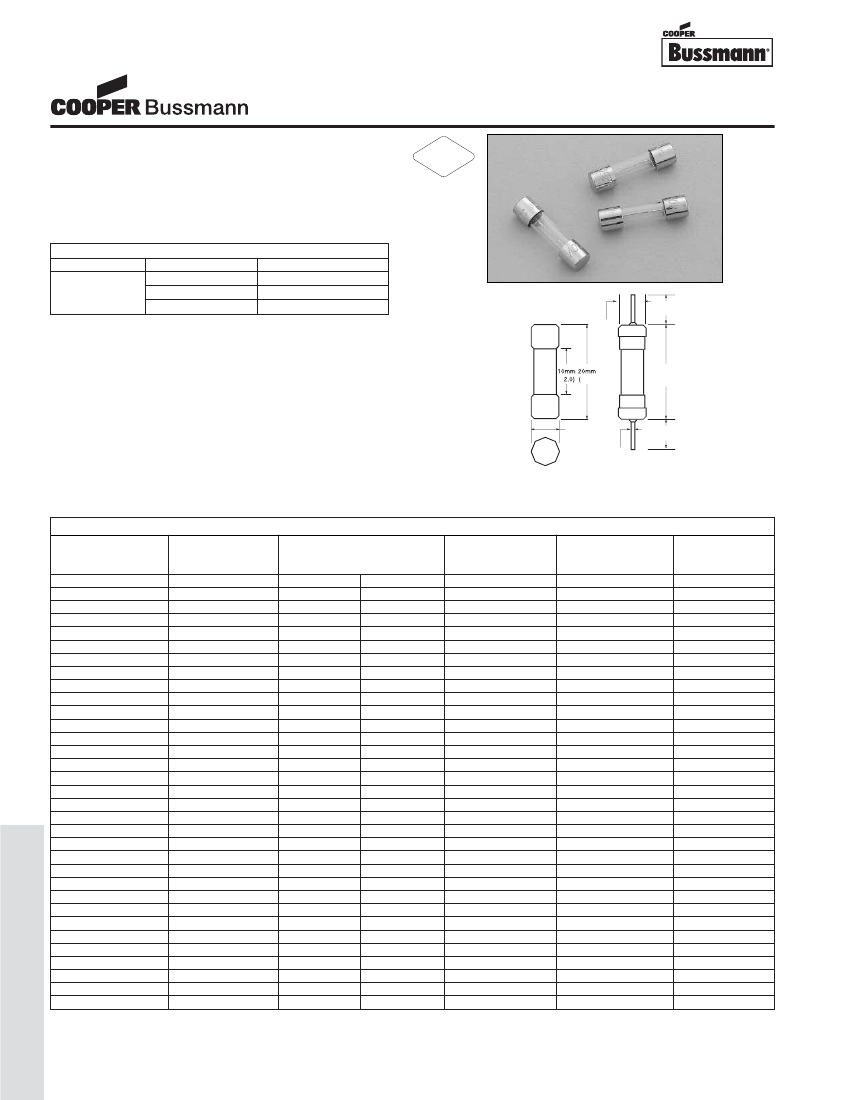

5mm x 20mm Fuses

GMC Series Medium Time Delay, Glass Tube

Description

• Medium time delay, low breaking capacity

• Optional axial leads available

• 5mm x 20mm physical size

• Glass tube, nickel-plated brass endcap construction

• Designed to UL/CSA 248-14

ELECTRICAL CHARACTERISTICS

Rated Current % of Amp Rating

Opening Time

100%

None

63mA - 10A

135%

60 minutes maximum

200%

2 minutes maximum

RoHS

2002/95/EC

Dimensions

mm

⁄

(inches)

5.54mm

(±.20)

38.10mm

0m

(±.38)

±

.3

Agency Information

• UL Listed, Guide JDYX, File E19180, 63mA-6.3A

• UL Recognized Card: (7A-10A) Guide JDYX2,

File E19180

• CSA Certified, Class 1422-01, File E65063, 63mA-6.3A

• MITI Approval, 1A-10A

• CCC Approval, 500mA-6.3A

Ordering

• Specify packaging, product, and option code

• For -R option, drop mA or A from product code

(i.e. GMC-2-R)

Voltage

Rating

AC

250V

125V

AC Interrupting

Rating*

250V

125V

35A

10,000A

35A

10,000A

35A

10,000A

35A

10,000A

35A

10,000A

35A

10,000A

35A

10,000A

35A

10,000A

35A

10,000A

35A

10,000A

35A

10,000A

35A

10,000A

35A

10,000A

35A

10,000A

35A

10,000A

35A

10,000A

35A

10,000A

35A

10,000A

100A

10,000A

100A

10,000A

100A

10,000A

100A

10,000A

100A

10,000A

100A

10,000A

100A

10,000A

-

10,000A

-

10,000A

-

10,000A

-

10,000A

-

10,000A

-

200A

-

200A

-

200A

(±

±

0.5)

21.10mm

0m

(±.81)

81

5.2mm

(+0.1/-0.2)

0.65mm

(REF)

38.10mm

0m

(±.38)

38

• Ratings above 6.3A have a 0.8mm diameter lead

• With TR2 packaging code, lead wire length is 19.05mm

Typical DC Cold

Resistance

(ohms)**

10.350

-

4.775

3.400

2.555

2.295

1.395

0.965

0.838

0.685

0.615

0.335

0.282

0.246

0.213

0.180

0.156

0.098

0.076

0.067

0.043

0.035

0.026

0.025

0.022

0.019

0.014

0.013

0.012

0.009

0.007

Typical

Pre-Arc I

2

t

AC†

0.0027

0.0050

0.0094

0.014

0.022

0.032

0.046

0.081

0.18

0.41

0.60

0.66

0.85

1.8

3.4

5.4

5.8

8.9

13

19

23

25

36

58

88

110

150

200

300

Maximum

Voltage

Drop (mV)‡

1400

1200

1000

800

730

650

490

580

480

510

370

360

340

320

290

250

200

190

160

130

120

110

SPECIFICATIONS

Product Code

GMC-63mA

GMC-80mA

GMC-100mA

GMC-125mA

GMC-150mA

GMC-160mA

GMC-200mA

GMC-250mA

GMC-300mA

GMC-315mA

GMC-400mA

GMC-500mA

GMC-600mA

GMC-630mA

GMC-700mA

GMC-750mA

GMC-800mA

GMC-1A

GMC-1.25A

GMC-1.5A

GMC-1.6A

GMC-2A

GMC-2.5A

GMC-3A

GMC-3.15A

GMC-3.5A

GMC-4A

GMC-5A

GMC-6A

GMC-6.3A

GMC-7A

GMC-8A

GMC-10A

*

**

†

‡

Traditional Ferrule Fuses - Ferrule Type

Interrupting ratings: Interrupting ratings for 63mA - 6.3A were measured at 70% - 80% power factor on AC. The interrupting ratings for 7A - 10A were measured at 100% power factor on AC.

DC Cold Resistance (Measured at <10% of rated current)

Typical Pre-Arching I

2

t (I

2

t was measured at listed interrupting rating and rated voltage)

Maximum Voltage drop (Voltage drop was measured at 20°C ambient temperature at rated current)

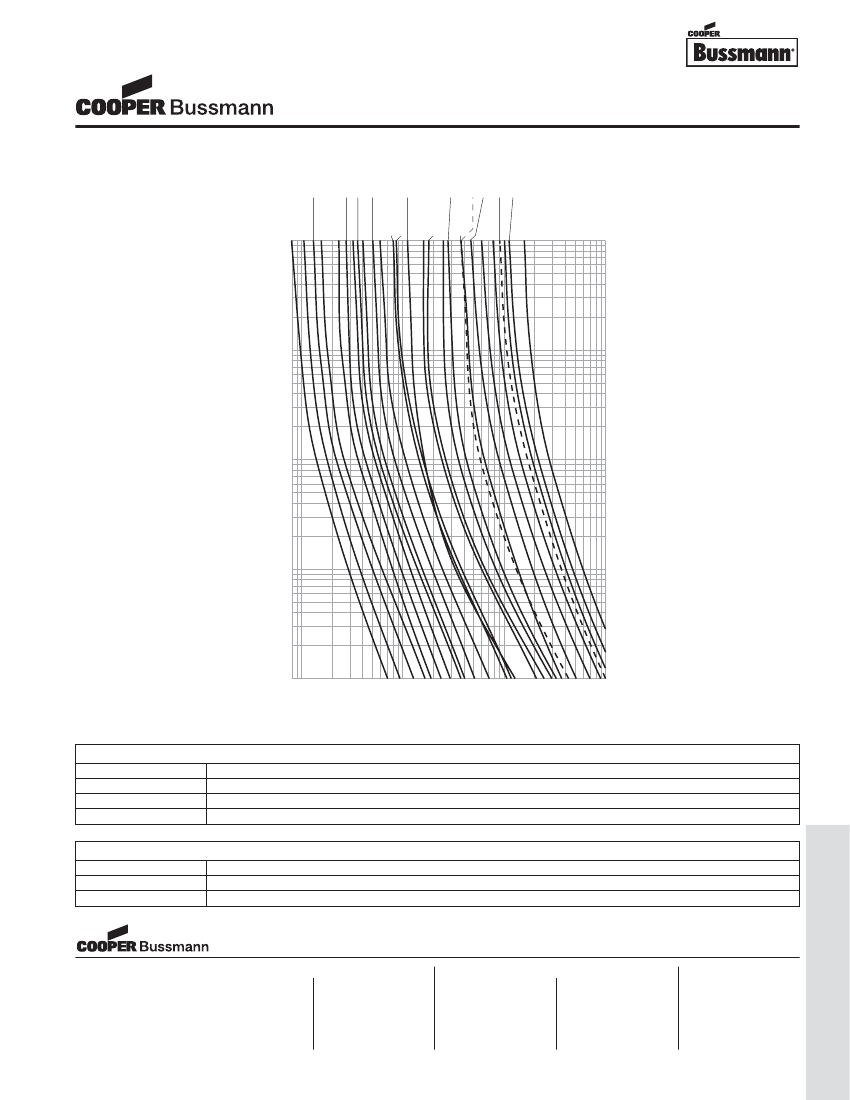

OC-70
