TL(RE,SE,OE,YE,GE,PGE)1005B(T03)
Preliminary
TOSHIBA LED Lamp
TLRE1005B (T03), TLSE1005B (T03), TLOE1005B (T03),
TLYE1005B (T03), TLGE1005B (T03), TLPGE1005B (T03)
panel Circuit Indicator
•
•
•
•
3.2 (L)
×
2.4 (W)
×
2.4 (H) mm
TL□E1005B (T03) Series
φ2
mm lens top type
InGaAlP LED
It can be manufactured high-luminosity of equipment or reduce of
electric power consumption by change in the high-luminosity LED from
general-luminosity one.
Colors: Red, Orange, Yellow, Green, Pure green
Can be mounted using surface mounter.
Reflow soldering is possible.
Standard embossed taping
4 mm pitch: T03 (1000 pcs/reel)
Applications: High-output backlighting source, battery-powered
equipment, message boards and portable devices
•
•
•
•
•
Line-up
Product name
TLRE1005B
TLSE1005B
TLOE1005B
TLYE1005B
TLGE1005B
TLPGE1005B
Color
Red
Red
Orange
Yellow
Green
Pure Green
InGaAlP
Material
000707EAC1
•
TOSHIBA is continually working to improve the quality and reliability of its products. Nevertheless, semiconductor devices in general
can malfunction or fail due to their inherent electrical sensitivity and vulnerability to physical stress. It is the responsibility of the
buyer, when utilizing TOSHIBA products, to comply with the standards of safety in making a safe design for the entire system, and
to avoid situations in which a malfunction or failure of such TOSHIBA products could cause loss of human life, bodily injury or
damage to property.
In developing your designs, please ensure that TOSHIBA products are used within specified operating ranges as set forth in the
most recent TOSHIBA products specifications. Also, please keep in mind the precautions and conditions set forth in the “Handling
Guide for Semiconductor Devices,” or “TOSHIBA Semiconductor Reliability Handbook” etc..
•
The TOSHIBA products listed in this document are intended for usage in general electronics applications (computer, personal
equipment, office equipment, measuring equipment, industrial robotics, domestic appliances, etc.). These TOSHIBA products are
neither intended nor warranted for usage in equipment that requires extraordinarily high quality and/or reliability or a malfunction or
failure of which may cause loss of human life or bodily injury (“Unintended Usage”). Unintended Usage include atomic energy
control instruments, airplane or spaceship instruments, transportation instruments, traffic signal instruments, combustion control
instruments, medical instruments, all types of safety devices, etc.. Unintended Usage of TOSHIBA products listed in this document
shall be made at the customer’s own risk.
•
Gallium arsenide (GaAs) is a substance used in the products described in this document. GaAs dust and fumes are toxic. Do not
break, cut or pulverize the product, or use chemicals to dissolve them. When disposing of the products, follow the appropriate
regulations. Do not dispose of the products with other industrial waste or with domestic garbage.
•
The information contained herein is presented only as a guide for the applications of our products. No responsibility is assumed by
TOSHIBA CORPORATION for any infringements of intellectual property or other rights of the third parties which may result from its
use. No license is granted by implication or otherwise under any intellectual property or other rights of TOSHIBA CORPORATION or
others.
•
The information contained herein is subject to change without notice.
2000-08-28
1/13
TL(RE,SE,OE,YE,GE,PGE)1005B(T03)
Maximum Ratings
(Ta
=
25°C)
Product Name
TLRE1005B
TLSE1005B
TLOE1005B
TLYE1005B
TLGE1005B
TLPGE1005B
25
4
60
−40~85
−40~100
Forward Current
I
F
(mA)
Reverse Voltage
V
R
(V)
Power Dissipation
P
D
(mW)
Operating
Temperature
T
opr
(°C)
Storage
Temperature
T
stg
(°C)
Electrical Characteristics
(Ta
=
25°C)
Product Name
Min
TLRE1005B
TLSE1005B
TLOE1005B
TLYE1005B
TLGE1005B
TLPGE1005B
Unit
Forward Voltage V
F
Typ.
1.9
1.9
2.0
2.0
2.0
2.1
V
Max
2.4
2.4
2.4
2.4
2.4
2.4
mA
µA
V
20
50
4
I
F
Reverse Current
I
R
Max
V
R
Optical Characteristics
(Ta
=
25°C)
Product Name
Min
TLRE1005B
TLSE1005B
TLOE1005B
TLYE1005B
TLGE1005B
TLPGE1005B
Unit
(153)
(272)
(476)
(272)
(153)
(47.6)
Luminous Intensity I
V
Typ.
450
1000
1500
850
350
130
mcd
Max
I
F
Peak emission
Wavelength
λ
p
Min
Typ.
(644)
(623)
(612)
(590)
(574)
(562)
nm
Max
Emission Spectrum
Dominant
∆λ
Wavelength
λ
d
Typ.
(18)
(17)
(15)
(13)
(11)
(11)
nm
Min
Typ.
630
613
605
587
571
558
nm
Max
I
F
mA
20
mA
20
Note: This visible LED lamp also emits some IR light.
If a photodetector is located near the LED lamp, please ensure that it will not be affected by this IR light.
2000-08-28
2/13
TL(RE,SE,OE,YE,GE,PGE)1005B(T03)

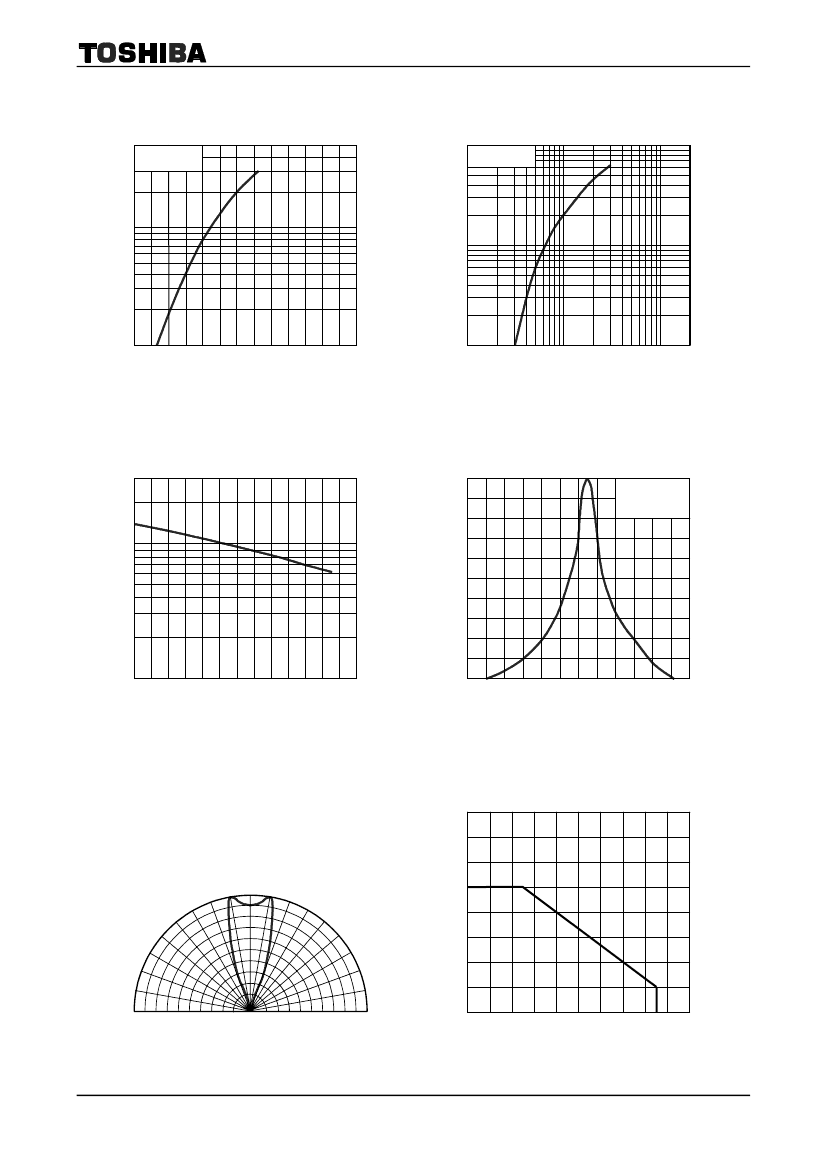

TLRE1005B
I
F
– V
F
50
Ta
=
25°C
30
1000
Ta
=
25°C
I
V
– I
F
Luminous intensity I
V
(mcd)
1.7
1.8
1.9
2.0
2.1
2.2
500
300
Forward current I
F
(mA)
10
100
5
3
50
30
1
1.6
10
1
3
5
10
30
50
100
Forward voltage V
F
(V)
Forward current I
F
(mA)
I
V
– Tc
3
1.0
Relative luminous intensity – wavelength
IF
=
20 mA
Ta
=
25°C
Relative luminous intensity I
V
1
Relative luminous intensity
−20
0
20
40
60
80
100
0.8
0.6
0.5
0.4
0.3
0.2
0.1
0
580
600
620
640
660
680
700
Case temperature Tc
(°C)
Wavelength
λ
(nm)
Radiation pattern
40
I
F
– Ta
Ta
=
25°C
(mA)
30
20°
30°
40°
50°
60°
70°
80°
90°
10°
0°
10°
20°
30°
40°
50°
60°
70°
80°
90
°
1.0
Allowable forward current I
F
20
10
0
0.2
0.4
0.6
0.8
0
0
20
40
60
80
100
Ambient temperature Ta (°C)
2000-08-28
3/13
TL(RE,SE,OE,YE,GE,PGE)1005B(T03)

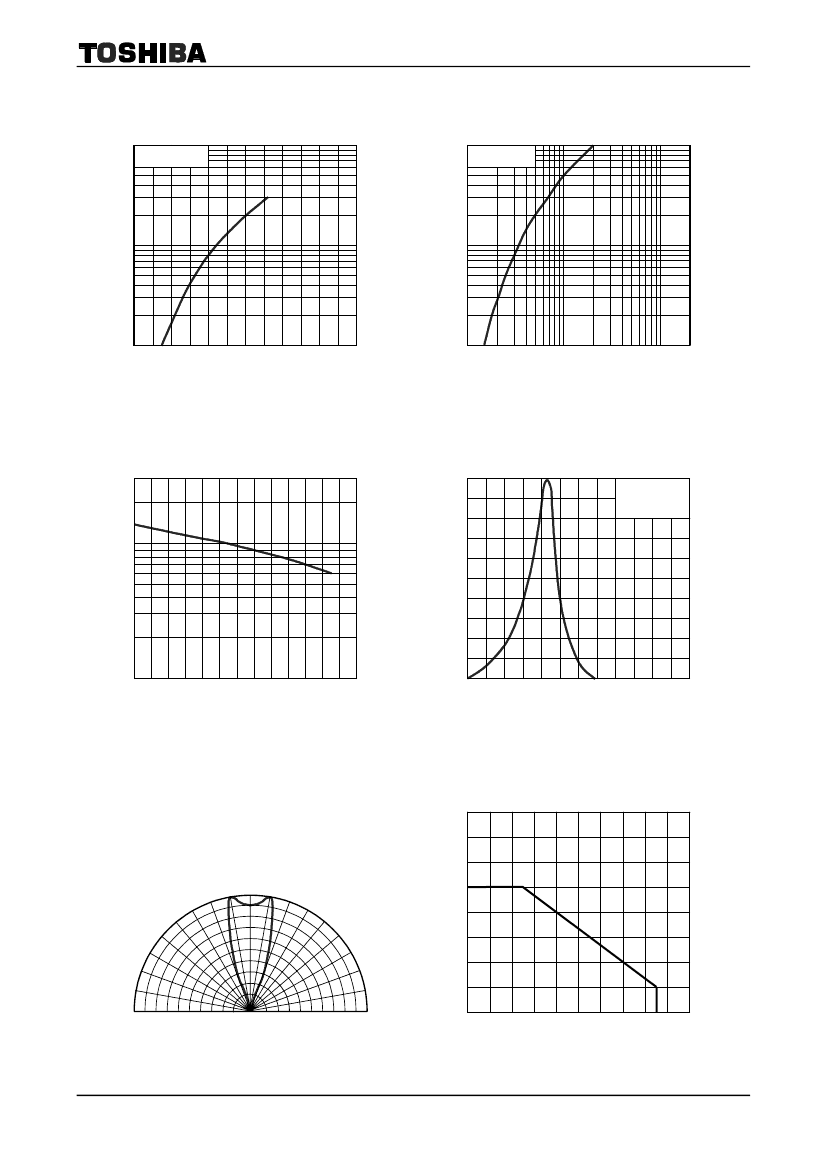

TLSE1005B
I
F
– V
F
100
Ta
=
25°C
1000
Ta
=
25°C
I
V
– I
F
Luminous intensity I
V
(mcd)
1.7
1.8
1.9
2.0
2.1
2.2
50
500
300
(mA)
Forward current I
F
30
10
100
5
3
50
30
1
1.6
10
1
3
5
10
30
50
100
Forward voltage V
F
(V)
Forward current I
F
(mA)
I
V
– Tc
3
1.0
Relative luminous intensity – wavelength
IF
=
20 mA
Ta
=
25°C
Relative luminous intensity I
V
1
Relative luminous intensity
−20
0
20
40
60
80
100
0.8
0.6
0.5
0.4
0.3
0.2
0.1
0
580
600
620
640
660
680
700
Case temperature Tc
(°C)
Wavelength
λ
(nm)
Radiation pattern
Ta
=
25°C
(mA)
40
I
F
– Ta
20°
30°
40°
50°
60°
70°
80°
90°
10°
0°
10°
20°
30°
40°
50°
60°
70°
80°
90
°
1.0
Allowable forward current I
F
30
20
10
0
0.2
0.4
0.6
0.8
0
0
20
40
60
80
100
Ambient temperature Ta (°C)
2000-08-28
4/13
TL(RE,SE,OE,YE,GE,PGE)1005B(T03)

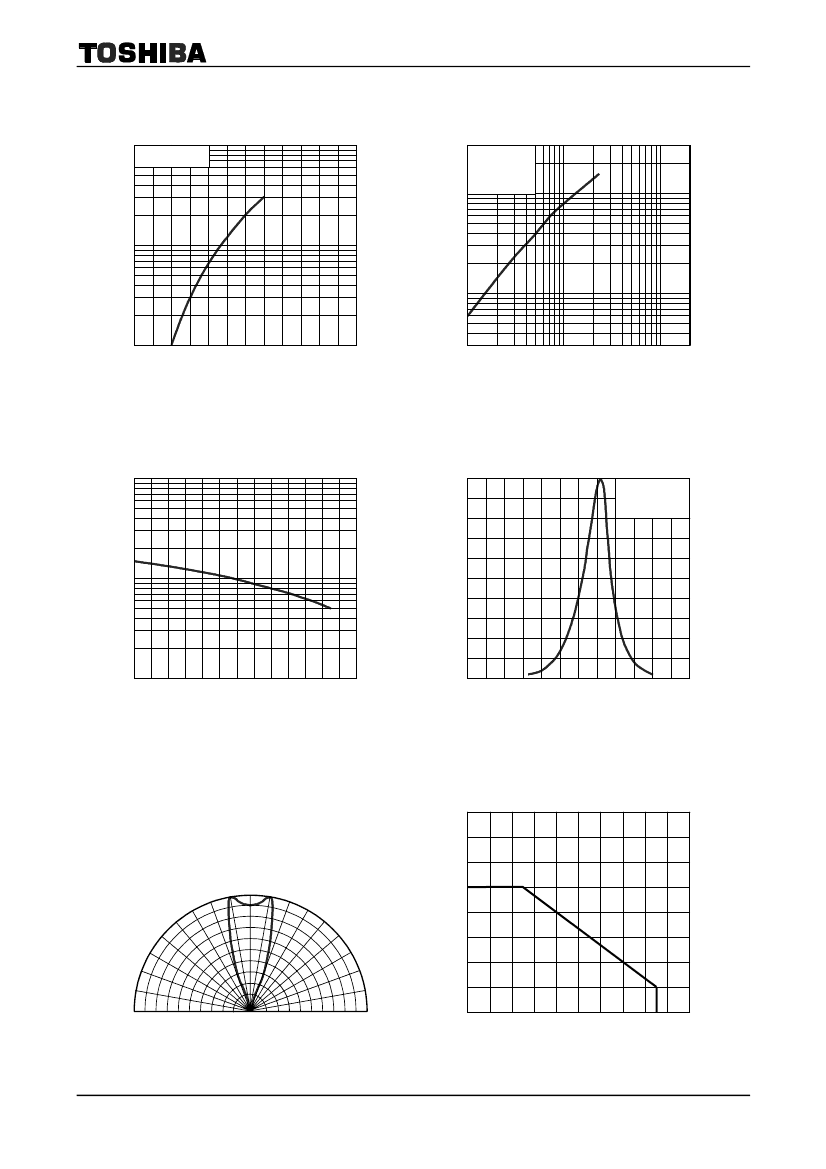

TLOE1005B
I
F
– V
F
100
Ta
=
25°C
3000
Ta
=
25°C
I
V
– I
F
Luminous intensity I
V
(mcd)
50
(mA)
30
1000
Forward current I
F
500
300
10
5
3
100
50
1
1.7
30
1.8
1.9
2.0
2.1
2.2
2.3
1
3
5
10
30
50
100
Forward voltage V
F
(V)
Forward current I
F
(mA)
I
V
– Tc
10
1.0
Relative luminous intensity – wavelength
IF
=
20 mA
Ta
=
25°C
Relative luminous intensity I
V
5
3
Relative luminous intensity
−20
0
20
40
60
80
100
0.8
0.6
1
0.4
0.5
0.3
0.2
0.1
0
540
560
580
600
620
640
660
Case temperature Tc
(°C)
Wavelength
λ
(nm)
Radiation pattern
Ta
=
25°C
(mA)
40
I
F
– Ta
20°
30°
40°
50°
60°
70°
80°
90°
10°
0°
10°
20°
30°
40°
50°
60°
70°
80°
90
°
1.0
Allowable forward current I
F
30
20
10
0
0.2
0.4
0.6
0.8
0
0
20
40
60
80
100
Ambient temperature Ta (°C)
2000-08-28
5/13
