Datasheet> All Categories > Discrete semiconductor> The transistor> MPSH24RLRP

MPSH24RLRP: DescriptionRF Small Signal Bipolar Transistor, 0.05A I(C), 1-Element, Very High Frequency Band, Silicon, NPN, TO-92; CategoryDiscrete semiconductor The transistor; File Size64KB，3 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

MPSH24RLRP Overview

RF Small Signal Bipolar Transistor, 0.05A I(C), 1-Element, Very High Frequency Band, Silicon, NPN, TO-92

MPSH24RLRP Parametric

Parameter Name	Attribute value
Maker	Motorola ( NXP )
package instruction	CYLINDRICAL, O-PBCY-T3
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum collector current (IC)	0.05 A
Collector-based maximum capacity	0.36 pF
Collector-emitter maximum voltage	30 V
Configuration	SINGLE
Minimum DC current gain (hFE)	30
highest frequency band	VERY HIGH FREQUENCY BAND
JEDEC-95 code	TO-92
JESD-30 code	O-PBCY-T3
Number of components	1
Number of terminals	3
Maximum operating temperature	135 °C
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	CYLINDRICAL
Polarity/channel type	NPN
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	BOTTOM
transistor applications	AMPLIFIER
Transistor component materials	SILICON
Nominal transition frequency (fT)	620 MHz

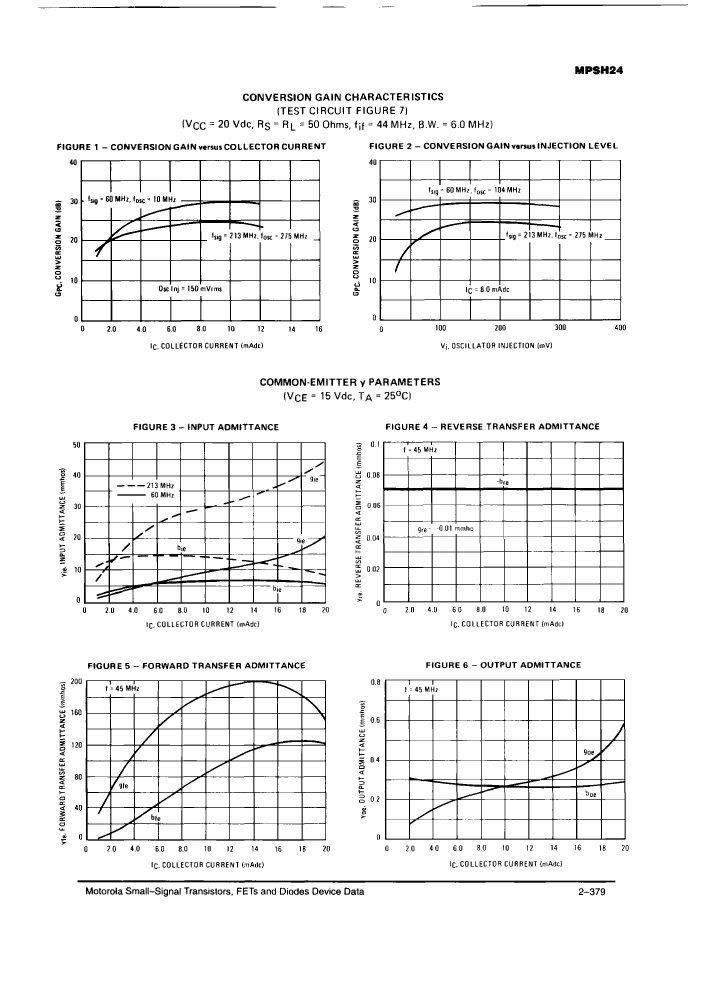

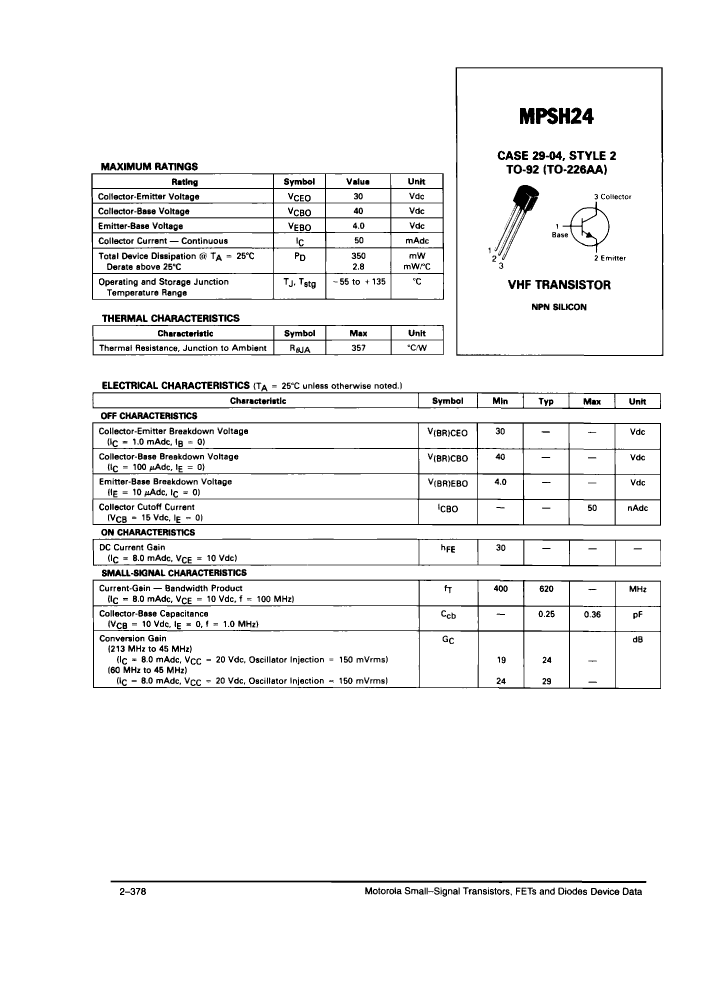

Preview

Download Datasheet

View All

MPSH24RLRP Related Products

	MPSH24RLRP	MPSH24RLRF	MPSH24RLRM	MPSH24RLRA	MPSH24RLRE	MPSH24ZL1	MPSH24RL1	MPSH24RLRB	MPSH24RL
Description	RF Small Signal Bipolar Transistor, 0.05A I(C), 1-Element, Very High Frequency Band, Silicon, NPN, TO-92	RF Small Signal Bipolar Transistor, 0.05A I(C), 1-Element, Very High Frequency Band, Silicon, NPN, TO-92	RF Small Signal Bipolar Transistor, 0.05A I(C), 1-Element, Very High Frequency Band, Silicon, NPN, TO-92	VHF BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR, TO-92	RF Small Signal Bipolar Transistor, 0.05A I(C), 1-Element, Very High Frequency Band, Silicon, NPN, TO-92	VHF BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR, TO-92	RF Small Signal Bipolar Transistor, 0.05A I(C), 1-Element, Very High Frequency Band, Silicon, NPN, TO-92	RF Small Signal Bipolar Transistor, 0.05A I(C), 1-Element, Very High Frequency Band, Silicon, NPN, TO-92	VHF BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR, TO-92
package instruction	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknow	unknow	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum collector current (IC)	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A
Collector-based maximum capacity	0.36 pF	0.36 pF	0.36 pF	0.36 pF	0.36 pF	0.36 pF	0.36 pF	0.36 pF	0.36 pF
Collector-emitter maximum voltage	30 V	30 V	30 V	30 V	30 V	30 V	30 V	30 V	30 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	30	30	30	30	30	30	30	30	30
highest frequency band	VERY HIGH FREQUENCY BAND	VERY HIGH FREQUENCY BAND	VERY HIGH FREQUENCY BAND	VERY HIGH FREQUENCY BAND	VERY HIGH FREQUENCY BAND	VERY HIGH FREQUENCY BAND	VERY HIGH FREQUENCY BAND	VERY HIGH FREQUENCY BAND	VERY HIGH FREQUENCY BAND
JEDEC-95 code	TO-92	TO-92	TO-92	TO-92	TO-92	TO-92	TO-92	TO-92	TO-92
JESD-30 code	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3
Number of components	1	1	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3	3	3
Maximum operating temperature	135 °C	135 °C	135 °C	135 °C	135 °C	135 °C	135 °C	135 °C	135 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL
Polarity/channel type	NPN	NPN	NPN	NPN	NPN	NPN	NPN	NPN	NPN
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM
transistor applications	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	620 MHz	620 MHz	620 MHz	620 MHz	620 MHz	620 MHz	620 MHz	620 MHz	620 MHz
Maker	Motorola ( NXP )	-	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )
