CS72-12IO8: DescriptionSilicon Controlled Rectifier, 160A I(T)RMS, 75000mA I(T), 1200V V(DRM), 1200V V(RRM), 1 Element, TO-209AC, TO-94, 4 PIN; CategoryAnalog mixed-signal IC Trigger device; File Size35KB，2 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com; Environmental Compliance

Download Datasheet Parametric Compare View All

CS72-12IO8 Overview

Silicon Controlled Rectifier, 160A I(T)RMS, 75000mA I(T), 1200V V(DRM), 1200V V(RRM), 1 Element, TO-209AC, TO-94, 4 PIN

CS72-12IO8 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Littelfuse
package instruction	POST/STUD MOUNT, O-MUPM-H3
Reach Compliance Code	compliant
Shell connection	ANODE
Nominal circuit commutation break time	150 µs
Configuration	SINGLE
Critical rise rate of minimum off-state voltage	1000 V/us
Maximum DC gate trigger current	150 mA
Maximum DC gate trigger voltage	3 V
Maximum holding current	200 mA
JEDEC-95 code	TO-209AC
JESD-30 code	O-MUPM-H3
Maximum leakage current	15 mA
On-state non-repetitive peak current	2000 A
Number of components	1
Number of terminals	3
Maximum on-state current	75000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum rms on-state current	160 A
Off-state repetitive peak voltage	1200 V
Repeated peak reverse voltage	1200 V
surface mount	NO
Terminal form	HIGH CURRENT CABLE
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger device type	SCR

Preview

Download Datasheet

View All

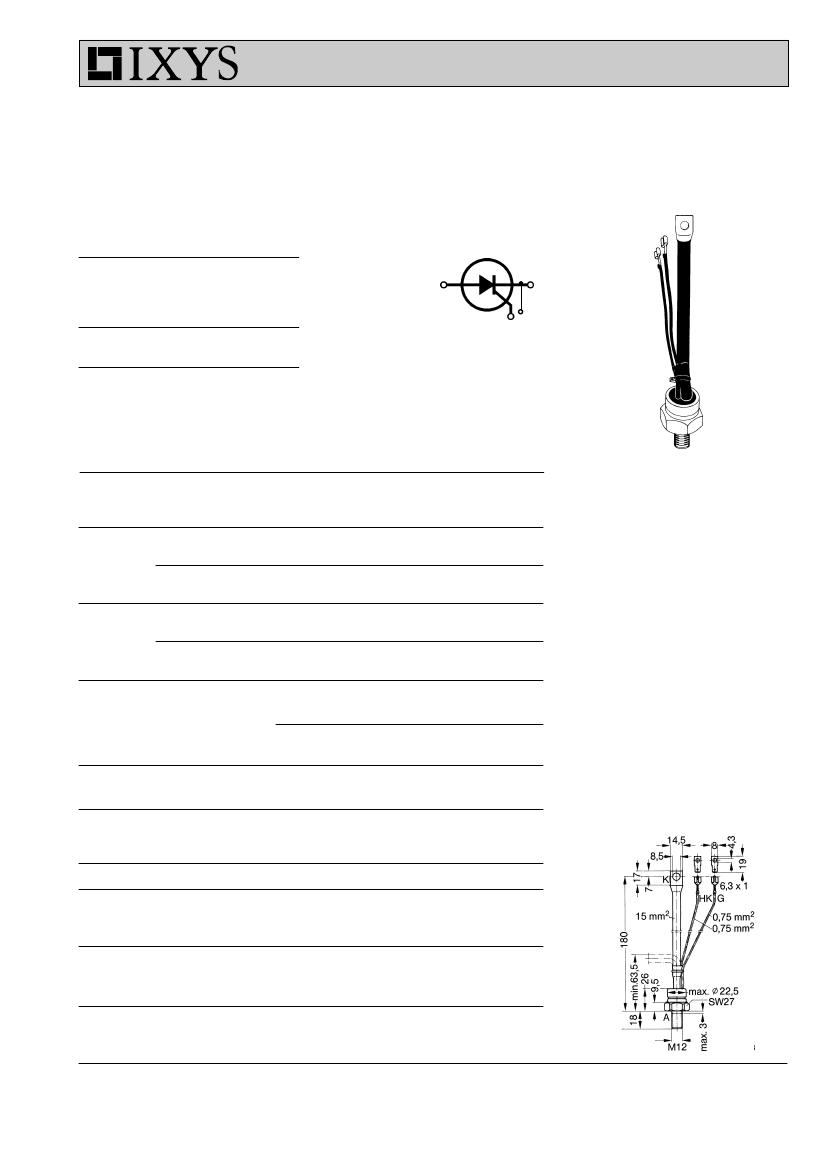

CS 72

Phase Control Thyristors

V

RRM

= 1200-1600 V

I

T(RMS)

= 160 A

I

T(AV)M

= 100 A

3

4

2

V

RSM

V

DSM

V

1300

1700

V

RRM

V

DRM

V

1200

1600

Type

1

4

3

2

TO-209AC

(TO-94)

CS 72-12io8

CS 72-16io8

Not for new application

1

Symbol

I

T(RMS)

I

T(AV)M

I

TSM

Test Conditions

T

VJ

= T

VJM

T

case

= 85°C; 180° sine

T

case

= 65°C; 180° sine

T

VJ

= 45°C;

V

R

= 0

T

VJ

= T

VJM

V

R

= 0

t = 10 ms (50 Hz), sine

t = 8.3 ms (60 Hz), sine

t = 10 ms (50 Hz), sine

t = 8.3 ms (60 Hz), sine

t = 10 ms (50 Hz), sine

t = 8.3 ms (60 Hz), sine

t = 10 ms (50 Hz), sine

t = 8.3 ms (60 Hz), sine

Maximum Ratings

160

75

100

2000

2130

1750

1850

20 000

19 000

15 000

14 200

100

A

2

s

A

2

s

A

2

s

A

2

s

A/µs

M12

1 = Anode, 2 = Cathode,

3 = Gate, 4 = Auxiliary Cathode

I

2

t

T

VJ

= 45°C

V

R

= 0

T

VJ

= T

VJM

V

R

= 0

Features

Thyristor for line frequencies

International standard package

JEDEC TO-209AC

Planar glassivated chip

Long-term stability of blocking

currents and voltages

Gate and auxiliary cathode pin

connection

q

(di/dt)

cr

T

VJ

= T

VJM

repetitive, I

T

= 225 A

f = 50 Hz, t

P

=200

µs

V

D

= 1/2 V

DRM

I

G

= 0.5 A

non repetitive, I

T

= I

T(AV)M

di

G

/dt = 0.5 A/µs

T

VJ

= T

VJM

;

V

DR

= 2/3 V

DRM

R

GK

=

∞;

method 1 (linear voltage rise)

T

VJ

= T

VJM

I

T

= I

T(AV)M

t

P

= 30

µs

t

P

= 500

µs

Applications

Motor control

Power converter

AC power controller

q

500

1000

30

15

1

10

-40...+125

125

-40...+125

A/µs

V/µs

W

V

°C

Nm

lb.in.

g

(dv/dt)

cr

P

GM

P

G(AV)

V

RGM

T

VJ

T

VJM

T

stg

M

d

Weight

Advantages

Space and weight savings

Simple mounting

Improved temperature and power

cycling

Dimensions in mm (1 mm = 0.0394")

(yellow)

(red)

Mounting torque

16-20

142-177

110

Data according to IEC 60747

IXYS reserves the right to change limits, test conditions and dimensions

1-2

CS72-12IO8 Related Products

	CS72-12IO8	CS72-16IO8
Description	Silicon Controlled Rectifier, 160A I(T)RMS, 75000mA I(T), 1200V V(DRM), 1200V V(RRM), 1 Element, TO-209AC, TO-94, 4 PIN	Silicon Controlled Rectifier, 160A I(T)RMS, 75000mA I(T), 1600V V(DRM), 1600V V(RRM), 1 Element, TO-209AC, TO-94, 4 PIN
Is it Rohs certified?	conform to	conform to
Maker	Littelfuse	Littelfuse
package instruction	POST/STUD MOUNT, O-MUPM-H3	POST/STUD MOUNT, O-MUPM-H3
Reach Compliance Code	compliant	compliant
Shell connection	ANODE	ANODE
Nominal circuit commutation break time	150 µs	150 µs
Configuration	SINGLE	SINGLE
Critical rise rate of minimum off-state voltage	1000 V/us	1000 V/us
Maximum DC gate trigger current	150 mA	150 mA
Maximum DC gate trigger voltage	3 V	3 V
Maximum holding current	200 mA	200 mA
JEDEC-95 code	TO-209AC	TO-209AC
JESD-30 code	O-MUPM-H3	O-MUPM-H3
Maximum leakage current	15 mA	15 mA
On-state non-repetitive peak current	2000 A	2000 A
Number of components	1	1
Number of terminals	3	3
Maximum on-state current	75000 A	75000 A
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C
Package body material	METAL	METAL
Package shape	ROUND	ROUND
Package form	POST/STUD MOUNT	POST/STUD MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified
Maximum rms on-state current	160 A	160 A
Off-state repetitive peak voltage	1200 V	1600 V
Repeated peak reverse voltage	1200 V	1600 V
surface mount	NO	NO
Terminal form	HIGH CURRENT CABLE	HIGH CURRENT CABLE
Terminal location	UPPER	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
Trigger device type	SCR	SCR

Recommended Resources

Remote control detector circuit diagram

Photoelectric control telephone light circuit

Interesting carbon film electronic organ circuit

Modulated beam circuit counteracts the effects of ambient light

Power supply circuit diagram of PMV-P-14VC color display

Anti-robbery alarm (RCM1A/RCM1B is the transceiver module)
