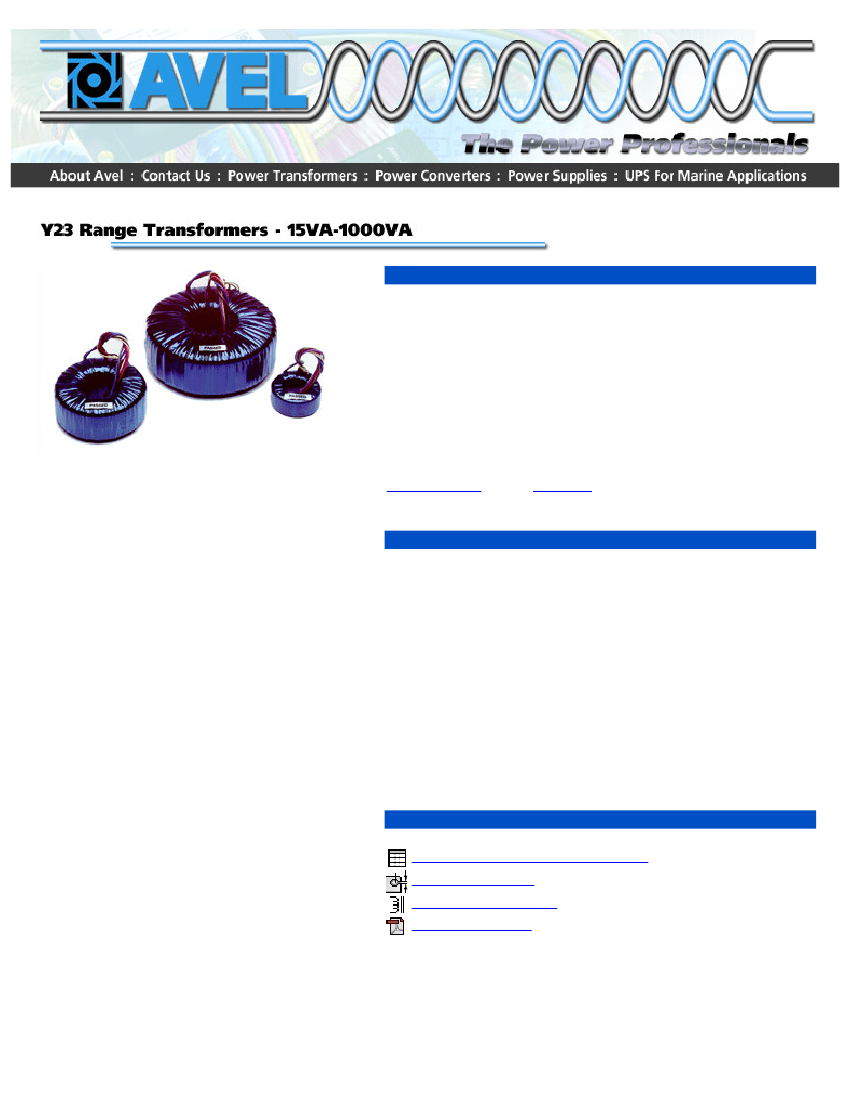

Y23 Standard Range Toroidal Transformers
AVEL's newest range the Y23 Range offers an even broader selection of
ready-made toroidal power transformers, spanning 15 to 1000VA. The
Range has a polyester tape finish with hardware supplied with dish
mounting, nut bolt, washer and two compression pads. This style of finish
has proven to be Avel's most popular method of constructing toroidal
transformers for modern-day electronics. This is the most inexpensive way
to meet J.I.T. schedules by purchasing "off the shelf" from the wide range
of toroids that follow.
Y23 Range transformers carry a notable package of agency standards.
Our unique double-insulated primary leads eliminate an assembly step
required by many safety standards.
If your requirement falls outside our Standard Range, please review our
Custom Designs
area, or
contact us
to receive a quote on a custom
design.
Y23 Standard Range General Specifications
q
Primaries: 115V + 115V. Frequency: 50/60 Hz.
q
q
q
q
q
q
q
q
High pot: tested at 4K VRMS.
Secondary voltage tolerance: Within 3% at normal input and full
load.
Mounting hardware: Metal dish, 2 foam pads, bolt, washer, and nut
included with each transformer.
Leads: 150 mm / 6" (±5 mm / .2") stranded, PVC insulated.
Double-insulated primary leads: UL1672 (105º C, 300 V).
Secondary leads: UL3266 (125º C, 300 V)
Clearance: allow 4 mm / .2" over mounting hardware.
Certifications: UL506/CSA 22.2, No. 66; UL1411/CSA 22.2 No.
1-94; UL1950/CSA 22.2 No. 950-95; UL2601 (UL544)/CSA 22.2
No.601.1; CE marked and tested in accordance with EN61558
(replacing EN60742), EN60065, AEN60950, BS415, VDE0550.
Additional Specifications and Information
Detailed Specifications (Standard Range)
Mechanical Drawings
Transformer Connections
Download Datasheet
http://www.avellindberg.com/transformers/y23_range.htm (1 of 2) [4/30/2001 5:18:01 PM]
Transformers, Power Converters and UPS From Avel Lindberg, Inc.
Y23 Range
|
Custom Designs
|
D4000 Range
|
Encapsulated PCB
|
Low Profile Encapsulated
|
Technical Information
About
|
Contact
|
Transformers
|
Converters
|
Power Supplies
|
UPS
Avel Lindberg
US: New Milford, CT · (860) 355-4711 · sales@avellindberg.com
Europe: Essex, UK · 44 (0) 1708 853 444 · eurosales@avellindberg.com
Asia: Singapore · (65) 264 0388 · asiasales@avellindberg.com
http://www.avellindberg.com/transformers/y23_range.htm (2 of 2) [4/30/2001 5:18:02 PM]
Transformers, Power Converters and UPS From Avel Lindberg, Inc.
Y23 Range Transformer Specifications - 15VA
