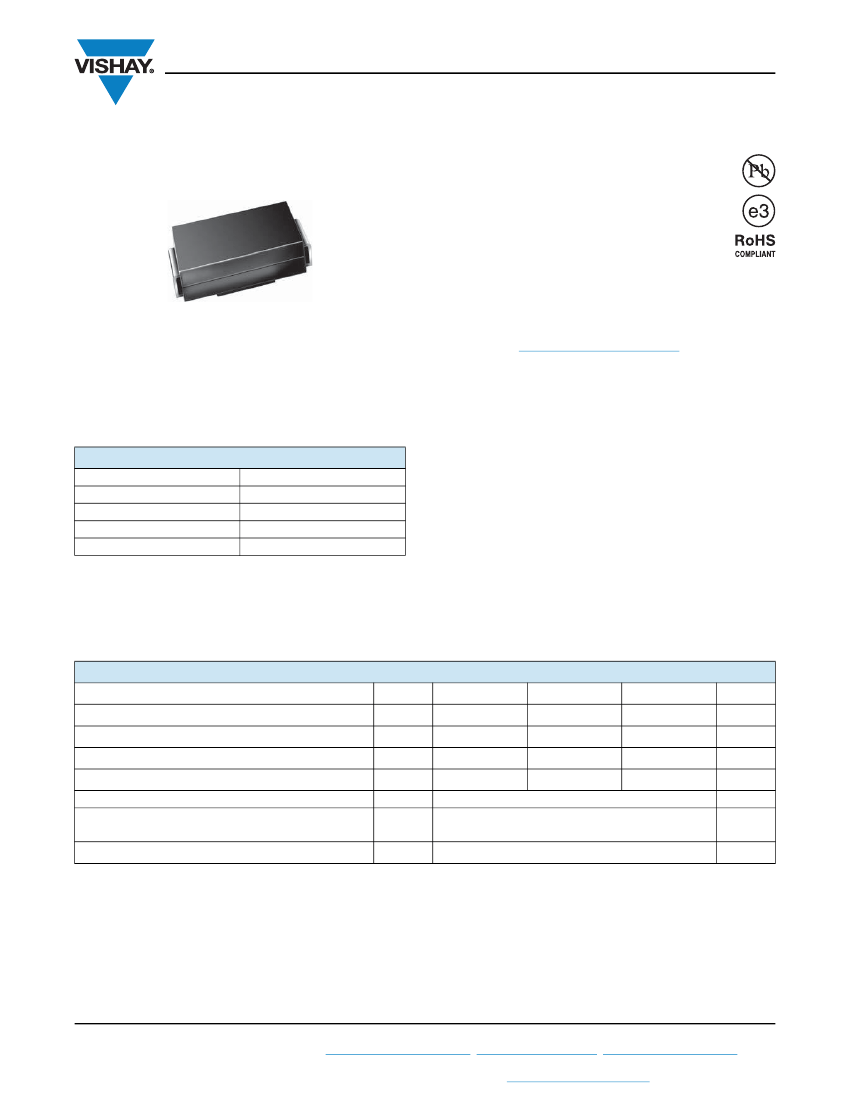

ESH1B, ESH1C, ESH1D
www.vishay.com
Vishay General Semiconductor
Surface Mount Ultrafast Plastic Rectifier
FEATURES
• Low profile package
• Ideal for automated placement
• Glass passivated chip junction
• Ultrafast recovery times for high efficiency
• Low forward voltage, low power loss
• Meets MSL level 1, per J-STD-020, LF maximum peak of
260 °C
DO-214AC (SMA)
• AEC-Q101 qualified
• Material categorization: For definitions of compliance
please see
www.vishay.com/doc?99912
TYPICAL APPLICATIONS
For use in secondary rectification and freewheeling for
ultrafast switching speeds AC/AC and DC/DC converters in
high temperature conditions for both consumer and
automotive applications.
1.0 A
100 V, 150 V, 200 V
25 ns
0.90 V
175 °C
PRIMARY CHARACTERISTICS
I
F(AV)
V
RRM
t
rr
V
F
T
J
max.
MECHANICAL DATA
Case:
DO-214AC (SMA)
Molding compound meets UL 94 V-0 flammability rating
Base P/N-E3 - RoHS-compliant, commercial grade
Base P/NHE3 - RoHS-compliant, AEC-Q101 qualified
Terminals:
Matte tin plated leads, solderable per
J-STD-002 and JESD 22-B102
E3 suffix meets JESD 201 class 1A whisker test, HE3 suffix
meets JESD 201 class 2 whisker test
Polarity:
Color band denotes cathode end
MAXIMUM RATINGS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Device marking code
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current at T
L
= 150 °C
Peak forward surge current 8.3 ms single half sine-wave
superimposed on rated load (JEDEC method)
Operating junction and storage temperature range
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
T
J
, T
STG
SYMBOL
ESH1B
EHB
100
70
100
ESH1C
EHC
150
105
150
1.0
50
- 55 to + 175
ESH1D
EHD
200
140
200
V
V
V
A
A
°C
UNIT
Revision: 27-Mar-12
Document Number: 88890
1
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
ESH1B, ESH1C, ESH1D
www.vishay.com
Vishay General Semiconductor
ELECTRICAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Maximum instantaneous forward
voltage
Maximum DC reverse current at rated
DC blocking voltage
Maximum reverse current
Maximum reverse recovery time
Typical reverse recovery time
Typical stored charge
Typical junction capacitance
V
R
= 20 V, T
J
= 150 °C
I
F
= 0.5 A, I
R
= 1 A, I
rr
= 0.25 A
I
F
= 0.6 A, V
R
= 30 V,
dI/dt = 50 A/μs, I
rr
= 10 % I
RM
I
F
= 0.6 A, V
R
= 30 V,
dI/dt = 50 A/μs, I
rr
= 10 % I
RM
4.0 V, 1 MHz
T
J
= 25 °C
T
J
= 100 °C
T
J
= 25 °C
T
J
= 100 °C
I
F
= 0.7 A
I
F
= 1 A
T
A
= 25 °C
T
A
= 125 °C
TEST CONDITIONS
SYMBOL
V
F (1)
V
F
I
R
I
R
t
rr
t
rr
Q
rr
C
J
VALUE
0.87
0.90
1.0
25
50
25
25
35
10
15
25
UNIT
V
µA
µA
ns
ns
nC
pF
Note
(1)
Pulse test: 300 μs pulse width, 1 % duty cycle
THERMAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Typical thermal resistance
Note
Units mounted on P.C.B. with 5.0 mm x 5.0 mm (0.013 mm thick) land areas
SYMBOL
R
JA
(1)
R
JL
(1)
ESH1B
ESH1C
85
30
ESH1D
UNIT
°C/W
(1)
ORDERING INFORMATION
(Example)
PREFERRED P/N
ESH1D-E3/61T
ESH1D-E3/5AT
ESH1DHE3/61T
(1)
ESH1DHE3/5AT
(1)
UNIT WEIGHT (g)
0.064
0.064
0.064
0.064
PREFERRED PACKAGE CODE
61T
5AT
61T
5AT
BASE QUANTITY
1800
7500
1800
7500
DELIVERY MODE
7" diameter plastic tape and reel
13" diameter plastic tape and reel
7" diameter plastic tape and reel
13" diameter plastic tape and reel
Note
(1)
AEC-Q101 qualified

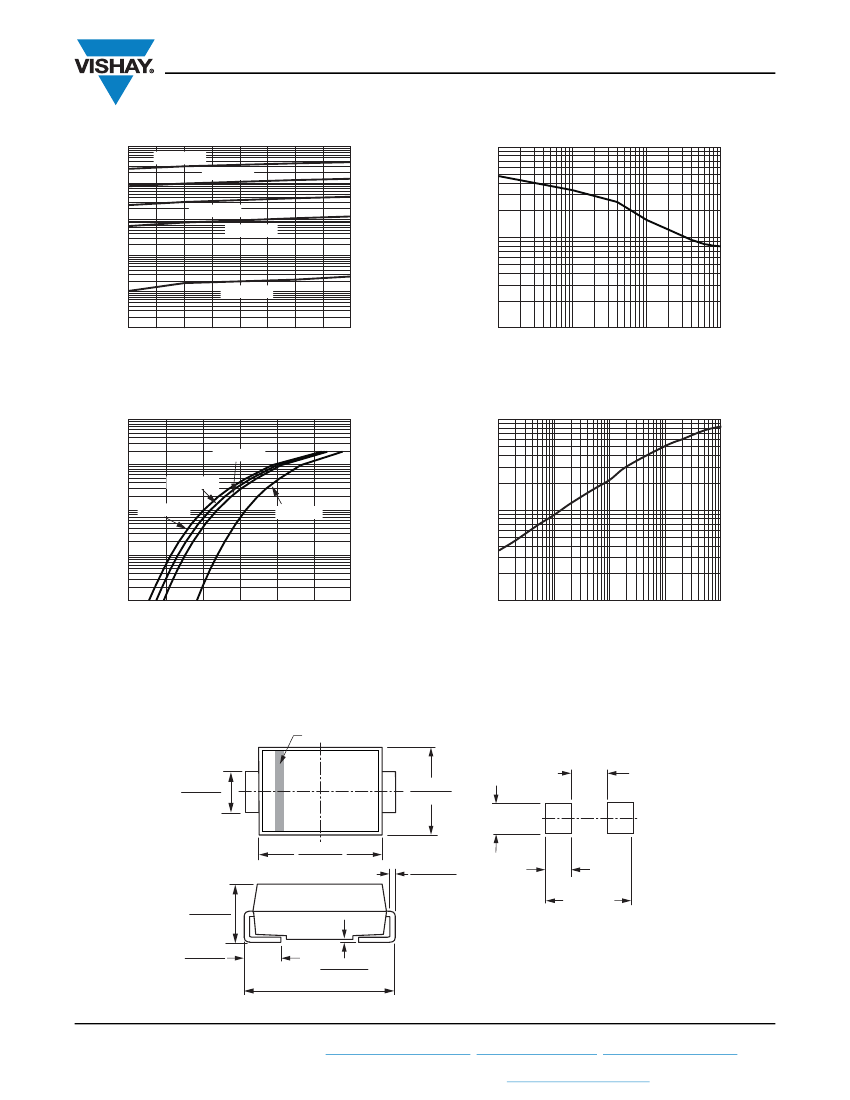

RATINGS AND CHARACTERISTICS CURVES
(T
A
= 25 °C unless otherwise noted)
1.2
50
Average Forward Rectified Current (A)
1.0
Peak Forward Surge Current (A)
145
155
165
175
40
0.8
30
0.6
T
L
Measured
at the Cathode Band Terminal
20
0.4
0.2
10
0
95
105
115
125
135
0
1
10
100
Lead Temperature (°C)
Number of Cycles at 60 Hz
Fig. 1 - Maximum Forward Current Derating Curve
Fig. 2 - Maximum Non-Repetitive Peak Forward Surge Current
Revision: 27-Mar-12
Document Number: 88890
2
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
ESH1B, ESH1C, ESH1D
www.vishay.com
Vishay General Semiconductor
100
100
T
J
= 175 °C
Instantaneous Reverse Leakage
Current (µA)
T
J
= 150 °C
10
T
J
= 125 °C
T
J
= 100 °C
0.1
1
Junction Capacitance (pF)
80
100
10
0.01
T
J
= 25 °C
0.001
20
1
40
60
0.1
1
10
100
Percent of Rated Peak Reverse
Voltage
(%)
Reverse
Voltage
(V)
Fig. 3 - Typical Reverse Leakage Characteristics
Fig. 5 - Typical Junction Capacitance
100
100
T
J
= 125 °C
10
T
J
= 150 °C
1
T
J
= 175 °C
T
J
= 25 °C
Transient Thermal Impedance (°C/W)
1.4
Instantaneous Forward Current (A)
10
0.1
0.01
0.2
0.4
0.6
0.8
1.0
1.2
1
0.01
0.1
1
10
100
Instantaneous Forward
Voltage
(V)
t - Pulse Duration (s)
Fig. 4 - Typical Instantaneous Forward Characteristics
Fig. 6 - Typical Transient Thermal Impedance
PACKAGE OUTLINE DIMENSIONS
in inches (millimeters)
DO-214AC (SMA)
Cathode Band
Mounting Pad Layout
0.066 (1.68)
MIN.
0.074 (1.88)
MAX.
0.065 (1.65)
0.049 (1.25)
0.110 (2.79)
0.100 (2.54)
0.177 (4.50)
0.157 (3.99)
0.012 (0.305)
0.006 (0.152)
0.060 (1.52)
MIN.
0.208 (5.28)
REF.
0.090 (2.29)
0.078 (1.98)
0.060 (1.52)
0.030 (0.76)
0.008 (0.203)
0 (0)
0.208 (5.28)
0.194 (4.93)
Revision: 27-Mar-12
Document Number: 88890
3
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
