DAJTX3WK3S5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> DAJTX3WK3S5

DAJTX3WK3S5: DescriptionD Subminiature Connector, 3 Contact(s), Female, Solder Terminal, Receptacle,; CategoryThe connector The connector; File Size28KB，1 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric View All

DAJTX3WK3S5 Overview

D Subminiature Connector, 3 Contact(s), Female, Solder Terminal, Receptacle,

DAJTX3WK3S5 Parametric

Parameter Name	Attribute value
Maker	ITT
Reach Compliance Code	compliant
Other features	EMI/RFI SHIELDED, POLARIZED
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	YES
IEC compliance	NO
insulator material	POLYETHYLENE
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	PANEL
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Housing size	2/A
Termination type	SOLDER
Total number of contacts	3
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

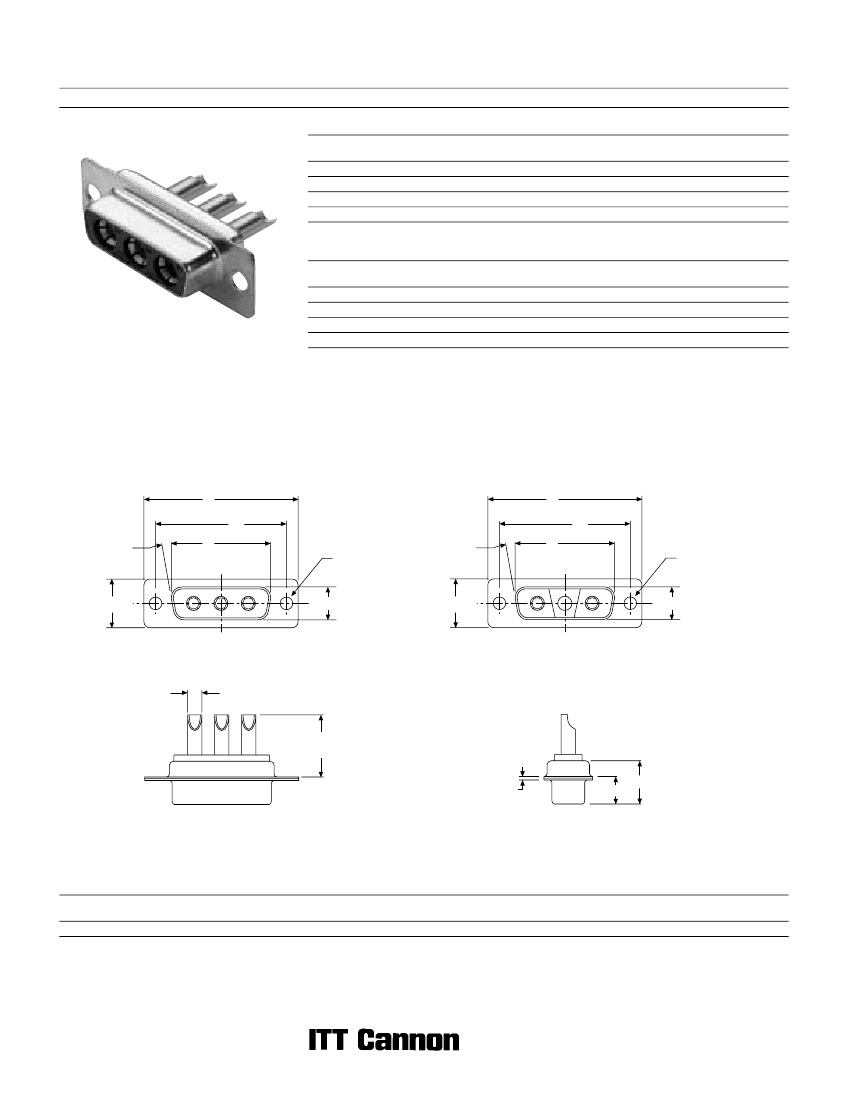

D Subminiature

D*JT Combo — High Power Solder Cup

Receptacle

Part Numbers

Filter

Capacitance

1000 pF

1500 pF

5000 pF

47000 pF

Through Hole

DAJT3W3S1

DAJT3W3S6

DAJT3W3S5

DAJT3W3S9

Clinch Nut

#4-40 UNC

DAJTE3W3S1

DAJTE3W3S6

DAJTE3W3S5

DAJTE3W3S9

Filter D

Clinch Nut

DAJTX3W3S1

DAJTX3W3S6

DAJTX3W3S5

DAJTX3W3S9

Note: For performance class 1 add -A190. Example: DAJT3W3S6-A190

Part Numbers — Keyed Configuration

Filter

Capacitance

1000 pF

1500 pF

5000 pF

47000 pF

Through Hole

DAJT3WK3S1

DAJT3WK3S6

DAJT3WK3S5

DAJT3WK3S9

Clinch Nut

#4-40 UNC

DAJTE3WK3S1

DAJTE3WK3S6

DAJTE3WK3S5

DAJTE3WK3S9

Clinch Nut

DAJTX3WK3S1

DAJTX3WK3S6

DAJTX3WK3S5

DAJTX3WK3S9

Reader’s Resource

For contact cavity arrangements,

see page 223.

For panel cutouts, see page 221.

For hardware views (European),

see page 227.

Note: For performance class 1 add -A190. Example: DAJT3WK3S6-A190

For electrical data, see page 107.

Engaging Face

10°

Ø 3,05 (.120)

10°

Keyed Configuration

Engaging Face

Ø 3,05 (.120)

Ø 3,63 (.143)

15,90

0,50

(.626

.011)

Dimensions

Shell Size

±0,38

(.015)

39,14 (1.541)

±0,13

(.005)

24,66 (.971)

±0,13

(.005)

33,32 (1.312)

±0,13

(.005)

7,90 (.311)

±0,38

(.015)

12,55 (.494)

±0,25

(.010)

10,90 (.429)

±0,38

(.015)

6,94 (.273)

±0,25

(.010)

0,76 (.030)

Dimensions are shown in mm (inch)

Dimensions subject to change

129
