DAMMC11C1SJ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> DAMMC11C1SJ

DAMMC11C1SJ: DescriptionD Subminiature Connector, 11 Contact(s), Female, Solder Terminal, Receptacle,; CategoryThe connector The connector; File Size60KB，1 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric View All

DAMMC11C1SJ Overview

D Subminiature Connector, 11 Contact(s), Female, Solder Terminal, Receptacle,

DAMMC11C1SJ Parametric

Parameter Name	Attribute value
Maker	ITT
Reach Compliance Code	compliant
Other features	STANDARD: MIL-C-24308, PANEL MOUNT
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYESTER
MIL compliance	YES
Manufacturer's serial number	DAMMC
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	YES
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	CHROMATE
Shell material	STEEL
Housing size	2/A
Termination type	SOLDER
Total number of contacts	11
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

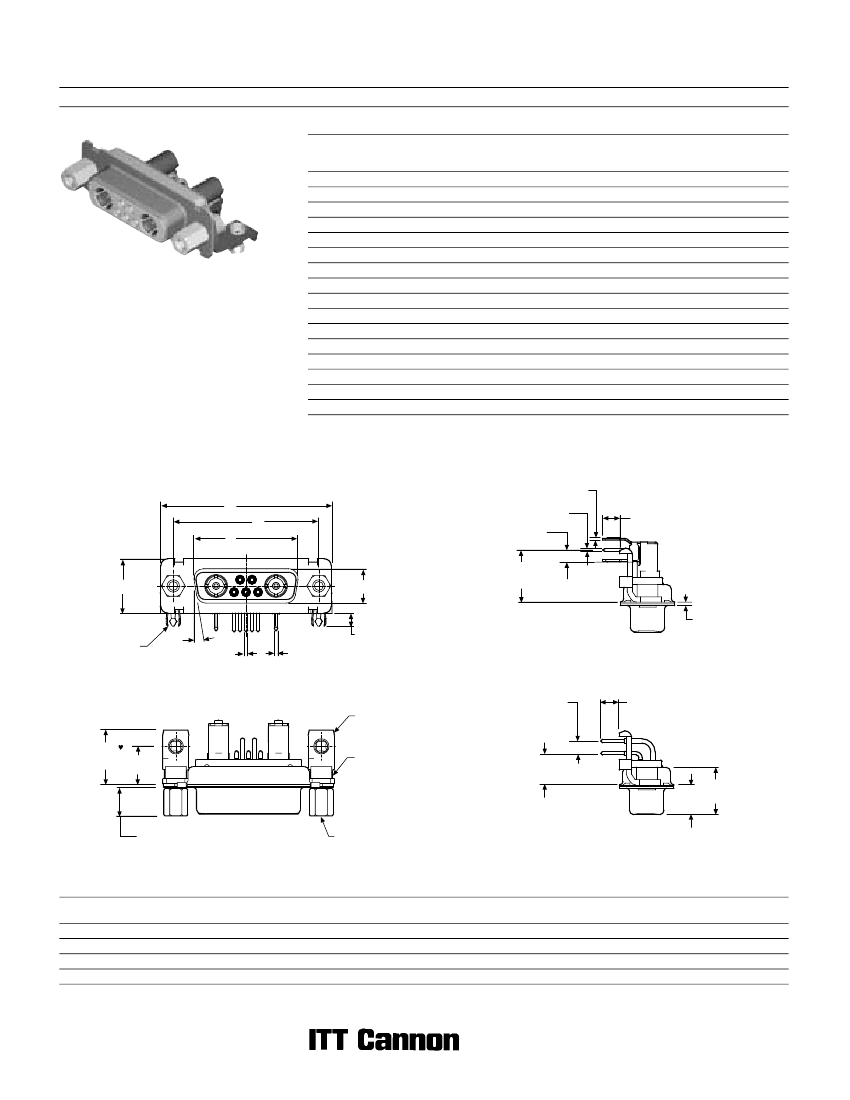

D Subminiature

Coaxial 90° PCB (Sizes DE-DC)

Receptacle

Military/High Reliability

75 Ohm Part Numbers* with Bracket and Rivnut #4-40 UNC

Shell Size

Layout

5W1

7W2

11W1

3W3

3WK3

5W5

9W4

13W3

17W2

21W1

8W8

13W6

17W5

21WA4

25W3

27W2

Part Number

Without Screw Locks

Without Boardlocks

DEMMP5C1SJ

DAMMP7C2SJ

DAMMP11C1SJ

DAMMP3C3SJ

DAMMP3CK3SJTM

DBMMP5C5SJ

DBMMP9C4SJ

DBMMP13C3SJ

DBMMP17C2SJ

DBMMP21C1SJ

DCMMP8C8SJ

DCMMP13C6SJ

DCMMP17C5SJ

DCMMP21CA4SJ

DCMMP25C3SJ

DCMMP27C2SJ

Part Number

Without Screw Locks

With Boardlocks

DEMMC5C1SJ

DAMMC7C2SJ

DAMMC11C1SJ

DAMMC3C3SJ

DAMMC3CK3SJTM

DBMMC5C5SJ

DBMMC9C4SJ

DBMMC13C3SJ

DBMMC17C2SJ

DBMMC21C1SJ

DCMMC8C8SJ

DCMMC13C6SJ

DCMMC17C5SJ

DCMMC21CA4SJ

DCMMC25C3SJ

DCMMC27C2SJ

Part Number

With Screw Locks

Without Boardlocks

DEMMD5C1SJ

DAMMD7C2SJ

DAMMD11C1SJ

DAMMD3C3SJ

DAMMD3CK3SJTM

DBMMD5C5SJ

DBMMD9C4SJ

DBMMD13C3SJ

DBMMD17C2SJ

DBMMD21C1SJ

DCMMD8C8SJ

DCMMD13C6SJ

DCMMD17C5SJ

DCMMD21CA4SJ

DCMMD25C3SJ

DCMMD27C2SJ

Part Number

With Screw Locks

With Boardlocks

DEMMG5C1SJ

DAMMG7C2SJ

DAMMG11C1SJ

DAMMG3C3SJ

DAMMG3CK3SJTM

DBMMG5C5SJ

DBMMG9C4SJ

DBMMG13C3SJ

DBMMG17C2SJ

DBMMG21C1SJ

DCMMG8C8SJ

DCMMG13C6SJ

DCMMG17C5SJ

DCMMG21CA4SJ

DCMMG25C3SJ

DCMMG27C2SJ

Reader’s Resource

For contact cavity arrangements,

see page 223.

For P.C. hole patterns, see pages 231-232.

For panel cutouts, see page 221.

For hardware views (Standard), see page 226.

For alternate bracket configuration (when

connectors are supplied without boardlocks),

see page 226.

For alternate 50 Ohm coaxial configuration,

see page 225.

Notes: *For 50 Ohm Coaxial substitute X for C. Example: DEMMP5X1SJ

For DD shell size, see page 149.

Keyed

Engaging Face

0,56

(.023)

Ø 0,51

(.020)

2,54

(.100)

11,94

0,33

(.470

.013)

3,89 (.153)

MIN

BOARDLOCK

10°

Ø 0,76

(.030)

2,92

(.115)

0,79

(.031)

Screw lock, boardlock and signal contacts

removed for clarity

2,84

(.112)

BRACKET,

METAL

4,33

0,38

(.170

.015)

12,34

(.486)

8,64

(.340)

RIVNUT

#4-40 UNC

7,18

0,25

(.283

.010)

6,50

0,25

(.256

.010)

Note:

SCREW LOCK

#4-40 UNC

Screw lock, boardlock and coaxial contact

removed for clarity

Dimension varies with altenate bracket configuration, see Reader’s Resource page 225.

Dimensions

Shell Size

±0,38

(.015)

30,81 (1.213)

39,14 (1.541)

53,04 (2.088)

69,32 (2.729)

±0,13

(.005)

16,33 (.643)

24,66 (.971)

38,38 (1.511)

54,84 (2.159)

±0,13

(.005)

24,99 (.984)

33,32 (1.312)

47.04 (1.852)

63,50 (2.500)

±0,13

(.005)

7,90 (.311)

±0,38

(.015)

12,55 (.494)

±0,25

(.010)

10,90 (.429)

±0,38

(.015)

6,94 (.273)

±0,25

(.010)

0,76 (.030)

Dimensions are shown in mm (inch)

Dimensions subject to change
