YTQ-134-02-F-Q datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> YTQ-134-02-F-Q

Preview

YTQ-134-02-F-Q: DescriptionBoard Connector, 136 Contact(s), 4 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT; CategoryThe connector The connector; File Size281KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

YTQ-134-02-F-Q Overview

Board Connector, 136 Contact(s), 4 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT

YTQ-134-02-F-Q Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Factory Lead Time	2 weeks
Other features	FLEXYZ
body width	0.316 inch
subject depth	0.25 inch
body length	2.698 inch
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD FLASH OVER NICKEL (50)
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Durability	100 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.5004 N
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	4
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
reliability	COMMERCIAL
Terminal length	0.6 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	136
Evacuation force-minimum value	.278 N

Preview

Download Datasheet

View All

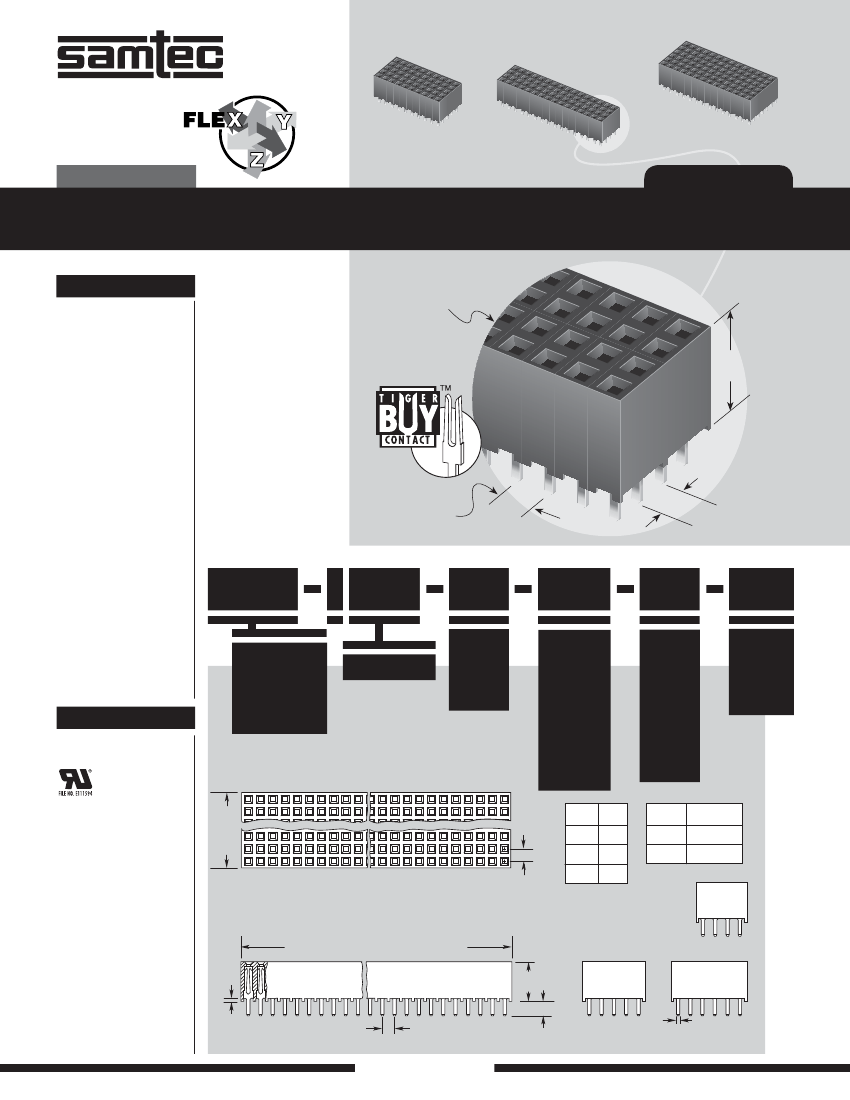

F-215 SUPPLEMENT

YTQ–116–01–F–Q

YTQ–110–01–L–5

TM

YTS–114–01–F–6

(2,00 mm) .0787"

YTS, YTQ SERIES

HIGH DENSITY SOCKET STRIP

SPECIFICATIONS

For complete speciﬁcations

see www.samtec.com?YTS

or www.samtec.com?YTQ

Insulator Material:

Black Liquid Crystal

Polymer

Contact Material:

Phosphor Bronze

Operating Temp Range:

-55°C to +125°C

Plating:

Sn or Au over

50µ" (1,27 µm) Ni

Contact Resistance:

10 mΩ

Insertion Depth:

(2,62 mm) .103" to

(5,03 mm) .198"

Insertion Force:

(Single contact only)

1.8 oz (0,50 N) average

Withdrawal Force:

(Single contact only)

1.0 oz (0,28 N) average

Max Cycles:

100 with 10µ" (0,25 µm) Au

RoHS Compliant:

Yes

Mates with:

YTT, YTW, YTE, TMMS

Choice of

f

four,

x row

ﬁve or

six

row

(6,35 mm)

.250"

(2,00 mm)

.0787" TYP

(2,00 mm)

.0787" pitch

Processing

(YTS):

Processing

(YTQ):

TYPE

SOCKET

1

NO. PINS

PER ROW

LEAD

STYLE

Specify

LEAD

STYLE

from

chart

PLATING

OPTION

ROW

OPTION

OTHER

OPTION

Lead–Free Solderable:

Wave Only

YTS

= Flat Tail

(Style –01 only)

–L

=10µ"

(0,25 µm)

Gold contact,

Matte Tin

on tail

–Q

= Four

Row

–“XXX”

=Polarized

Position

(Indicate

position

number)

Lead–Free Solderable:

Wave or reﬂow with

Matte Sn plating

02 thru 50

RECOGNITIONS

For complete scope of

recognitions see

www.samtec.com/quality

YTQ

= Square Tail

–5

= Five

Row

–F

=Gold ﬂash

on contact,

Matte Tin

on tail

–6

= Six

Row

300

06

No. of

rows

x

(2,00)

.0787

295

01

LEAD

STYLE

A

(2,29)

.090

(15,24)

.600

(5,28)

.208

TYPE

SOCKET

B

(0,25) (0,51)

.010 x .020

(0,51)

.020 SQ

– 01

– 02

YTS

YTQ

(2,00)

.0787

TYP

– 03

No. of rows x (2,00) .0787 + (0,30) .012

(6,35)

.250

A

Note:

Some lengths, styles

and options are non-standard,

non-returnable.

–Q

(0,38)

.015

(2,00) .0787

TYP

B

–5

–6

WWW.SAMTEC.COM

Due to technical progress, all designs, speciﬁcations and components are subject to change without notice.
