YTT-104-04-F-Q

Description
Board Connector, 16 Contact(s), 4 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, ROHS COMPLIANT
CategoryThe connector    The connector
File Size321KB，1 Pages
ManufacturerSAMTEC
Websitehttp://www.samtec.com/
Environmental Compliance
Download Datasheet Parametric View All

YTT-104-04-F-Q Overview

Board Connector, 16 Contact(s), 4 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, ROHS COMPLIANT

YTT-104-04-F-Q Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerSAMTEC
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
Other featuresFLEXYZ, LOW PROFILE
body width0.316 inch
subject depth0.079 inch
body length0.316 inch
Connector typeBOARD CONNECTOR
Contact to complete cooperationGOLD FLASH OVER NICKEL (50)
Contact completed and terminatedTin (Sn) - with Nickel (Ni) barrier
Contact point genderMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
DIN complianceNO
Filter functionNO
IEC complianceNO
Insulator colorBLACK
insulator materialLIQUID CRYSTAL POLYMER (LCP)
JESD-609 codee3
MIL complianceNO
Plug contact pitch0.079 inch
Match contact row spacing0.079 inch
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number4
Number of rows loaded4
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing2.0066 mm
Plating thicknessFLASH inch
reliabilityCOMMERCIAL
Terminal length0.101 inch
Terminal pitch2 mm
Termination typeSOLDER
Total number of contacts16

Preview

Download Datasheet

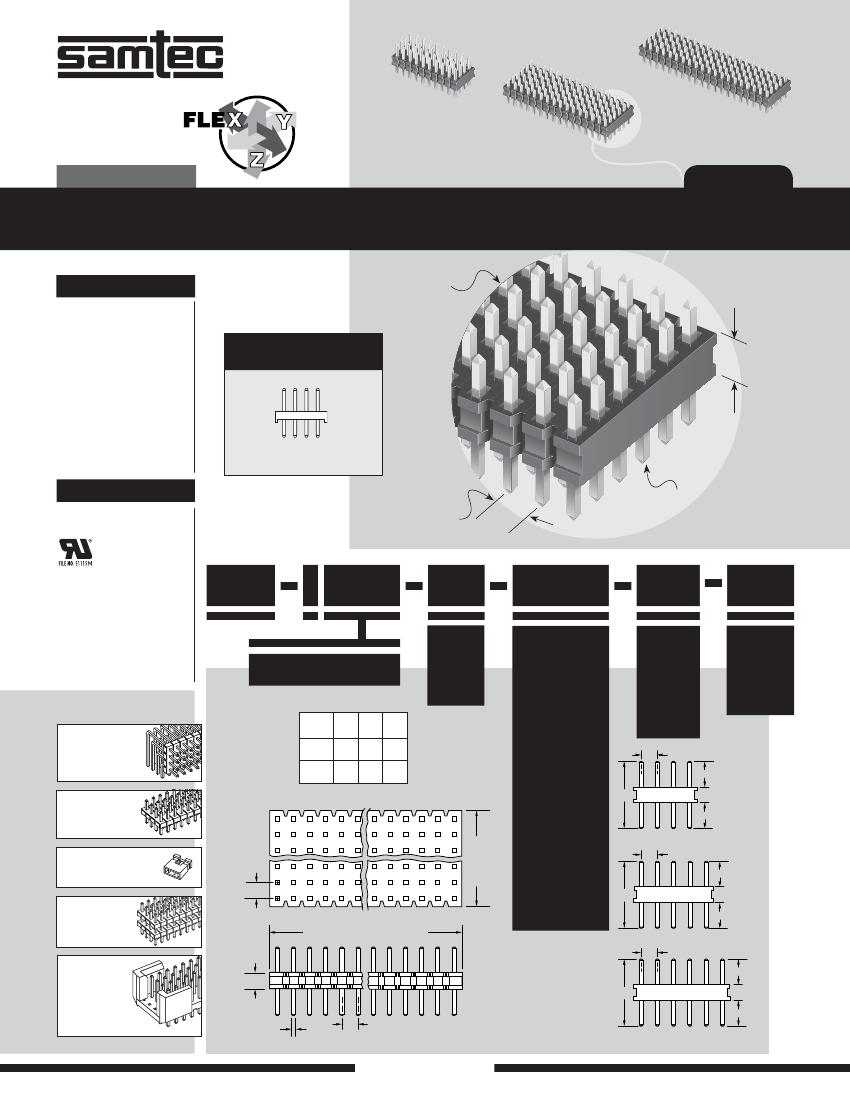

F-215 SUPPLEMENT
YTT–110–01–G–Q
YTT–120–04–L–5
YTT–116–04–T–6
TM
(2,00 mm) .0787"
YTT SERIES
HIGH DENSITY TERMINAL STRIP
SPECIFICATIONS
For complete specifications
see www.samtec.com?YTT
Insulator Material:
Black Liquid Crystal
Polymer
Terminal Material:
Phosphor Bronze
Operating Temp Range:
-55°C to +105°C with Tin;
-55°C to +125°C with Gold
Plating:
Sn or Au over
50µ" (1,27 µm) Ni
RoHS Compliant:
Yes
Lead–Free Solderable:
Wave only
Mates with:
YTQ, YTS, YTE
Choice of 4, 5 and 6
rows on (2,00 mm)
.0787" pitch
OTHER
SOLUTIONS
(2,00 mm)
.0787"
Paste In Hole (PIH) processing.
Contact Samtec ASP Group.
RECOGNITIONS
For complete scope of
recognitions see
www.samtec.com/quality
(2,00 mm)
.0787"
Through-hole
YTT
1
NO. PINS
PER ROW
LEAD
STYLE
Specify
LEAD
STYLE
from
chart
PLATING
OPTION
ROW
OPTION
OTHER
OPTIONS
Note:
Some lengths, styles and
options are non-standard,
non-returnable.
–G
= 20µ" (0,51 µm)
Gold on
contact area,
Gold flash on tail
–Q
= Four Row
–“XXX”
= Polarized
Position
Specify
position of
omitted pin
02 thru 50
LEAD
STYLE
–01
–04
–5
= Five Row
Other Solutions
Right Angle
Four Row
See TMM Series.
–S
A
B
C
(7,67) (3,20) (2,46)
.302 .126 .097
(6,48) (1,91) (2,57)
.255 .075 .101
= 30µ" (0,76 µm)
Gold on
contact area,
Tin on tail
–6
= Six Row
(2,00) .0787
B
A
C
–L
300
Low Profile
Four Row
See TMM Series.
06
= 10µ" (0,25 µm)
Gold on
contact area,
Tin on tail
No. of
rows
x
(2,00)
.0787
–Q
2 mm Shunt
See 2SN Series.
(2,00)
.0787
TYP
–F
= Gold flash
on contact area,
Tin on tail
A
(2,00) .0787
B
Elevated
See YTW Series.
(2,00)
.0787
01
295
–T
= Tin
–5
C
No. of positions x (2,00) .0787
(2,00) .0787
B
A
C
Shrouded
Four Row
Vertical &
Right Angle
See TMMS Series.
(0,50) .020
SQ
(2,00) .0787
–6
WWW.SAMTEC.COM
Due to technical progress, all designs, specifications and components are subject to change without notice.
