POWER ENTRY MODULES WITH LINE FILTER
Standard- or Medical-Filter

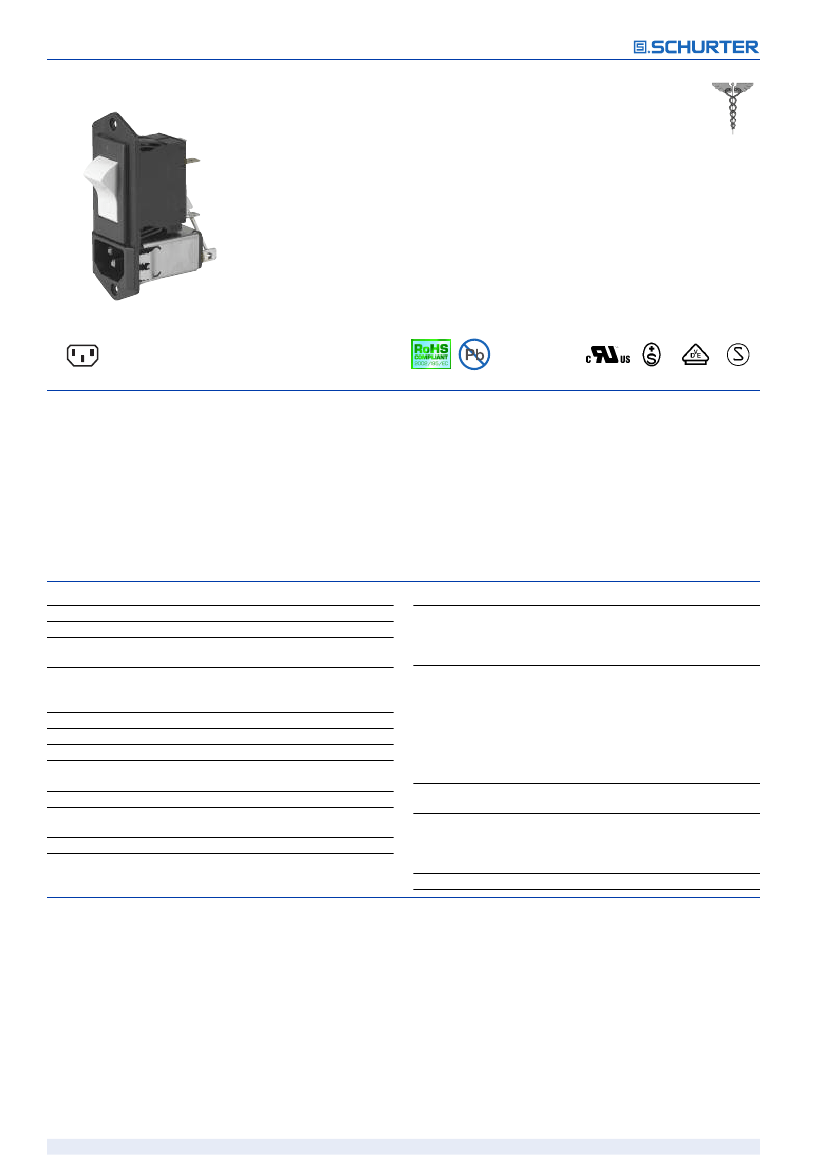

Inlet filter, front side mounting, circuit breaker TA45 2-pole
C14
70° C
Description
- Panel Mount:
Screw-on from front side
- 3 Functions:
Inlet Protection class I, circuit breaker type TA45 2-pole, Line filter in
standard and medical version
- Quick connect terminals 6.3 x 0.8 mm
- Alternative: version without line filter
6145
- We recommend for new applications type
DF12
Characteristics
- All single elements are already wired
Unwired versions available on request
- Line switch non-illuminated or illuminated
Thermal overload protection
Optional with undervoltage release or remote trip release
- Qualified for use in equipment according IEC/EN 60950
Weblinks
Approvals:
http://www.schurter.com/approvals
RoHS:
http://www.schurter.com/rohs
Approvals
- VDE License Number: 117118
- UL License Number: E72928
Technical Data
Ratings IEC
Ratings UL/CSA
Leakage Current
Dielectric Strength
1 - 10 A @ Ta 40 °C / 250 VAC; 50 Hz
1 - 15 A @ Ta 40 °C / 125 VAC; 60 Hz
standard < 0.5 mA (250 V / 60 Hz)
medical < 5 µA (250 V / 60 Hz)
> 1.7 kVDC between L-N
> 2.7 kVDC between L/N-PE
Test voltage (2 sec)
-10 °C to 55 °C
10/055/21acc. to, IEC 60068-1
from front side IP 40 acc. to IEC 60529
Suitable for appliances with protection
class I acc. to IEC 61140
Quick connect terminals 6.3 x 0.8 mm
Screw-on: max 8 mm
Mounting screw torque max 0.5 Nm
Thermoplastic, black, UL 94V-0
Appliance-Inlet /-Outlet
C14 acc. to IEC/EN 60320-1,
UL 498, CSA C22.2 no. 42 (for cold con-
dition) pin-temperature 70 °C, 10 A, Pro-
tection class I
Acc. IEC/EN 60934, UL 1077, CSA 22.2
no. 235
2-pole rocker switch, illuminated or non-il-
luminated. Optional with undervoltage- or
remote trip release
Short circuit capacity Icn:
at In < 3A/240VAC : 10 x In
at In
≥
3A/240VAC : 300A
acc. to IEC 61058-1
Technical details
Standard and Medical Version, IEC
60939, IEC 60601-1, UL 1283, UL 544,
EN 133 200, CSA C22.2 no. 8
Technical details
> 100'000 h acc. to MIL-HB-217 F
Circuit breaker
Allowable Operation Temp.
Climatic Category
Degree of Protection
Protection Class
Terminal
Panel Thickness s
Material: Housing
Line Switch
Line Filter
MTBF
1
www.schurter.com
5145
POWER ENTRY MODULES WITH LINE FILTER
Technical data (continued)
Circuit breaker
Tripping characteristics
I
n
< 3 A
[ min ] [ sec ]
10’000
Type
Rated current
TA45
In < 3 A
1-pole protected
Tripping characteristics
I
n
*
3…) 15 A
[ min ] [ sec ]
10’000
Type
Rated current
TA45
I
n
≥
3...
≤
15 A
1-pole protected
60
30
20
10
5
200
100
1
50
2000
60
30
20
10
5
200
100
1
50
2’000
1’000
500
Ambient temp.
2-pole protected
2-pole protected
+23
°C
1000
500
Ambient temp.
+23
°C
20
10
5
2
1
0,5
0,3
0,2
0,1
1,05 1,32
2
3
4
[ x In ]
5
8
10
Tripping time
Tripping time
20
10
5
2
1
0,5
0,3
0,2
0,1
1,05 1,32
2
3
4
[ x In ]
5
8
10
Multiple of rated current
Multiple of rated current
Effect of ambient temperature
1)
The unit is calibrated for an ambient temperature of +23 °C. To
determine the rated current for a lower or higher ambient tempera-
ture, use a correction factor from the table below.
*
Ambient temperature [°C] Correction factor
–10
0,89
– 5
0,91
0
0,92
+23
1,00
+30
1,03
+40
1,08
+55
1,16
* Temperature must be measured at the rear of the breaker next to
the terminals after equipment operating temperature has been
reached.
Example
Rated current at +23 °C
Ambient temperature
Correction factor
Chosen rated current at
+ 40 °C ambient temperature
1)
6,0 A
+40 °C
1,08
6 A x 1,08 = 6,5 A

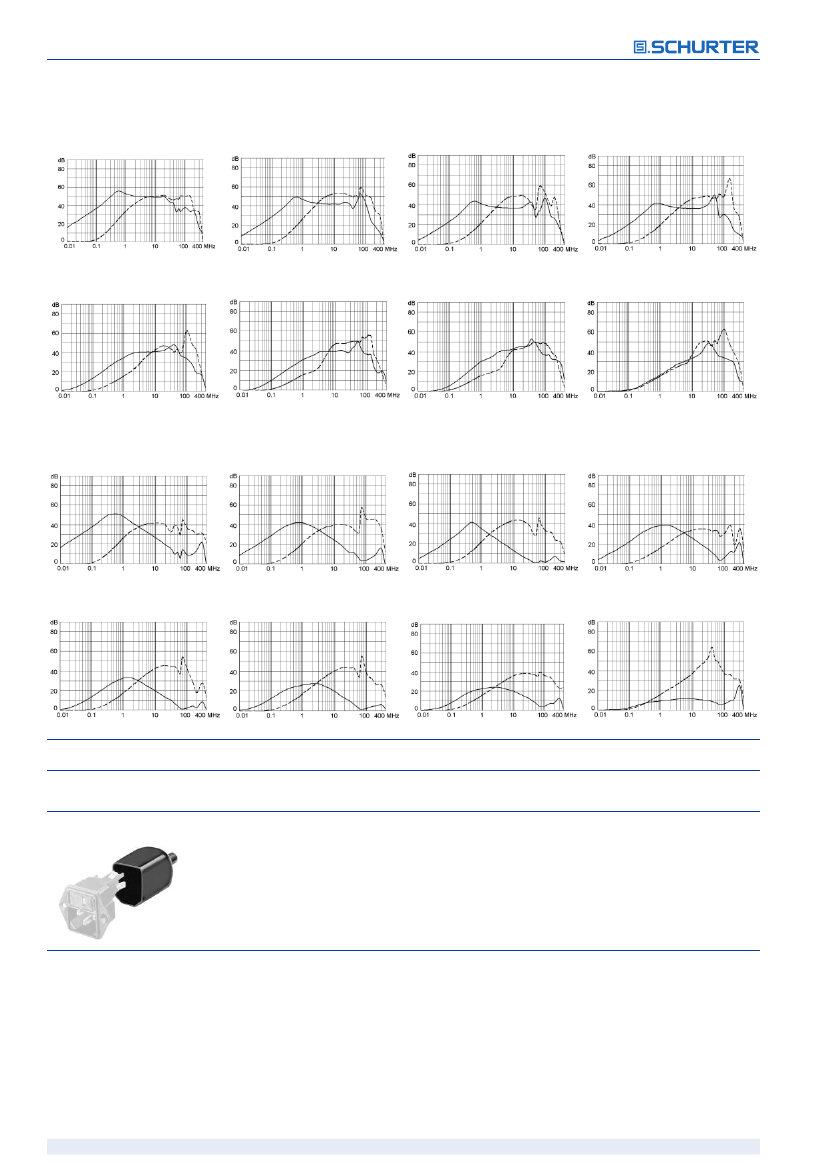

Order code (Order example)
Type
Order code TA45
(2-pole rocker-switch without
accessories)
Wiring
0
Without
1
With
Type of line filter
1
Standard
3
Medical
Rated current of line filter
1
1 (A)
5
6 (A)
2
2 (A)
6
8 (A)
3
3 (A)
7
10 (A)
4
4 (A)
8
15 (A)
5145. A B T W F 1 5 0 C 0
see table 1
.
0 0 1
Please note that Schurter will establish an internal part number for logistical use in additional to the order code. The format of this internal part
number is, for example 5145.0031.001
5
www.schurter.com
