PLDM7-10G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> PLDM7-10G

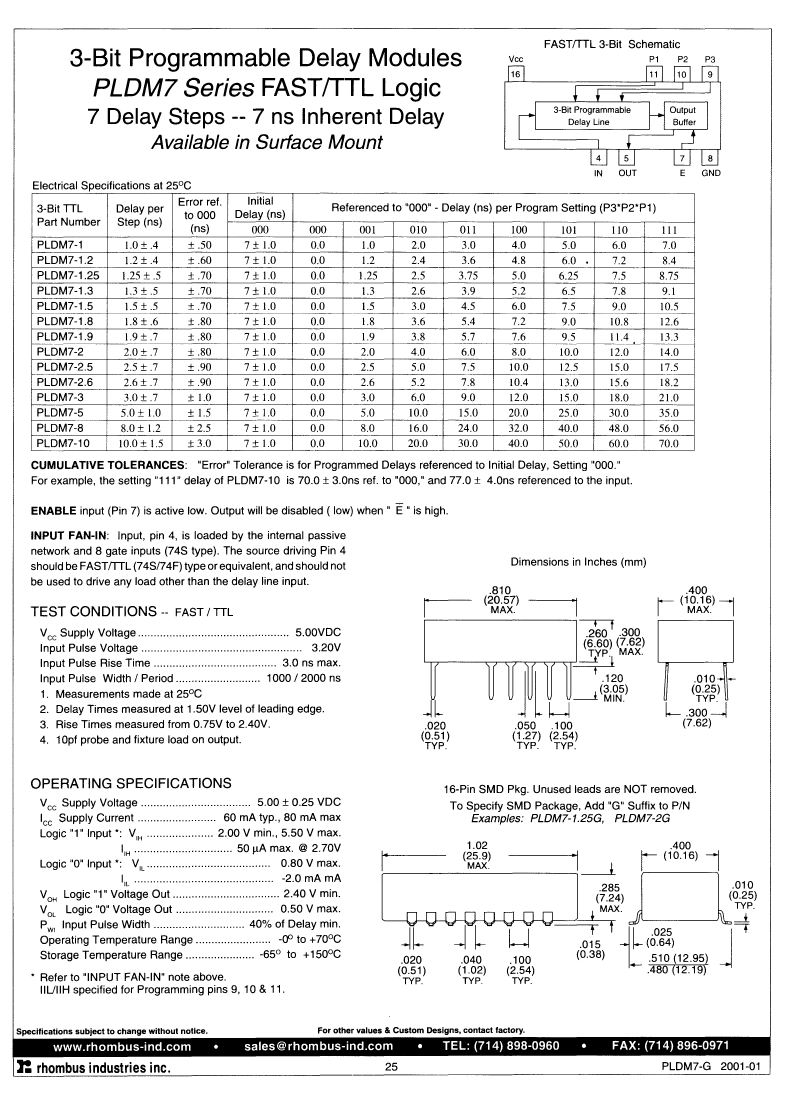

PLDM7-10G: DescriptionActive Delay Line, Programmable, 1-Func, 7-Tap, True Output, TTL, PDSO16, SMD-16; Categorylogic logic; File Size94KB，1 Pages; ManufacturerRhombus Industries, Inc.; Websitehttp://www.rhombus-ind.com/

Download Datasheet Parametric Compare View All

PLDM7-10G Overview

Active Delay Line, Programmable, 1-Func, 7-Tap, True Output, TTL, PDSO16, SMD-16

PLDM7-10G Parametric

Parameter Name	Attribute value
Maker	Rhombus Industries, Inc.
Parts packaging code	SOIC
package instruction	SMD-16
Contacts	16
Reach Compliance Code	unknown
series	S
JESD-30 code	R-PDSO-G16
Logic integrated circuit type	ACTIVE DELAY LINE
Number of functions	1
Number of taps/steps	7
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
programmable delay line	YES
Certification status	Not Qualified
Maximum seat height	7.62 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	2.54 mm
Terminal location	DUAL
Total delay nominal (td)	77 ns
width	10.16 mm

Preview

Download Datasheet

View All

PLDM7-10G Related Products

	PLDM7-10G	PLDM7-1.25G	PLDM7-1.2G	PLDM7-1.8G	PLDM7-2.6G	PLDM7-2.5G	PLDM7-2G	PLDM7-1.9G	PLDM7-1.3G
Description	Active Delay Line, Programmable, 1-Func, 7-Tap, True Output, TTL, PDSO16, SMD-16	Active Delay Line, Programmable, 1-Func, 7-Tap, True Output, TTL, PDSO16, SMD-16	Active Delay Line, Programmable, 1-Func, 7-Tap, True Output, TTL, PDSO16, SMD-16	Active Delay Line, Programmable, 1-Func, 7-Tap, True Output, TTL, PDSO16, SMD-16	Active Delay Line, Programmable, 1-Func, 7-Tap, True Output, TTL, PDSO16, SMD-16	Active Delay Line, Programmable, 1-Func, 7-Tap, True Output, TTL, PDSO16, SMD-16	Active Delay Line, Programmable, 1-Func, 7-Tap, True Output, TTL, PDSO16, SMD-16	Active Delay Line, Programmable, 1-Func, 7-Tap, True Output, TTL, PDSO16, SMD-16	Active Delay Line, Programmable, 1-Func, 7-Tap, True Output, TTL, PDSO16, SMD-16
Maker	Rhombus Industries, Inc.	Rhombus Industries, Inc.	Rhombus Industries, Inc.	Rhombus Industries, Inc.	Rhombus Industries, Inc.	Rhombus Industries, Inc.	Rhombus Industries, Inc.	Rhombus Industries, Inc.	Rhombus Industries, Inc.
Parts packaging code	SOIC	SOIC	SOIC	SOIC	SOIC	SOIC	SOIC	SOIC	SOIC
package instruction	SMD-16	SMD-16	SMD-16	SOP,	SMD-16	SOP,	SMD-16	SMD-16	SMD-16
Contacts	16	16	16	16	16	16	16	16	16
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
series	S	S	S	S	S	S	S	S	S
JESD-30 code	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16
Logic integrated circuit type	ACTIVE DELAY LINE	ACTIVE DELAY LINE	ACTIVE DELAY LINE	ACTIVE DELAY LINE	ACTIVE DELAY LINE	ACTIVE DELAY LINE	ACTIVE DELAY LINE	ACTIVE DELAY LINE	ACTIVE DELAY LINE
Number of functions	1	1	1	1	1	1	1	1	1
Number of taps/steps	7	7	7	7	7	7	7	7	7
Number of terminals	16	16	16	16	16	16	16	16	16
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	SOP	SOP	SOP	SOP	SOP	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
programmable delay line	YES	YES	YES	YES	YES	YES	YES	YES	YES
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm
Maximum supply voltage (Vsup)	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
technology	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Total delay nominal (td)	77 ns	15.75 ns	15.4 ns	19.6 ns	25.2 ns	24.5 ns	21 ns	20.3 ns	16.1 ns
width	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm
