LMXS1312M331KTAS datasheet, PDF

Datasheet> All Categories > Passive components> inductor> LMXS1312M331KTAS

LMXS1312M331KTAS: DescriptionGeneral Purpose Inductor, 330uH, 20%, 1 Element, Ferrite-Core, SMD, 5046, CHIP, 5046; CategoryPassive components inductor; File Size99KB，2 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric View All

LMXS1312M331KTAS Overview

General Purpose Inductor, 330uH, 20%, 1 Element, Ferrite-Core, SMD, 5046, CHIP, 5046

LMXS1312M331KTAS Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	AVX
package instruction	5046
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	5046
structure	Magnetically Shielded
core material	Ferrite
DC Resistance	0.8 Ω
Nominal inductance(L)	330 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Manufacturer's serial number	LMXS
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package height	5.4 mm
Package length	12.6 mm
Package form	SMT
Package width	11.6 mm
method of packing	TR, 13 Inch
Maximum rated current	0.57 A
series	LMXS-K
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	0.001 MHz
Tolerance	20%

Preview

Download Datasheet

View All

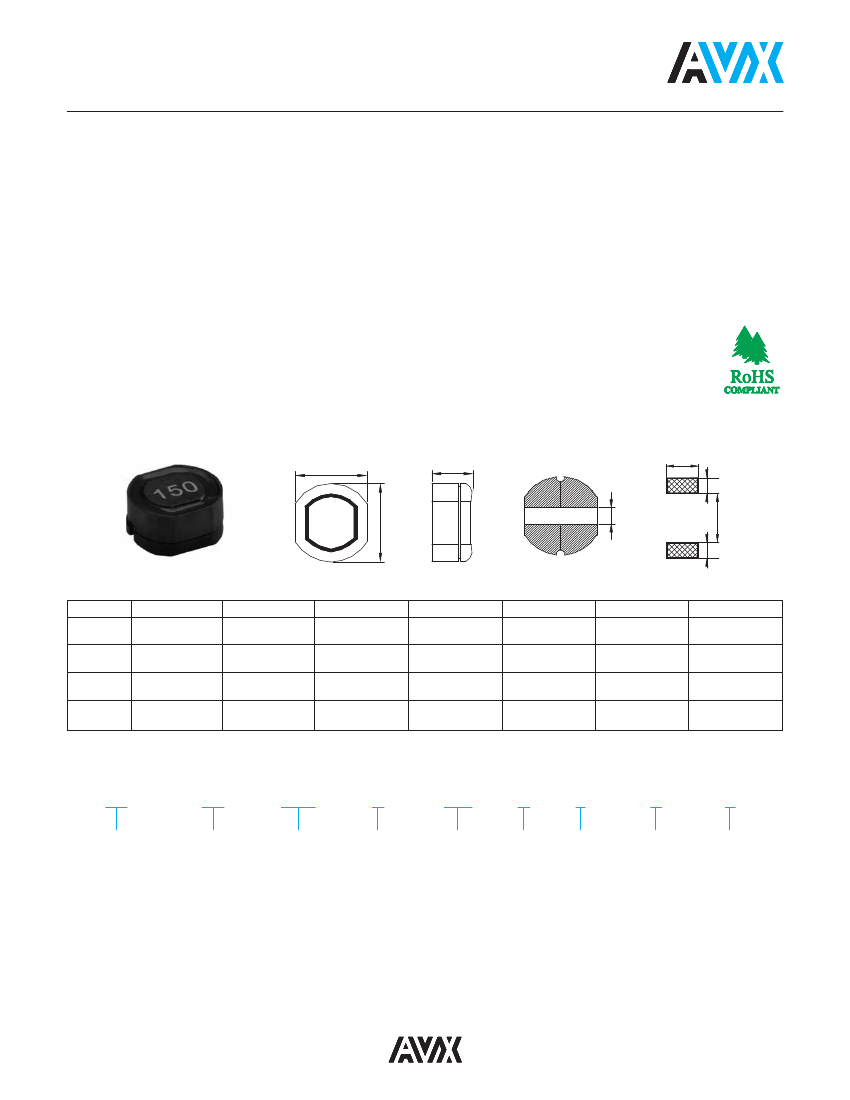

LMax SMD Power Inductor

LMXS Series – Shielded Style K

FEATURES

• Silver Plated Type, Low cost design

• High power, High saturation inductors

• Ideal inductors for DC/DC converters

• With magnetically shielded against radiation

• Available on tape and reel for automatic surface mounting

CHARACTERISTICS

• Rated DC current: The current when the inductance becomes

25% lower than its initial value or the actual current when the

temperature of coil increases to Δ40°C. The smaller one is

defined as Rated DC Current. (Ta=25°C)

• Operating temperature range: -40

85°C

APPLICATIONS

• Power Supply for VTRs

• LCD Televisions

• Notebook PCs

• Portable Communication

• DC/DC Converters, etc.

INDUCTANCE AND RATED

CURRENT RANGES

• 0606

68μH

1.0

0.42A

• 0807

4.7

270μH

3.15

0.33A

• 1009

470μH

2.06

0.33A

• 1312

820μH

2.65

0.36A

• Electrical specifications at 25°C

DIMENSIONS

100

PAD

LAYOUT

mm (inches)

Type

0606

0807

1009

1312

6.20

(0.244

7.80

(0.307

10.0

(0.394

12.6

(0.496

± 0.30

± 0.012)

± 0.35

± 0.014)

± 0.40

± 0.016)

± 0.50

± 0.020)

5.60

(0.220

7.00

(0.276

9.00

(0.354

11.6

(0.457

± 0.30

± 0.012)

± 0.35

± 0.014)

± 0.40

± 0.016)

± 0.50

± 0.020)

3.20

(0.126

4.50

(0.177

5.00

(0.197

5.40

(0.213

± 0.30

± 0.012)

± 0.40

± 0.016)

± 0.50

± 0.020)

± 0.50

± 0.020)

1.70

(0.067)

1.90

(0.075)

2.50

(0.098)

3.00

(0.118)

5.50

(0.217)

7.50

(0.295)

9.50

(0.374)

12.0

(0.472)

2.25

(0.089)

4.00

(0.157)

5.00

(0.197)

6.00

(0.236)

1.70

(0.067)

2.00

(0.079)

2.50

(0.098)

3.00

(0.118)

HOW TO ORDER

Family

LM = Power Inductor

Series

XS = Shielded

0606

Size

0606 = 6x6xh

1312 = 13x12xh

(h = see catalog)

Tolerance

M = ±20%

N = ±30%

R04

Inductance

3R9 = 3.900μH

390 = 39.00μH

391 = 390.0μH

392 = 3900μH

Style

Termination

T = Sn Plate

Special

A = Standard

Packaging

S = 13" Reel

Recommended Resources
