Z0840008VEC: DescriptionMicroprocessor, 8-Bit, 8MHz, NMOS, PQCC44, CC-44; CategoryThe embedded processor and controller Microcontrollers and processors; File Size882KB，35 Pages; ManufacturerZilog, Inc.; Websitehttps://www.zilog.com/

Download Datasheet Parametric Compare View All

Z0840008VEC Overview

Microprocessor, 8-Bit, 8MHz, NMOS, PQCC44, CC-44

Z0840008VEC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Zilog, Inc.
Parts packaging code	QFN
package instruction	QCCJ,
Contacts	44
Reach Compliance Code	unknown
Other features	DRAM REFRESH COUNTER
Address bus width	16
bit size	8
boundary scan	NO
maximum clock frequency	8 MHz
External data bus width	8
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	S-PQCC-J44
length	16.5862 mm
low power mode	NO
Number of DMA channels
Number of external interrupt devices	2
Number of serial I/Os
Number of terminals	44
On-chip data RAM width
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Package shape	SQUARE
Package form	CHIP CARRIER
Certification status	Not Qualified
RAM (number of words)	0
Maximum seat height	4.57 mm
speed	8 MHz
Maximum slew rate	200 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	NMOS
Temperature level	INDUSTRIAL
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
width	16.5862 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR

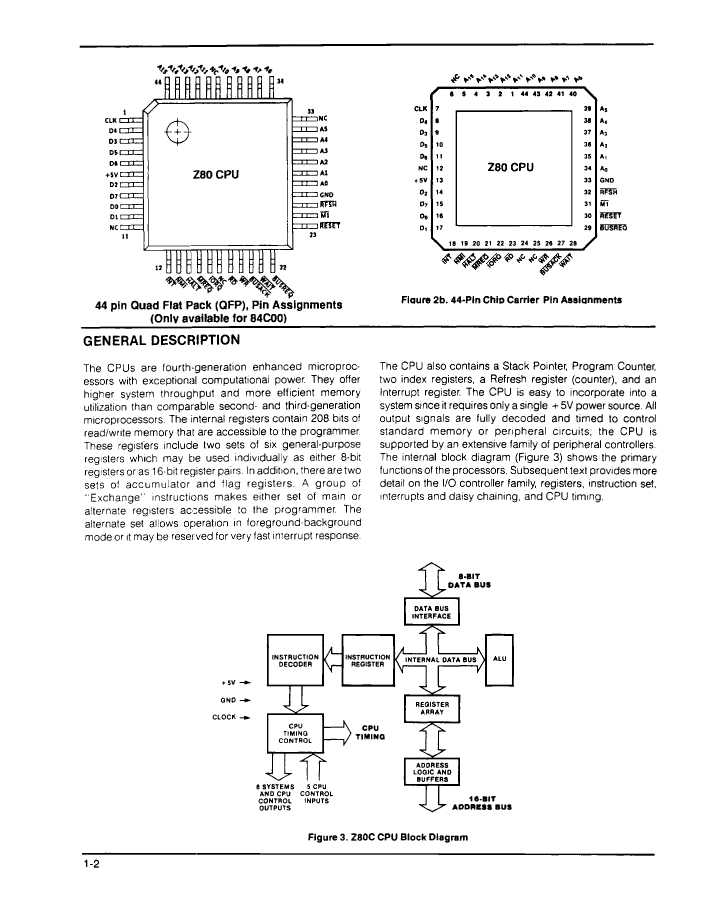

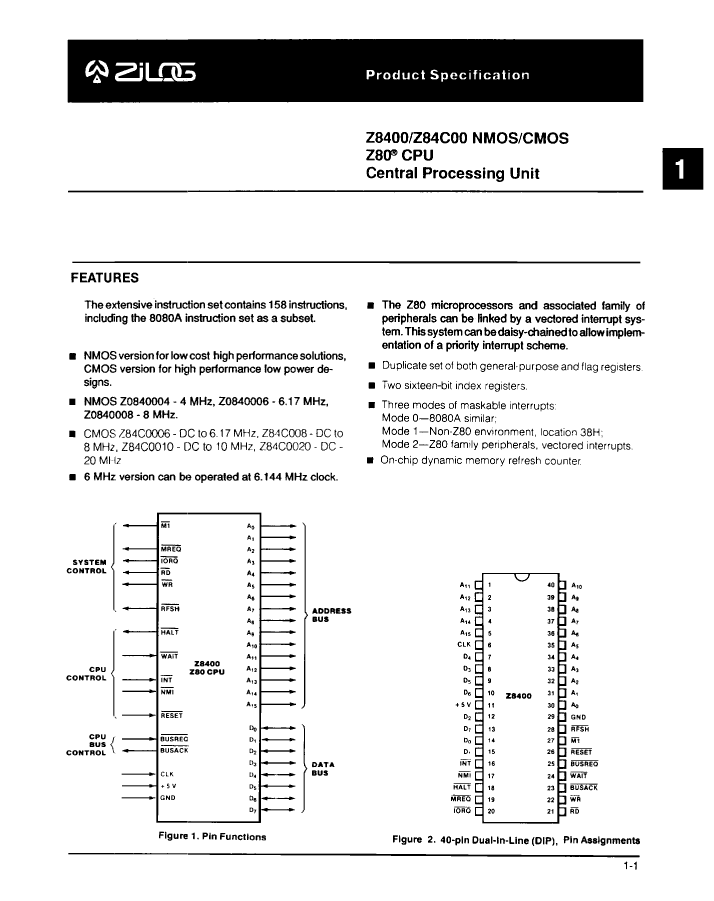

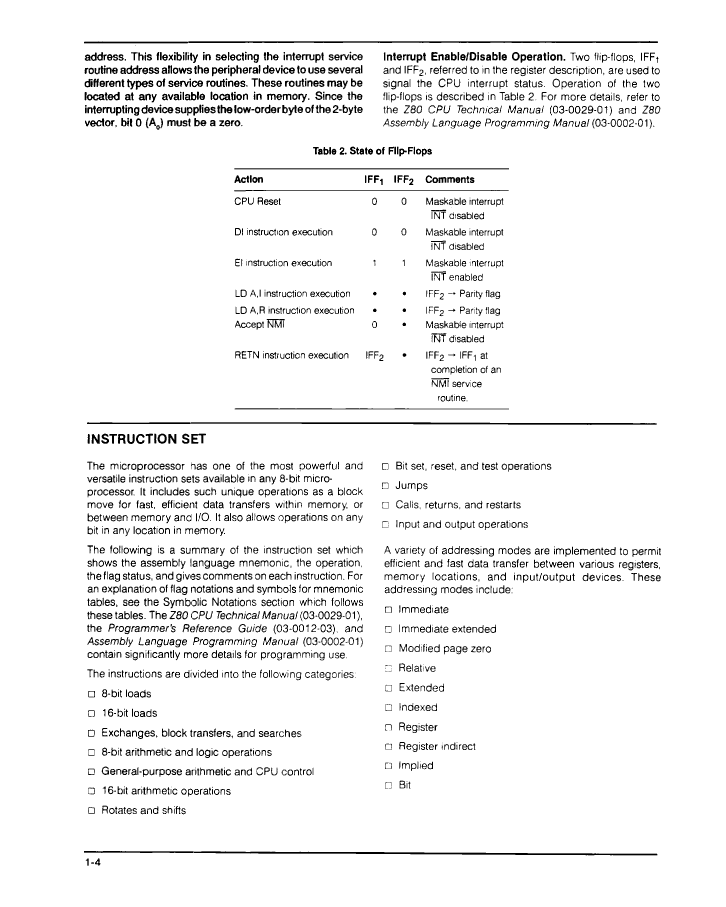

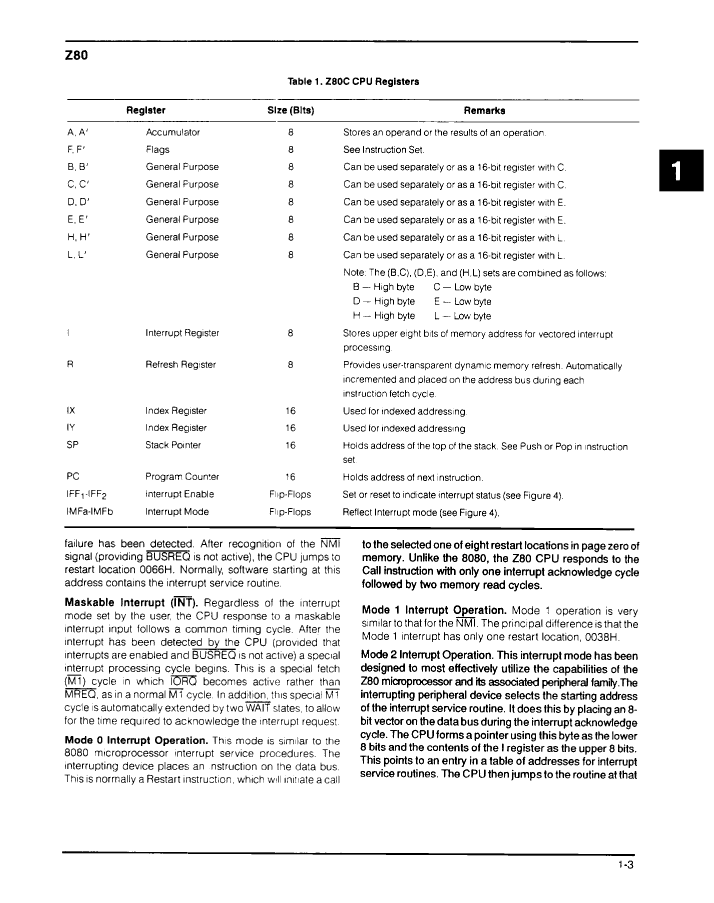

Z0840008VEC Preview
