Z0860408PSC datasheet, PDF - EEWORLD Datasheet

Z0860408PSC: DescriptionMicrocontroller, 8-Bit, MROM, Z8 CPU, 8MHz, NMOS, PDIP18, PLASTIC, DIP-18; CategoryThe embedded processor and controller Microcontrollers and processors; File Size429KB，21 Pages; ManufacturerZilog, Inc.; Websitehttps://www.zilog.com/

Download Datasheet Parametric View All

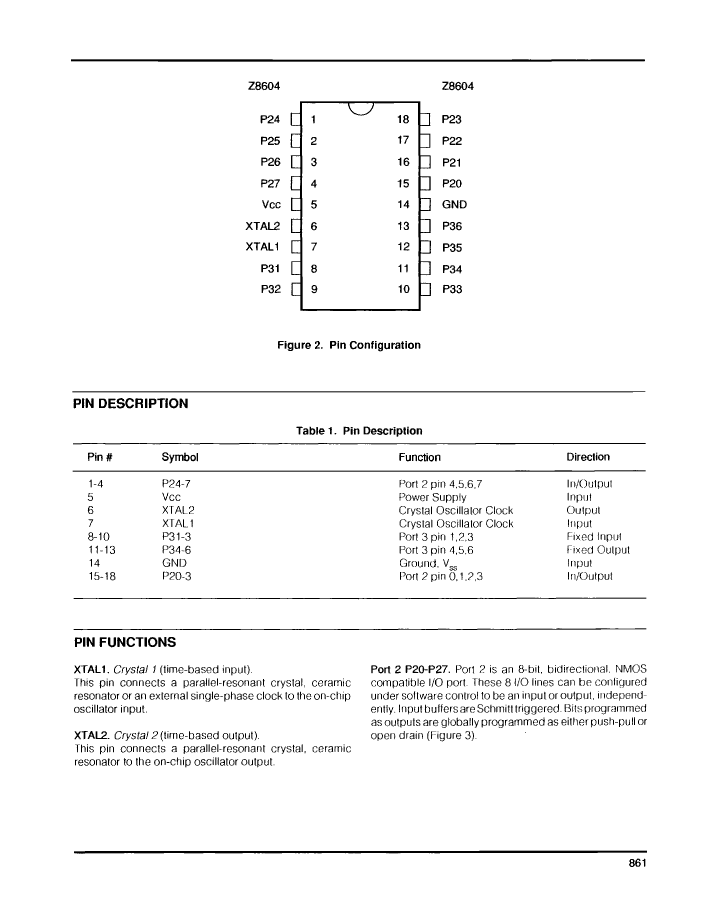

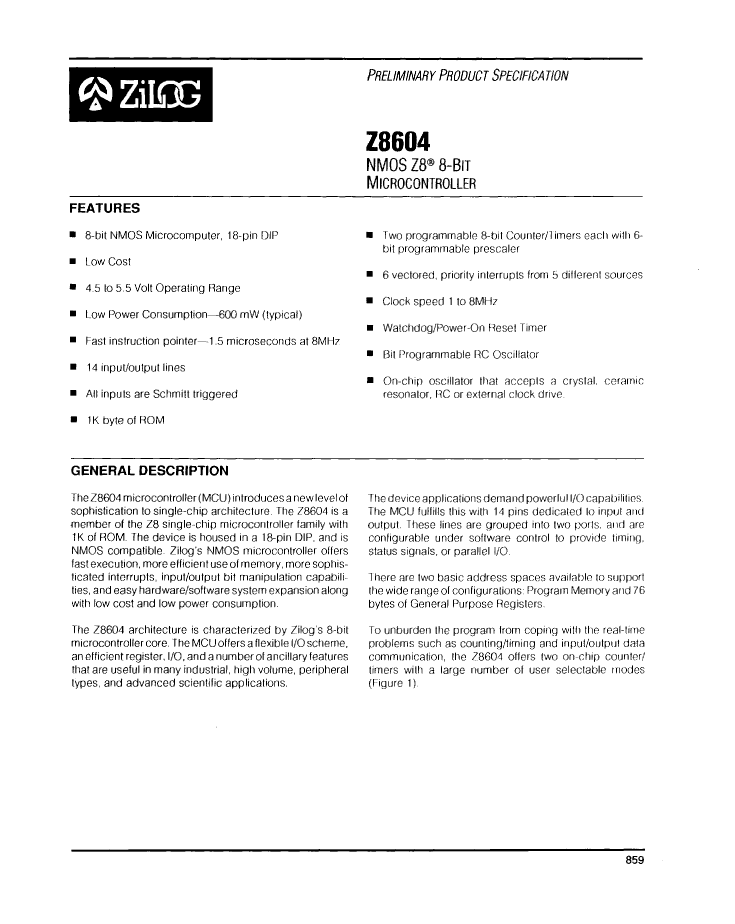

Z0860408PSC Overview

Microcontroller, 8-Bit, MROM, Z8 CPU, 8MHz, NMOS, PDIP18, PLASTIC, DIP-18

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Zilog, Inc.
Parts packaging code	DIP
package instruction	DIP, DIP18,.3
Contacts	18
Reach Compliance Code	unknown
Has ADC	NO
Address bus width
bit size	8
boundary scan	NO
CPU series	Z8
maximum clock frequency	8 MHz
DAC channel	NO
DMA channel	NO
External data bus width
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	R-PDIP-T18
JESD-609 code	e0
low power mode	NO
Number of DMA channels
Number of external interrupt devices	3
Number of I/O lines	14
Number of serial I/Os
Number of terminals	18
Number of timers	2
On-chip data RAM width	8
On-chip program ROM width	8
Maximum operating temperature	70 °C
Minimum operating temperature
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP18,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
RAM (bytes)	76
RAM (number of words)	76
rom(word)	1000
ROM programmability	MROM
speed	8 MHz
Maximum slew rate	120 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	NMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
