SM15T Series
Vishay General Semiconductor
Surface Mount T
RANS
Z
ORB
®
Transient Voltage Suppressors
FEATURES
• Low profile package
• Ideal for automated placement
• Glass passivated chip junction
• 1500 W peak pulse power capability with a
10/1000 µs waveform
• Available in uni-directional and bi-directional
• Excellent clamping capability
• Low inductance
• Meets MSL level 1, per J-STD-020, LF maximum
peak of 260 °C
• Solder dip 260 °C, 40 s
• Component in accordance to RoHS 2002/95/EC
and WEEE 2002/96/EC
APPLICATION NOTES
A 1500 W (SMC) device is normally selected when the
threat of transients is from lightning induced transients,
conducted via external leads or I/O lines. It is also used
to protect against switching transients induced by
large coils or industrial motors. Source impedance at
component level in a system is usually high enough to
limit the current within the peak pulse current (I
PP
)
rating of this series. In an overstress condition, the
failure mode is a short circuit.
TYPICAL APPLICATIONS
Use in sensitive electronics protection against voltage
transients induced by inductive load switching and
lighting on ICs, MOSFET, signal lines of sensor units
for consumer, computer, industrial, automotive and
telecommunication.

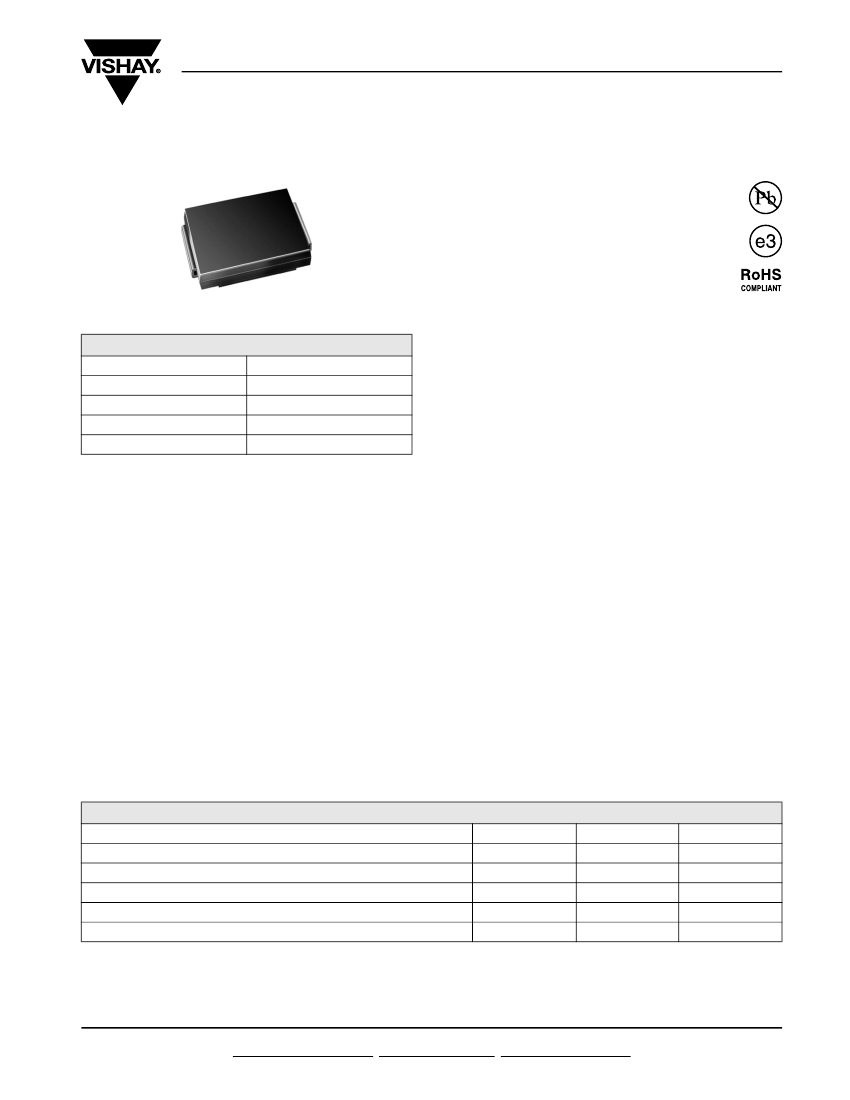

DO-214AB (SMC)
PRIMARY CHARACTERISTICS
V
BR
P
PPM
P
D
I
FSM
(uni-directional only)
T
J
max.
6.8 V to 220 V
1500 W
6.5 W
200 A
150 °C
MECHANICAL DATA
Case:
DO-214AB (SMC)
Molding compound meets UL 94 V-0 flammability
rating
Base P/N-E3 - RoHS compliant, commercial grade
Base P/NHE3 - RoHS compliant, high reliability/
automotive grade (AEC Q101 qualified)
Terminals:
Matte tin plated leads, solderable per
J-STD-002 and JESD22-B102
E3 suffix meets JESD 201 class 1A whisker test, HE3
suffix meets JESD 201 class 2 whisker test
Polarity:
For uni-directional types the band denotes
cathode end, no marking on bi-directional types
DEVICES FOR BI-DIRECTION APPLICATIONS
For bi-directional devices use CA suffix (e.g.
SM15T12CA).
Electrical characteristics apply in both directions.
MAXIMUM RATINGS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Peak pulse power dissipation with a 10/1000 µs waveform
(1)(2)
(Fig. 1)
Peak power pulse current with a 10/1000 µs
waveform
(1)
(Fig. 3)
SYMBOL
P
PPM
I
PPM
P
D
I
FSM
T
J
, T
STG
LIMIT
1500
See next table
6.5
200
- 65 to + 150
UNIT
W
A
W
A
°C
Power dissipation on infinite heatsink T
A
= 50 °C
Peak forward surge current 10 ms single half sine-wave uni-directional only
(2)
Operating junction and storage temperature range
Notes:
(1) Non-repetitive current pulse, per Fig. 3 and derated above T
A
= 25 °C per Fig. 2
(2) Mounted on 0.31 x 0.31" (8.0 x 8.0 mm) copper pads to each terminal
Document Number: 88380
Revision: 21-Oct-08
For technical questions within your region, please contact one of the following:
PDD-Americas@vishay.com, PDD-Asia@vishay.com, PDD-Europe@vishay.com
www.vishay.com
1
SM15T Series
Vishay General Semiconductor
ELECTRICAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
DEVICE
MARKING
CODE
UNI
SM15T6V8A
SM15T7V5A
SM15T10A
SM15T12A
SM15T15A
SM15T18A
SM15T22A
SM15T24A
SM15T27A
SM15T30A
SM15T33A
SM15T36A
SM15T39A
SM15T68A
SM15T100A
SM15T150A
SM15T200A
SM15T220A
Notes:
(1) For bi-directional devices add suffix “CA” instead of “A”
(2) V
BR
measured after I
T
applied for 300 µs square wave pulse
(3) For bipolar devices with V
R
= 10 V or under, the I
T
limit is doubled
GDE7
GDK7
GDT7
GDX7
GEG7
GEM7
GET7
GEV7
GEX7
GFE7
GFG7
GFK7
GFM7
GGG7
GGV7
GHK7
GHR7
GHR8
BI
GDE7
BDK7
BDT7
BDX7
GEG7
BEM7
BET7
GEV7
BEX7
BFE7
GFG7
BFK7
BFM7
GGG7
GGV7
GHK7
GHR7
GHR8
5.80
6.40
8.55
10.2
12.8
15.3
18.8
20.5
23.1
25.6
28.2
30.8
33.3
58.1
85.5
128
171
188
1000
500
10.0
5.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
STAND-
OFF
VOLTAGE
V
RM
(V)
LEAKAGE
CURRENT
(3)
I
RM
AT V
R
BREAKDOWN
VOLTAGE
V
BR
AT I
T
(V)
MIN.
6.45
7.13
9.50
11.4
14.3
17.1
20.9
22.8
25.7
28.5
31.4
34.2
37.1
64.6
95.0
143
190
209
(2)
TYPE
(1)
TEST
CURRENT
I
T
(mA)
10
10
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
CLAMPING
VOLTAGE
V
C
AT I
PP
(10/1000 µs)
(V)
10.5
11.3
14.5
16.7
21.2
25.2
30.6
33.2
37.5
41.5
45.7
49.9
53.9
92.0
137
207
274
328
(A)
143
132
103
90.0
71.0
59.5
49.0
45.0
40.0
36.0
33.0
30.0
28.0
16.3
11.0
7.20
5.50
4.60
CLAMPING
VOLTAGE
V
C
AT I
PP
(8/20 µs)
(V)
13.4
14.5
18.6
21.7
27.2
32.5
39.3
42.8
48.3
53.5
59.0
64.3
69.7
121
178
265
353
388
(A)
746
690
538
461
368
308
254
234
207
187
169
156
143
83
56
38
28
26
α
T
Max.
10
-4
/°C
5.7
6.1
7.3
7.8
8.4
8.8
9.2
9.4
9.6
9.7
9.8
9.9
10.0
10.4
10.6
10.8
10.8
10.8
MAX.
7.14
7.88
10.5
12.6
15.8
18.9
23.1
25.2
28.4
31.5
34.7
37.8
41.0
71.4
105
158
210
231
THERMAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Typical thermal resistance, junction to ambient air
(1)
Typical thermal resistance, junction to leads
Note:
(1) Mounted on minimum recommended pad layout
SYMBOL
R
θJA
R
θJL
VALUE
75
15
UNIT
°C/W
°C/W
ORDERING INFORMATION
(Example)
PREFERRED P/N
SM15T10A-E3/57T
SM15T10A-E3/9AT
SM15T10AHE3/57T
(1)
SM15T10AHE3/9AT
(1)
Note:
(1) Automotive grade AEC Q101 qualified
UNIT WEIGHT (g)
0.211
0.211
0.211
0.211
PREFERRED PACKAGE CODE
57T
9AT
57T
9AT
BASE QUANTITY
850
3500
850
3500
DELIVERY MODE
7" diameter plastic tape and reel
13" diameter plastic tape and reel
7" diameter plastic tape and reel
13" diameter plastic tape and reel
www.vishay.com
2
For technical questions within your region, please contact one of the following:
PDD-Americas@vishay.com, PDD-Asia@vishay.com, PDD-Europe@vishay.com
Document Number: 88380
Revision: 21-Oct-08
SM15T Series
Vishay General Semiconductor

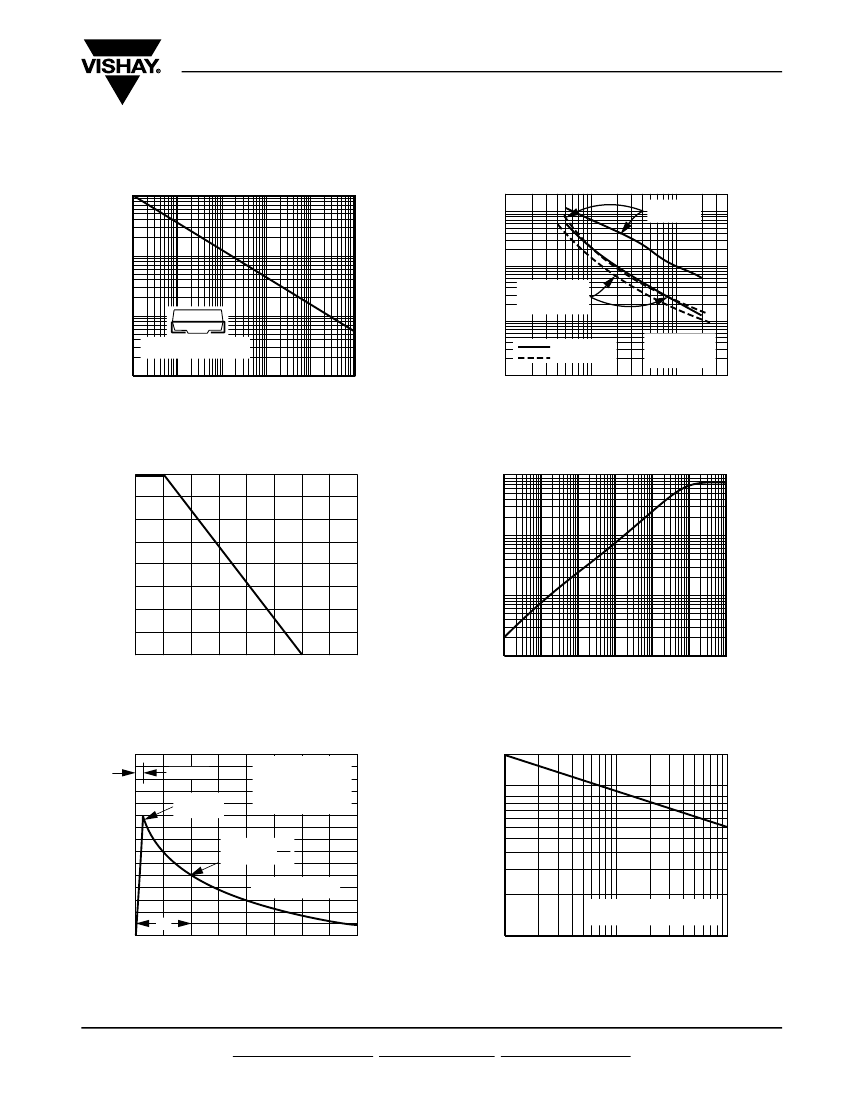

RATINGS AND CHARACTERISTICS CURVES
(T
A
= 25
°C
unless otherwise noted)
100
20 000
10 000
Measured at
Zero Bias
P
PPM
- Peak Pulse Power (kW)
10
C
J
- Junction Capacitance (pF)
1000
V
R
, Measured at
Stand-Off
Voltage, V
WM
100
Uni-Directional
Bi-Directional
10
1
10
T
J
= 25 °C
f = 1.0 MHz
V
sig
= 50 mVp-p
100
400
1
0.31 x 0.31" (8.0 x
8.0
mm)
Copper Pad Areas
0.1
0.1
µs
1.0
µs
10
µs
100
µs
1.0 ms
10 ms
t
d
- Pulse
Width
(s)
V
WM
- Reverse Stand-Off
Voltage
(V)
Figure 1. Peak Pulse Power Rating Curve
Figure 4. Typical Junction Capacitance Uni-Directional
Peak Pulse Power (P
PP
) or Current (I
PP
)
Derating in Percentage, %
100
100
75
Transient Thermal Impedance (°C/W)
10
50
1.0
25
0
0
25
50
75
100
125
150
175
200
0.1
0.001
0.01
0.1
1
10
100
1000
T
J
- Initial Temperature (°C)
t - Pulse Duration (s)
Figure 2. Pulse Power or Current vs. Initial Junction Temperature
Figure 5. Typical Transient Thermal Impedance
150
I
PPM
- Peak Pulse Current, % I
RSM
Peak Forward Surge Current (A)
t
r
= 10
µs
Peak
Value
I
PPM
T
J
= 25 °C
Pulse
Width
(t
d
)
is defined as the Point
where
the Peak Current
decays to 50 % of I
PPM
200
100
100
Half
Value
- I
PP
I
PPM
2
50
10/1000
µs Waveform
as defined
by
R.E.A.
t
d
0
0
1.0
2.0
3.0
4.0
T
J
= T
J
max.
8.3
ms Single Half Sine-Wave
10
1
10
100
t - Time (ms)
Number
of Cycles at 60 Hz
Figure 3. Pulse Waveform
Figure 6. Maximum Non-Repetitive Forward Surge Current
Uni-Directional Use Only
Document Number: 88380
Revision: 21-Oct-08
For technical questions within your region, please contact one of the following:
PDD-Americas@vishay.com, PDD-Asia@vishay.com, PDD-Europe@vishay.com
www.vishay.com
3
SM15T Series
Vishay General Semiconductor
PACKAGE OUTLINE DIMENSIONS
in inches (millimeters)
DO-214AB (SMC)
Cathode Band
0.185 (4.69)
MAX.
0.126 (3.20)
0.114 (2.90)
0.246 (6.22)
0.220 (5.59)
0.126 (3.20)
MIN.
Mounting Pad Layout
0.280 (7.11)
0.260 (6.60)
0.012 (0.305)
0.006 (0.152)
0.103 (2.62)
0.079 (2.06)
0.060 (1.52)
MIN.
0.320 REF.
0.060 (1.52)
0.030 (0.76)
0.320 (8.13)
0.305 (7.75)
0.008 (0.2)
0 (0)
www.vishay.com
4
For technical questions within your region, please contact one of the following:
PDD-Americas@vishay.com, PDD-Asia@vishay.com, PDD-Europe@vishay.com
Document Number: 88380
Revision: 21-Oct-08
Legal Disclaimer Notice
www.vishay.com
Vishay
Disclaimer
ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE
RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,
“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other
disclosure relating to any product.
Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or
the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all
liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,
consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular
purpose, non-infringement and merchantability.
Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of typical
requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements
about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular
product with the properties described in the product specification is suitable for use in a particular application. Parameters
provided in datasheets and/or specifications may vary in different applications and performance may vary over time. All
operating parameters, including typical parameters, must be validated for each customer application by the customer’s
technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,
including but not limited to the warranty expressed therein.
Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining
applications or for any other application in which the failure of the Vishay product could result in personal injury or death.
Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk and agree
to fully indemnify and hold Vishay and its distributors harmless from and against any and all claims, liabilities, expenses and
damages arising or resulting in connection with such use or sale, including attorneys fees, even if such claim alleges that Vishay
or its distributor was negligent regarding the design or manufacture of the part. Please contact authorized Vishay personnel to
obtain written terms and conditions regarding products designed for such applications.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by
any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.
Material Category Policy
Vishay Intertechnology, Inc. hereby certifies that all its products that are identified as RoHS-Compliant fulfill the
definitions and restrictions defined under Directive 2011/65/EU of The European Parliament and of the Council
of June 8, 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment
(EEE) - recast, unless otherwise specified as non-compliant.
Please note that some Vishay documentation may still make reference to RoHS Directive 2002/95/EC. We confirm that
all the products identified as being compliant to Directive 2002/95/EC conform to Directive 2011/65/EU.
Revision: 12-Mar-12
1
Document Number: 91000
京公网安备 11010802033920号
EEWORLD
