Ordering number :EN2617B
SVC342
Diffused Junction Type Silicon Diode
Varactor Diode
for AM Receiver Electronic Tuning Use
Features
· Twin type varactor diode for low-voltage AM
electronic tuning use.
· High capacitance ratio.
· Excellent linearity of C-V characteristic.
· High Q.
Package Dimensions
unit:mm
1074B
[SVC342]
JEDEC:TO-92
EIAJ:SC-43
SANYO:NP
1,3:Anode
2:Cathode
Specifications
Absolute Maximum Ratings
at Ta = 25˚C
Parameter
Reverse Voltage
Junction Temperature
Storage Temperature
Symbol
VR
Tj
Tstg
Conditions
Ratings
16
100
–55 to +100
Unit
V
˚C
˚C
Electrical Characteristics
at Ta = 25˚C
Parameter
Breakdown Voltage
Reverse Current
Interterminal Capacitance*
Symbol
V(BR) R
IR
C1V
C6V
C9V
Quality Factor
Capacitance Ratio
Matching Tolerance
Q
CR
∆C
m
IR=10µA
VR=9V
VR=1V, f=1MHz
VR=6V, f=1MHz
VR=9V, f=1MHz
VR=1V, f=1MHz
C1V/C9V
(Cmax–Cmin)/Cmin,
(Between D1 to D2) VR=1V to 9V
423.0
46.0
17.5
200
19.5
0.02
Conditions
Ratings
min
16
100
503.0
61.0
23.5
typ
max
Unit
V
nA
pF
pF
pF
Note)*:The value of interterminal capacitance represent the average of measurements for tow elements.
Note)*:The SVC342 is classified by C1V as follows:
Electrical Connection
Rank
K
L
M
C1V(pF)
423.0 to 455.0
445.0 to 478.0
468.0 to 503.0
1,3:Anode
2:Cathode
SANYO Electric Co.,Ltd. Semiconductor Bussiness Headquarters
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN
33098HA (KT)/71095GI (KOTO)/4059MO/7067AT, TS 8-2461 No.2617-1/3

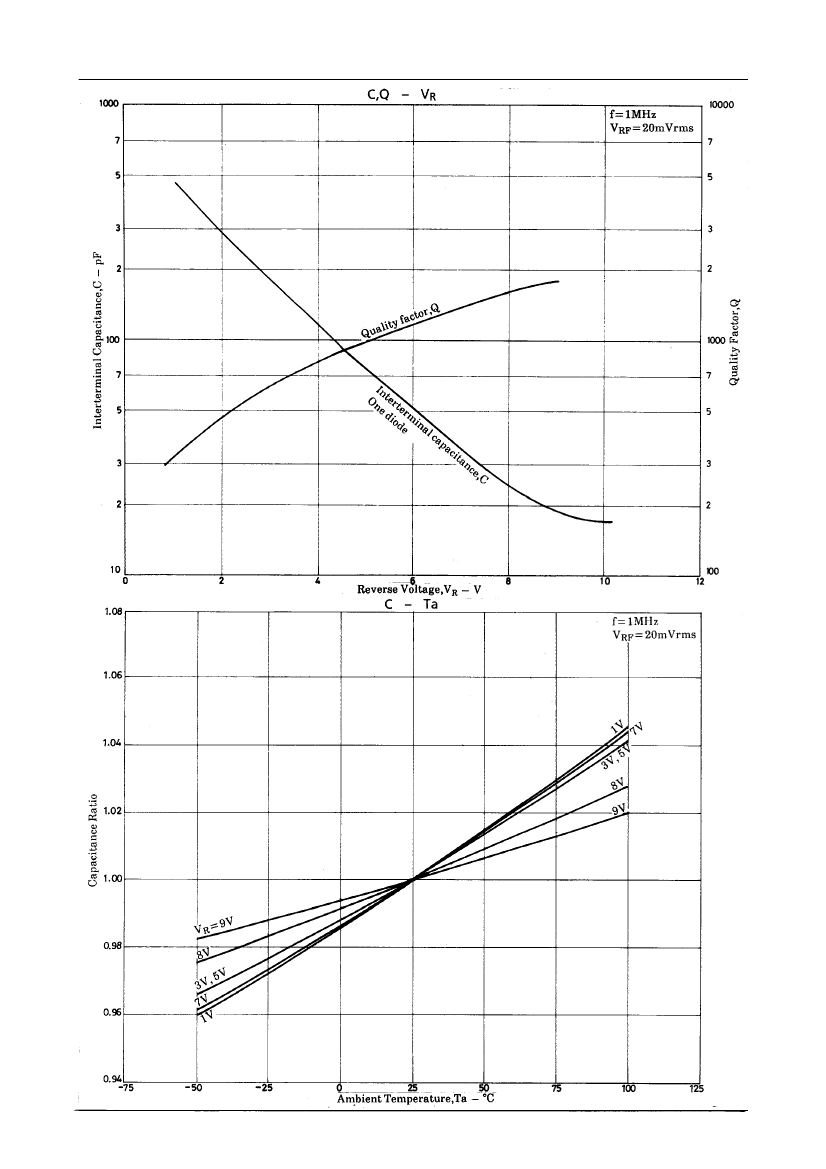

SVC342
No products described or contained herein are intended for use in surgical implants, life-support systems,
aerospace equipment, nuclear power control systems, vehicles, disaster/crime-prevention equipment and
the like, the failure of which may directly or indirectly cause injury, death or property loss.
Anyone purchasing any products described or contained herein for an above-mentioned use shall:
Accept full responsibility and indemnify and defend SANYO ELECTRIC CO., LTD., its affiliates,
subsidiaries and distributors and all their officers and employees, jointly and severally, against any
and all claims and litigation and all damages, cost and expenses associated with such use:
Not impose any responsibilty for any fault or negligence which may be cited in any such claim or
litigation on SANYO ELECTRIC CO., LTD., its affiliates, subsidiaries and distributors or any of
their officers and employees jointly or severally.
Information (including circuit diagrams and circuit parameters) herein is for example only; it is not guarant-
eed for volume production. SANYO believes information herein is accurate and reliable, but no guarantees
are made or implied regarding its use or any infringements of intellectual property rights or other rights of
third parties.
This catalog provides information as of March, 1998. Specifications and information herein are subject to
change without notice.
PS No.2617-3/3
