RFT25NMD

Description
RF/Microwave Termination, 0MHz Min, 4000MHz Max
CategoryWireless rf/communication    Radio frequency and microwave
File Size39KB，1 Pages
ManufacturerElectro Technik Industries
Download Datasheet Parametric View All

RFT25NMD Overview

RF/Microwave Termination, 0MHz Min, 4000MHz Max

RFT25NMD Parametric

Parameter NameAttribute value
MakerElectro Technik Industries
Reach Compliance Codeunknown
Other featuresN-M, I/P POWER-MAX(PEAK)=2000W
structureCOAXIAL
Maximum input power (CW)43.98 dBm
Maximum operating frequency4000 MHz
Minimum operating frequency
RF/Microwave Device TypesRF/MICROWAVE TERMINATION
Maximum voltage standing wave ratio1.15

Preview

Download Datasheet

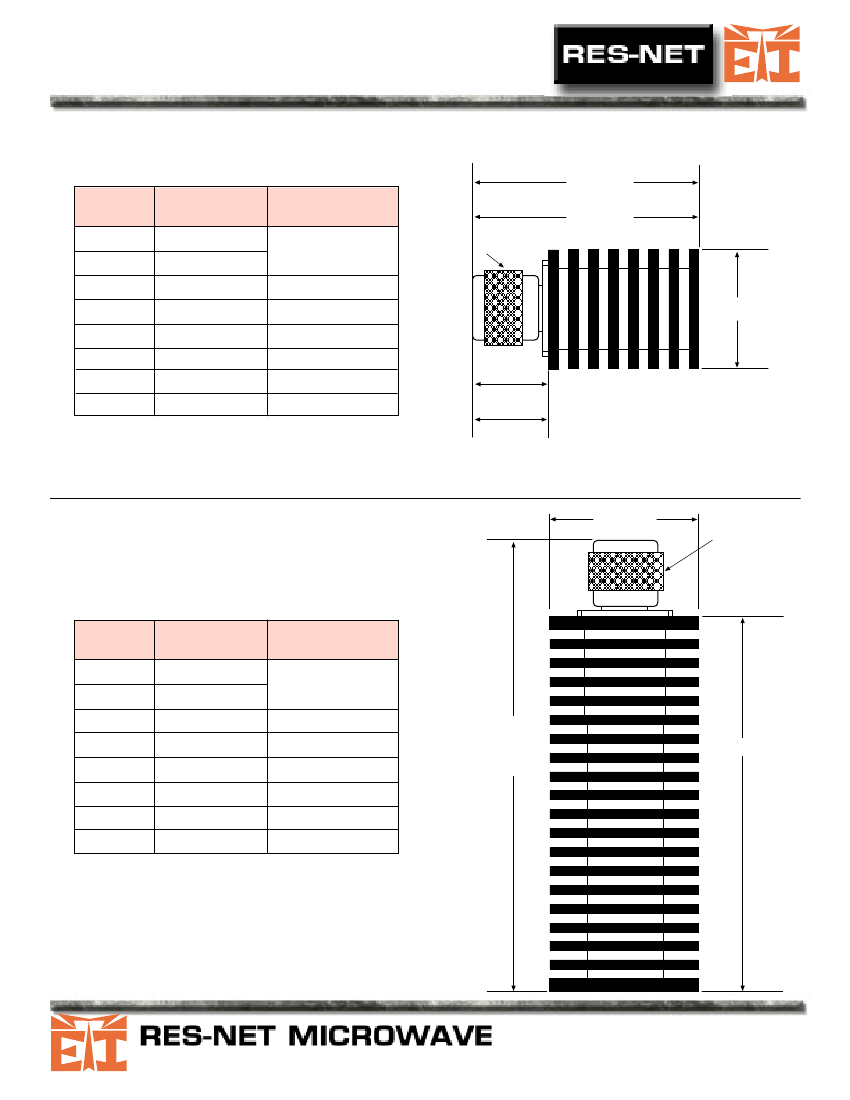

"N" TYPE COAXIAL
TERMINATIONS
ELECTRO TECHNIK
PERFORMANCE SPECIFICATIONS:
PART
NUMBER
RFT25NFA
RFT25NMA
RFT25NFC
RFT25NMC
RFT25NFD
RFT25NMD
RFT25NFE
RFT25NME
CONNECTOR
TYPE
"N" FEMALE
"N" MALE
"N" FEMALE
"N" MALE
"N" FEMALE
"N" MALE
"N" FEMALE
"N" MALE
VSWR
(max.)
DC to 4 GHz - 1.15:1
4 to 8 GHz - 1.25:1
8 to 12 GHz - 1.30:1
DC to 8 GHz - 1.20:1
DC to 8 GHz - 1.20:1
DC to 4 GHz - 1.15:1
DC to 4 GHz - 1.15:1
DC to 2 GHz - 1.10:1
DC to 2 GHz - 1.10:1
“N”
Connector
2.38 (60.42)
male
2.22 (56.36)
female
1.33 (33.78)
dia.
.80 (20.32)
male
.74 (18.00)
female
25 WATTS (2KW peak)
1.63 (41.28)
dia.
“N”
Connector
PERFORMANCE SPECIFICATIONS:
PART
NUMBER
RFT50NFA
RFT50NMA
RFT50NFC
RFT50NMC
RFT50NFD
RFT50NMD
RFT50NFE
RFT50NME
CONNECTOR
TYPE
"N" FEMALE
"N" MALE
"N" FEMALE
"N" MALE
"N" FEMALE
"N" MALE
"N" FEMALE
"N" MALE
VSWR
(max.)
DC to 4 GHz - 1.15:1
4 to 8 GHz - 1.25:1
8 to 12 GHz - 1.35:1
DC to 8 GHz - 1.20:1
DC to 8 GHz - 1.20:1
DC to 4 GHz - 1.15:1
DC to 4 GHz - 1.15:1
DC to 2 GHz - 1.10:1
DC to 2 GHz - 1.10:1
4.95 (125.73)
male
4.89 (124.20)
female
4.15 (105.41)
50 WATTS (3KW peak)
www.electrotechnik.com
P.O. Box 18802 • Clearwater, FL 33762
ELECTRO TECHNIK
13B
