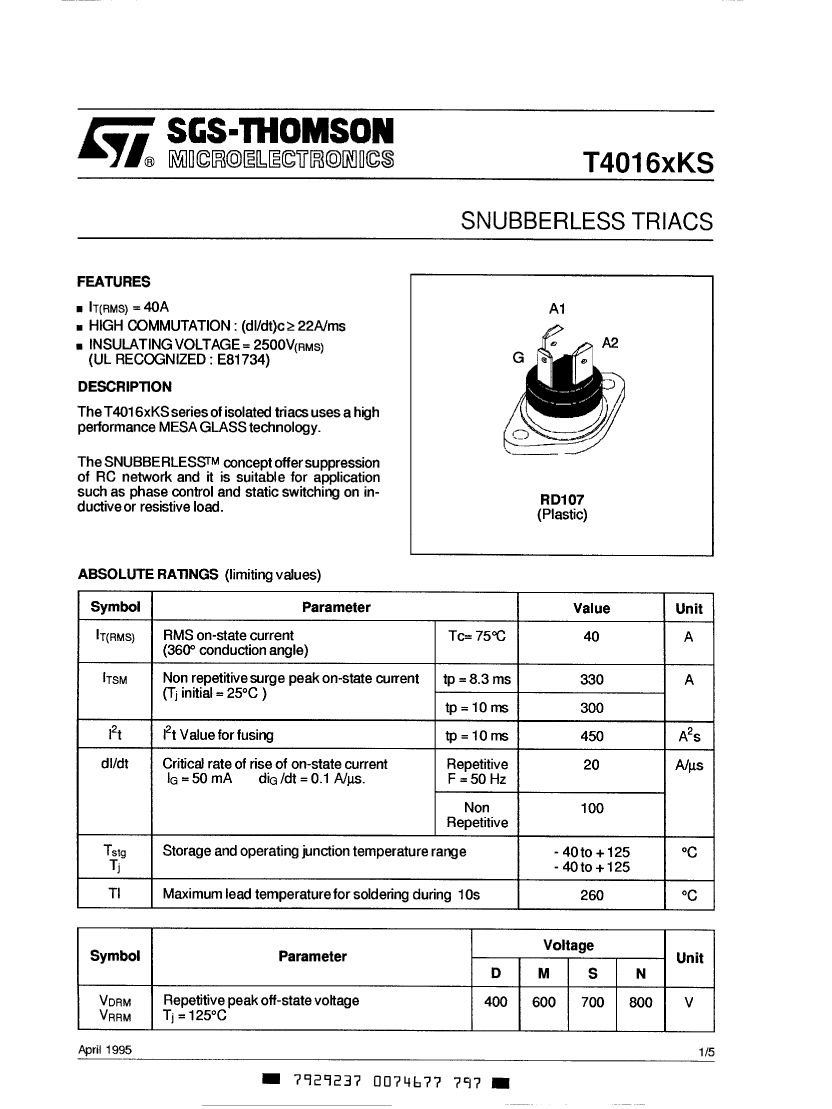

T4016NKS Overview

800V, 40A, SNUBBERLESS TRIAC

Parameter Name	Attribute value
Maker	STMicroelectronics
Reach Compliance Code	compliant
Other features	UL RECOGNIZED
Shell connection	ISOLATED
Configuration	SINGLE

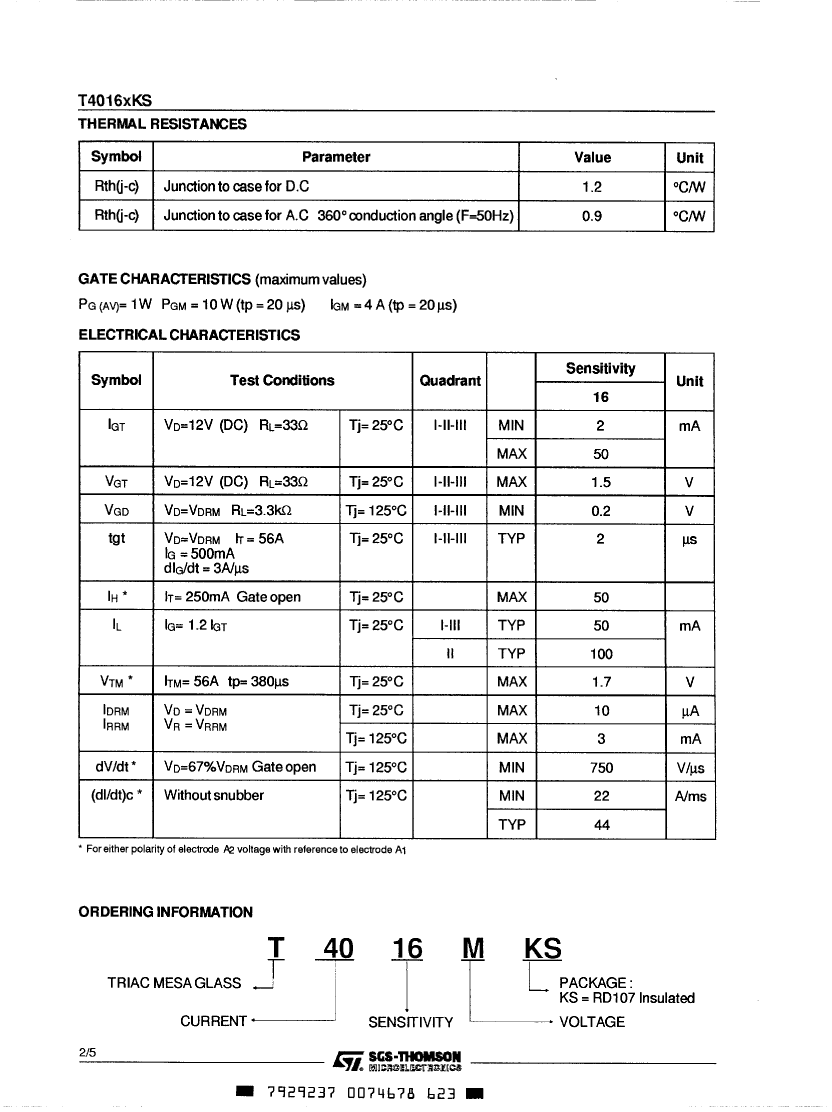

Critical rise rate of commutation voltage - minimum value	22 V/us
Critical rise rate of minimum off-state voltage	750 V/us
Maximum DC gate trigger current	50 mA
Maximum DC gate trigger voltage	1.5 V
Maximum holding current	50 mA

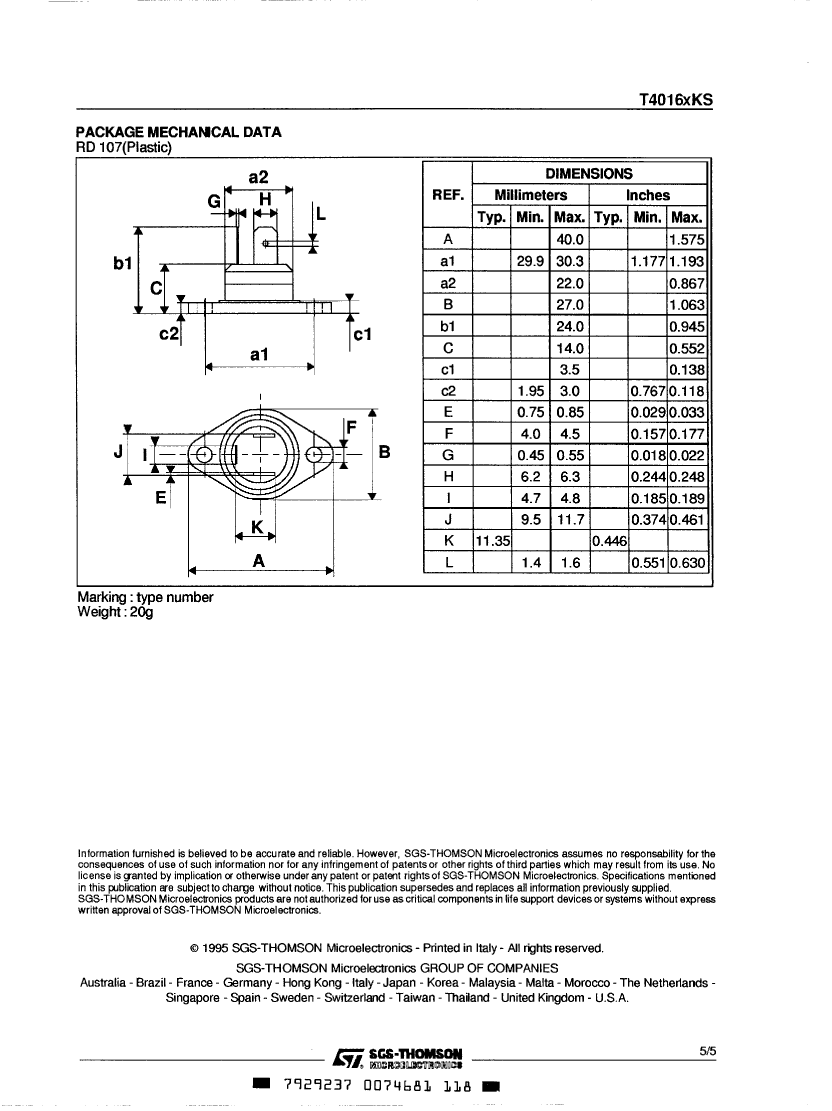

JESD-30 code	O-PUFM-D3
Maximum leakage current	0.01 mA
Number of components	1
Number of terminals	3
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	FLANGE MOUNT
Certification status	Not Qualified

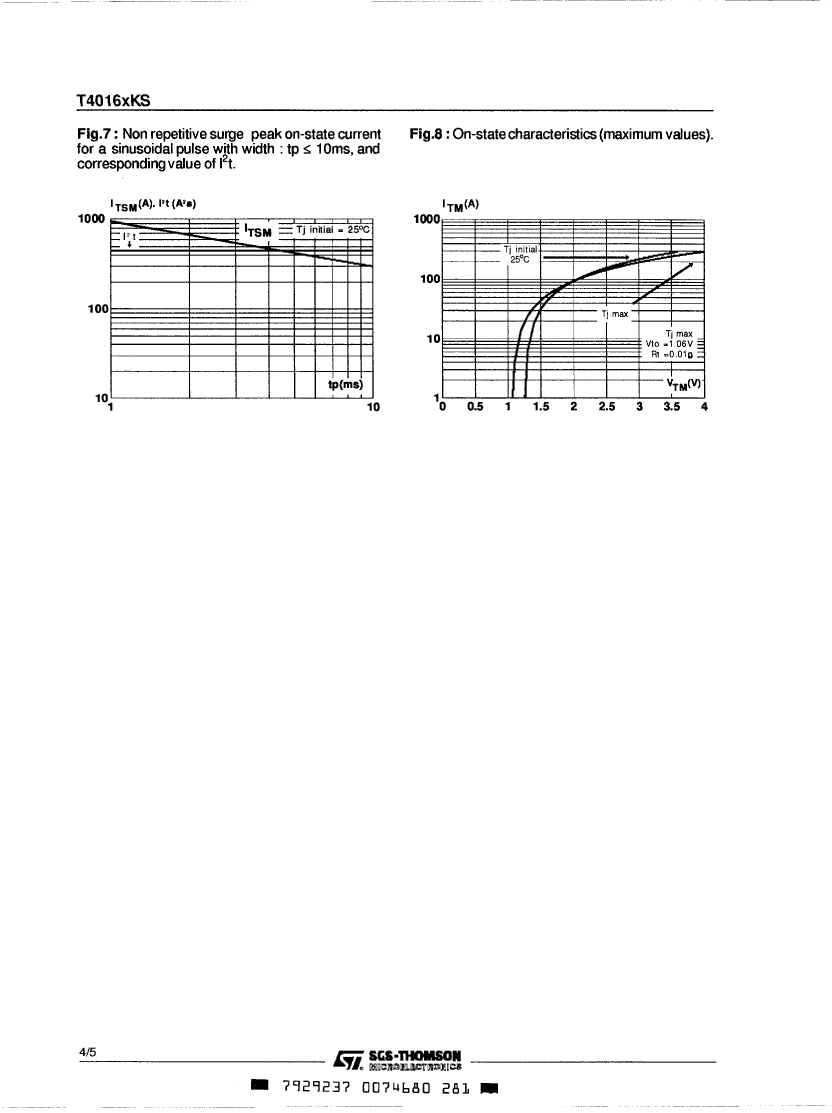

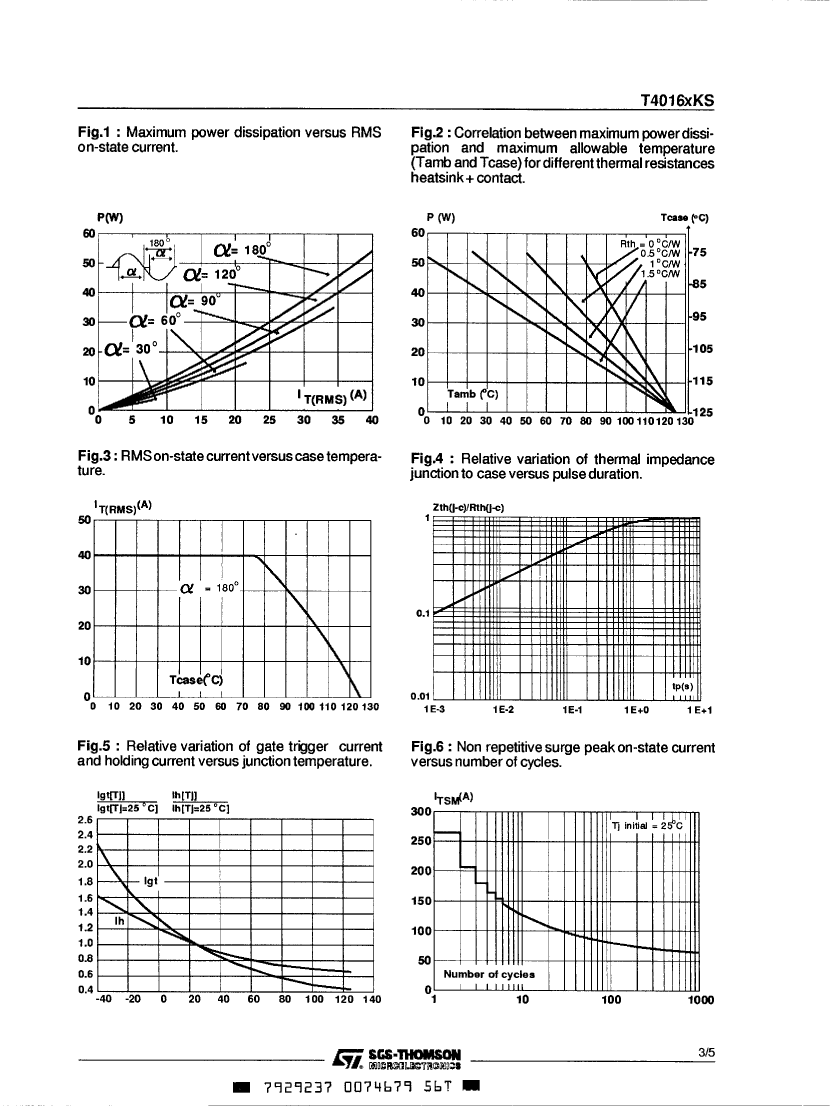

Maximum rms on-state current	40 A
Off-state repetitive peak voltage	800 V
surface mount	NO
Terminal form	SOLDER LUG
Terminal location	UPPER
Trigger device type	SNUBBERLESS TRIAC
