RA-S261S-1203 datasheet, PDF - EEWORLD Datasheet

RA-S261S-1203: DescriptionBoard Connector, 26 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, Locking Mech, Black Insulator, Plug; CategoryThe connector The connector; File Size350KB，3 Pages; ManufacturerJST

Download Datasheet Parametric View All

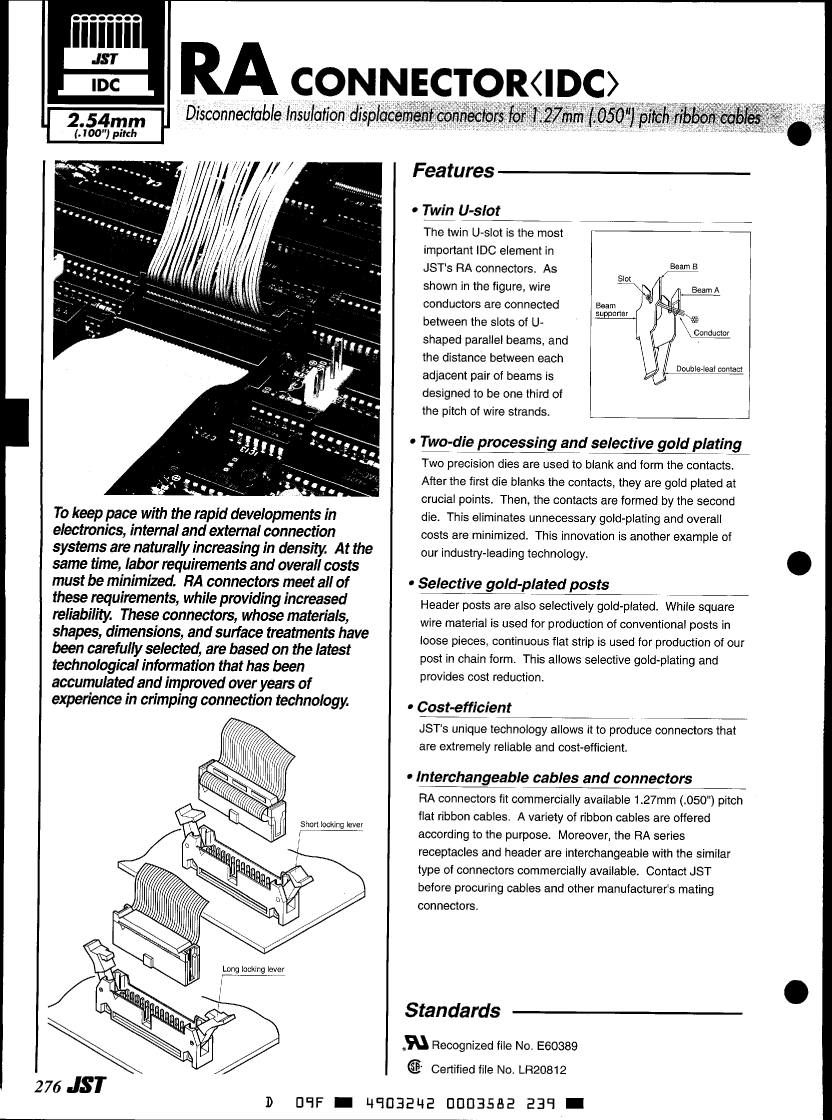

RA-S261S-1203 Overview

Board Connector, 26 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, Locking Mech, Black Insulator, Plug

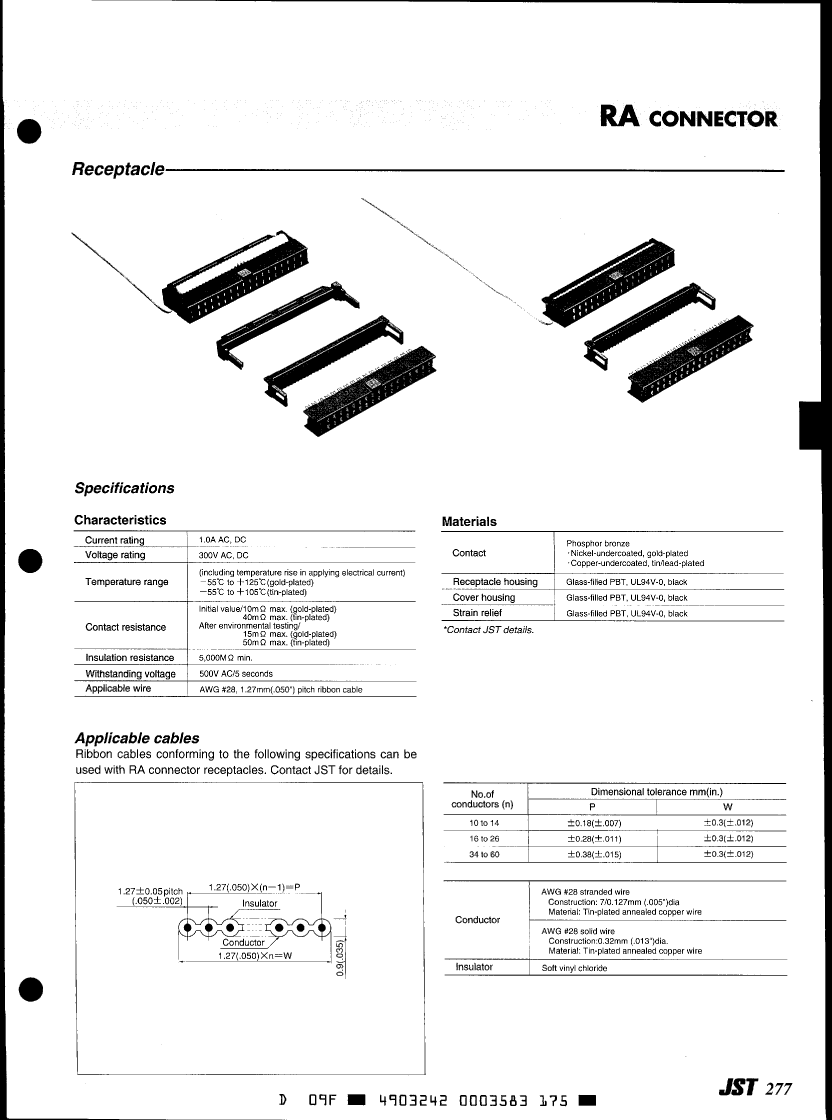

Parameter Name	Attribute value
Maker	JST
Reach Compliance Code	unknown
Other features	RIB-1, SHORT LOCK,W/STRAIN RE
body width	0.28 inch
subject depth	0.276 inch
body length	1.481 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	15 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE

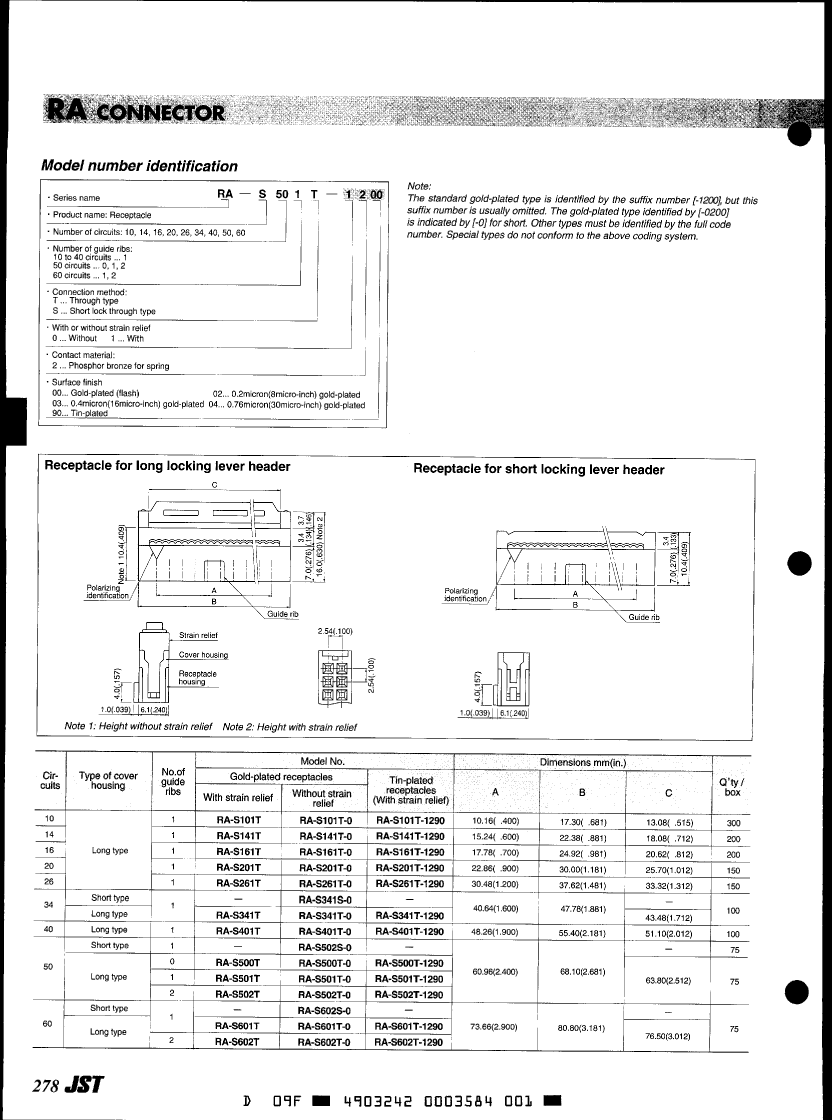

Manufacturer's serial number	RA
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING MECH
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Plating thickness	16u inch
polarization key	POLARIZED RIB(S)
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Total number of contacts	26
Maximum wire diameter	28 AWG
Minimum wire diameter	28 AWG
