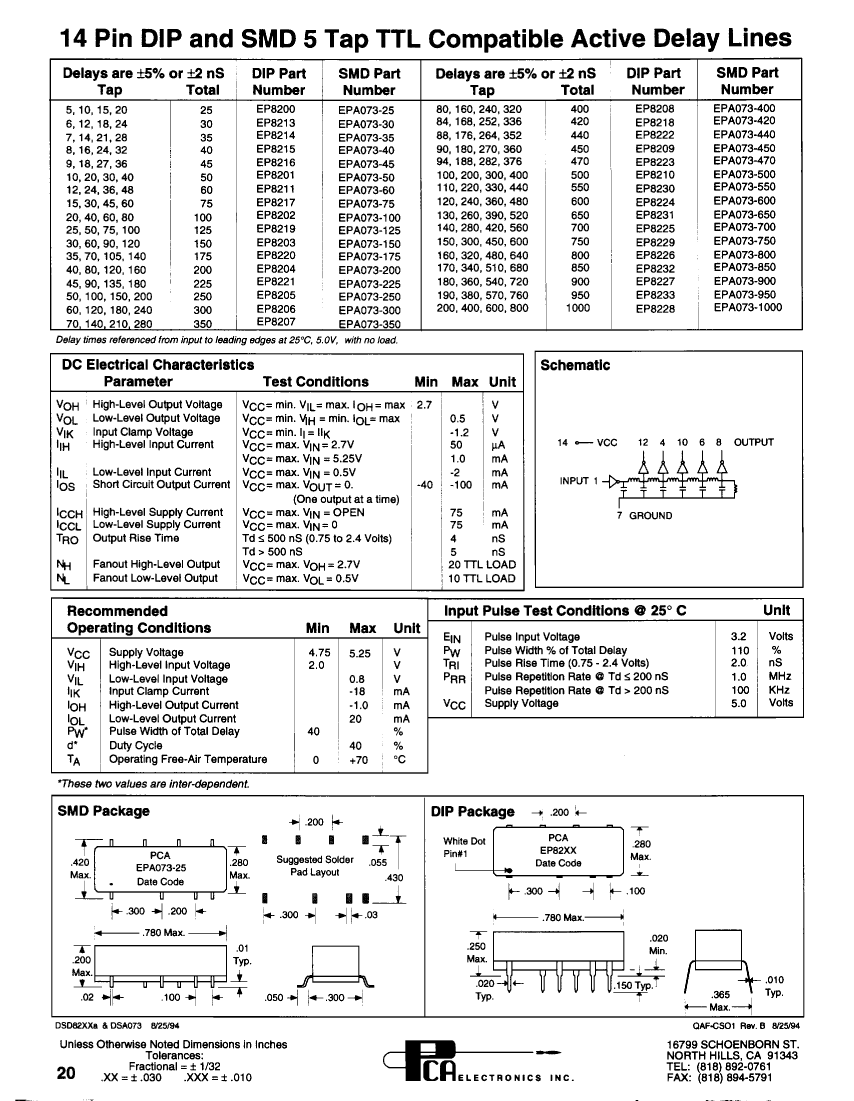

EPA073-400 datasheet, PDF - EEWORLD Datasheet

EPA073-400: DescriptionActive Delay Line, 1-Func, 5-Tap, True Output, TTL, SMD-14/8; Categorylogic logic; File Size68KB，1 Pages; ManufacturerPCA Electronics Inc.; Websitehttp://www.pca.com/

Download Datasheet Parametric View All

EPA073-400 Overview

Active Delay Line, 1-Func, 5-Tap, True Output, TTL, SMD-14/8

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	PCA Electronics Inc.
Parts packaging code	SOIC
package instruction	SMD-14/8
Contacts	14/8
Reach Compliance Code	compliant
Other features	MAX RISE TIME CAPTURED
series	TTL
Input frequency maximum value (fmax)	2.5 MHz
JESD-30 code	R-XDSO-G8
JESD-609 code	e0
Logic integrated circuit type	ACTIVE DELAY LINE
Humidity sensitivity level	3
Number of functions	1
Number of taps/steps	5
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature
Output polarity	TRUE
Package body material	UNSPECIFIED
encapsulated code	SOP
Encapsulate equivalent code	GWDIP14,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	240
power supply	5 V
Maximum supply current (ICC)	75 mA
programmable delay line	NO
Prop。Delay @ Nom-Sup	400 ns
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
Total delay nominal (td)	400 ns
