DS1315N-3V datasheet, PDF - EEWORLD Datasheet

DS1315N-3V: DescriptionReal Time Clock, Volatile, 0 Timer(s), CMOS, PDIP16, 0.300 INCH, DIP-16; CategoryThe embedded processor and controller Microcontrollers and processors; File Size409KB，22 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html

Download Datasheet Parametric View All

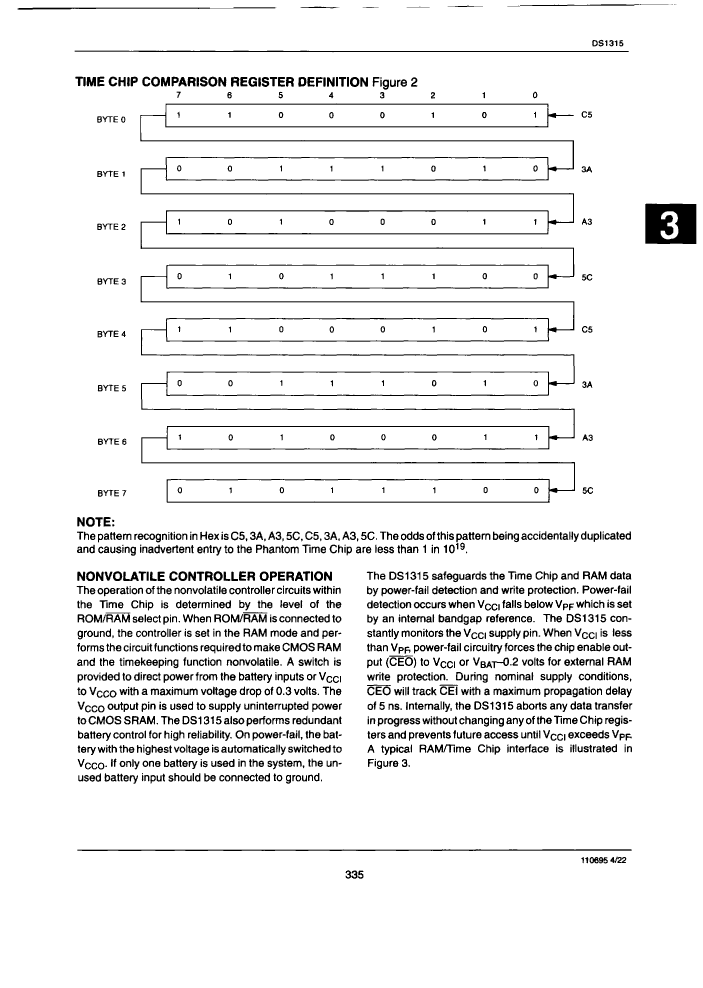

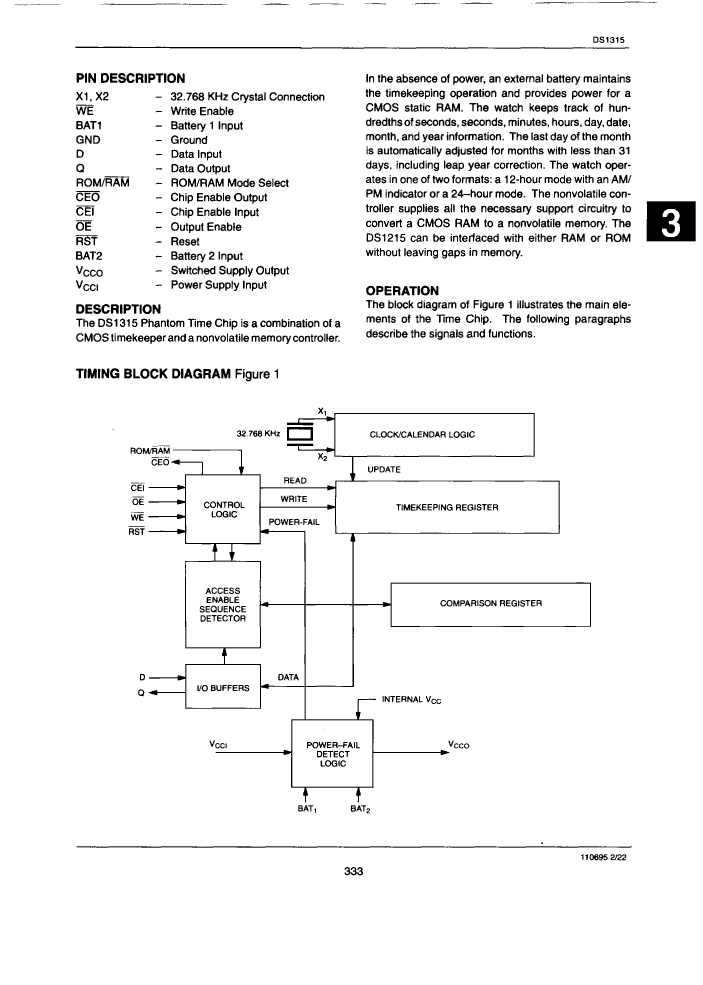

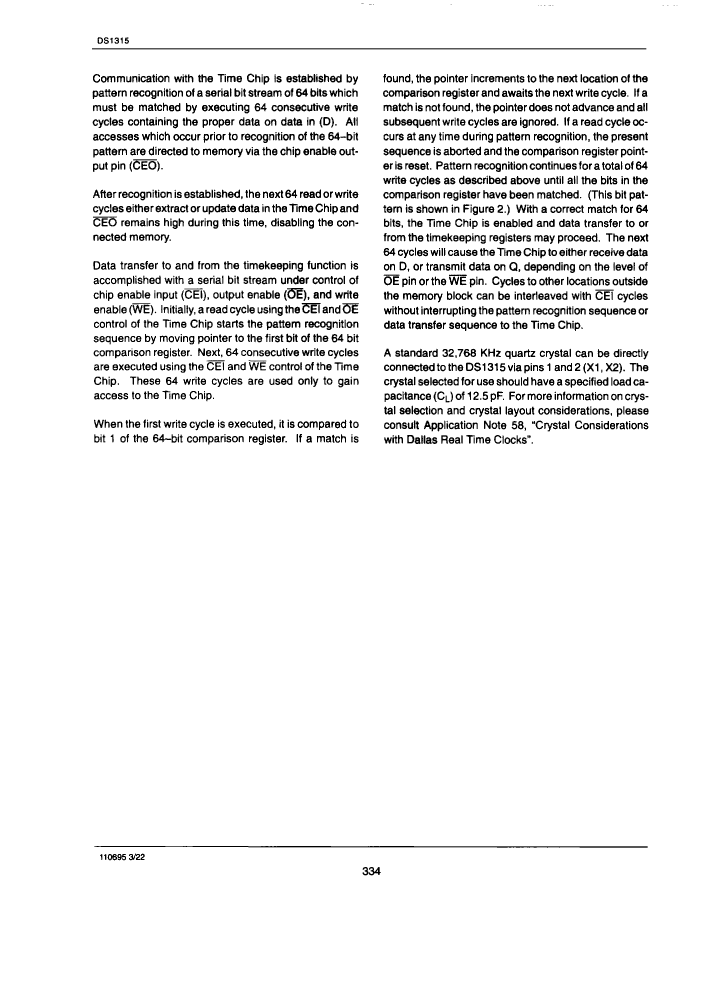

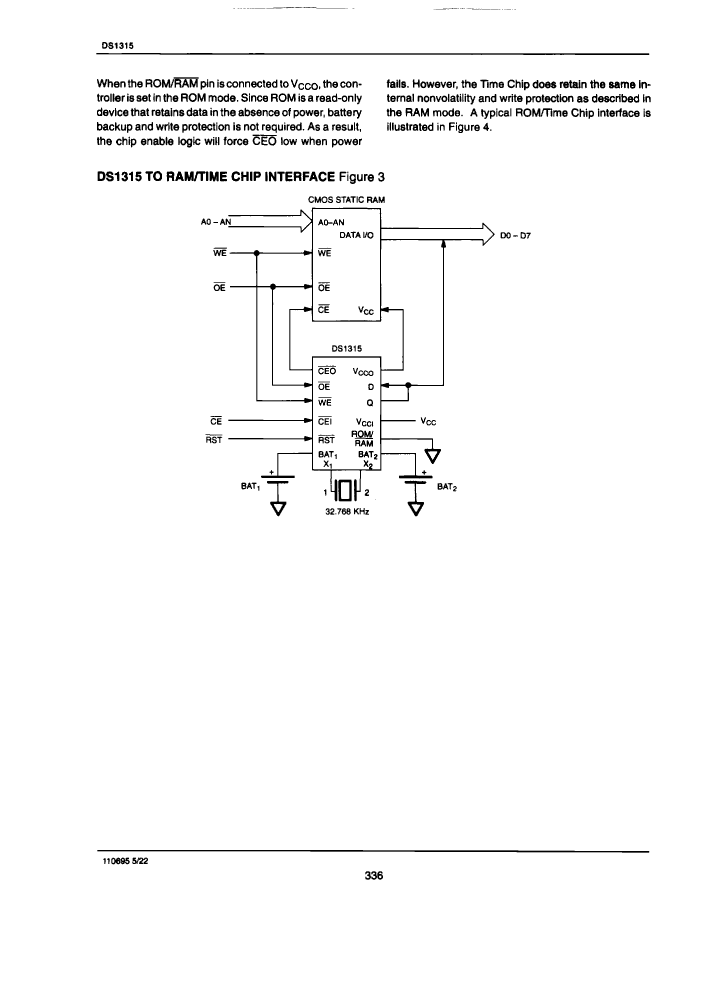

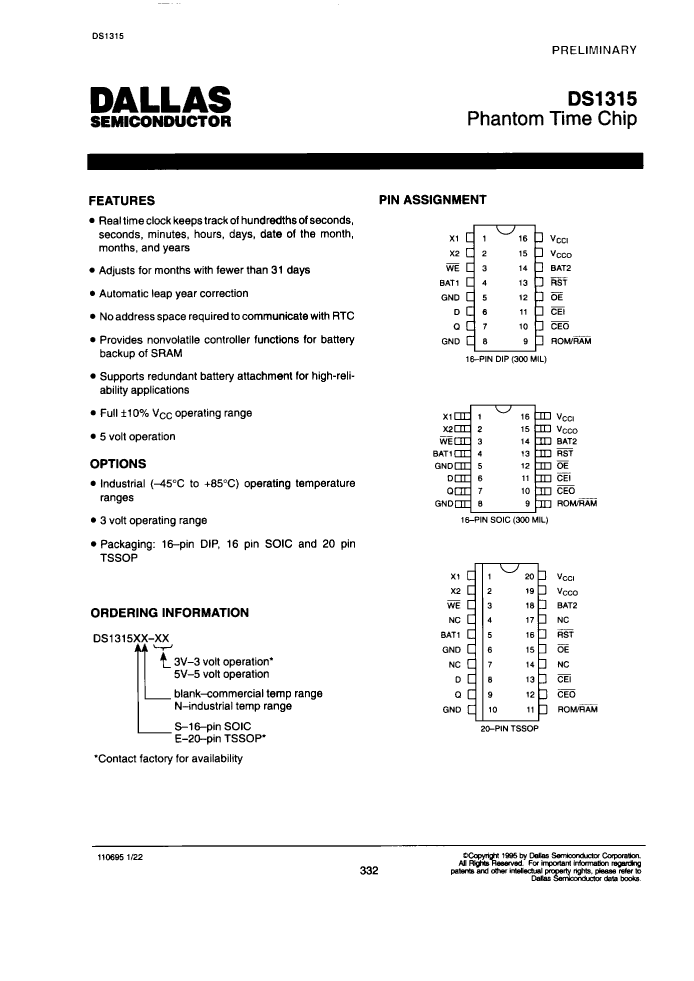

DS1315N-3V Overview

Real Time Clock, Volatile, 0 Timer(s), CMOS, PDIP16, 0.300 INCH, DIP-16

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Maxim
Parts packaging code	DIP
package instruction	0.300 INCH, DIP-16
Contacts	16
Reach Compliance Code	not_compliant
ECCN code	EAR99
Information access methods	SERIAL, FIXED PROTOCOL
interrupt capability	N
JESD-30 code	R-PDIP-T16
JESD-609 code	e0
Number of terminals	16
Number of timers
Maximum operating temperature	85 °C
Minimum operating temperature	-45 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3 V
Certification status	Not Qualified
Maximum seat height	5.72 mm
Nominal supply voltage	3 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
shortest time	1/100 SECOND
Maximum time at peak reflow temperature	NOT SPECIFIED
Volatile	YES
width	7.62 mm
uPs/uCs/peripheral integrated circuit type	TIMER, REAL TIME CLOCK
