DS1065-100 Overview

Microprocessor Circuit, CMOS, PBCY3, TO-92, 3 PIN

DS1065-100 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Maxim
Parts packaging code	TO-92
package instruction	TO-92, 3 PIN
Contacts	3
Reach Compliance Code	not_compliant
JESD-30 code	R-PBCY-T3
JESD-609 code	e0
Number of terminals	3
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	CYLINDRICAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR CIRCUIT

Preview

Download Datasheet

View All

PRELIMINARY

DS1065

EconOscillator/Divider

www.dalsemi.com

FEATURES

30 kHz to 100 MHz output frequencies

User-programmable on-chip dividers (from 1-

513)

User-programmable on-chip prescaler (1, 2,

No external components

±0.5%

initial tolerance

±3%

variation over temperature and voltage

Single 5V supply

PIN ASSIGNMENT

Dallas

DS1065

1 2 3

FREQUENCY OPTIONS

Part No.

DS1065-100

DS1065-80

DS1065-66

DS1065-60

Max O/P freq.

100.000 MHz

80.000 MHz

66.667 MHz

60.000 MHz

BOTTOM

VIEW

PIN DESCRIPTION

TO-92

1 I/O

2 V

3 GND

- Input/Output

- Power Supply

- Ground

DESCRIPTION

The DS1065 is a fixed frequency oscillator requiring no external components for operation. Numerous

operating frequencies are possible in the range of approximately 30 kHz to 100 MHz through the use of

an on-chip programmable prescaler and divider.

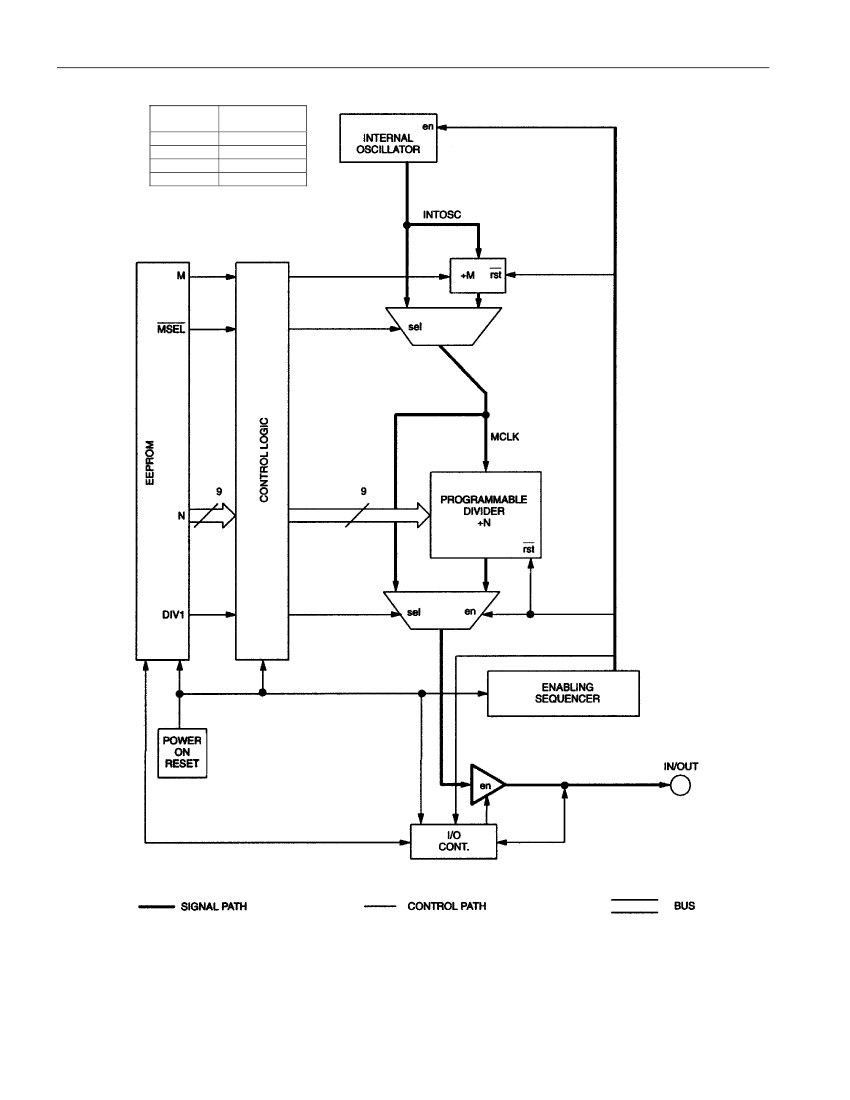

The DS1065 features a master oscillator followed by a prescaler and then a programmable divider. The

prescaler and programmable divider are user-programmable with the desired values being stored in

nonvolatile memory. This allows the user to buy an off the shelf component and program it on site prior

to board production. Design changes can be accommodated easily by simply programming different

values into the device (or reprogramming previously programmed devices). The DS1065 is shipped from

the factory configured for half the maximum operating frequency. Contact the factory for specially

programmed devices.

The DS1065 features a dual-purpose Input/Output pin. If the device is powered up in Program mode this

pin can be used to input serial data to the on-chip registers. After a write command this data is stored in

nonvolatile memory. When the chip is subsequently powered up in operating mode these values are

automatically restored to the on-chip registers and the Input/Output pin becomes the oscillator output.

The DS1065 is available in TO-92 (3 LEAD) package, allowing the generation of a clock signal easily,

economically and using minimal board area.

1 of 10

011200
