DS1747WP-150 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> DS1747WP-150

DS1747WP-150: DescriptionReal Time Clock, CMOS, POWERCAP MODULE BOARD-34; CategoryThe embedded processor and controller Microcontrollers and processors; File Size247KB，18 Pages; ManufacturerDALLAS; Websitehttp://www.dalsemi.com

Download Datasheet Parametric Compare View All

DS1747WP-150 Overview

Real Time Clock, CMOS, POWERCAP MODULE BOARD-34

DS1747WP-150 Parametric

Parameter Name	Attribute value
Maker	DALLAS
package instruction	POWERCAP MODULE BOARD-34
Reach Compliance Code	unknown
Other features	A POWERCAP MODULE CONTAINING CRYSTAL AND BATTERY REQUIRED
maximum clock frequency	0.032 MHz
External data bus width	8
Information access methods	PARALLEL, DIRECT ADDRESS
JESD-30 code	R-XDMA-U34
Number of terminals	34
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
Maximum supply voltage	3.63 V
Minimum supply voltage	2.97 V
Nominal supply voltage	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	J INVERTED
Terminal location	DUAL
uPs/uCs/peripheral integrated circuit type	TIMER, REAL TIME CLOCK

Preview

Download Datasheet

View All

PRELIMINARY

DS1747/DS1747P

Y2KC Nonvolatile Timekeeping RAM

www.dalsemi.com

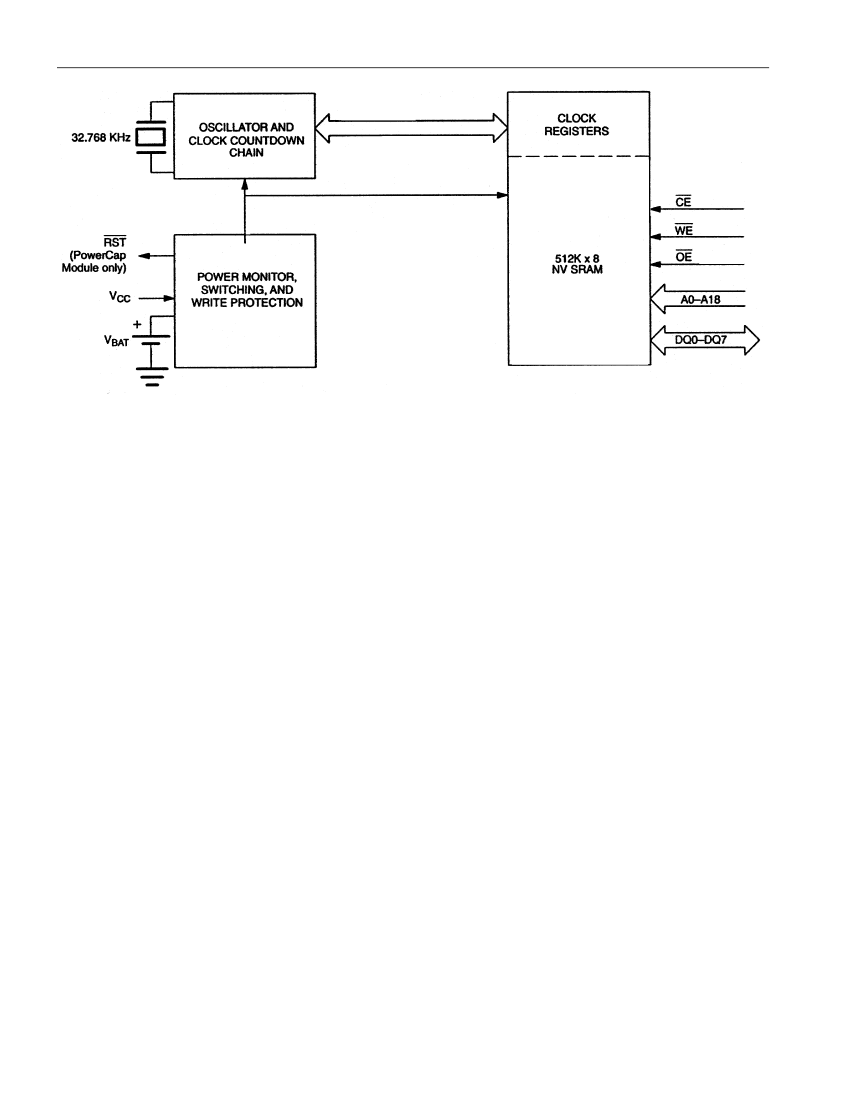

FEATURES

Integrated NV SRAM, real time clock,

crystal, power-fail control circuit and lithium

energy source

Clock registers are accessed identical to the

static RAM. These registers are resident in the

eight top RAM locations.

Century byte register; ie., Y2K compliant

Totally nonvolatile with over 10 years of

operation in the absence of power

BCD coded century, year, month, date, day,

hours, minutes, and seconds with automatic

leap year compensation valid up to the year

2100

Battery voltage level indicator flag

Power-fail write protection allows for ±10%

power supply tolerance

Lithium energy source is electrically

disconnected to retain freshness until power is

applied for the first time

DIP Module only

- Standard JEDEC Byte-wide 512k x 8

static RAM pinout

PowerCap Module Board only

- Surface mountable package for direct

connection to PowerCap containing

battery and crystal

- Replaceable battery (PowerCap)

- Power-On Reset Output

- Pin for pin compatible with other densities

of DS174XP Timekeeping RAM

PIN ASSIGNMENT

A18

A16

A14

A12

DQ0

DQ1

DQ2

GND

A15

A17

A13

A11

A10

DQ7

DQ6

DQ5

DQ4

DQ3

512K X 8

32-PIN ENCAPSULATED PACKAGE

A15

A16

RST

DQ7

DQ6

DQ5

DQ4

DQ3

DQ2

DQ1

DQ0

GND

GND V

BAT

A18

A17

A14

A13

A12

A11

A10

34-PIN POWERCAP MODULE BOARD

(USES DS9034PCX POWERCAP)

1 of 18

021800
