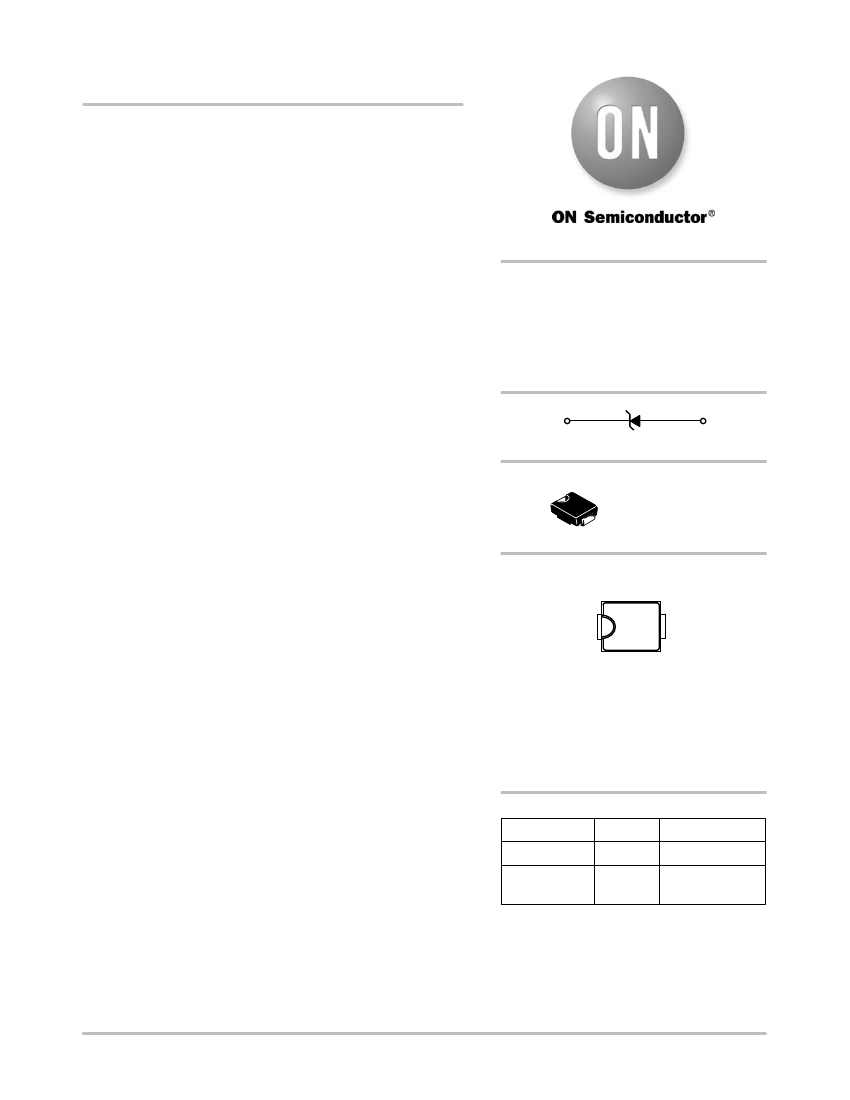

1.5SMC6.8AT3 Series
1500 Watt Peak Power
Zener Transient Voltage
Suppressors
Unidirectional*
The SMC series is designed to protect voltage sensitive
components from high voltage, high energy transients. They have
excellent clamping capability, high surge capability, low zener
impedance and fast response time. The SMC series is supplied in
ON Semiconductor’s exclusive, cost-effective, highly reliable
Surmetic™ package and is ideally suited for use in communication
systems, automotive, numerical controls, process controls, medical
equipment, business machines, power supplies and many other
industrial/consumer applications.
Specification Features
http://onsemi.com
PLASTIC SURFACE MOUNT
ZENER OVERVOLTAGE
TRANSIENT SUPPRESSORS
5.8
−
78 VOLTS
1500 WATT PEAK POWER
•
•
•
•
•
•
•
•
•
•
Working Peak Reverse Voltage Range
−
5.8 to 77.8 V
Standard Zener Breakdown Voltage Range
−
6.8 to 91 V
Peak Power
−
1500 W @ 1.0 ms
ESD Rating of Class 3 (>16 kV) per Human Body Model
Maximum Clamp Voltage @ Peak Pulse Current
Low Leakage < 5.0
mA
Above 10 V
UL 497B for Isolated Loop Circuit Protection
Maximum Temperature Coefficient Specified
Response Time is Typically < 1.0 ns
Pb−Free Packages are Available
Cathode
Anode
SMC
CASE 403
PLASTIC
MARKING DIAGRAM
AYWW
xxxAG
G
Mechanical Characteristics
CASE:
Void-free, transfer-molded, thermosetting plastic
FINISH:
All external surfaces are corrosion resistant and leads are
xxxA
readily solderable
MAXIMUM CASE TEMPERATURE FOR SOLDERING PURPOSES:
260°C for 10 Seconds
LEADS:
Modified L−Bend providing more contact area to bond pads
POLARITY:
Cathode indicated by molded polarity notch
MOUNTING POSITION:
Any
= Specific Device Code
(See Table on Page 3)
A
= Assembly Location
Y
= Year
WW = Work Week
G
= Pb−Free Package
(Note: Microdot may be in either location)
ORDERING INFORMATION
Device*
1.5SMCxxxAT3
1.5SMCxxxAT3G
Package
SMC
SMC
(Pb−Free)
Shipping
†
2500/Tape & Reel
2500/Tape & Reel
Individual devices are listed on page 3 of this data sheet.
*The “T3” suffix refers to a 13 inch reel.
†For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specifications
Brochure, BRD8011/D.
**Bidirectional devices will not be available in this
series.
©
Semiconductor Components Industries, LLC, 2009
October, 2009
−
Rev. 8
1
Publication Order Number:
1.5SMC6.8AT3/D
1.5SMC6.8AT3 Series
MAXIMUM RATINGS
Rating
Peak Power Dissipation (Note 1) @ T
L
= 25°C, Pulse Width = 1 ms
DC Power Dissipation @ T
L
= 75°C
Measured Zero Lead Length (Note 2)
Derate Above 75°C
Thermal Resistance, Junction−to−Lead
DC Power Dissipation (Note 3) @ T
A
= 25°C
Derate Above 25°C
Thermal Resistance from Junction−to−Ambient
Forward Surge Current (Note 4) @ T
A
= 25°C
Operating and Storage Temperature Range
Symbol
P
PK
P
D
R
qJL
P
D
R
qJA
I
FSM
T
J
, T
stg
Value
1500
4.0
54.6
18.3
0.75
6.1
165
200
−65
to +150
Unit
W
W
mW/°C
°C/W
W
mW/°C
°C/W
A
°C
Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the
Recommended Operating Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect
device reliability.
1. 10 X 1000
ms,
non−repetitive
2. 1 in. square copper pad, FR−4 board
3. FR−4 board, using ON Semiconductor minimum recommended footprint, as shown in 403 case outline dimensions spec.
4. 1/2 sine wave (or equivalent square wave), PW = 8.3 ms, duty cycle = 4 pulses per minute maximum.
ELECTRICAL CHARACTERISTICS
(T
A
= 25°C unless
otherwise noted, V
F
= 3.5 V Max. @ I
F
(Note 5) = 100 A)
Symbol
I
PP
V
C
V
RWM
I
R
V
BR
I
T
QV
BR
I
F
V
F
Parameter
Maximum Reverse Peak Pulse Current
Clamping Voltage @ I
PP
Working Peak Reverse Voltage
Maximum Reverse Leakage Current @ V
RWM
Breakdown Voltage @ I
T
Test Current
Maximum Temperature Coefficient of V
BR
Forward Current
Forward Voltage @ I
F
V
C
V
BR
V
RWM
I
F
I
I
R
V
F
I
T
V
I
PP
Uni−Directional TVS
5. 1/2 sine wave or equivalent, PW = 8.3 ms non−repetitive duty
cycle
http://onsemi.com
2
1.5SMC6.8AT3 Series
ELECTRICAL CHARACTERISTICS
(Devices listed in
bold, italic
are ON Semiconductor Preferred devices.)
V
RWM
(Note 6)
V
5.8
6.4
7.02
7.78
8.55
9.4
10.2
11.1
12.8
13.6
15.3
17.1
18.8
20.5
23.1
25.6
28.2
30.8
33.3
36.8
40.2
43.6
47.8
53
58.1
64.1
70.1
77.8
Breakdown Voltage
I
R
@ V
RWM
mA
1000
500
200
50
10
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
V
BR
V
(Note 7)
Min
6.45
7.13
7.79
8.65
9.5
10.5
11.4
12.4
14.3
15.2
17.1
19
20.9
22.8
25.7
28.5
31.4
34.2
37.1
40.9
44.7
48.5
53.2
58.9
64.6
71.3
77.9
86.5
Nom
6.8
7.5
8.2
9.1
10
11
12
13
15
16
18
20
22
24
27
30
33
36
39
43
47
51
56
62
68
75
82
91
Max
7.14
7.88
8.61
9.55
10.5
11.6
12.6
13.7
15.8
16.8
18.9
21
23.1
25.2
28.4
31.5
34.7
37.8
41
45.2
49.4
53.6
58.8
65.1
71.4
78.8
86.1
95.5
@ I
T
mA
10
10
10
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
V
C
@ I
PP
(Note 8)
V
C
V
10.5
11.3
12.1
13.4
14.5
15.6
16.7
18.2
21.2
22.5
25.2
27.7
30.6
33.2
37.5
41.4
45.7
49.9
53.9
59.3
64.8
70.1
77
85
92
103
113
125
I
PP
A
143
132
124
112
103
96
90
82
71
67
59.5
54
49
45
40
36
33
30
28
25.3
23.2
21.4
19.5
17.7
16.3
14.6
13.3
12
QV
BR
%/5C
0.057
0.061
0.065
0.068
0.073
0.075
0.078
0.081
0.084
0.086
0.088
0.09
0.092
0.094
0.096
0.097
0.098
0.099
0.1
0.101
0.101
0.102
0.103
0.104
0.104
0.105
0.105
0.106
Device*
1.5SMC6.8AT3, G
1.5SMC7.5AT3, G
1.5SMC8.2AT3, G
1.5SMC9.1AT3
1.5SMC10AT3
1.5SMC11AT3
1.5SMC12AT3, G
1.5SMC13AT3, G
1.5SMC15AT3, G
1.5SMC16AT3, G
1.5SMC18AT3, G
1.5SMC20AT3, G
1.5SMC22AT3, G
1.5SMC24AT3, G
1.5SMC27AT3, G
1.5SMC30AT3, G
1.5SMC33AT3, G
1.5SMC36AT3, G
1.5SMC39AT3, G
1.5SMC43AT3, G
1.5SMC47AT3, G
1.5SMC51AT3, G
1.5SMC56AT3, G
1.5SMC62AT3, G
1.5SMC68AT3, G
1.5SMC75AT3, G
1.5SMC82AT3, G
1.5SMC91AT3, G
Device
Marking
6V8A
7V5A
8V2A
9V1A
10A
11A
12A
13A
15A
16A
18A
20A
22A
24A
27A
30A
33A
36A
39A
43A
47A
51A
56A
62A
68A
75A
82A
91A
Devices listed in
bold, italic
are ON Semiconductor
Preferred
devices.
Preferred
devices are recommended choices for future use and best overall value.
6. A transient suppressor is normally selected according to the working peak reverse voltage (V
RWM
), which should be equal to or greater than
the DC or continuous peak operating voltage level.
7. V
BR
measured at pulse test current I
T
at an ambient temperature of 25°C.
8. Surge current waveform per Figure 2 and derate per Figure 3 of the General Data
−
1500 Watt at the beginning of this group.
* The “G” suffix indicates Pb−Free package available.
http://onsemi.com
3
1.5SMC6.8AT3 Series
100
NONREPETITIVE
PULSE WAVEFORM
SHOWN IN FIGURE 2
t
r
≤
10
ms
100
VALUE (%)
PEAK VALUE - I
PP
I
PP
2
PULSE WIDTH (t
P
) IS DEFINED
AS THAT POINT WHERE THE PEAK
CURRENT DECAYS TO 50%
OF I
PP
.
P
pk
, PEAK POWER (kW)
10
HALF VALUE -
50
t
P
1
0.1
ms
1
ms
10
ms
100
ms
t
P
, PULSE WIDTH
1 ms
10 ms
0
0
1
2
t, TIME (ms)
3
4
Figure 1. Pulse Rating Curve
160
PEAK PULSE DERATING IN % OF
PEAK POWER OR CURRENT @ TA = 25
°
C
140
120
100
80
60
40
20
0
0
25
50
75
100
125
150
1000
I
T
, TEST CURRENT (AMPS)
500
200
100
50
20
10
5
2
1
0.3
T
L
= 25°C
t
P
= 10
ms
Figure 2. Pulse Waveform
V
BR
(NOM) = 6.8 TO 13 V
20 V
43 V
24 V
75 V
120 V
180 V
0.5 0.7 1
2
3
5
7 10
20
30
T
A
, AMBIENT TEMPERATURE (°C)
DV
BR
, INSTANTANEOUS INCREASE IN V
BR
ABOVE V
BR
(NOM) (VOLTS)
Figure 3. Pulse Derating Curve
Figure 4. Dynamic Impedance
UL RECOGNITION
The entire series has
Underwriters Laboratory
Recognition
for the classification of protectors (QVGQ2)
under the UL standard for safety 497B and File #E210057.
Many competitors only have one or two devices recognized
or have recognition in a non-protective category. Some
competitors have no recognition at all. With the UL497B
recognition, our parts successfully passed several tests
including Strike Voltage Breakdown test, Endurance
Conditioning, Temperature test, Dielectric Voltage-Withstand
test, Discharge test and several more.
Whereas, some competitors have only passed a
flammability test for the package material, we have been
recognized for much more to be included in their Protector
category.
http://onsemi.com
4
1.5SMC6.8AT3 Series
APPLICATION NOTES
RESPONSE TIME
In most applications, the transient suppressor device is
placed in parallel with the equipment or component to be
protected. In this situation, there is a time delay associated
with the capacitance of the device and an overshoot
condition associated with the inductance of the device and
the inductance of the connection method. The capacitive
effect is of minor importance in the parallel protection
scheme because it only produces a time delay in the
transition from the operating voltage to the clamp voltage as
shown in Figure 5.
The inductive effects in the device are due to actual
turn-on time (time required for the device to go from zero
current to full current) and lead inductance. This inductive
effect produces an overshoot in the voltage across the
equipment or component being protected as shown in
Figure 6. Minimizing this overshoot is very important in the
application, since the main purpose for adding a transient
suppressor is to clamp voltage spikes. The SMC series have
a very good response time, typically < 1.0 ns and negligible
inductance. However, external inductive effects could
produce unacceptable overshoot. Proper circuit layout,
minimum lead lengths and placing the suppressor device as
close as possible to the equipment or components to be
protected will minimize this overshoot.
Some input impedance represented by Z
in
is essential to
prevent overstress of the protection device. This impedance
should be as high as possible, without restricting the circuit
operation.
DUTY CYCLE DERATING
The data of Figure 1 applies for non-repetitive conditions
and at a lead temperature of 25°C. If the duty cycle increases,
the peak power must be reduced as indicated by the curves
of Figure 7. Average power must be derated as the lead or
ambient temperature rises above 25°C. The average power
derating curve normally given on data sheets may be
normalized and used for this purpose.
At first glance the derating curves of Figure 7 appear to be
in error as the 10 ms pulse has a higher derating factor than
the 10
ms
pulse. However, when the derating factor for a
given pulse of Figure 7 is multiplied by the peak power value
of Figure 1 for the same pulse, the results follow the
expected trend.
http://onsemi.com
5
京公网安备 11010802033920号
EEWORLD
