LS1B-R39K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> LS1B-R39K

LS1B-R39K: DescriptionGeneral Purpose Inductor, 0.39uH, 10%, 1 Element; CategoryPassive components inductor; File Size14KB，1 Pages; ManufacturerInductor Supply Inc

Download Datasheet Parametric View All

LS1B-R39K Overview

General Purpose Inductor, 0.39uH, 10%, 1 Element

LS1B-R39K Parametric

Parameter Name	Attribute value
Maker	Inductor Supply Inc
Reach Compliance Code	unknown
ECCN code	EAR99
DC Resistance	0.259 Ω
Nominal inductance(L)	0.39 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	LS1B
Number of functions	1
Number of terminals	2
Minimum quality factor (at nominal inductance)	32
Maximum rated current	0.83 A
self resonant frequency	348 MHz
Shape/Size Description	TUBULAR PACKAGE
shield	YES
surface mount	NO
Terminal location	AXIAL
Terminal shape	PRINTED WIRING PIN
Test frequency	25 MHz
Tolerance	10%

Preview

Download Datasheet

View All

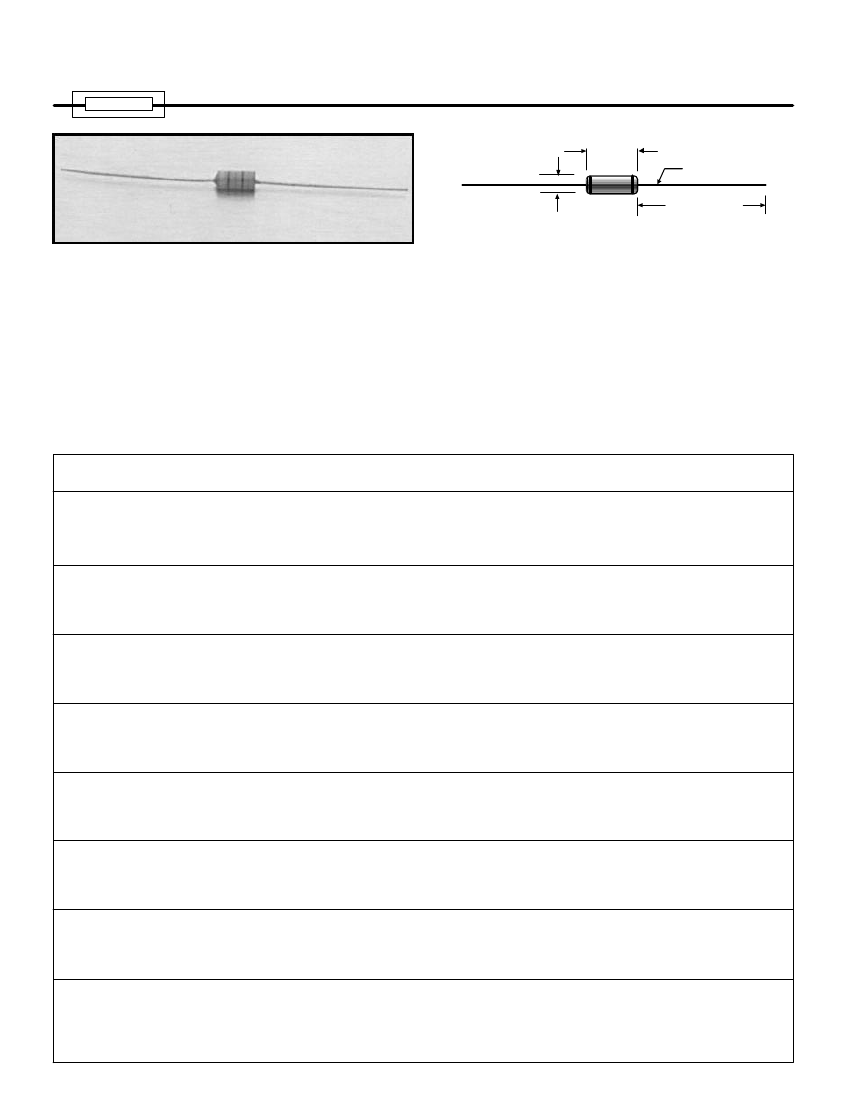

LS1B

Subminiature

Shielded Inductors

.26" max

24 AWG/TCW

1.15"nominal

.11" max

These subminiature shieldedinductor feature excellentinductance-to-sizeratios witha negligiblelossof electrical performance.

They are especially well-suited for high density applications where minimum coupling and high inductance are mandatory.

They also feature exceptional Q characteristics .

INDUCTANCES 0.10µH to 1,000µH

CURRENT RATING Based on temperature rise not to exceed

35°C at 90° ambient temperature.

INDUCTANCE TOLERANCE ±10%over entir inductance range.

(Tighter tolerances are available by special order.)

SHIELDING 5% coupling maxim

um with 2 units side by sideat

1 kHz.

PART

NUMBER

LS1B-R10K

LS1B-R12K

LS1B-R15K

LS1B-R18K

LS1B-R22K

LS1B-R27K

LS1B-R33K

LS1B-R39K

LS1B-R47K

LS1B-R65K

LS1B-R68K

LS1B-R82K

LS1B-1R0K

LS1B-1R2K

LS1B-1R5K

LS1B-1R8K

LS1B-2R2K

LS1B-2R7K

LS1B-3R3K

LS1B-3R9K

LS1B-4R7K

LS1B-5R6K

LS1B-6R8K

LS1B-8R2K

LS1B-100K

LS1B-120K

LS1B-150K

LS1B-180K

LS1B-220K

LS1B-270K

LS1B-330K

LS1B-390K

LS1B-470K

LS1B-560K

LS1B-680K

LS1B-820K

LS1B-101K

LS1B-121K

LS1B-151K

LS1B-181K

LS1B-221K

LS1B-271K

LS1B-331K

LS1B-391K

LS1B-471K

LS1B-561K

LS1B-681K

LS1B-821K

LS1B-102K

LEAD STRENGTH Meet 5 lbs pull test.

TESTING Inductance and Q measured with HP4342A meter

at specified frequency. DCR measured with Milliohm meter.

SRF measured on HP4191A meter.

MARKING 5-Band Color Code.

PACKAGING Bulk or Tape and Reel.

SELF RESONANT

FREQUENCY

MINIMUM (MHz)

400

370

348

312

286

262

188

166

149

136

118

110

45.8

42.2

31.0

26.0

24.2

22.0

21.2

19.9

16.8

13.2

11.0

9.1

7.4

7.2

6.8

5.5

5.1

5.0

4.9

4.6

4.2

4.0

INDUCTANCE

(µH)

.10

.12

.15

.18

.22

.27

.33

.39

.47

.65

.68

.82

1.0

1.2

1.5

1.8

2.2

2.7

3.3

3.9

4.7

5.6

6.8

8.2

100

120

150

180

220

270

330

390

470

560

680

820

1000

MINIMUM

TEST

FREQUENCY

(MHz)

7.9

2.5

.79

DC RESIST ANCE

OHMS

MAXIMUM (Ω )

.071

.087

.109

.145

.165

.192

.228

.259

.348

.417

.580

.132

.169

.184

.260

.360

.410

.550

.620

.790

.910

1.15

1.73

1.96

2.30

0.55

0.71

1.00

1.09

1.35

1.90

2.10

2.40

2.90

3.20

3.70

4.60

5.20

5.90

7.40

8.50

10.0

13.4

15.0

21.0

23.0

26.0

34.0

39.0

RATED DC

CURRENT MAX

(mA)

1580

1360

1280

1110

1040

965

885

830

717

655

555

1160

1030

985

825

705

664

577

540

475

445

395

320

302

280

570

500

423

404

364

305

293

271

248

237

219

198

184

173

156

145

133

115

109
