L-2774ND Overview

Single Color LED, Pure Orange, Diffused Orange, 3.9mm, 3.90 X 1.75 MM, ROHS COMPLIANT PACKAGE-2

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Kingbright
package instruction	3.90 X 1.75 MM, ROHS COMPLIANT PACKAGE-2
Reach Compliance Code	compliant
ECCN code	EAR99
color	PURE ORANGE
Configuration	SINGLE
Maximum forward current	0.025 A
Lens type	DIFFUSED ORANGE
Nominal luminous intensity	13.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	7 mm

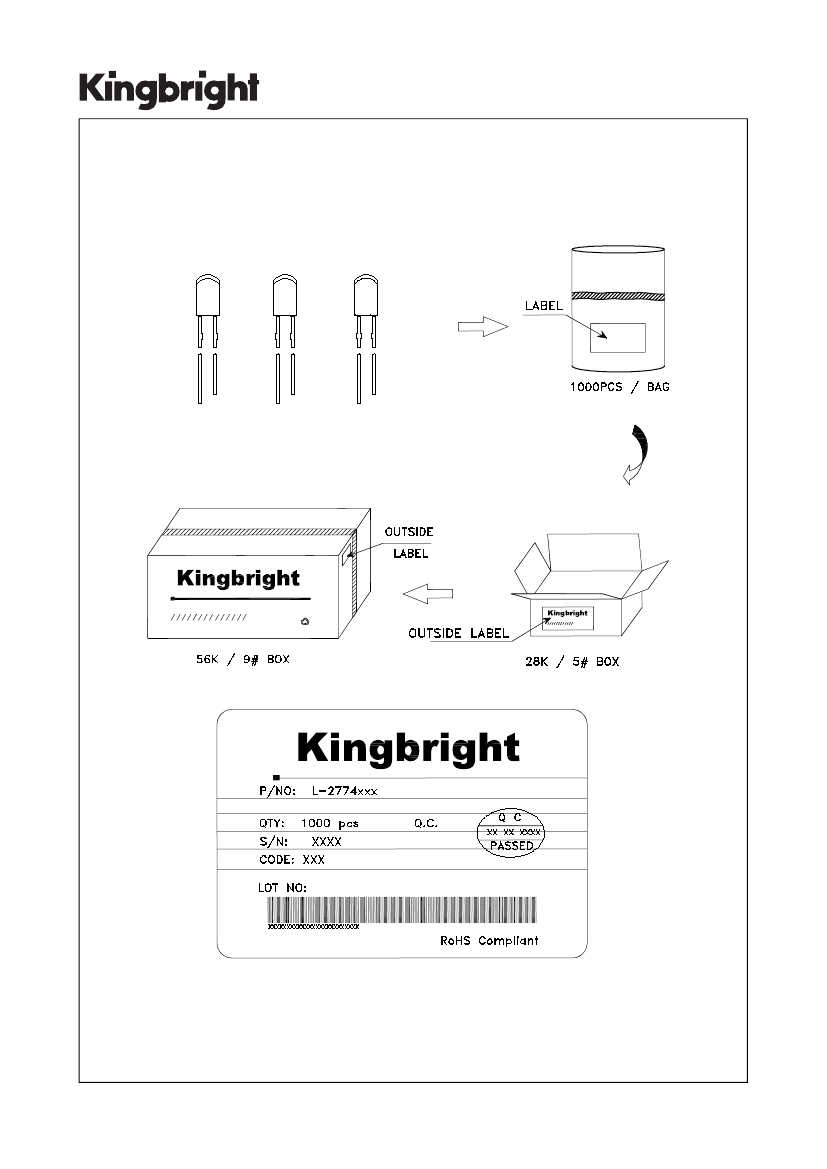

method of packing	BOX/BAG
peak wavelength	607 nm
shape	RECTANGULAR
size	3.9 mm
surface mount	NO
Terminal pitch	2.54 mm
perspective	70 deg

1.75x3.9mm RECTANGULAR LED LAMP

Part Number: L-2774ND

Pure Orange

Features

Low power consumption.

Rounded end rectangular shape.

Long life-solid state reliability.

RoHS compliant.

Description

The Pure Orange source color devices are made with Gal-

lium Arsenide Phosphide on Gallium Phosphide Pure Or-

ange Light Emitting Diode.

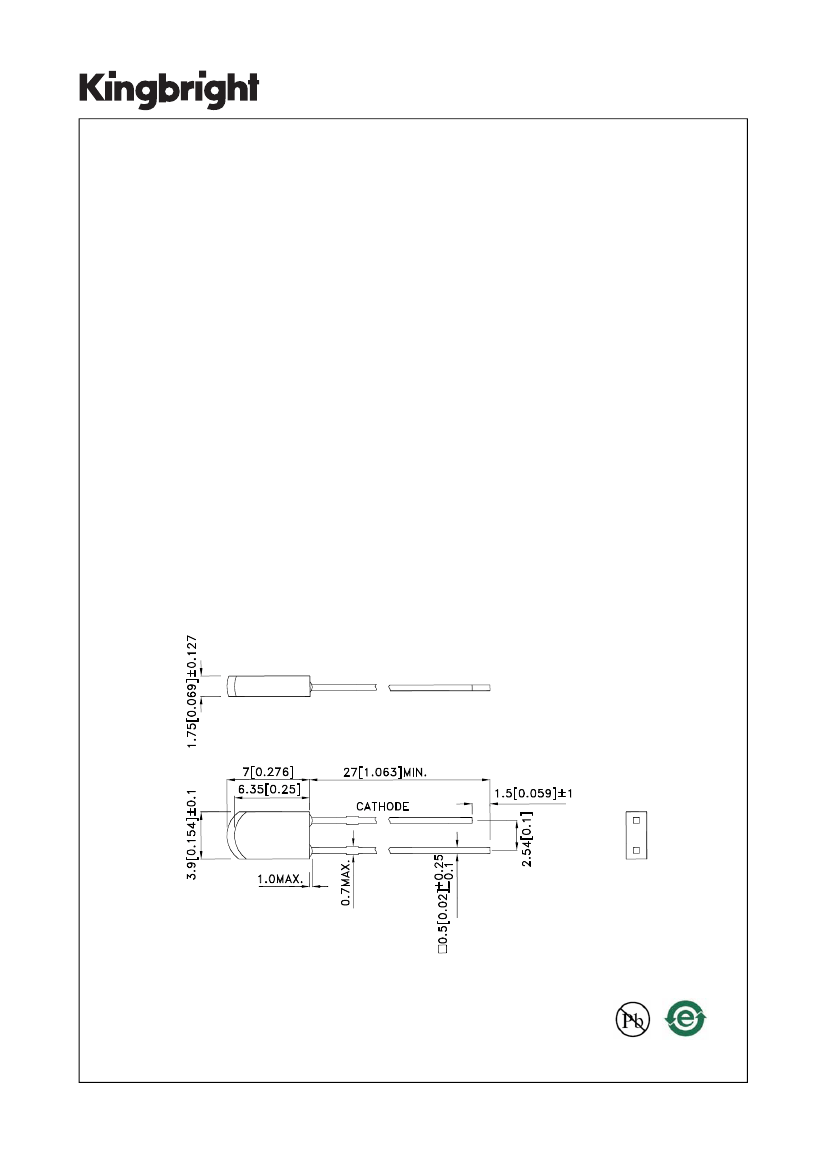

Package Dimensions

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is ±0.25(0.01") unless otherwise noted.

3. Lead spacing is measured where the leads emerge from the package.

4. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice.

SPEC NO: DSAK3481

APPROVED: WYNEC

REV NO: V.4A

CHECKED: Allen Liu

DATE: APR/01/2013

DRAWN: Y.Liu

PAGE: 1 OF 6

ERP: 1101027670
