LH1512AAC-TR datasheet, PDF - EEWORLD Datasheet

LH1512AAC-TR: DescriptionTransistor Output SSR, 2-Channel, 5300V Isolation; CategoryLED optoelectronic/LED photoelectric; File Size288KB，8 Pages; ManufacturerSIEMENS; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

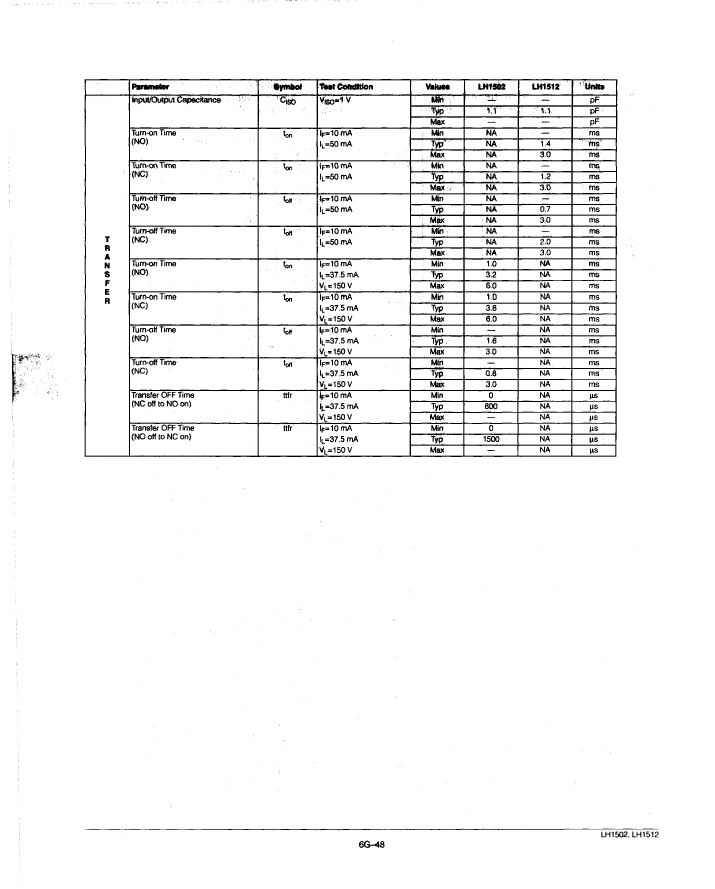

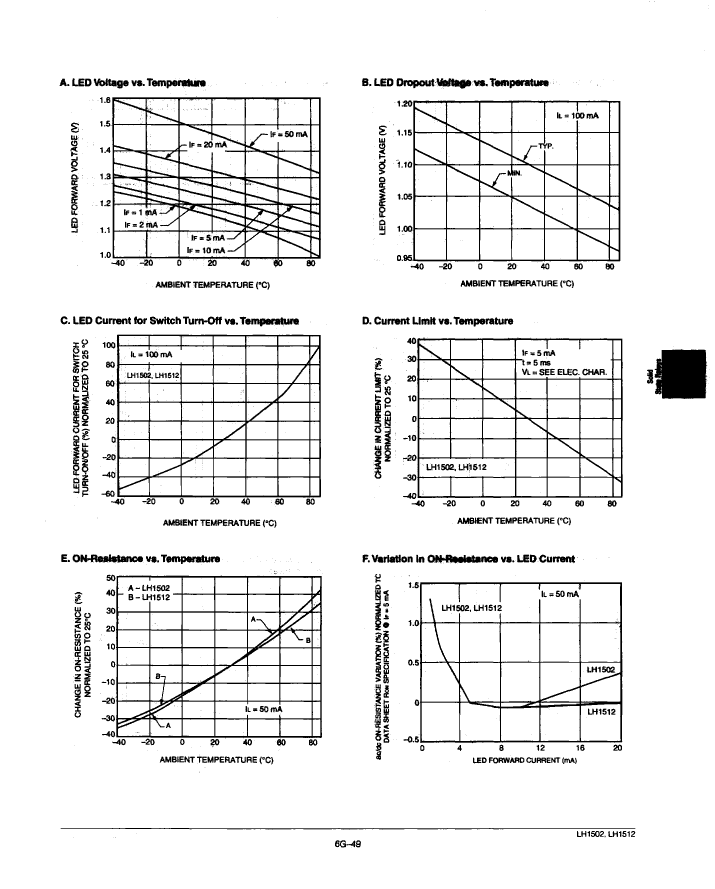

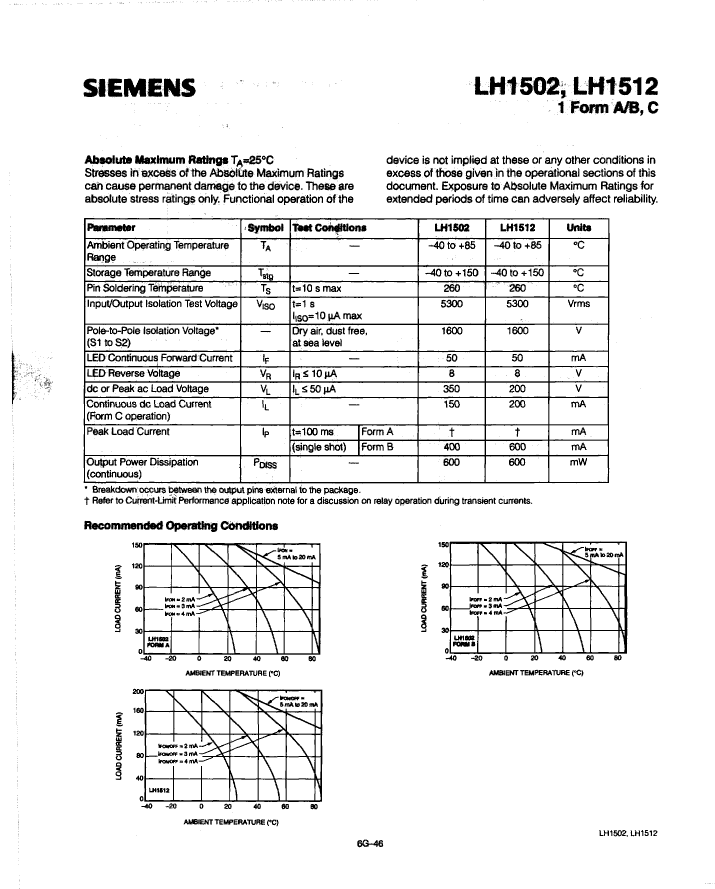

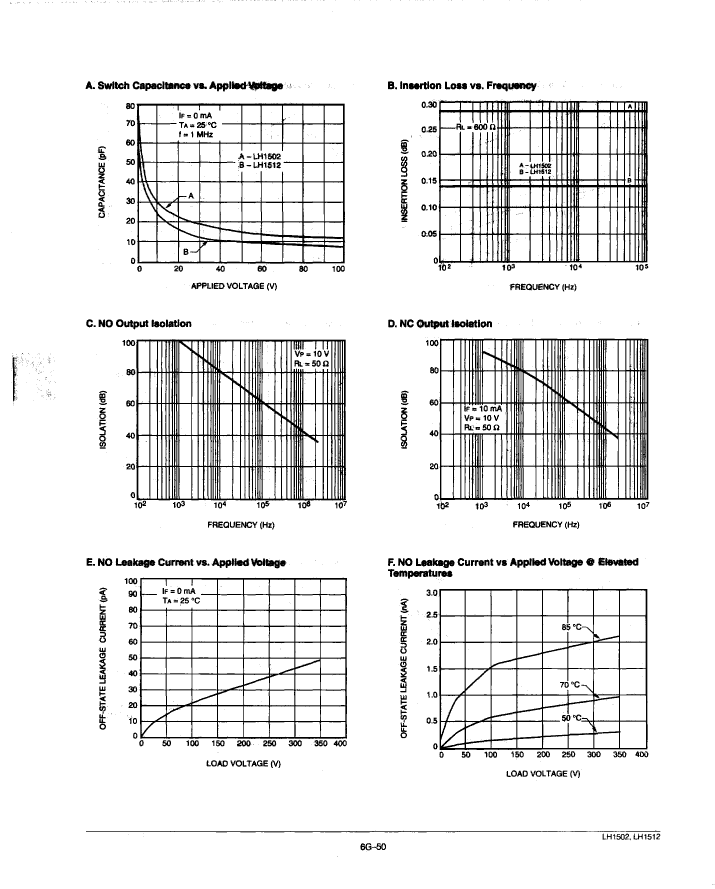

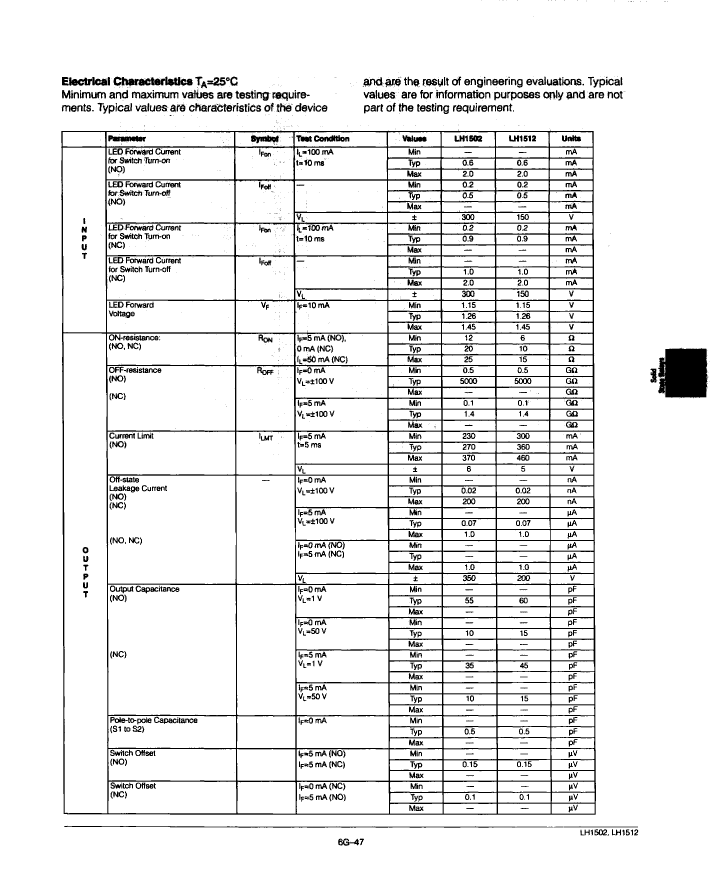

LH1512AAC-TR Overview

Transistor Output SSR, 2-Channel, 5300V Isolation

Parameter Name	Attribute value
Maker	SIEMENS
Reach Compliance Code	unknown
Configuration	SEPARATE, 2 ELEMENTS
Maximum forward current	0.05 A
Maximum insulation voltage	5300 V
Number of components	2
Maximum on-state current	0.2 A
Maximum on-state resistance	15 Ω
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	TRANSISTOR OUTPUT SSR

	LH1512AAC-TR	LH1502AB	LH1502AAC-TR	LH1512AB	LH1502AAC	LH1512AAC
Description	Transistor Output SSR, 2-Channel, 5300V Isolation	Transistor Output SSR, 2-Channel, 5300V Isolation	Transistor Output SSR, 2-Channel, 5300V Isolation	Transistor Output SSR, 2-Channel, 3750V Isolation	Transistor Output SSR, 2-Channel, 5300V Isolation	Transistor Output SSR, 2-Channel, 5300V Isolation
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Configuration	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS
Maximum insulation voltage	5300 V	5300 V	5300 V	3750 V	5300 V	5300 V
Number of components	2	2	2	2	2	2
Maximum on-state current	0.2 A	0.15 A	0.15 A	0.2 A	0.15 A	0.2 A
Maximum on-state resistance	15 Ω	25 Ω	25 Ω	15 Ω	25 Ω	15 Ω
Optoelectronic device types	TRANSISTOR OUTPUT SSR	TRANSISTOR OUTPUT SSR	TRANSISTOR OUTPUT SSR	TRANSISTOR OUTPUT SSR	TRANSISTOR OUTPUT SSR	TRANSISTOR OUTPUT SSR
Maker	SIEMENS	-	SIEMENS	SIEMENS	SIEMENS	SIEMENS
Maximum forward current	0.05 A	0.05 A	0.05 A	-	0.05 A	0.05 A
Maximum operating temperature	85 °C	85 °C	85 °C	-	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-	-40 °C	-40 °C
