SMC314-45TT-.01 datasheet, PDF

SMC314-45TT-.01: DescriptionIC Socket, DIP14, 14 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder,; CategoryThe connector socket; File Size93KB，2 Pages; ManufacturerAdvanced Interconnections Corp.

Download Datasheet Parametric View All

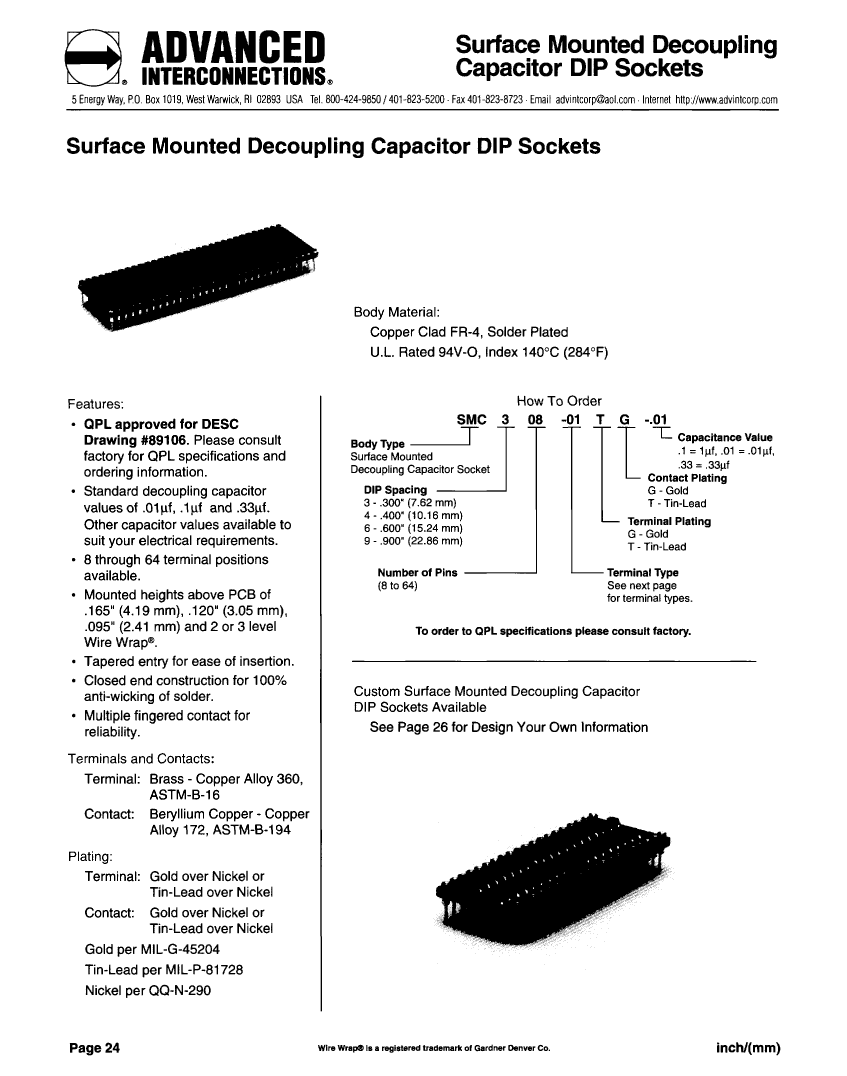

SMC314-45TT-.01 Overview

IC Socket, DIP14, 14 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder,

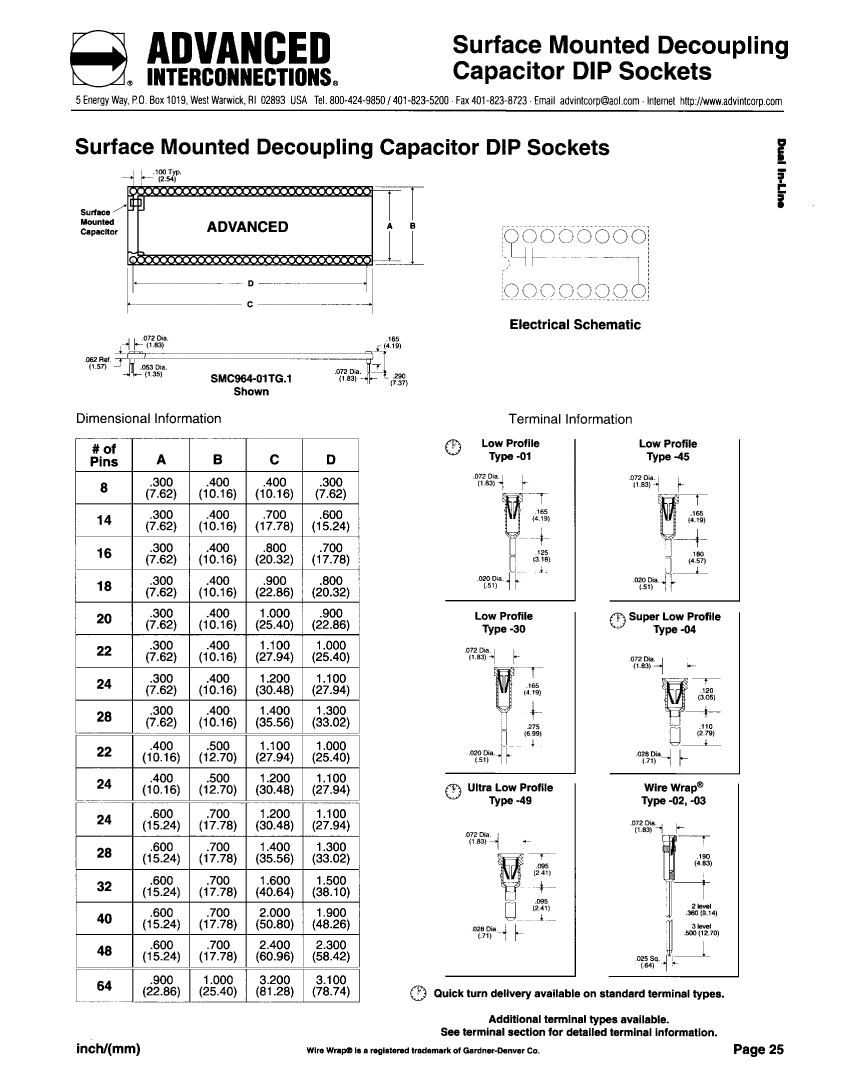

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Advanced Interconnections Corp.
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARD: UL 94V-0, LOW PROFILE
body width	0.4 inch
subject depth	0.165 inch
body length	0.7 inch
Contact to complete cooperation	SN-PB ON NI
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact material	BRASS
Contact style	RND PIN-SKT
Device slot type	IC SOCKET
Type of equipment used	DIP14
Shell material	GLASS FILLED EPOXY
JESD-609 code	e0
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of contacts	14
PCB contact pattern	RECTANGULAR
PCB contact row spacing	0.3 mm
Terminal pitch	2.54 mm
Termination type	SOLDER
