UPD4216165LG5-A70 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > storage> storage> UPD4216165LG5-A70

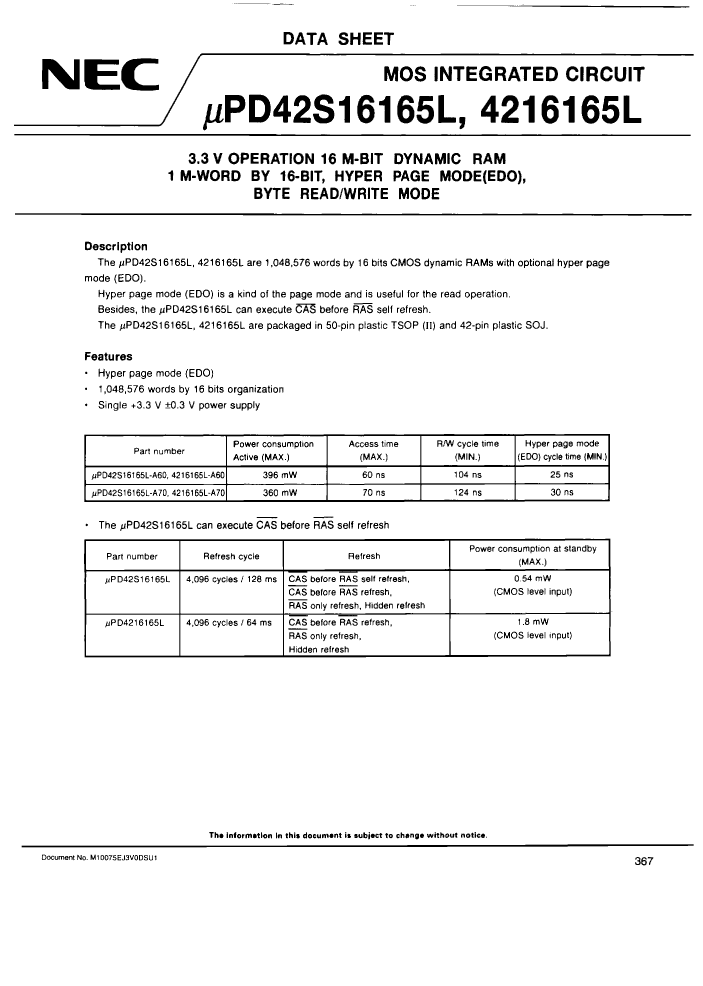

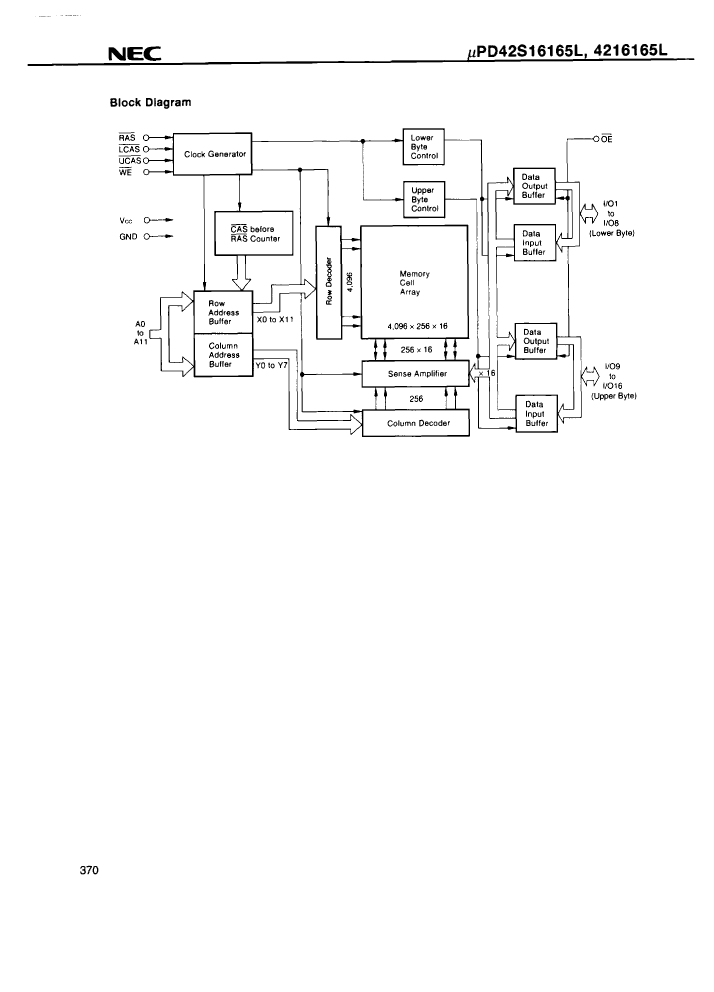

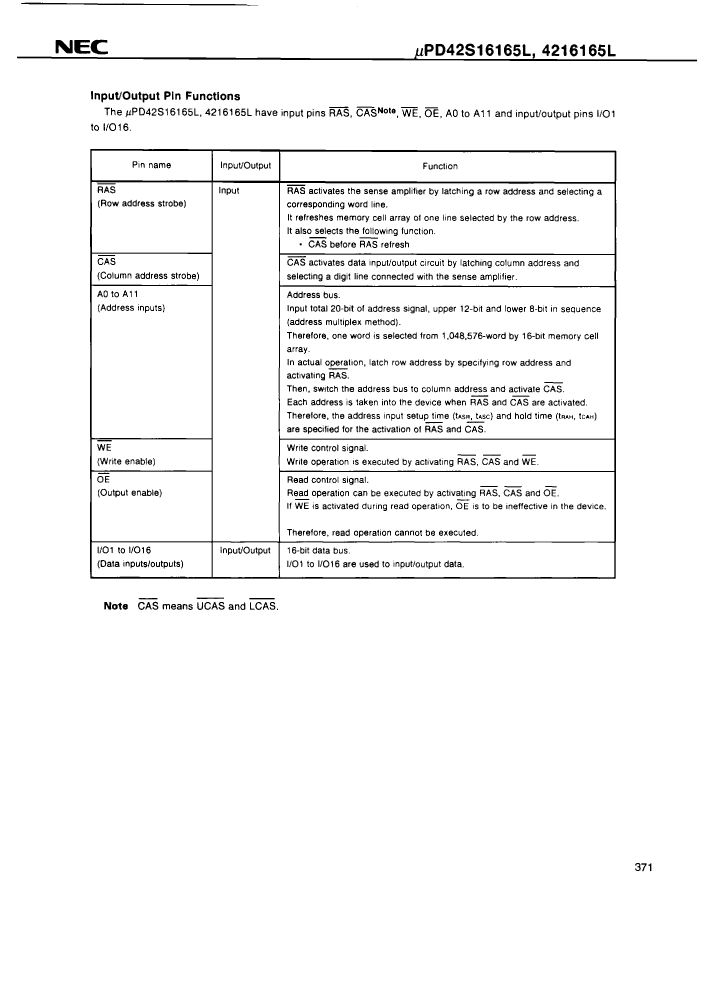

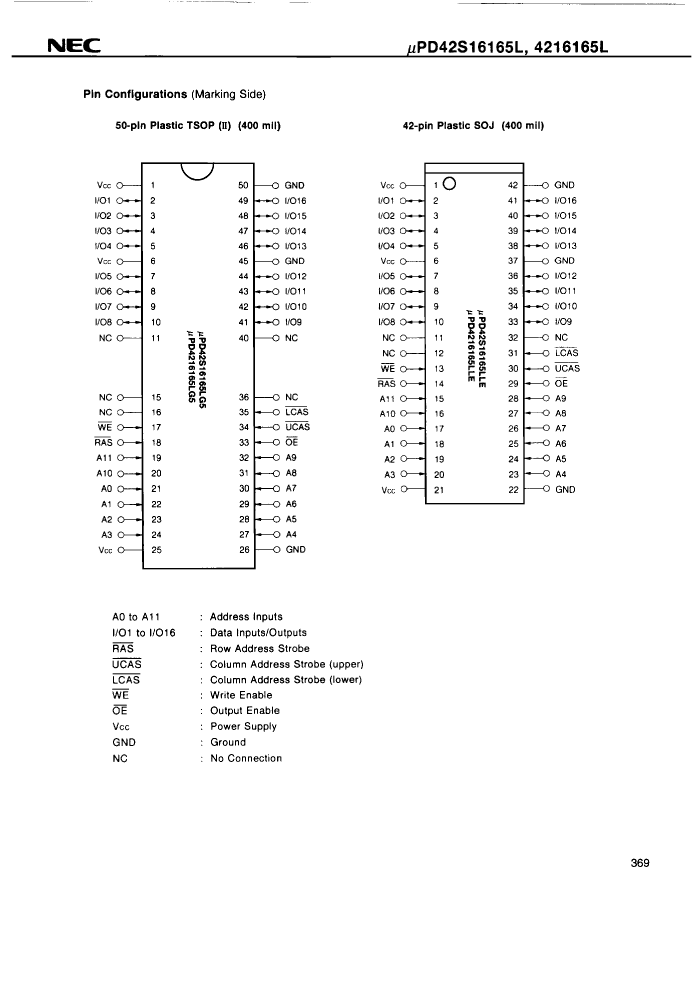

Preview

UPD4216165LG5-A70: DescriptionIC,DRAM,EDO,1MX16,CMOS,TSOP,44PIN,PLASTIC; Categorystorage storage; File Size806KB，44 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

UPD4216165LG5-A70 Overview

IC,DRAM,EDO,1MX16,CMOS,TSOP,44PIN,PLASTIC

UPD4216165LG5-A70 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Renesas Electronics Corporation
Parts packaging code	TSOP2
package instruction	TSOP2,
Contacts	50
Reach Compliance Code	unknown
ECCN code	EAR99
access mode	FAST PAGE WITH EDO
Maximum access time	70 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
JESD-30 code	R-PDSO-G44
length	20.95 mm
memory density	16777216 bit
Memory IC Type	EDO DRAM
memory width	16
Number of functions	1
Number of ports	1
Number of terminals	44
word count	1048576 words
character code	1000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	1MX16
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP2
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
Certification status	Not Qualified
refresh cycle	4096
Maximum seat height	1.2 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	DUAL
width	10.16 mm

Preview

Download Datasheet

View All

UPD4216165LG5-A70 Related Products

	UPD4216165LG5-A70	UPD42S16165LG5-A60	UPD4216165LG5-A60
Description	IC,DRAM,EDO,1MX16,CMOS,TSOP,44PIN,PLASTIC	1MX16 EDO DRAM, 60ns, PDSO44, 0.400 INCH, PLASTIC, TSOP2-50/44	1MX16 EDO DRAM, 60ns, PDSO44, 0.400 INCH, PLASTIC, TSOP2-50/44
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation
Parts packaging code	TSOP2	TSOP2	TSOP2
package instruction	TSOP2,	TSOP2,	TSOP2,
Contacts	50	50	50
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
access mode	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO
Maximum access time	70 ns	60 ns	60 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
JESD-30 code	R-PDSO-G44	R-PDSO-G44	R-PDSO-G44
length	20.95 mm	20.95 mm	20.95 mm
memory density	16777216 bit	16777216 bit	16777216 bit
Memory IC Type	EDO DRAM	EDO DRAM	EDO DRAM
memory width	16	16	16
Number of functions	1	1	1
Number of ports	1	1	1
Number of terminals	44	44	44
word count	1048576 words	1048576 words	1048576 words
character code	1000000	1000000	1000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C
organize	1MX16	1MX16	1MX16
Output characteristics	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSOP2	TSOP2	TSOP2
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE
Certification status	Not Qualified	Not Qualified	Not Qualified
refresh cycle	4096	4096	4096
Maximum seat height	1.2 mm	1.2 mm	1.2 mm
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	3 V	3 V	3 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES
technology	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING	GULL WING
Terminal pitch	0.8 mm	0.8 mm	0.8 mm
Terminal location	DUAL	DUAL	DUAL
width	10.16 mm	10.16 mm	10.16 mm
