Part Number

Search

52689-0793

Description
Card Edge Connector, 7 Contact(s), 1 Row(s), Female, Right Angle, 0.02 inch Pitch, Surface Mount Terminal,
CategoryThe connector    The connector

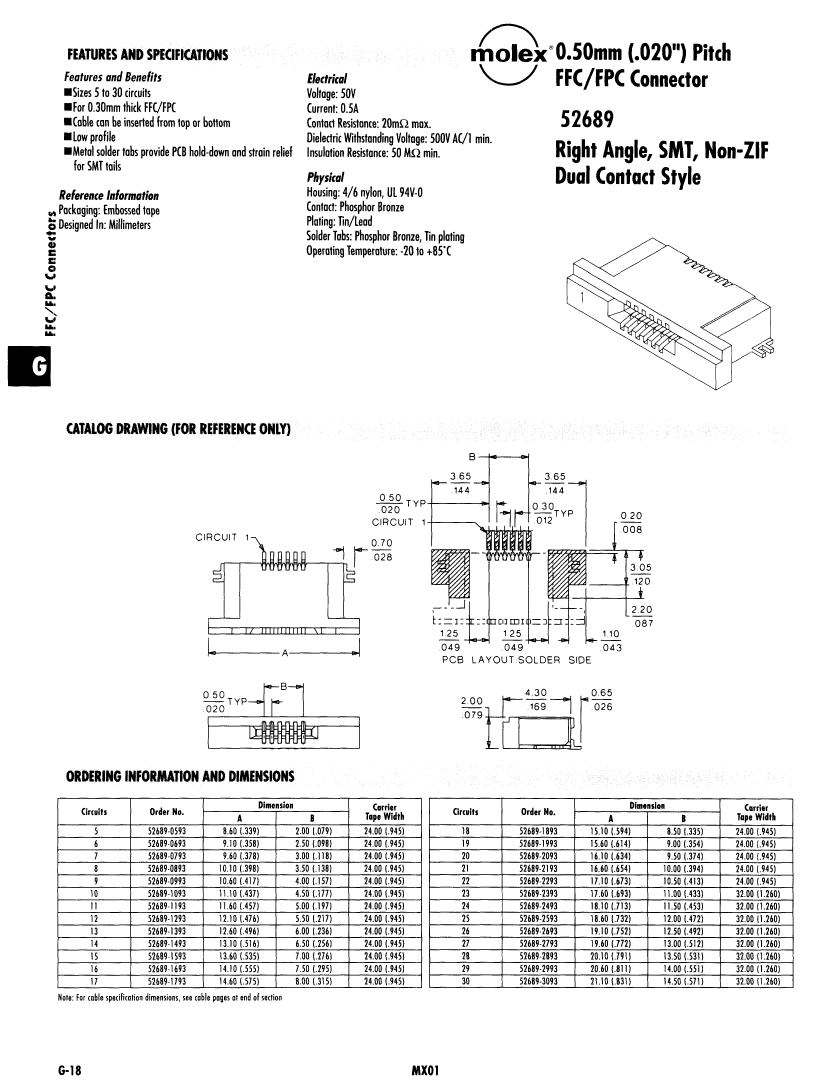

File Size82KB,1 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric View All

52689-0793 Overview

Card Edge Connector, 7 Contact(s), 1 Row(s), Female, Right Angle, 0.02 inch Pitch, Surface Mount Terminal,

52689-0793 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerMolex
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresLOW PROFILE
body width0.079 inch
subject depth0.169 inch
body length0.378 inch
Connector typeFFC/FPC CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact resistance20 mΩ
DIN complianceNO
Dielectric withstand voltage500VAC V
Filter functionNO
IEC complianceNO
Insulation resistance50000000 Ω
insulator materialNYLON
MIL complianceNO
Plug contact pitch0.02 inch
Mixed contactsNO
Installation methodRIGHT ANGLE
Installation typeBOARD
PCB row number1
Number of rows loaded1
Maximum operating temperature80 °C
Minimum operating temperature-20 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
Rated current (signal)0.5 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch0.5 mm
Termination typeSURFACE MOUNT
Total number of contacts7
UL Flammability Code94V-0
