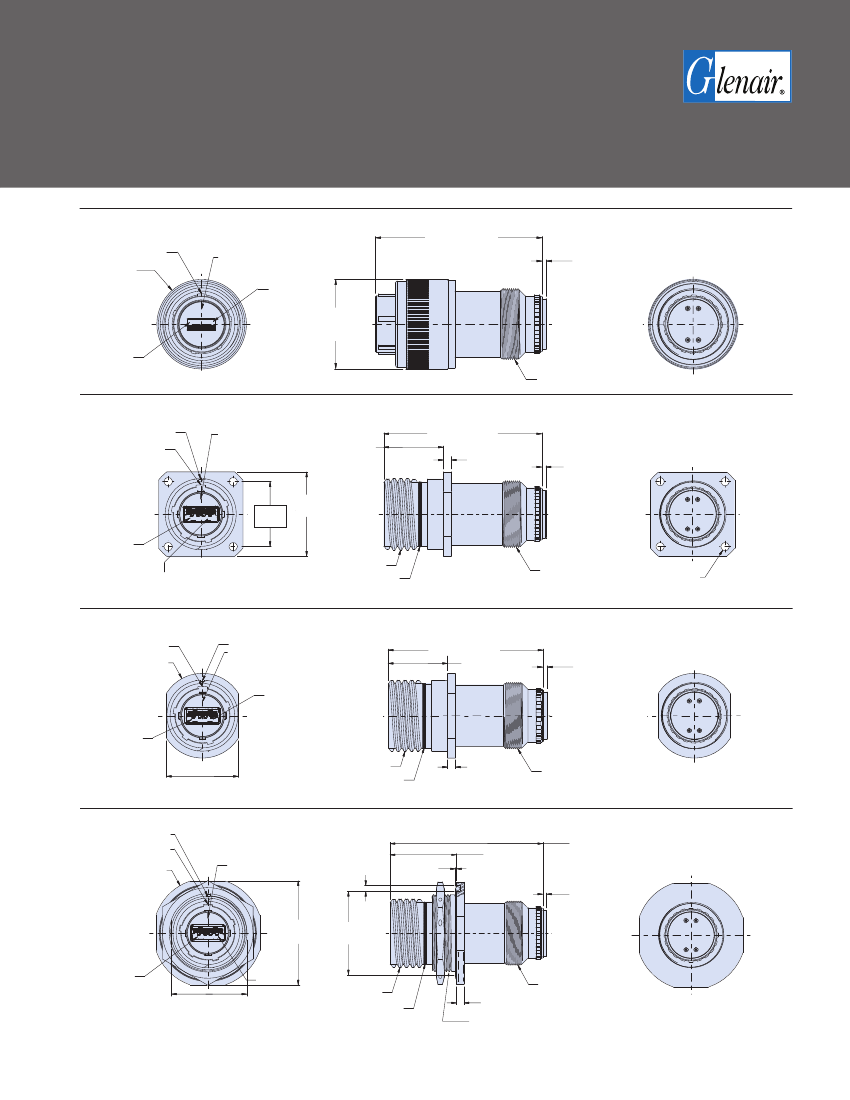

USB 2.0
28840 SuperSeal™
900-345 Coupler with USB to Crimp Removable Size 22 Contacts

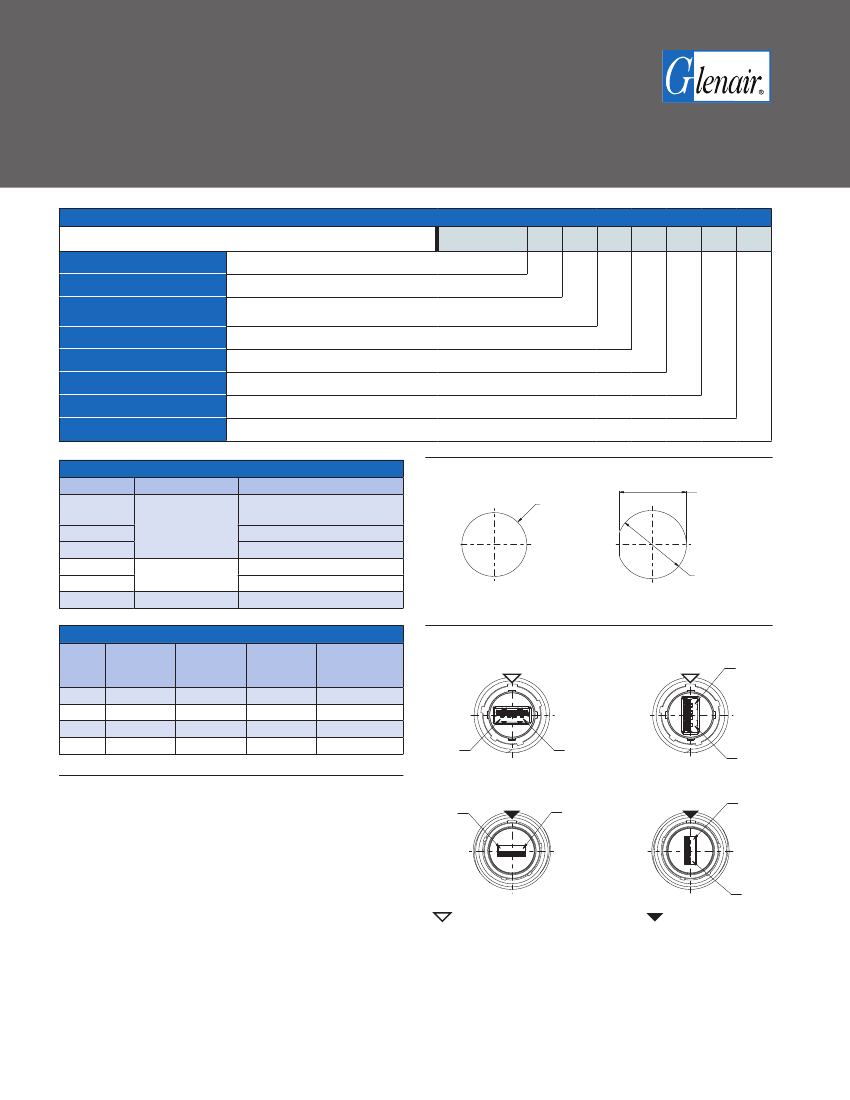

How to Order
Part Number Example
Basic Number
Material/Finish
Connector Style
Shell Size
USB Performance
USB Interface Type
Alternate Polarization
USB Orientation
900-345
See Material and Finish Options Table
D0
= Receptacle, Wall Mount
07
= Receptacle, Jam Nut
15
2
= USB 2.0
A
= Type A
1, 2, 3, 4, 5,
and
6
See connector specifications page for further information (Per MIL-DTL-28840)
H
= Horizontal
V
= Vertical
05
= Receptacle, Inline
G6
= Plug
900-345
NF
D0
-15
2
A
1
H
Material and Finish Options
Code
NF
ZN
MT
Z1
ZU
AB
Aluminum
Material
Finish Description
Cadmium O. D. Over Electroless
Nickel (500 hour Salt Spray)
Zinc Nickel, Olive Drab
Nickel-PTFE,1000 Hour Grey™
Passivate
Black Cadmium Over Nickel
None (Clean Only)
RECOMMENDED PANEL CUT-OUTS
Ø1.124 (28.55)
REF
1.165 (29.59) FLAT
1.155 (29.34)
Stainless Steel
Marine Bronze
WALL MOUNT
PANEL THICKNESS .188 (4.78) MAX
JAM NUT MOUNT
PANEL THICKNESS .188 (4.78) MAX
Ø 1.203 (30.56)
1.193 (30.30)
USB 2.0 Wiring
Pin
1
2
3
4
Name
(V BUS)
(D-)
(D+)
(GND)
Cable Color
(USB)
Red
White
Green
Black
Description
+5 V
DATA -
DATA +
GROUND
Recommended
Wire Sizes
(AWG)
22
28
28
22
USB ORIENTATION OPTIONS
PIN 4
RECEPTACLE
PIN 1
PIN 4
PIN 1
NOTES
1. Connector shall meet general requirements of MIL-DTL-28840.
USB connector shall be per USB 2.0 standard.
2. Crimp removable contacts conform to: M39029/56-348 - size
22 socket contacts (supplied loose).Connector meets IP67 in
the unmated condition
3. Connector accessory features per M28840 connector designator
G. Consult factory for crimp tool and accessory selection.
PIN 4
HORIZONTAL
PIN 1
VERTICAL
PIN 4
PLUG
PIN 1
= Master Keyway
= Master Key
12
© 2015 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • U.S. CAGE code 06324 •SuperSeal™ 28840 Naval Connector
Dimensions in Inches (millimeters) are subject to change without notice.
USB 2.0
28840 SuperSeal™
900-345 Coupler with USB to Crimp Removable Size 22 Contacts
G6 - PLUG
MASTER KEY
Ø1.263
(32.08) MAX
USB MALE 2.0
TYPE A SHOWN
(HORIZONTAL
ORIENTATION SHOWN)
PIN 1
Ø1.263
(32.08)
MAX
PIN 4
2.330 (59.18) MAX
.060 (1.52) MAX
GROMMET
2
3
1
4
1.000-20 UNEF 2A
D0 - WALL MOUNT RECEPTACLE
RED STRIPE
MASTER KEYWAY
USB FEMALE 2.0
TYPE A SHOWN
(HORIZONTAL
ORIENTATION SHOWN)
.898 (22.81)
.878 (22.30)
2.350 (59.69) MAX
.130 (3.30)
.100 (2.54)
.060 (1.52) MAX
GROMMET
3
2
1
4
2X 1.278 (32.46)
1.238 (31.45)
2X .968
(24.59)
PIN 1
PIN 4
1.062-.1P-.2L-DS-2A
COLOR BAND: RED
(FULLY MATED INDICATOR)
1.000-20 UNEF 2A
4
1
4X Ø .130 (3.30)
.115 (2.92)
05 - RECEPTACLE, INLINE
MASTER KEYWAY
Ø 1.275 (32.39)
1.255 (31.88)
RED STRIPE
USB FEMALE 2.0 TYPE A SHOWN
(HORIZONTAL ORIENTATION SHOWN)
PIN 4
1
4
4
1
2.350 (59.69) MAX
.898 (22.81)
.878 (22.30)
.060 (1.52) MAX
GROMMET
3
2
PIN 1
1.062-.1P-.2L-DS-2A
COLOR BAND: RED
(FULLY MATED INDICATOR)
.130 (3.30)
.100 (2.54)
1.000-20 UNEF 2A
1.080 (27.43)
1.070 (27.18)
07 - JAM NUT MOUNT RECEPTACLE
RED STRIPE
MASTER KEYWAY
Ø 1.681 (42.70)
1.661 (42.19)
USB FEMALE 2.0
TYPE A SHOWN
(HORIZONTAL
ORIENTATION SHOWN)
.096 (2.44)
.089 (2.26)
.026 (.66)
.010 (.25)
1.033 (26.24)
1.013 (25.73)
2.350 (59.69) MAX
.060 (1.52) MAX
GROMMET
1.587 (40.31)
2x 1.567 (39.80)
3
2
1
4
Ø1.292 (32.82)
1.282 (32.56)
4
1
PIN 1
1.144 (29.06)
1.153 (29.29)
PIN 4
1.062-.1P-.2L-DS-2A
COLOR BAND: RED
(FULLY MATED INDICATOR)
1.000-20 UNEF 2A
.130 (3.30)
.100 (2.54)
1.31875-18 UNEF 2A
© 2015 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • U.S. CAGE code 06324 • SuperSeal™ 28840 Naval Connector
Dimensions in Inches (millimeters) are subject to change without notice.
13
