LPR1250-1150F: DescriptionAudio/RCA Connector, 8 Pole(s), Solid Lead Terminal, Jack,; CategoryThe connector The connector; File Size111KB，2 Pages; ManufacturerSMK; Websitehttps://www.smk.co.jp/

Download Datasheet Parametric Compare View All

LPR1250-1150F Overview

Audio/RCA Connector, 8 Pole(s), Solid Lead Terminal, Jack,

LPR1250-1150F Parametric

Parameter Name	Attribute value
Maker	SMK
Reach Compliance Code	unknown
Body/casing type	JACK
Configuration	2X3 HORIZONTAL
Connector type	AUDIO/RCA CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
DIN compliance	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	LPR1250
Installation type	BOARD
Number of poles	8
Number of ports	5
Options	GENERAL PURPOSE
Termination type	SOLID LEAD

Preview

Download Datasheet

View All

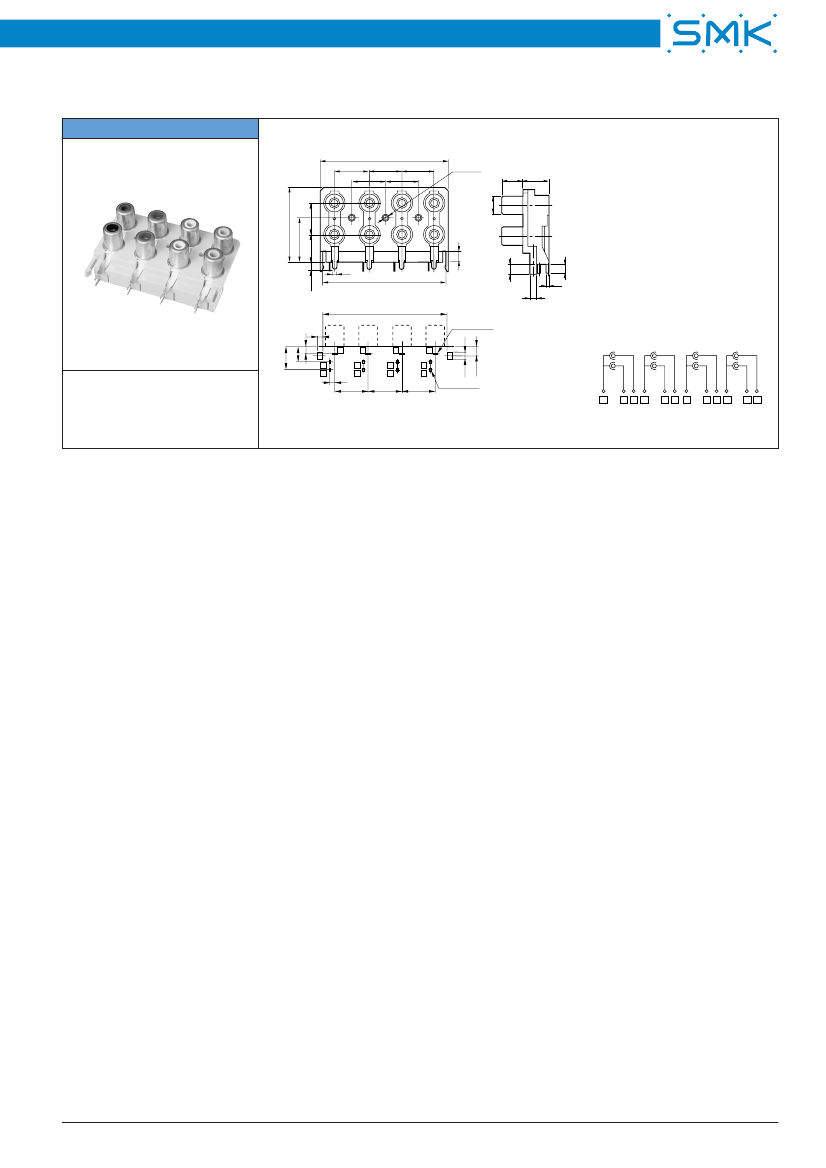

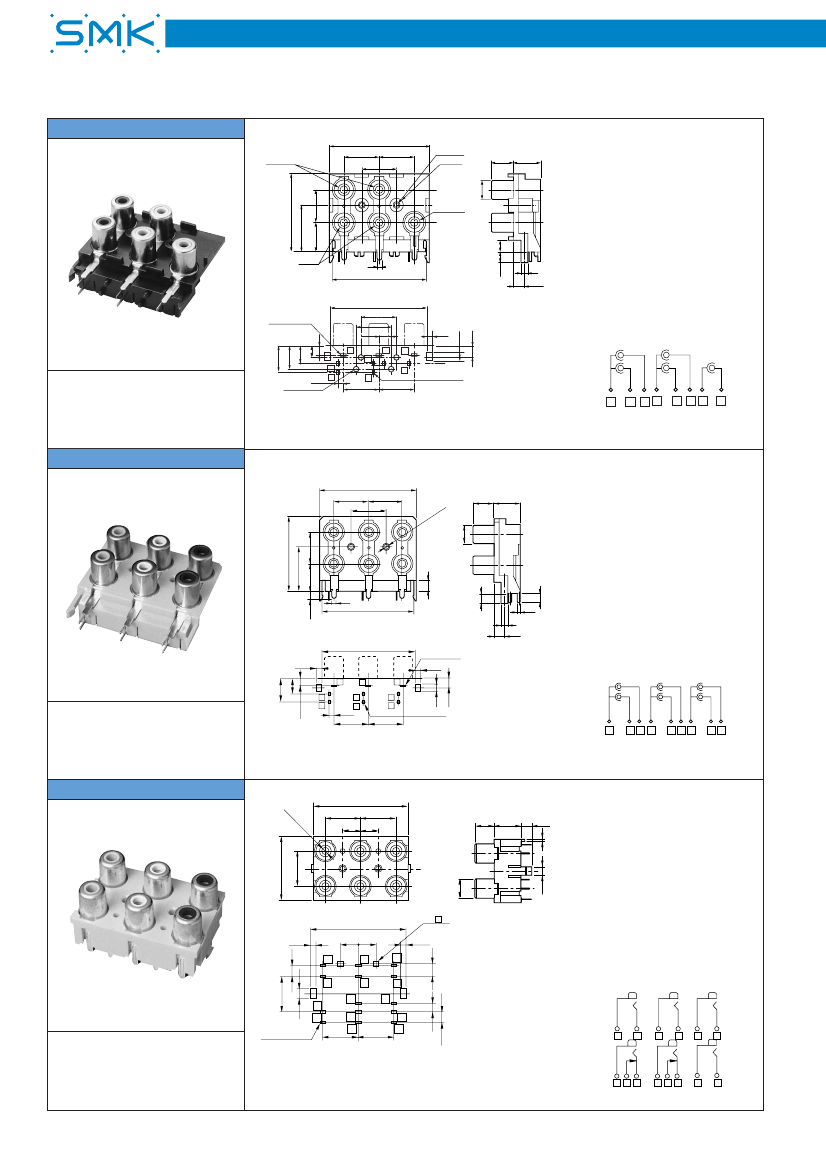

Pin Jack Series

LPR1250-1150F

H=12.5mm

43

White

15

2-ø2.1

2-ø6

5-ø8.3

9.5

11.5

33.5

20

12.5

14

Black

4.5

Red

2

40.6

15

5.3

a

e

b

c

h

f

d

g

5

3

4.5

Circuits

(Without Switch)

3.5

4.5

2.5

3-0.8x2.3

10.9

9.7

7.1

4.8

3.5

<China>

Right Angle (5P)

LPR1250-0301F

H=12.5mm

2.2

4-ø2.1

5- 0.9 x 1.5

a

b

c

d

e

f

g

h

15

(Recommended P.W.Board Dimension)

(The Pattern Side)

43

15

9.5 11.5

2-

33.5

.4

ø2

ø8.3

20

12.5 14

5

2

3.5

4.5

40.6

1.2

3

4.5

4

40.6

2.5

10.9

7.1

Circuits

(Without Switch)

3-0.8x2.3

2.5

g

h

i

3.5

b

c

2.2

15

e

f

15

6-0.8x1.5

a

b c

d

e f

g

h i

Right Angle (6P)

LPV1129-0100F

H=11mm

27

(Recommended P.W.Board Dimension)

(The Pattern Side)

ø3

.4

15

ø8.3

2.3

4.3

e

f

s

r

40

7.5 7.5

c

d

p

n

m

15

k

a

b

h

g

2- 2

2.3

5.5

Circuits

(With Switch)

14-0.9x2.4

3.8

4.3

Vertical (6P)

15

4

3.5

1

40

15

7.5 7.5

3.5

4.5

<China>

a

d

8.5 11

4.5

a

b

c

d

e

f

(Recommended P.W.Board Dimension)

(The Pattern Side)

g h k

m n p

r

s

LPR1250-1150F Related Products

	LPR1250-1150F	LPR1250-0301F	LPV1129-0100F	LPR1250-0201F
Description	Audio/RCA Connector, 8 Pole(s), Solid Lead Terminal, Jack,	Audio/RCA Connector, 9 Pole(s), Solid Lead Terminal, Jack,	Audio/RCA Connector, 12 Pole(s), Solid Lead Terminal, Jack,	Audio/RCA Connector, 12 Pole(s), Solid Lead Terminal, Jack,
Maker	SMK	SMK	SMK	SMK
Reach Compliance Code	unknown	unknown	unknown	unknow
Body/casing type	JACK	JACK	JACK	JACK
Configuration	2X3 HORIZONTAL	2X3 HORIZONTAL	2X3 VERTICAL	2X4 HORIZONTAL
Connector type	AUDIO/RCA CONNECTOR	AUDIO/RCA CONNECTOR	3.5mm AUDIO	AUDIO/RCA CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO
Installation type	BOARD	BOARD	BOARD	BOARD
Number of poles	8	9	12	12
Number of ports	5	6	6	8
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	SOLID LEAD	SOLID LEAD	SOLID LEAD	SOLID LEAD
Manufacturer's serial number	LPR1250	LPR1250	-	LPR1250
