Pin Jacks
■
Features
1. Select the pin jacks which best suit your applications from
our complete line of input and output jacks for audio
video components, PCs, video game machine, etc.
2. Select from P.C.board mounting type, lead wire type, and
pin jack with switch for the design which best suit your
application.
3. Composite components with built-in jack can also be
provided according to customer specifications.
4. A variety of combinations of switching functions (circuits)
is available to meet varied customer needs.
■
Specifications
1. Electrical Performance
Contact Resistance
: 30mΩ max.
Switch Section
: 50mΩ max.
Insulation Resistance : 100MΩ min. at 500V DC
Withstanding Voltage : 500V AC for one minute
Switch Section
: 200V AC for one minute
2. Mechanical Performance
Insertion Force
: 30N max. at a 3.2 dia. gauge
Extraction Force
: 3 to 30N at a 3.2 dia. gauge
3. Must satisfy requirements in item 2. after 100 times
repeated insertions and extraction at 3.2 dia. gauge.
■
Applications
Audio-visual equipment, PCs, video game machine, car
stereo equipment, etc.

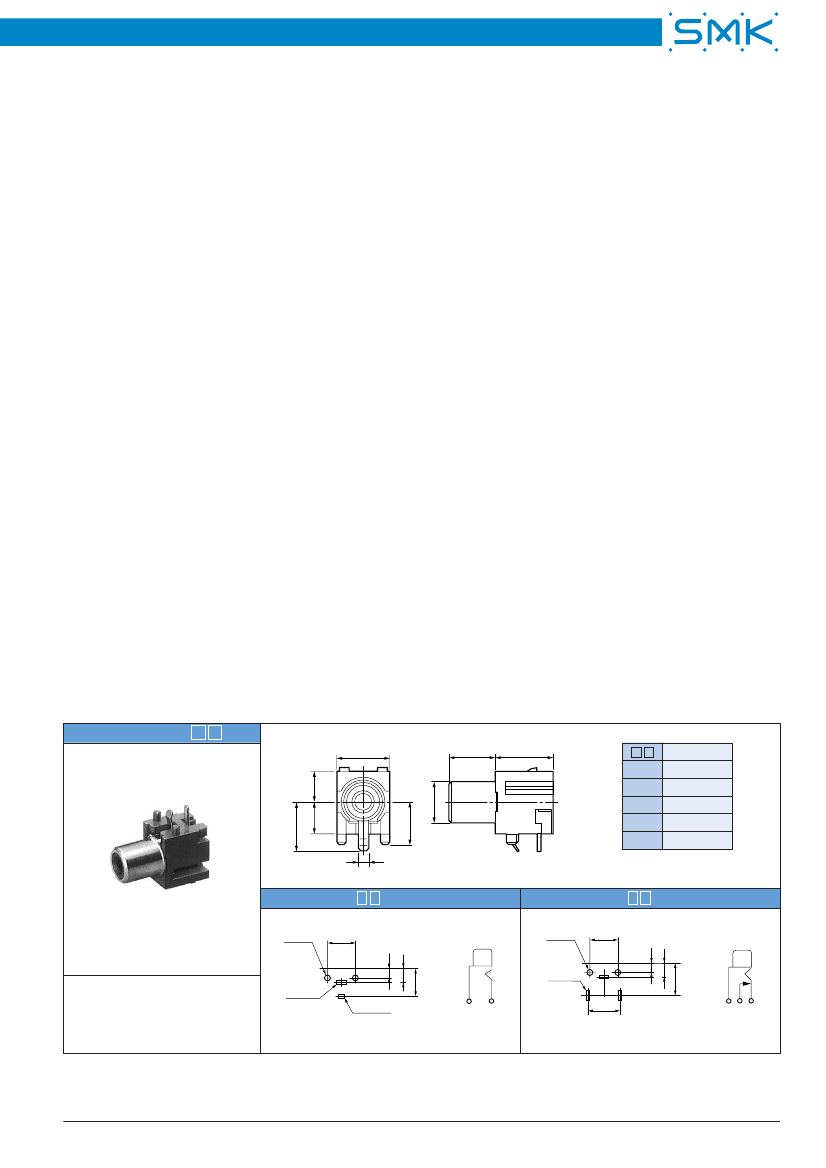

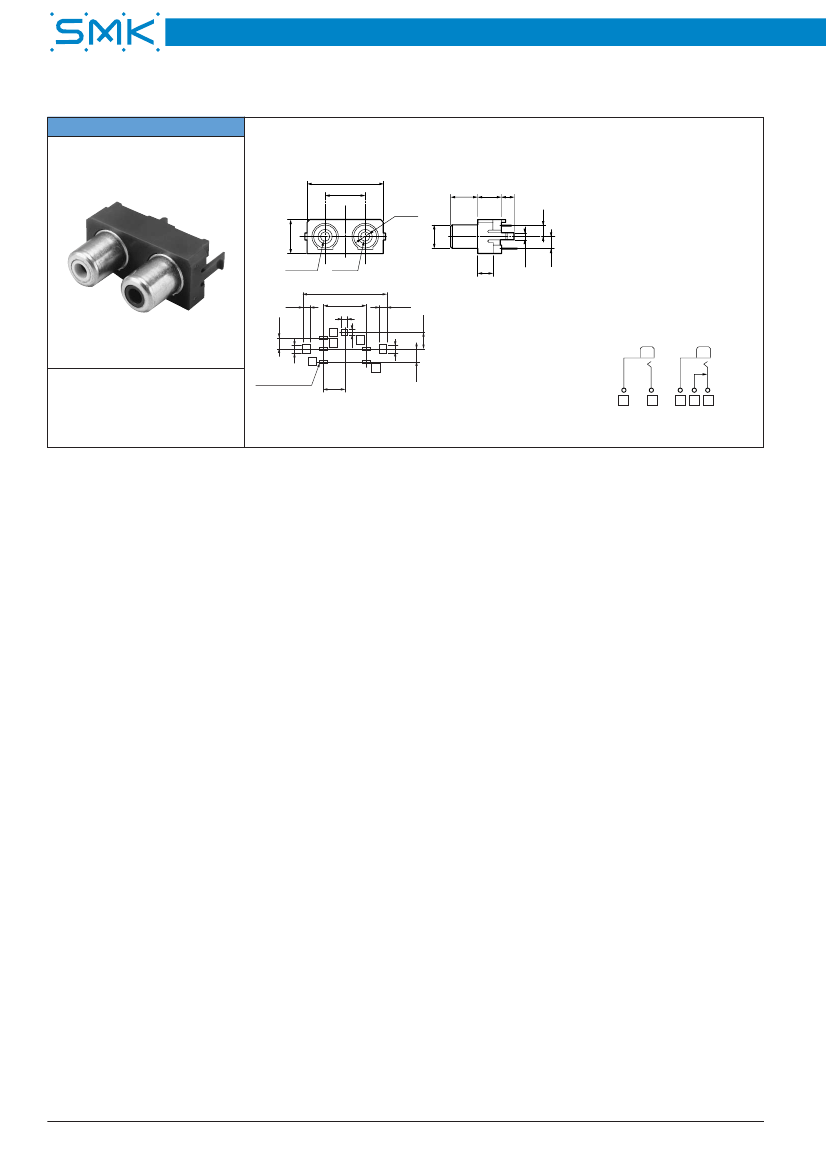

1P Pin Jack
LPR6520-08
F
10
9
11
Housing Color
01
Black
Red
White
Yellow
Blue
02
03
04
05
6
6.5
10
2
LPR6520-08
2-ø2
8.3
F (Without Switch)
Circuits
8.5
ø8.3
LPR6521-13
2-ø2
8.3
(2)
F (With Switch)
Circuits
2.5x 1
Right Angle
(2)
(3) 1.5x1.1
3
4.2
8.3
3-1 x 2.5
(3)
(2) (3)
9.4
(4)
4.2
10
3
(2) (4) (3)
P.C. Board Dimension (The Pattern Side)
P.C. Board Dimension (The Pattern Side)
30
