BA-12E3UD: DescriptionDual Color LED Array, High Efficiency Red/orange, T-1 1/2, 4mm, AD-03, 20 PIN; CategoryLED optoelectronic/LED photoelectric; File Size204KB，2 Pages; ManufacturerBRIGHT; Websitehttp://www.brightled.co.kr/

Download Datasheet Parametric Compare View All

BA-12E3UD Overview

Dual Color LED Array, High Efficiency Red/orange, T-1 1/2, 4mm, AD-03, 20 PIN

BA-12E3UD Parametric

Parameter Name	Attribute value
Maker	BRIGHT
package instruction	AD-03, 20 PIN
Reach Compliance Code	unknown
color	HIGH EFFICIENCY RED/ORANGE
Configuration	COMPLEX
Maximum forward current	0.03 A
Nominal luminous intensity	4.5 mcd
Installation features	RADIAL MOUNT
Number of functions	12
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	DUAL COLOR LED ARRAY
total height	8.5 mm
method of packing	BULK
peak wavelength	635 nm
shape	RECTANGULAR
size	4 mm
surface mount	NO
T code	T-1 1/2

Preview

Download Datasheet

View All

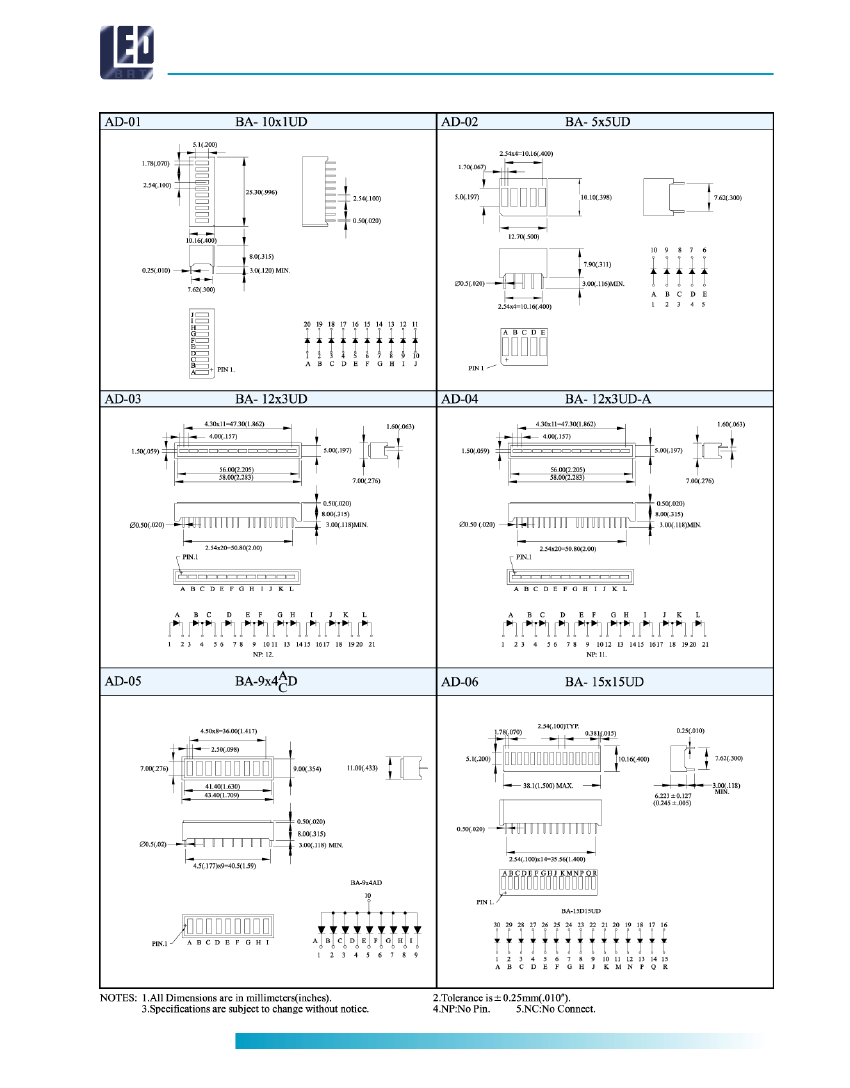

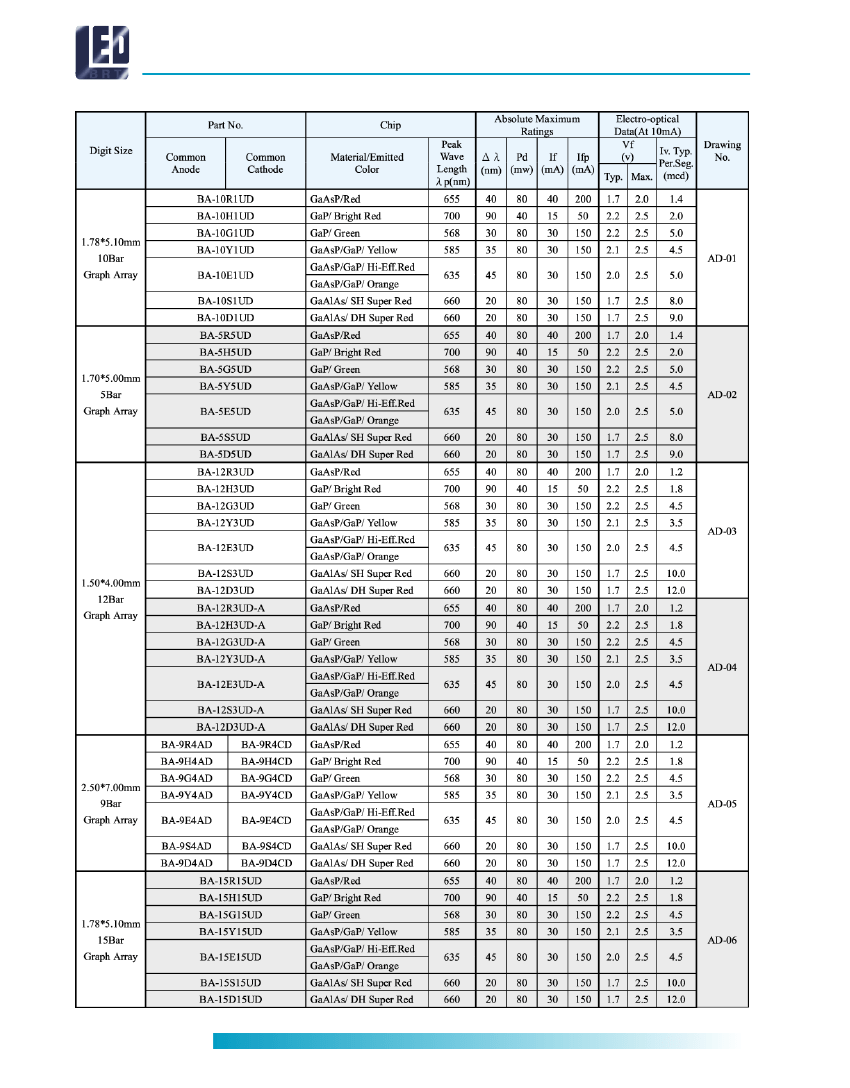

LED Light Bar & Bar Graph Arrays

BA Series

5, 9, 10, 12, 15-segment

AMERICAN BRIGHT

164

w w w. a m e r i c a n b r i g h t l e d . c o m

.

BA-12E3UD Related Products

	BA-12E3UD	BA-12S3UD	BA-15D15UD	BA-15E15UD	BA-15R15UD	BA-15S15UD	BA-12D3UD-A	BA-12H3UD-A
Description	Dual Color LED Array, High Efficiency Red/orange, T-1 1/2, 4mm, AD-03, 20 PIN	Single Color LED Array, Super Red, T-1 1/2, 4mm, AD-03, 20 PIN	Single Color LED Array, Super Red, 5.1mm, AD-06, 30 PIN	Dual Color LED Array, High Efficiency Red/orange, 5.1mm, AD-06, 30 PIN	Single Color LED Array, Red, 5.1mm, AD-06, 30 PIN	Single Color LED Array, Super Red, 5.1mm, AD-06, 30 PIN	Single Color LED Array, Super Red, T-1 1/2, 4mm, AD-04, 20 PIN	Single Color LED Array, Bright Red, T-1 1/2, 4mm, AD-04, 20 PIN
package instruction	AD-03, 20 PIN	AD-03, 20 PIN	AD-06, 30 PIN	AD-06, 30 PIN	AD-06, 30 PIN	AD-06, 30 PIN	AD-04, 20 PIN	AD-04, 20 PIN
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
color	HIGH EFFICIENCY RED/ORANGE	SUPER RED	SUPER RED	HIGH EFFICIENCY RED/ORANGE	RED	SUPER RED	SUPER RED	BRIGHT RED
Configuration	COMPLEX	COMPLEX	SEPARATE, 15 ELEMENTS	SEPARATE, 15 ELEMENTS	SEPARATE, 15 ELEMENTS	SEPARATE, 15 ELEMENTS	COMPLEX	COMPLEX
Maximum forward current	0.03 A	0.03 A	0.03 A	0.03 A	0.04 A	0.03 A	0.03 A	0.015 A
Nominal luminous intensity	4.5 mcd	10.0 mcd	12.0 mcd	4.5 mcd	1.2 mcd	10.0 mcd	12.0 mcd	1.8 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	12	12	15	15	15	15	12	12
Number of terminals	20	20	30	30	30	30	20	20
Optoelectronic device types	DUAL COLOR LED ARRAY	SINGLE COLOR LED ARRAY	SINGLE COLOR LED ARRAY	DUAL COLOR LED ARRAY	SINGLE COLOR LED ARRAY	SINGLE COLOR LED ARRAY	SINGLE COLOR LED ARRAY	SINGLE COLOR LED ARRAY
total height	8.5 mm	8.5 mm	6.223 mm	6.223 mm	6.223 mm	6.223 mm	8.5 mm	8.5 mm
method of packing	BULK	BULK	BULK	BULK	BULK	BULK	BULK	BULK
peak wavelength	635 nm	660 nm	660 nm	635 nm	655 nm	660 nm	660 nm	700 nm
shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
size	4 mm	4 mm	5.1 mm	5.1 mm	5.1 mm	5.1 mm	4 mm	4 mm
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Base Number Matches	-	1	1	1	1	1	-	-
