QL16X24B-XPF144M datasheet, PDF

QL16X24B-XPF144M: DescriptionField Programmable Gate Array, 384 CLBs, 4000 Gates, CMOS, PQFP144, 1.40 MM HEIGHT, PLASTIC, TQFP-144; CategoryProgrammable logic devices Programmable logic; File Size273KB，10 Pages; ManufacturerQuickLogic Corporation; Websitehttps://www.quicklogic.com

Download Datasheet Parametric View All

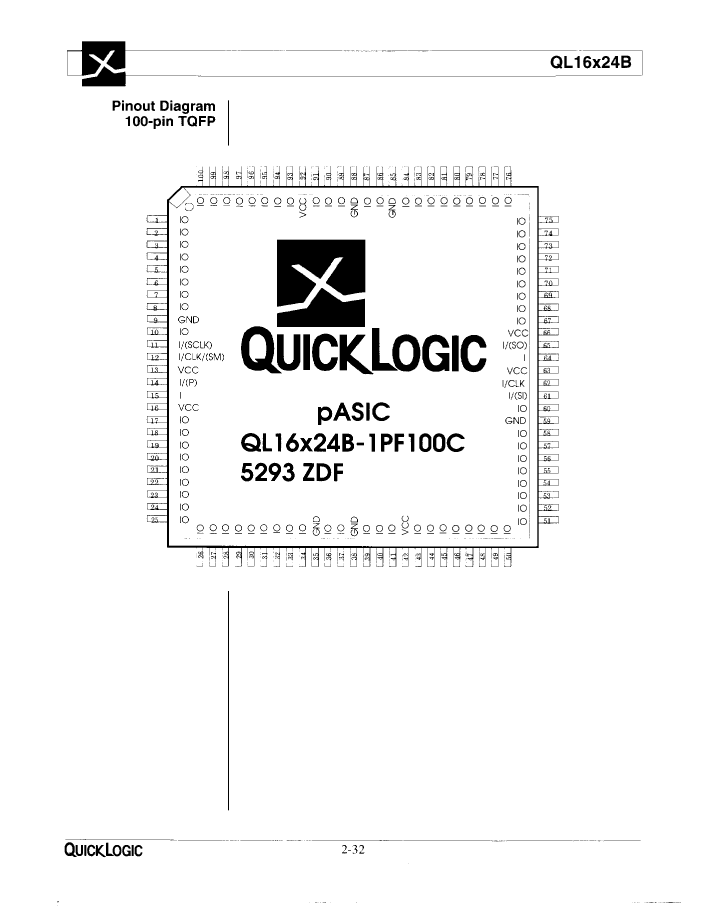

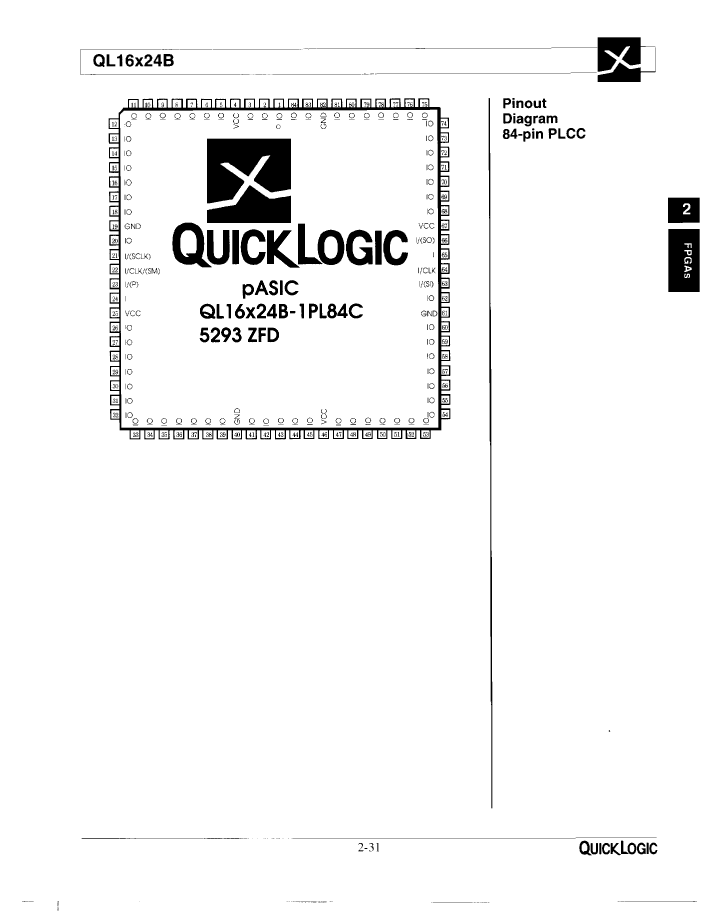

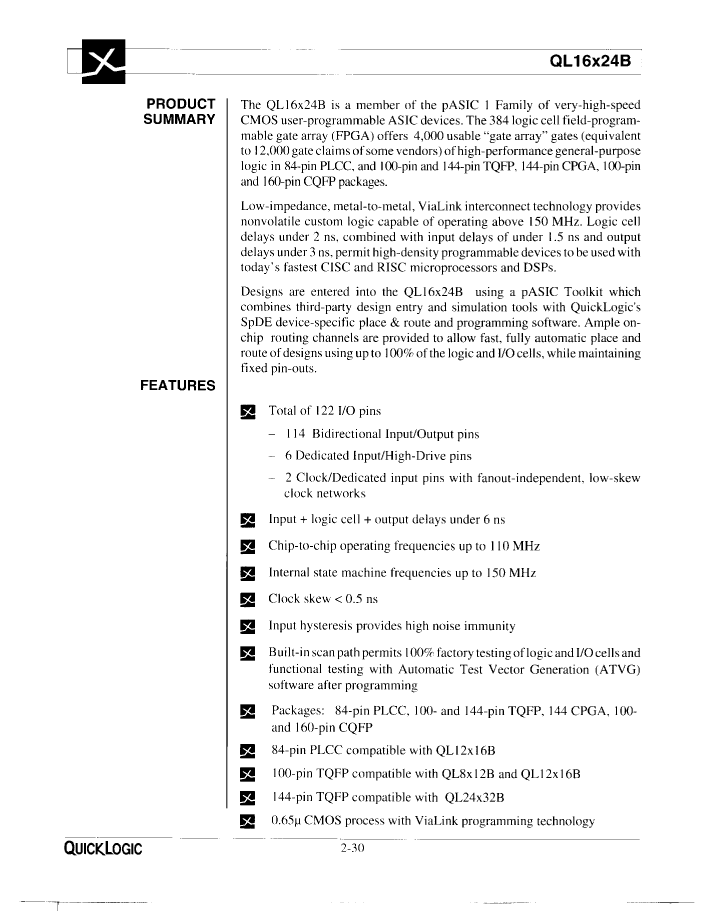

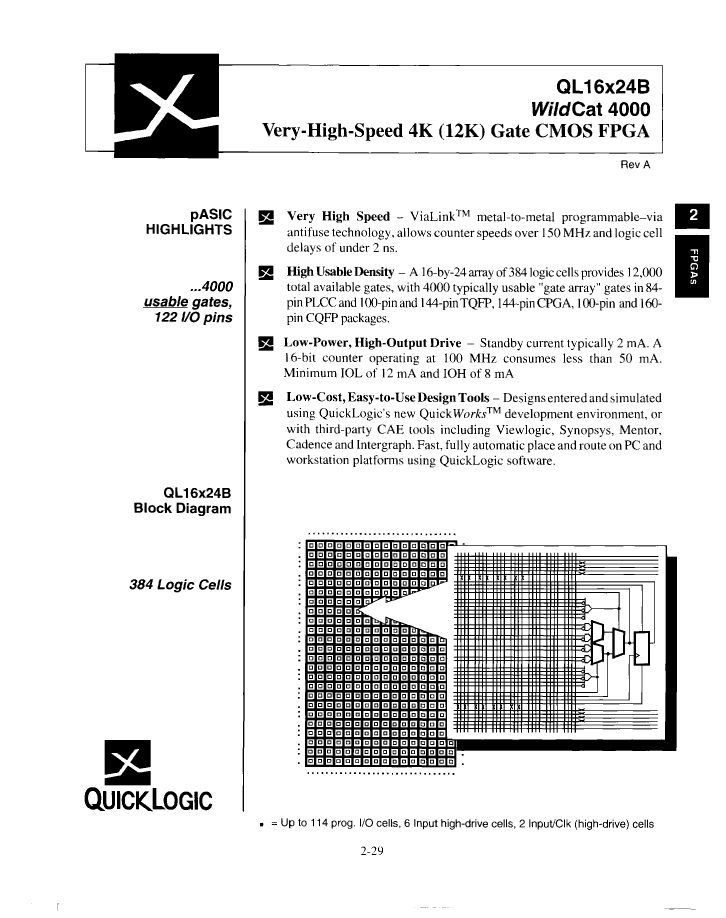

QL16X24B-XPF144M Overview

Field Programmable Gate Array, 384 CLBs, 4000 Gates, CMOS, PQFP144, 1.40 MM HEIGHT, PLASTIC, TQFP-144

Parameter Name	Attribute value
Maker	QuickLogic Corporation
Parts packaging code	QFP
package instruction	LFQFP,

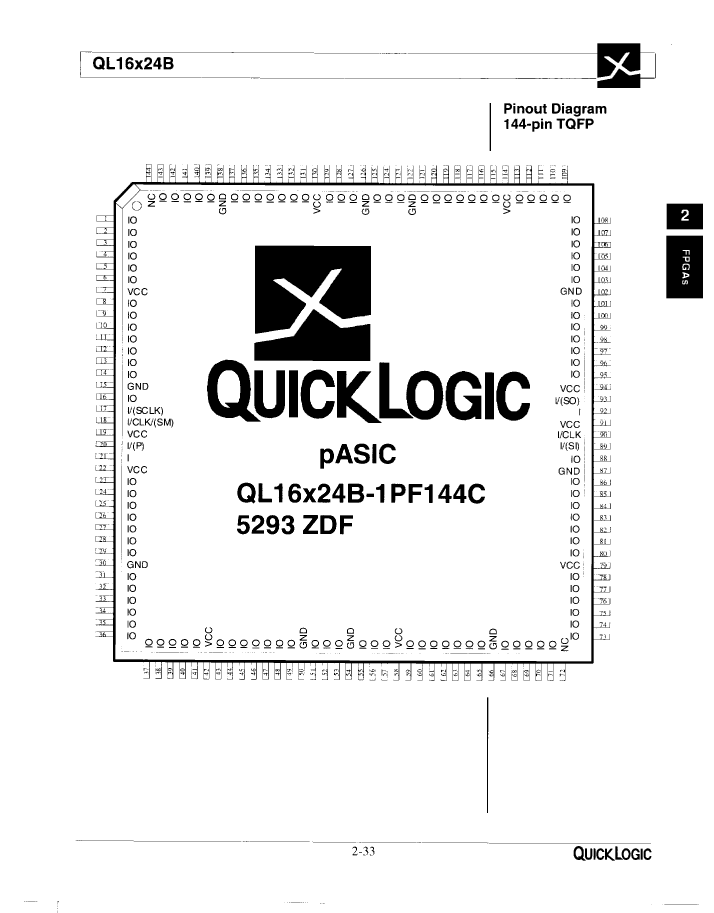

Contacts	144
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Other features	MAX 114 I/OS
Combined latency of CLB-Max	15.9 ns
JESD-30 code	S-PQFP-G144
length	20 mm
Configurable number of logic blocks	384
Equivalent number of gates	4000
Number of terminals	144
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	384 CLBS, 4000 GATES
Package body material	PLASTIC/EPOXY
encapsulated code	LFQFP
Package shape	SQUARE
Package form	FLATPACK, LOW PROFILE, FINE PITCH
Programmable logic type	FIELD PROGRAMMABLE GATE ARRAY
Certification status	Not Qualified
Maximum seat height	1.6 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	QUAD
width	20 mm
