75869-326LF datasheet, PDF - EEWORLD Datasheet

75869-326LF: DescriptionBoard Connector, 34 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Guide Slot, Blue Insulator, ROHS COMPLIANT; CategoryThe connector The connector; File Size218KB，3 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

75869-326LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	75869-326LF	-	-	View	Buy Now

Board Connector, 34 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Guide Slot, Blue Insulator, ROHS COMPLIANT

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Amphenol
Objectid	1600625205
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	5 weeks 3 days
compound_id	57806100
Other features	POLARIZED
body width	0.362 inch
subject depth	0.377 inch
body length	1.984 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (15) OVER NICKEL
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Durability	100 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	10000000000 Ω
Insulator color	BLUE
insulator material	GLASS FILLED THERMOPLASTIC
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	75869
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	GUIDE SLOT
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	15u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.299 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	34
UL Flammability Code	94V-0

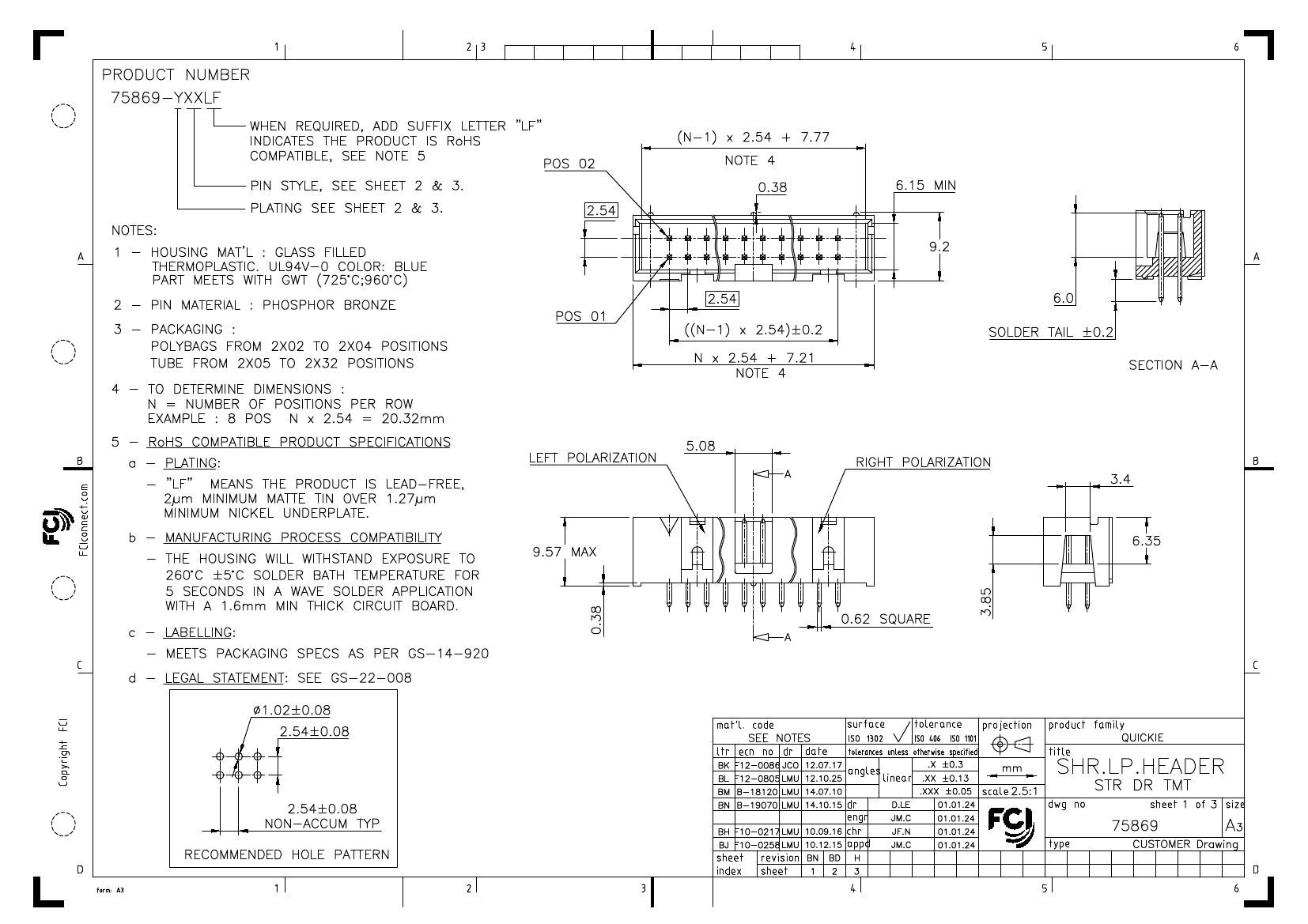

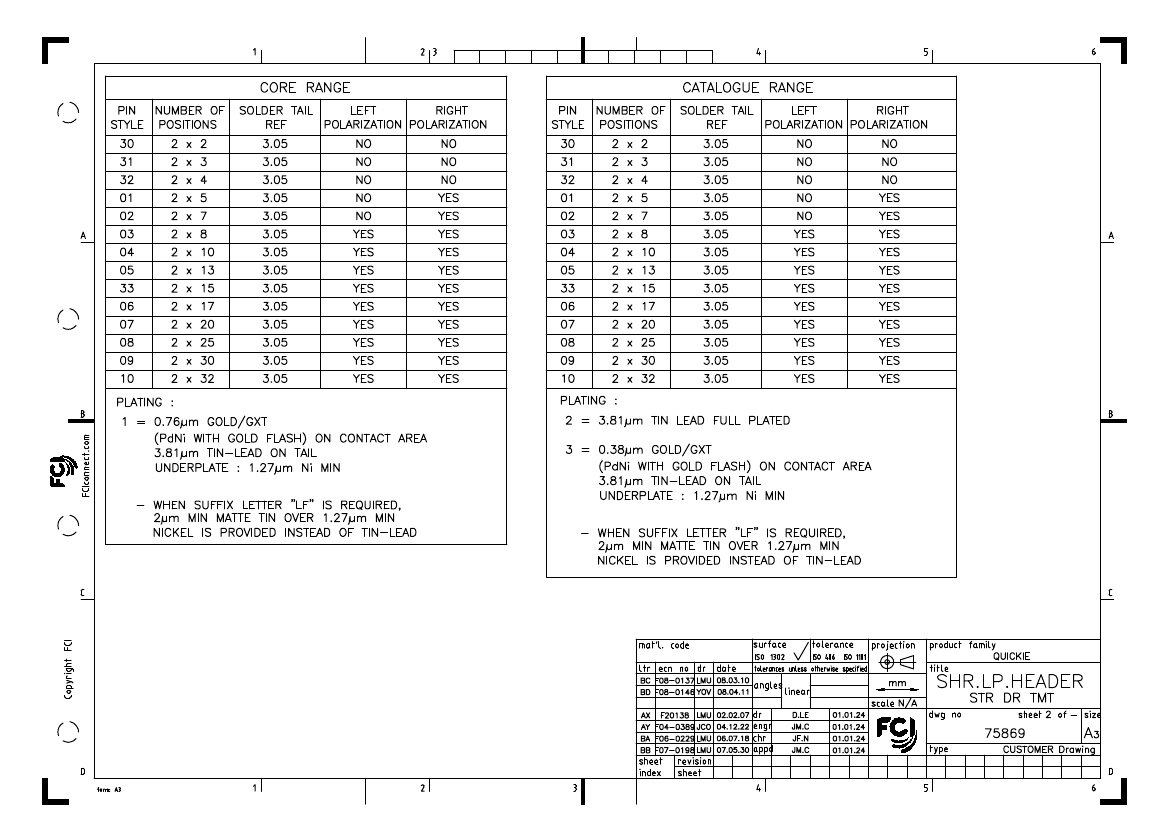

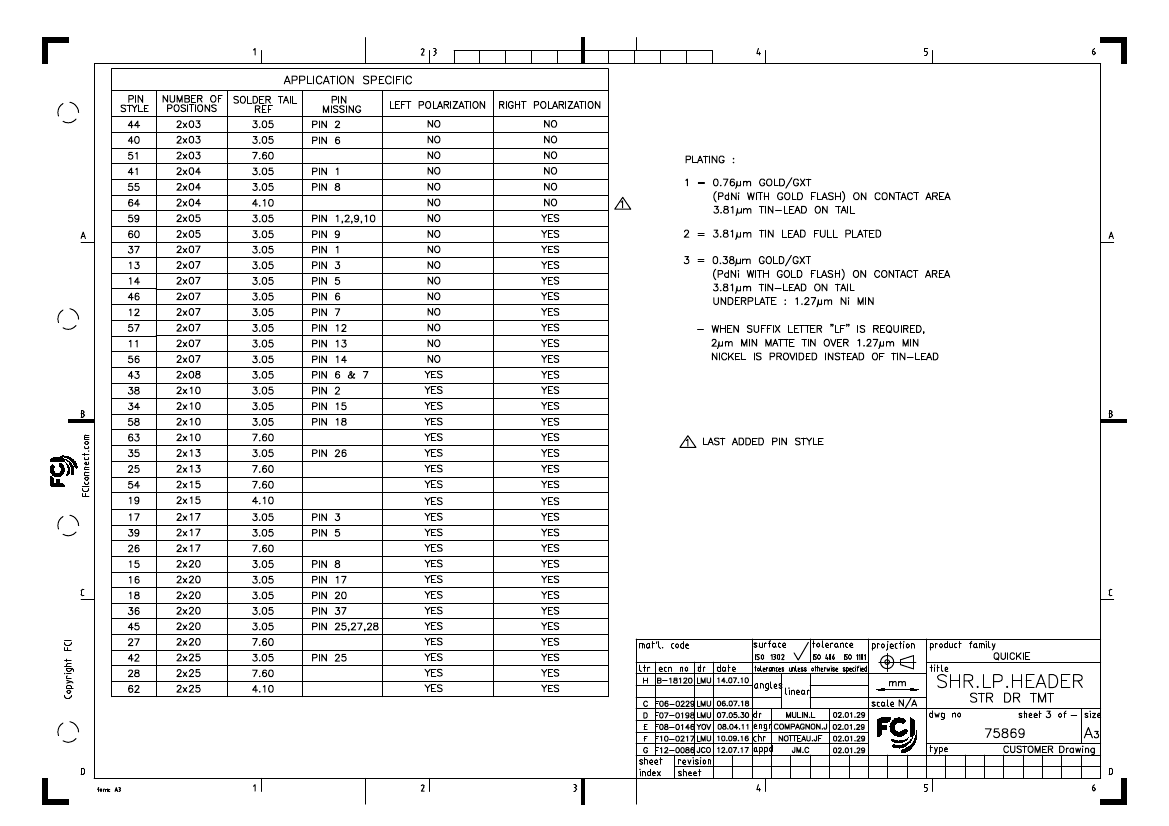

PDS: Rev :BN

STATUS:Released

Printed: Oct 16, 2014
