STR/LH/8/SES/RD datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> STR/LH/8/SES/RD

STR/LH/8/SES/RD: DescriptionSingle Color LED, Red, Diffused, 5.1mm,; CategoryLED optoelectronic/LED photoelectric; File Size30KB，2 Pages; ManufacturerOxley Group Ltd; Websitehttps://www.oxleygroup.com; Environmental Compliance

Download Datasheet Parametric View All

STR/LH/8/SES/RD Overview

Single Color LED, Red, Diffused, 5.1mm,

STR/LH/8/SES/RD Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Oxley Group Ltd
Objectid	1918595583
Reach Compliance Code	compliant
compound_id	8117756
color	RED
color@wavelength	Red
Configuration	SINGLE
Maximum forward current	0.02 A
Maximum forward voltage	2.2 V
Lens type	DIFFUSED
Nominal luminous intensity	15.0 mcd
Installation features	PANEL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	25 mm
method of packing	BULK
Maximum reverse voltage	5 V
shape	ROUND
size	5.1 mm
surface mount	NO
perspective	30 deg

Preview

Download Datasheet

View All

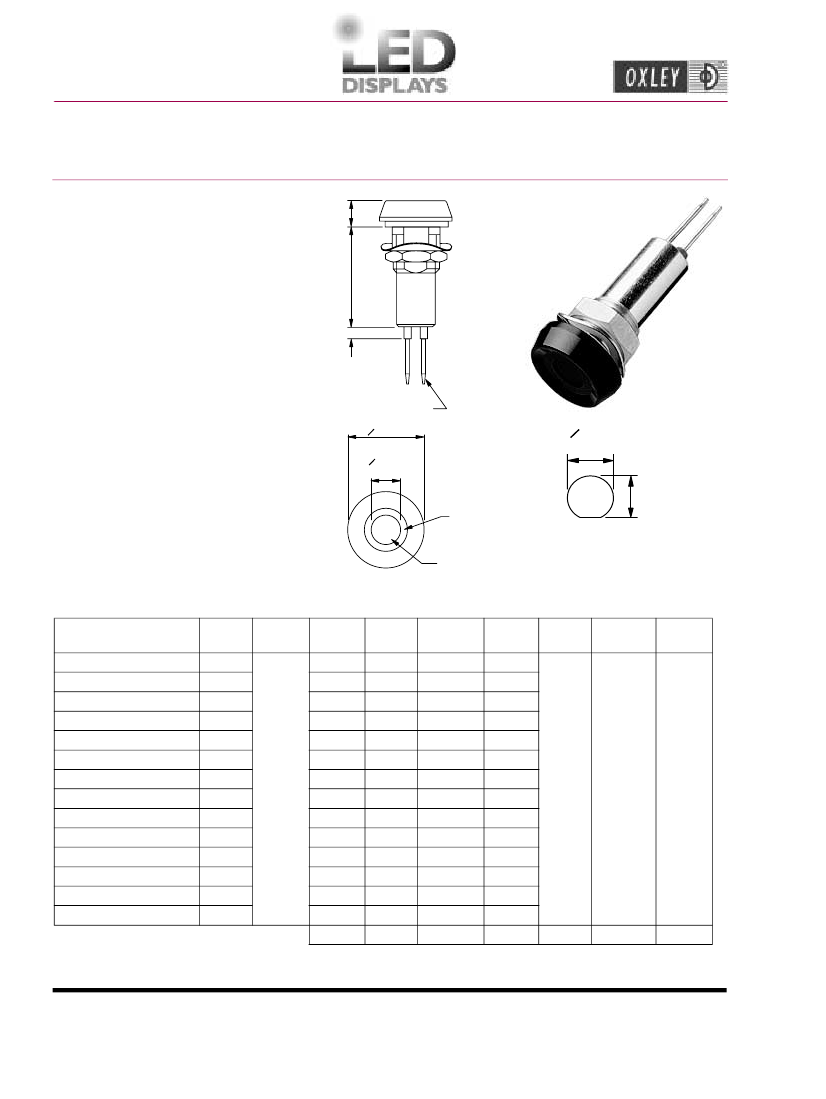

Type No. - STR/LH/8

Panel and lamp Body Sealed

Sunlight Viewable

Features

Panel and lamp body sealed;

Rugged glass and metal construction;

Visible up to 100,000 LUX

ambient illumination;

Special neutral density lens

eliminates reflected sunlight;

Contrast enhancing shroud design;

Sealed to IP68;

Five voltage ranges as standard.

5.5 mm

(0.216")

Single Chip LED

IP68 - Ø8.0

19.5 mm

(0.768")

1.5 mm

(0.197")

Terminations 8 mm (0.315")

to 11mm (0.433") min long

O13.1 mm

(0.516")

O5.1 mm

(0.201")

O 8 mm

(0.315")

Contrast

ring

7.5mm

(0.295")

Mounting Hole

Viewing

aperature

Ordering Information and Technical Characteristics (Ta = 25°C)

Ordering

Information

STR/LH/8/RAF/RD

STR/LH/8/RAF/YW

STR/LH/8/RAF/GN

STR/LH/8/RAF/H/RD

STR/LH/8/RAF/H/YW

STR/LH/8/RAPP/H/GN

STR/LH/8/RAF/H/BE

STR/LH/8/RAF/H/WE

STR/LH/8/5/RAF/RD

STR/LH/8/5/RAF/YW

STR/LH/8/5/RAF/GN

STR/LH/8/5/RAF/H/RD

STR/LH/8/5/RAF/H/YW

STR/LH/8/5/RAF/H/GN

Colour

Red

Yellow

Green

Red

Yellow

Green

Blue

White

Red

Yellow

Green

Red

Yellow

Green

Density

Neutral

Flat

Lens

Type

Forward Current Luminous Reverse Viewing Operating Storage

Voltage (mA)

Intensity Voltage Angle Temp

Temp

2.2

1.9

2.2

3.6

360

300

375

360

300

270

225

282

mcd

°C

Continued ...

+85

+100

30°

-40

www.oxleygroup.com/lamps

ODC: SMEPD: 40565/2-10/2000

Oxley Inc.

Email:

sales@oxleyinc.com

Tel: (203) 488 1033

Oxley UK

Electronics Componenst Division

Email:

sales@oxley.co.uk

Tel: +44 (0)1229 582621
