8693010160 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 8693010160

Preview

8693010160: DescriptionBoard Connector, 30 Contact(s), 2 Row(s), Male, 0.1 inch Pitch, IDC Terminal, Latch, Receptacle; CategoryThe connector The connector; File Size150KB，1 Pages; ManufacturerW+P Products GmbH

Download Datasheet Parametric Compare View All

8693010160 Overview

Board Connector, 30 Contact(s), 2 Row(s), Male, 0.1 inch Pitch, IDC Terminal, Latch, Receptacle

8693010160 Parametric

Parameter Name	Attribute value
Maker	W+P Products GmbH
Reach Compliance Code	compliant
body width	0.331 inch
subject depth	0.756 inch
body length	2.863 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VDC V
Insulation resistance	1000000000 Ω
insulator material	THERMOPLASTIC
Manufacturer's serial number	869
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LATCH
Installation option 2	LOCKING
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	30

Preview

Download Datasheet

View All

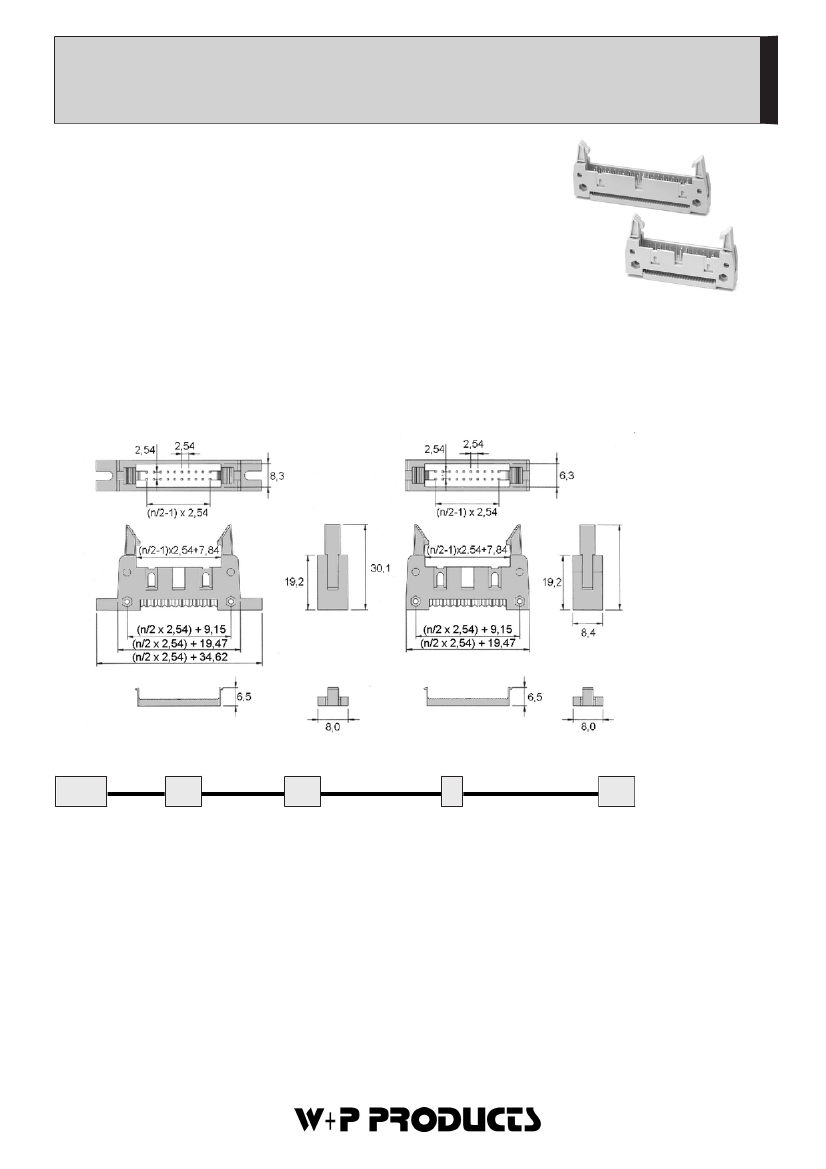

869

Wannenstecker - RM 2,54mm - Schneidklemm-Version - Verriegelung

Low Profile Header - Pitch 2,54mm - IDC-Type with Latches

Technische Daten /Technical

Data

Isolierkörper

Thermoplastischer Kunststoff, nach UL94 V-0

Insulator

Thermoplastic, rated UL94 V-0

Kontaktmaterial

Vierkantstift 0,635mm, CuZn30

Contact Material

Square pin 0,635mm, CuZn30

Kontaktoberfläche

Lt. Oberflächenoptionen, über Ni (1,3 ... 2,5µm)

Contact Surface

Acc. to options (see below), over Ni (1,3 ... 2,5µm)

Lötbarkeit

IEC512-12A

Solderability

IEC512-12A

Durchgangswiderstand

< 20mΩ

Contact Resistance

< 20mΩ

9

Isolationswiderstand

> 10

Ω

9

Insulation Resistance

> 10

Ω

Spannungsfestigkeit

1000V

DC

Test Voltage

1000V

DC

Nennspannung

250V

AC

Voltage Rating

250V

AC

Nennstrom

1A

Current Rating

1A

Temperaturbereich

-55°C ... +105°C

Temperature Range

-55°C ... +105°C

Passender Gegenstecker Serie:

Mates with Connector Series:

141

Series

Contacts

*

Latch

*

Mounting

*

Plating

869

20

10/14/16/20/24/26/

30/34/40/50/60/64

10

Kurze Hebel

Short latches

20

Lange Hebel

Long latches

0

Ohne Flansch

W/o flange

1

Mit Flansch

With flange

60

Sel. Au/Sn

Selectively plated

(

*

Bestellbeispiel - Bitte durch Ihre

Spezifikationen ersetzen.

*

Order example - To be replaced by your

specifications.)

TEL.: +49 5223 98507-0

FAX.: +49 5223 98507-50

E-MAIL: sales@wppro.com

INTERNET: www.wppro.com

1

8693010160 Related Products

	8693010160	8696410160	8692410160	8696010160	8692610160	8691410160
Description	Board Connector, 30 Contact(s), 2 Row(s), Male, 0.1 inch Pitch, IDC Terminal, Latch, Receptacle	Board Connector, 64 Contact(s), 2 Row(s), Male, 0.1 inch Pitch, IDC Terminal, Latch, Receptacle	Board Connector, 24 Contact(s), 2 Row(s), Male, 0.1 inch Pitch, IDC Terminal, Latch, Receptacle	Board Connector, 60 Contact(s), 2 Row(s), Male, 0.1 inch Pitch, IDC Terminal, Latch, Receptacle	Board Connector, 26 Contact(s), 2 Row(s), Male, 0.1 inch Pitch, IDC Terminal, Latch, Receptacle	Board Connector, 14 Contact(s), 2 Row(s), Male, 0.1 inch Pitch, IDC Terminal, Latch, Receptacle
Reach Compliance Code	compliant	compliant	compli	compliant	compliant	compliant
body width	0.331 inch	0.331 inch	0.331 inch	0.331 inch	0.331 inch	0.331 inch
subject depth	0.756 inch	0.756 inch	0.756 inch	0.756 inch	0.756 inch	0.756 inch
body length	2.863 inch	4.563 inch	2.563 inch	4.363 inch	2.663 inch	2.063 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contactor design	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact completed and terminated	TIN	TIN	TIN	TIN	TIN	TIN
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	1000VDC V	1000VDC V	1000VDC V	1000VDC V	1000VDC V	1000VDC V
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
Manufacturer's serial number	869	869	869	869	869	869
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Installation option 1	LATCH	LATCH	LATCH	LATCH	LATCH	LATCH
Installation option 2	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	2	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	1 A	1 A	1 A	1 A	1 A	1 A
Guideline	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Termination type	IDC	IDC	IDC	IDC	IDC	IDC
Total number of contacts	30	64	24	60	26	14
