CTH11506L45--FREQL datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> CTH11506L45--FREQL

CTH11506L45--FREQL: DescriptionCMOS/LSTTL Output Clock Oscillator, 1MHz Min, 70MHz Max; CategoryPassive components oscillator; File Size58KB，1 Pages; ManufacturerCardinal Components; Environmental Compliance

Download Datasheet Parametric View All

CTH11506L45--FREQL Overview

CMOS/LSTTL Output Clock Oscillator, 1MHz Min, 70MHz Max

CTH11506L45--FREQL Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Cardinal Components
Reach Compliance Code	compliant
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
Manufacturer's serial number	CTH11
Installation features	SURFACE MOUNT
Maximum operating frequency	70 MHz
Minimum operating frequency	1 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	CMOS/LSTTL
Output load	10 LS TTL, 15 pF
longest rise time	10 ns
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	45/55 %

Preview

Download Datasheet

View All

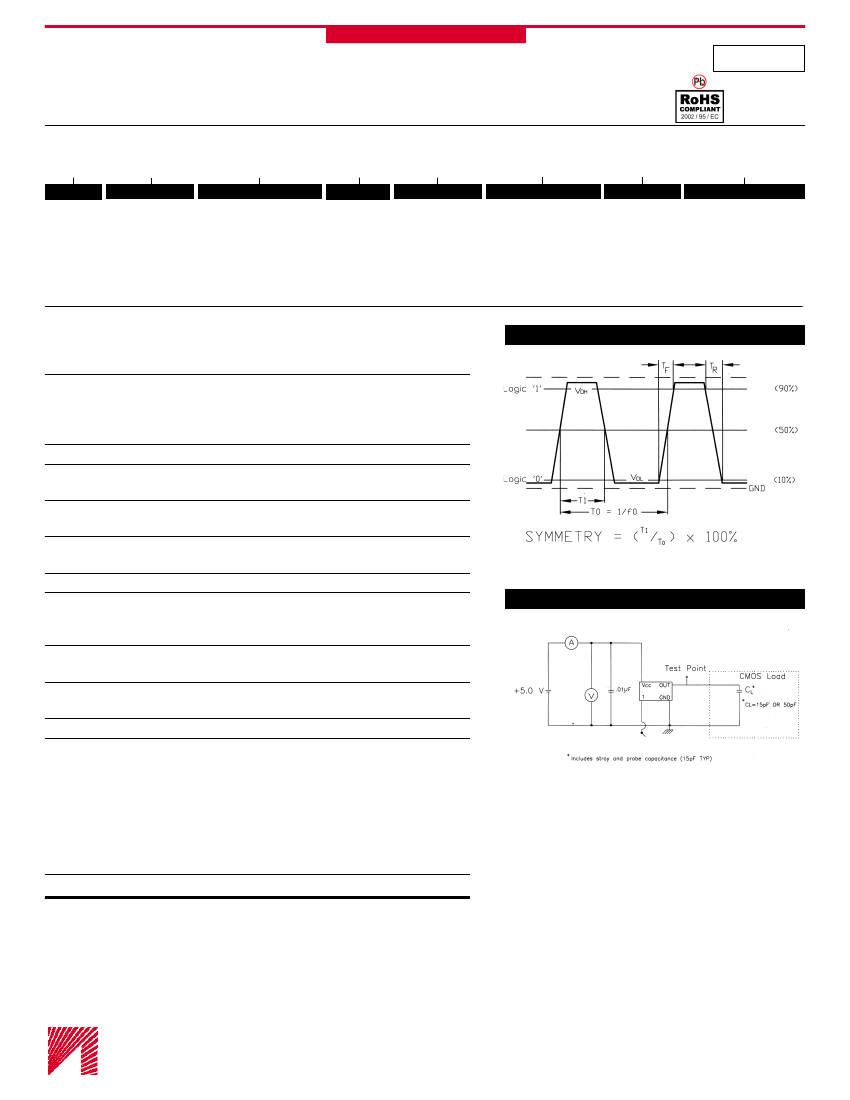

CARDINAL COMPONENTS

Crystal Clock Oscillator

• Gull wings optional

• Optional tristate

• TTL and CMOS compatible

Series CTH11

Part Numbering Example: CTH11 00 4 L 45 - A2 - 50.0 TS L

CTH11

SERIES

CTH11

STABILITY

00 = ±100 ppm

50 = ± 50 ppm

25 = ± 25 ppm

10 = ± 10 ppm

PACKAGE STYLE

= Full Size

= Full Size, Gull Wing

= Half Size

= Half Size, Gull Wing

VOLTAGE

Blank = 5V

L = 3.3V

50.0

FREQUENCY

Blank = No Connection

TS = Tristate, pin 1

SYMMETRY

OPERATING TEMP.

Blank = 40/60% Blank = 0°C ~ +70°C

45 = 45/55%

A2=-40°C ~ +85°C

Specifications:

Frequency Range:

1.000 MHz to 70.000 MHz

OUTPUT WAVE FORM

Standard

Available Stability Options:

±100 ppm

±50 ppm

±25 ppm

±10 ppm

Output Series:

Input Voltage:

Operating Temperature

Range Options:

Output Voltage:

Output Load:

Maximum Input Current:

TTL/CMOS

+5.0 VDC ±10%

+3.3 VDC ±10%

-10°C to +70°C

HCMOS V

= 10% V

V Max.

HCMOS V

= 90% V

V Min.

10 LS TTL, 15 pf CMOS

20 mA (1.000 to 24.999 MHz)

35 mA (25.000 to 49.999 MHz)

50 mA (50.000 to 70.000 MHz)

10 ns (1.000 to 23.999 MHz)

6 ns (24.000 to 70.000 MHz)

40/60%

45/55%

10 ms

@+5 VDC Input

+0.80 VDC Max. to Disable

+3.60 VDC Min. to Enable

or Open to Enable

@+3.3 VDC Input

+0.80 VDC Max. to Disable

+2.20 VDC Min. to Enable

or open to Enable

-55°C to +125°C

TEST CIRCUIT

Maximum Rise/Fall Time:

Duty Cycle:

Max. Start-Up Time:

Tristate Input:

Standard

Storage Temperature:

Cardinal Components, Inc., 155 Rt. 46 W, Wayne, NJ. 07470 TEL: (973)785-1333 FAX: (973)785-0053

http://www.cardinalxtal.com

E-Mail: cardinal@cardinalxtal.com
