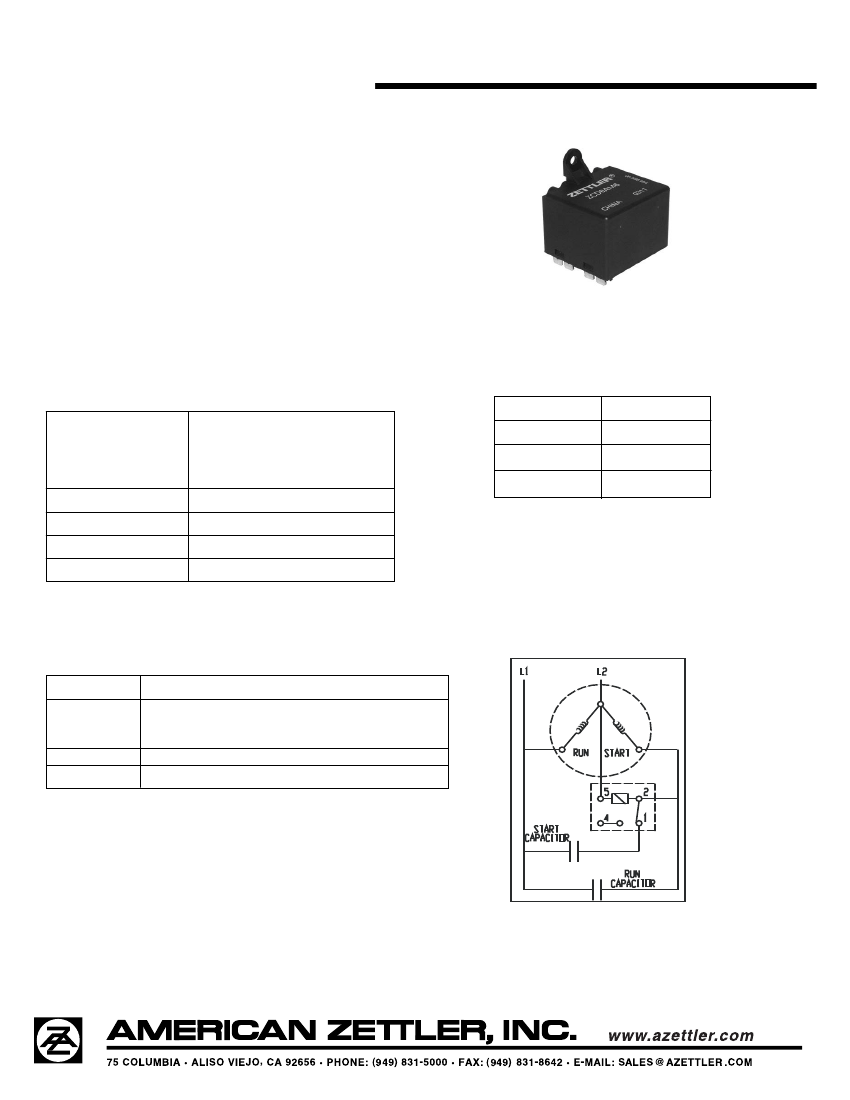

ZCPR Series

MOTOR START POTENTIAL RELAY

FEATURES

•

50A switching capability

SPST-NC configurations

.250” quick connect termination

ISO 9001 certified

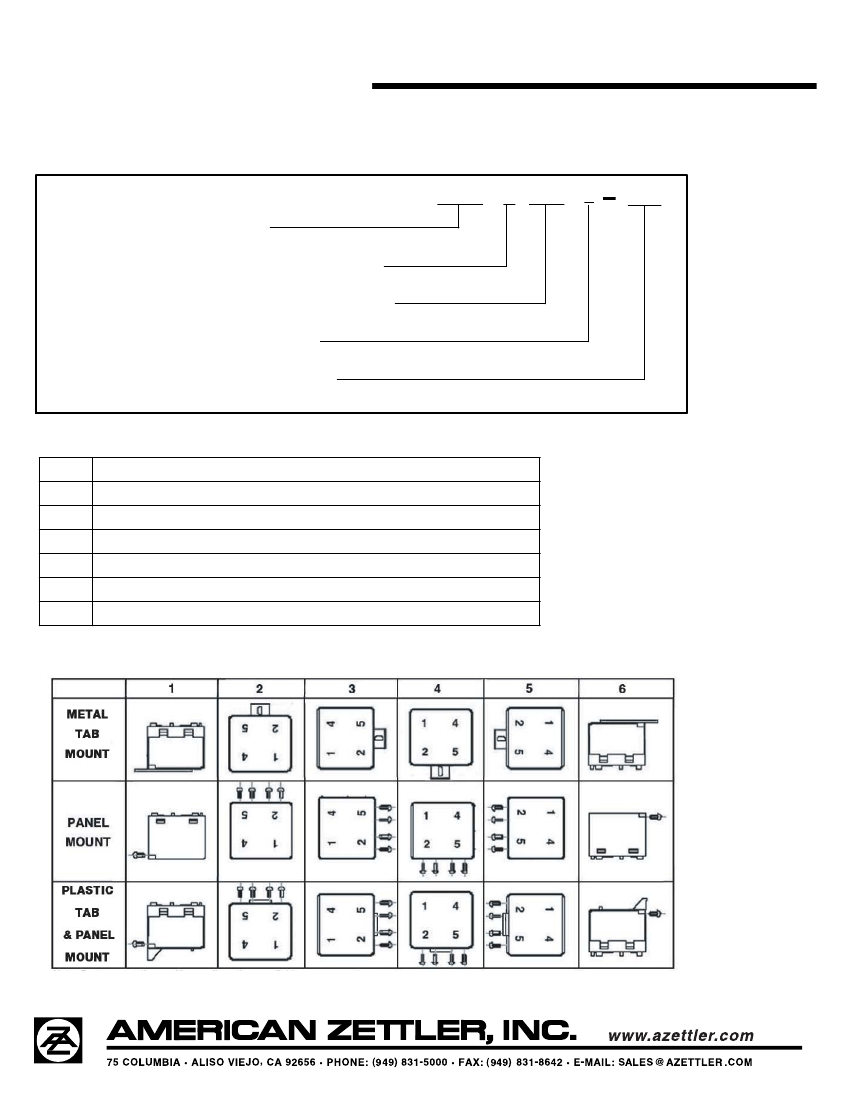

Variety of mounting positions

UL, CUR SA11095

Non-position sensitive design*

ZCPRA6AM6

GENERAL DATA

Life Expectancy

Mechanical

Electrical

Minimum operations

7.5 x 10

5 x 10

at 16A 400VAC

2 x 10

at 35A 400VAC (break only)

1 x 10

at 50A 400VAC (break only)

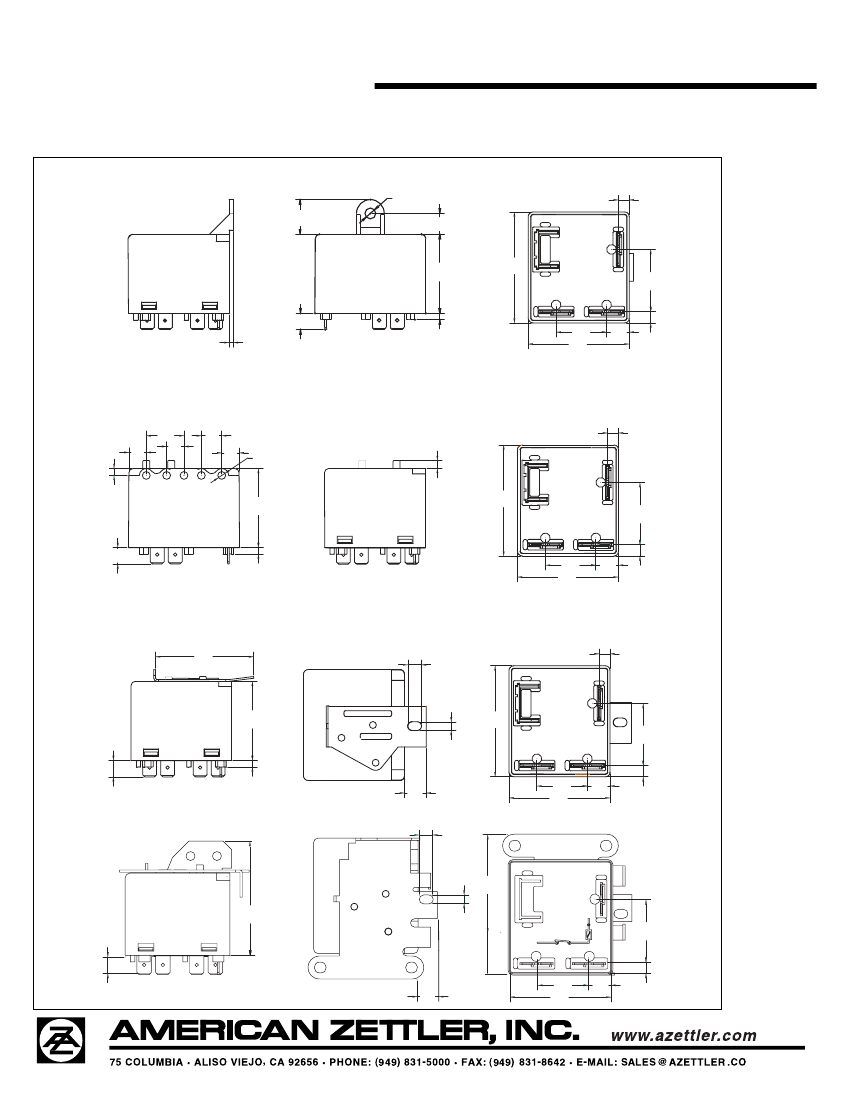

51.2 x 46.6 x 36.5

Unsealed

approx. 110 grams

COIL

Coil Consumption

Coil Voltage

Coil Resistance

Insulation System

5VA

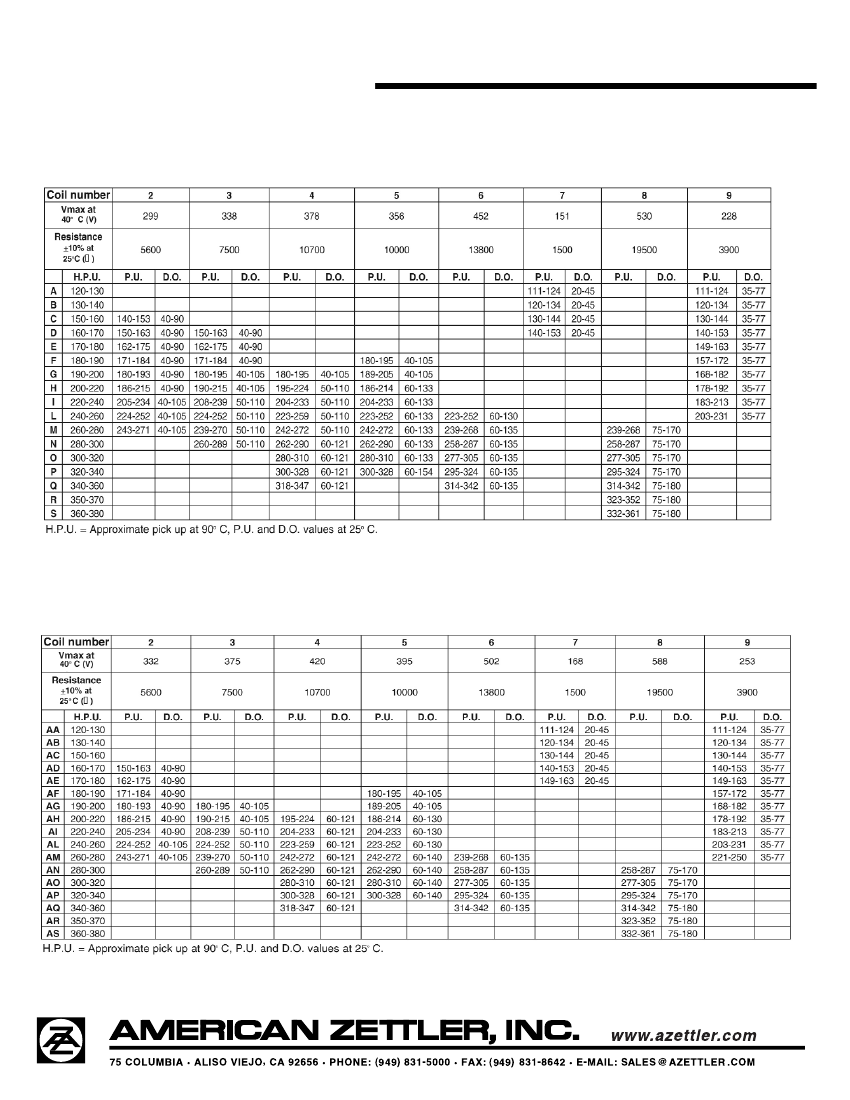

See table A & B

Class B (130

Dimensions (mm)

Construction

Weight

Ambient Operating Temp.

-20°C to 40°C

CONTACTS

Arrangement

Ratings

SPST-NC

16A (make and break), 400 VAC, cos

= 0.7 to 0.8

35A (break only), 400 VAC cos

= 0.7 to 0.8

50A (break only), 400 VAC cos

= 0.7 to 0.8

Silver cadmium oxide

< 50 milliohms at 1A 24VDC

WIRING DIAGRAM

Material

Resistance

*Except in position #3

1/22/13
