CPZ28X
w w w. c e n t r a l s e m i .
c o m
Zener Diode Die
0.5W, 2.4 THRU 75 VOLT
The CPZ28X silicon Zener diode series is ideal for all types of commercial, industrial, entertainment,
and computer applications. The Zener voltage tolerance is ±5%. See packing options for ordering
information.
MECHANICAL SPECIFICATIONS:
Die Size
Die Thickness
Anode Bonding Pad Size
Top Side Metalization
Back Side Metalization
Scribe Alley Width
Wafer Diameter
BACKSIDE CATHODE
R0
13 x 13 MILS
5.5 MILS
7.0 x 7.0 MILS
Ti/Al – 13,000Å
Au-As – 9,000Å
1.97 MILS
5 INCHES
101,184
UNITS
°C
Gross Die Per Wafer
SYMBOL
TJ, Tstg
-65 to +150
ELECTRICAL CHARACTERISTICS:
(TA=25°C) VF=1.1V MAX @ IF=200mA (for all types)
ZENER
VOLTAGE
TYPE
MIN
V
1N5221B
1N5222B
1N5223B
1N5224B
1N5225B
1N5226B
1N5227B
1N5228B
1N5229B
1N5230B
1N5231B
1N5232B
1N5233B
1N5234B
1N5235B
1N5236B
1N5237B
1N5238B
1N5239B
1N5240B
1N5241B
1N5242B
1N5243B
1N5244B
1N5245B
1N5246B
2.280
2.375
2.565
2.660
2.850
3.135
3.420
3.705
4.085
4.465
4.845
5.320
5.700
5.890
6.460
7.125
7.790
8.265
8.645
9.500
10.45
11.40
12.35
13.30
14.25
15.20
VZ @ IZT
NOM
V
2.4
2.5
2.7
2.8
3.0
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.0
6.2
6.8
7.5
8.2
8.7
9.1
10
11
12
13
14
15
16
MAX
V
2.520
2.625
2.835
2.940
3.150
3.465
3.780
4.095
4.515
4.935
5.355
5.880
6.300
6.510
7.140
7.875
8.610
9.135
9.555
10.50
11.55
12.60
13.65
14.70
15.75
16.80
TEST
CURRENT
IZT
mA
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
9.5
9.0
8.5
7.8
MAXIMUM ZENER
IMPEDANCE
ZZT @ IZT
Ω
30
30
30
30
29
28
24
23
22
19
17
11
7.0
7.0
5.0
6.0
8.0
8.0
10
17
22
30
13
15
16
17
ZZK @ IZK
Ω
mA
1200
1250
1300
1400
1600
1600
1700
1900
2000
1900
1600
1600
1600
1000
750
500
500
600
600
600
600
600
600
600
600
600
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
MAXIMUM
REVERSE
CURRENT
IR
μA
100
100
75
75
50
25
15
10
5.0
5.0
5.0
5.0
5.0
5.0
3.0
3.0
3.0
3.0
3.0
3.0
2.0
1.0
0.5
0.1
0.1
0.1
@
VR
V
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
2.0
2.0
3.0
3.5
4.0
5.0
6.0
6.5
6.5
7.0
8.0
8.4
9.1
9.9
10
11
12
MAXIMUM RATINGS:
Operating and Storage Junction Temperature
MAXIMUM
TEMPERATURE
COEFFICIENT
V
Z
%/°C
-0.085
-0.085
-0.080
-0.080
-0.075
-0.070
-0.065
-0.060
±0.055
±0.030
±0.030
+0.038
+0.038
+0.045
+0.050
+0.058
+0.062
+0.065
+0.068
+0.075
+0.076
+0.077
+0.079
+0.082
+0.082
+0.083
R0 (23-March 2015)
CPZ28X
Zener Diode Die
0.5W, 2.4 THRU 75 VOLT
w w w. c e n t r a l s e m i .
c o m
ELECTRICAL CHARACTERISTICS - Continued:
(TA=25°C) VF=1.1V MAX @ IF=200mA (for all types)
ZENER
VOLTAGE
TYPE
MIN
V
1N5247B
1N5248B
1N5249B
1N5250B
1N5251B
1N5252B
1N5253B
1N5254B
1N5255B
1N5256B
1N5257B
1N5258B
1N5259B
1N5260B
1N5261B
1N5262B
1N5263B
1N5264B
1N5265B
1N5266B
1N5267B
16.15
17.10
18.05
19.00
20.90
22.80
23.75
25.65
26.60
28.50
31.35
34.20
37.05
40.85
44.65
48.45
53.20
57.00
58.90
64.60
71.25
VZ @ IZT
NOM
V
17
18
19
20
22
24
25
27
28
30
33
36
39
43
47
51
56
60
62
68
75
MAX
V
17.85
18.90
19.95
21.00
23.10
25.20
26.25
28.35
29.40
31.50
34.65
37.80
40.95
45.15
49.35
53.55
58.80
63.00
65.10
71.40
78.75
TEST
CURRENT
IZT
mA
7.4
7.0
6.6
6.2
5.6
5.2
5.0
4.6
4.5
4.2
3.8
3.4
3.2
3.0
2.7
2.5
2.2
2.1
2.0
1.8
1.7
MAXIMUM ZENER
IMPEDANCE
ZZT @ IZT
Ω
19
21
23
25
29
33
35
41
44
49
58
70
80
93
105
125
150
170
185
230
270
ZZK @ IZK
Ω
mA
600
600
600
600
600
600
600
600
600
600
700
700
800
900
1000
1100
1300
1400
1400
1600
1700
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
MAXIMUM
REVERSE
CURRENT
IR
μA
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
@
VR
V
13
14
14
15
17
18
19
21
21
23
25
27
30
33
36
39
43
46
47
52
56
MAXIMUM
TEMPERATURE
COEFFICIENT
V
Z
%/°C
+0.084
+0.085
+0.086
+0.086
+0.087
+0.088
+0.089
+0.090
+0.091
+0.091
+0.092
+0.093
+0.094
+0.095
+0.095
+0.096
+0.096
+0.097
+0.097
+0.097
+0.098
PACKING OPTIONS:
• CPZ28X-(type number)-CT: Singulated die in waffle pack; 400 die per tray.
• CPZ28X-(type number)-WN: Full wafer, unsawn, 100% tested with reject die inked.
• CPZ28X-(type number)-WR: Full wafer, sawn and mounted on plastic ring, 100% tested with reject die inked.
R0 (23-March 2015)
CPZ28X

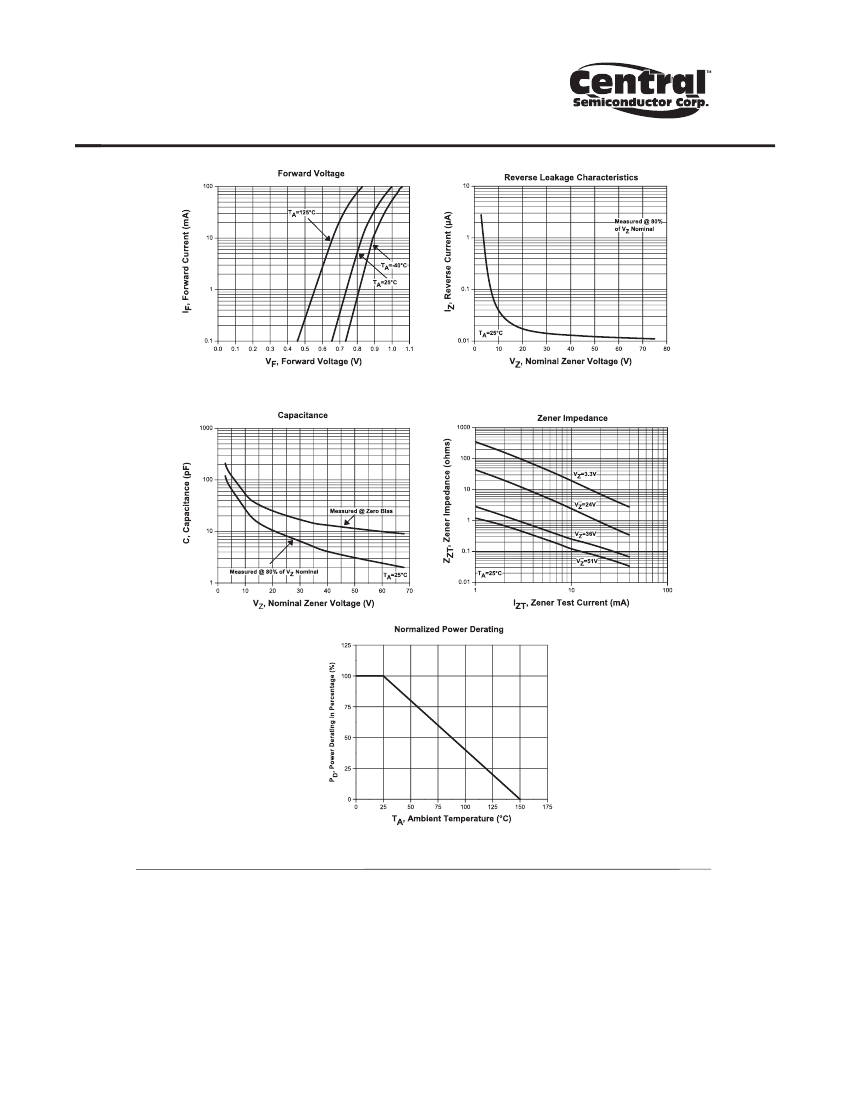

Typical Electrical Characteristics
w w w. c e n t r a l s e m i .
c o m
R0 (23-March 2015)
BARE DIE PACKING OPTIONS
BARE DIE IN TRAY (WAFFLE) PACK
CT:
Singulated die in tray (waffle) pack.
(example: CP211-PART NUMBER-CT)
CM:
Singulated die in tray (waffle) pack 100% visually inspected as
per MIL-STD-750, (method 2072 transistors, method 2073 diodes).
(example: CP211-PART NUMBER-CM)
UNSAWN WAFER
WN:
Full wafer, unsawn, 100% tested with reject die inked.
(example: CP211-PART NUMBER-WN)
SAWN WAFER ON PLASTIC RING
WR:
Full wafer, sawn and mounted on plastic ring,
100% tested with reject die inked.
(example: CP211-PART NUMBER-WR)
SAWN WAFER ON METAL FRAME
WS:
Full wafer, sawn and mounted on metal frame,
100% tested with reject die inked.
(example: CP211-PART NUMBER-WS)
R0 (7-December 2015)
w w w. c e n t r a l s e m i . c o m
OUTSTANDING SUPPORT AND SUPERIOR SERVICES
PRODUCT SUPPORT
Central’s operations team provides the highest level of support to insure product is delivered on-time.
• Supply management (Customer portals)
• Custom bar coding for shipments
• Inventory bonding
• Custom product packing
• Consolidated shipping options
DESIGNER SUPPORT/SERVICES
Central’s applications engineering team is ready to discuss your design challenges. Just ask.
• Free quick ship samples (2
nd
day air)
• Special wafer diffusions
• Online technical data and parametric search
• PbSn plating options
• SPICE models
• Package details
• Custom electrical curves
• Application notes
• Environmental regulation compliance
• Application and design sample kits
• Customer specific screening
• Custom product and package development
• Up-screening capabilities
CONTACT US
Corporate Headquarters & Customer Support Team
Central Semiconductor Corp.
145 Adams Avenue
Hauppauge, NY 11788 USA
Main Tel: (631) 435-1110
Main Fax: (631) 435-1824
Support Team Fax: (631) 435-3388
www.centralsemi.com
Worldwide Field Representatives:
www.centralsemi.com/wwreps
Worldwide Distributors:
www.centralsemi.com/wwdistributors
For the latest version of Central Semiconductor’s
LIMITATIONS AND DAMAGES DISCLAIMER,
which is part of Central’s Standard Terms and Conditions of sale, visit: www.centralsemi.com/terms
