UVC16RQN800.0000MHZ: DescriptionOscillator, 0.75MHz Min, 800MHz Max, 800MHz Nom,; CategoryPassive components oscillator; File Size399KB，2 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com; Environmental Compliance

Download Datasheet Parametric View All

UVC16RQN800.0000MHZ Overview

Oscillator, 0.75MHz Min, 800MHz Max, 800MHz Nom,

UVC16RQN800.0000MHZ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	MtronPTI
package instruction	DILCC6,.2
Reach Compliance Code	compliant
JESD-609 code	e4
Installation features	SURFACE MOUNT
Number of terminals	6
Maximum operating frequency	800 MHz
Minimum operating frequency	0.75 MHz
Nominal operating frequency	800 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC
Encapsulate equivalent code	DILCC6,.2
power supply	3.3 V
Certification status	Not Qualified
Maximum slew rate	110 mA
Nominal supply voltage	3.3 V
surface mount	YES
Terminal surface	Nickel/Gold (Ni/Au)

Preview

Download Datasheet

View All

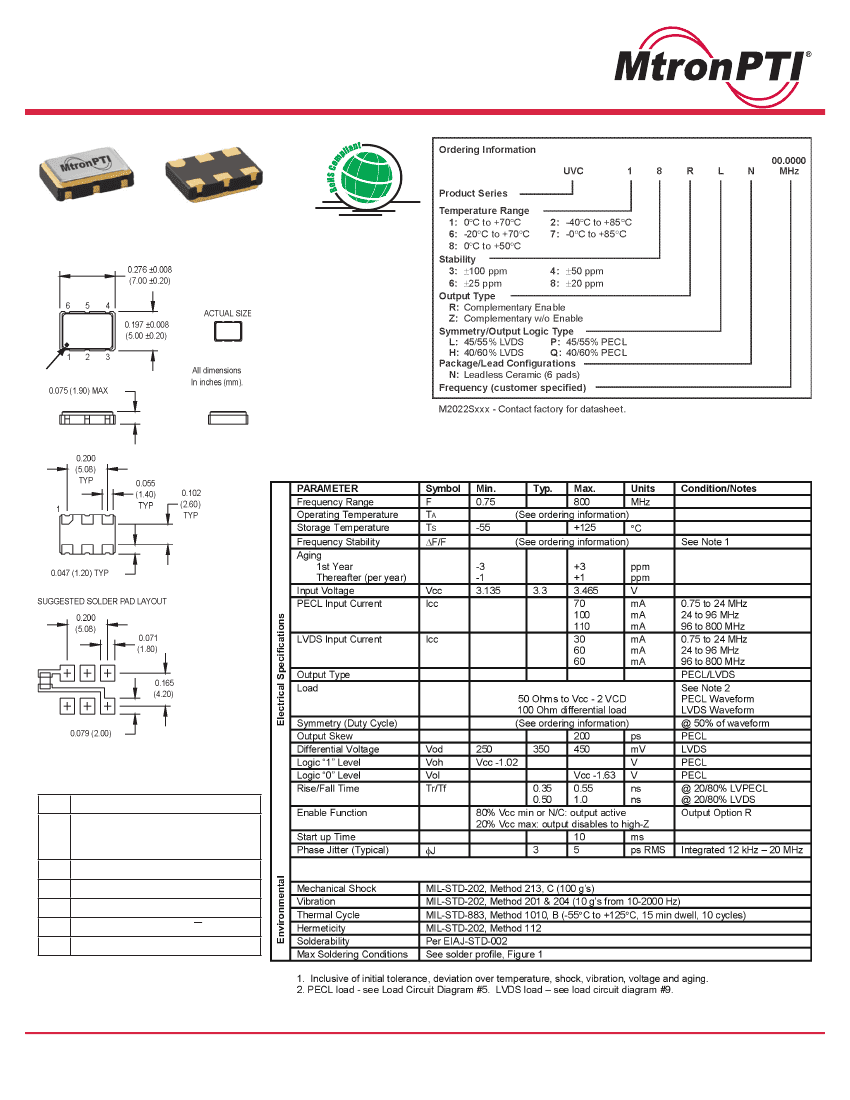

UVC Series

5x7 mm, 3.3 Volt, LVPECL/LVDS, Clock Oscillators

DENOTES PIN 1

Pad Connections

Pad

1

2

3

4

5

6

Function

Enable/Disable for “R” Output Type

or

N/C for “Z” Output Type

N/C

Ground

Output Q

Complementary Output Q

+ Vdd

MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.

Please see

www.mtronpti.com

for our complete offering and detailed datasheets. Contact us for your application specific requirements: MtronPTI

1-800-762-8800.

Revision: 8-22-08
